Hoteche 9-Inch House Paint Roller with Extendable Frame (Model 422401) Instruction Manual

1. Introduction

This manual provides detailed instructions for the safe and effective use of your Hoteche 9-Inch House Paint Roller with Extendable Frame. Please read this manual thoroughly before initial use and retain it for future reference. This paint roller is designed for efficient application of paint on various surfaces, including walls and ceilings, and features an extendable frame for reaching different heights.

2. Product Overview and Components

The Hoteche 9-Inch Extendable Paint Roller consists of several key components designed for optimal painting performance.

9-Inch Roller Cover: Made from a polyacrylic mix polyester fabric with a 12mm pile, designed for excellent paint coverage and smooth finishes.
Extendable Frame: Allows adjustment of the roller's length from 45cm (18 inches) to 89cm (35 inches).
Zinc-Plated Main Rod: A durable 7.9mm rod providing strong and rust-resistant construction.
4-Wire Cage Frame: Securely holds the roller cover, preventing wobbling during application.
Soft-Grip Foam Handle: Ergonomically designed for comfort and reduced hand fatigue during extended use.

Hoteche 9-inch extendable paint roller with a separate roller cover. — Figure 2.1: This image displays the complete Hoteche 9-inch extendable paint roller assembly, including the handle, extendable pole, roller frame, and a detachable roller cover. A spare roller cover is shown separately.

Close-up of the 9-inch paint roller cover with dimensions and features like non-shedding and easy replacement. — Figure 2.2: This image provides a detailed view of the 9-inch (230mm) roller cover, highlighting its 60mm (2.4 inches) diameter and 40mm (1.6 inches) core. Text indicates features such as 'Never shed hair', 'Lengthen and increase' (referring to the frame), and 'Easy to replace'.

3. Setup

Attach the Roller Cover: Slide the 9-inch roller cover onto the 4-wire cage frame until it is fully seated and secure. Ensure the cover is centered and does not wobble.
Adjust Handle Length: To extend the handle, twist the locking mechanism on the pole counter-clockwise to loosen. Pull the handle to the desired length (between 18 and 35 inches). Once the desired length is achieved, twist the locking mechanism clockwise to secure it firmly in place.

Diagram showing three adjustable lengths of the Hoteche paint roller: 18 inches, 26 inches, and 35 inches. — Figure 3.1: A visual guide illustrating the three adjustable length settings of the Hoteche paint roller: 450mm (18 inches), 650mm (26 inches), and 890mm (35 inches), demonstrating its versatility for different reach requirements.

4. Operating Instructions

Surface Preparation: Ensure the surface to be painted is clean, dry, and free from dust or debris. Mask off any areas not intended for painting.
Loading Paint: Dip the roller cover into the paint tray, rolling it back and forth on the ribbed section of the tray to evenly distribute paint and remove excess. The roller cover's 850g/sqm weight ensures effective paint absorption and release.
Applying Paint: Apply paint to the surface using smooth, even strokes. For walls, work in sections, typically in a 'W' or 'M' pattern, then fill in the gaps. For ceilings, work in one direction, then cross-hatch for even coverage.
Utilizing Extendable Feature: Adjust the handle length as needed to comfortably reach high walls or ceilings without the use of a ladder, enhancing safety and convenience.

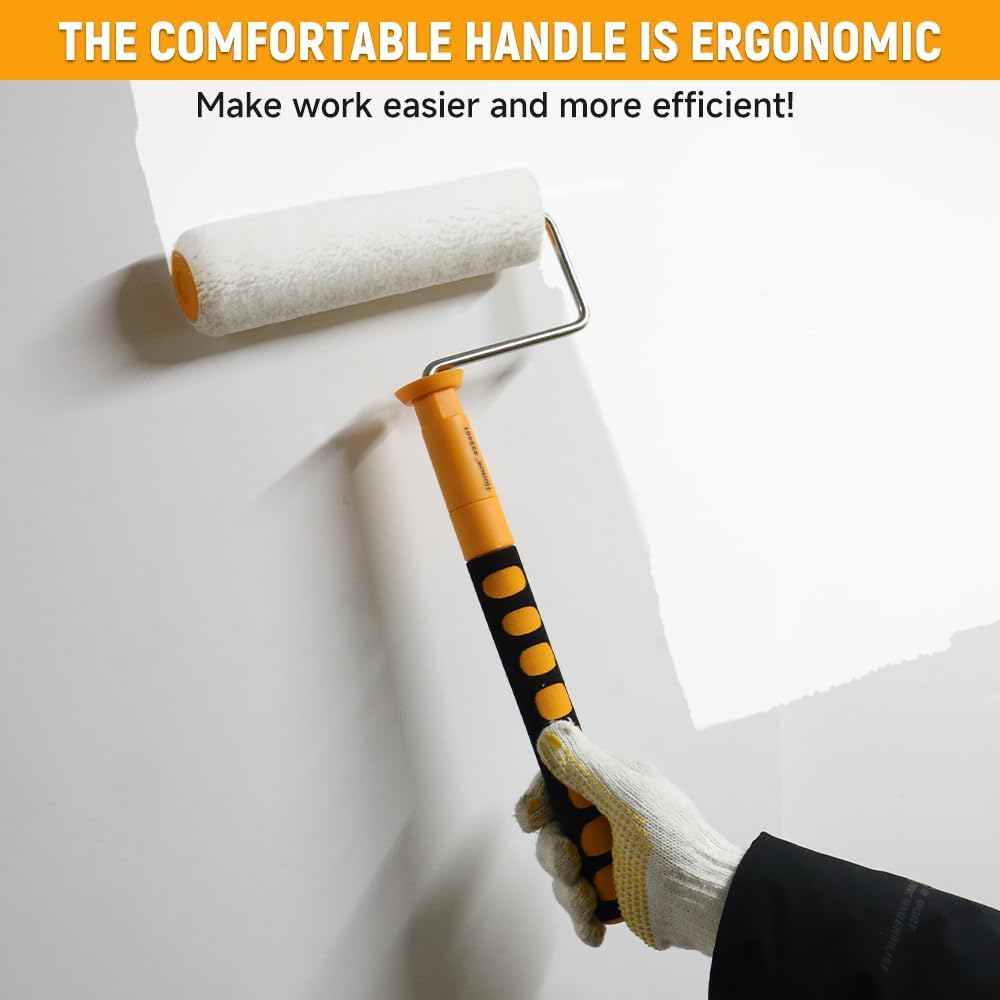

Person using the Hoteche paint roller to paint a white wall, showcasing the ergonomic foam handle. — Figure 4.1: A person wearing gloves is depicted using the Hoteche paint roller to apply white paint to a wall. The image focuses on the ergonomic soft-grip foam handle, designed for comfort during use.

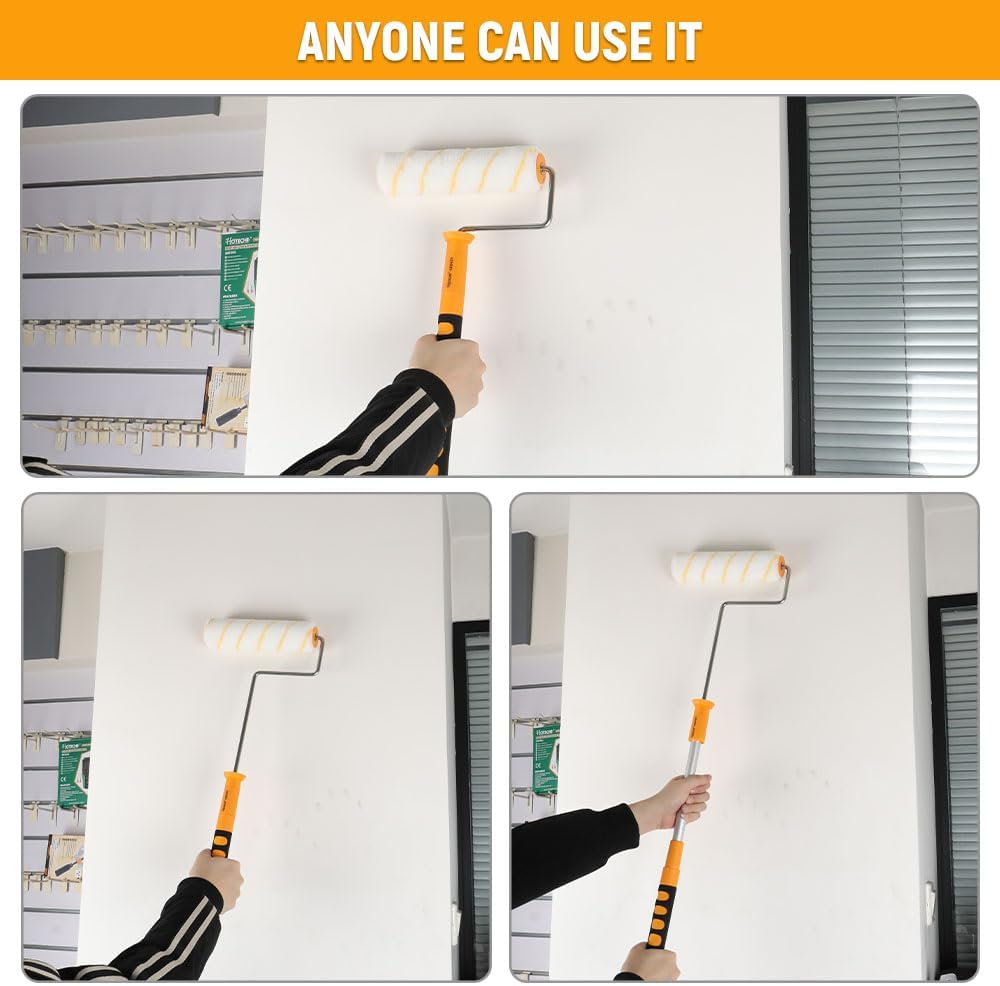

Sequence of images showing a person using the paint roller at different lengths for various painting tasks. — Figure 4.2: A series of three images demonstrates the paint roller's adaptability. The first shows short-handle use, the second shows a slightly extended handle, and the third shows the fully extended handle for reaching higher areas, illustrating its ease of use for different painting scenarios.

5. Maintenance

Cleaning the Roller Cover: Immediately after use, remove the roller cover from the frame. For water-based paints, rinse the cover thoroughly under running water until all paint residue is removed. Squeeze out excess water and allow it to air dry completely. For oil-based paints, clean with appropriate solvents as per paint manufacturer instructions, then rinse and dry.
Cleaning the Frame: Wipe down the roller frame, including the rod and handle, with a damp cloth to remove any paint splatters. Ensure the locking mechanism is free of paint to maintain smooth operation.
Storage: Store the clean, dry roller cover and frame in a dry place, away from direct sunlight and extreme temperatures.

Three 9-inch microfiber paint roller covers on grass, emphasizing non-shedding, ultra-fine fibers, and reusability. — Figure 5.1: Three 9-inch microfiber roller covers are shown resting on grass. The image points out key attributes: 'Non-shedding', 'Ultra-fine fibers for better paint absorption', and 'Rinse for Reuse', indicating the covers' quality and ease of maintenance.

6. Troubleshooting

Uneven Paint Coverage: Ensure the roller cover is fully saturated with paint but not overloaded. Apply consistent pressure and overlap strokes slightly.
Paint Splattering: This can occur if the roller is overloaded with paint or if it is rolled too quickly. Reduce paint load and apply paint with controlled, slower movements.
Roller Wobbling: Ensure the roller cover is securely attached to the 4-wire cage frame. The frame is designed to prevent wobbling, so re-check the attachment if this occurs.
Difficulty Adjusting Length: Ensure the locking mechanism is fully loosened before attempting to extend or retract the handle. Clean any paint or debris from the locking mechanism if it feels stiff.

7. Specifications

Feature	Detail
Brand	Hoteche
Model Number	422401
Roller Cover Size	9 inches (230mm)
Roller Cover Material	Polyacrylic mix Polyester
Roller Cover Pile	12mm
Roller Cover Weight	850g/sqm
Extendable Length	45cm (18 inches) to 89cm (35 inches)
Main Rod Diameter	7.9mm (Zinc-Plated)
Handle Type	Soft-Grip Foam
Item Weight	1.19 pounds
Included Components	9" Yellow stripe Extension Roller

8. Warranty

Warranty information for the Hoteche 9-Inch House Paint Roller is not explicitly detailed in this manual. For specific warranty terms and conditions, please contact Hoteche customer support directly or refer to the product packaging.

9. Support

For further assistance, product inquiries, or to explore other Hoteche products, please visit the official Hoteche Store:
