LYAYYDS 2000W Powerful Bagless Cylinder Vacuum Cleaner User Manual

1. Introduction

Thank you for purchasing the LYAYYDS 2000W Powerful Bagless Cylinder Vacuum Cleaner. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before first use and keep it for future reference.

Figure 1.1: LYAYYDS 2000W Powerful Bagless Cylinder Vacuum Cleaner with its main components.

2. Important Safety Information

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury.

• Read all instructions before using the appliance.
• Do not leave the vacuum cleaner unattended when plugged in. Unplug from outlet when not in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer’s recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or vacuum cleaner with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce airflow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store your vacuum cleaner indoors in a cool, dry area.

3. Package Contents

Carefully unpack your vacuum cleaner and check that all items are present and in good condition. If any items are missing or damaged, please contact your retailer.

• Vacuum Cleaner Unit (Main Body)
• Flexible Hose
• Telescopic Wand/Extension Tube
• Floor Brush/Head
• 2-in-1 Dusting Brush/Crevice Tool
• User Manual

4. Product Overview

Familiarize yourself with the components of your vacuum cleaner before assembly and operation.

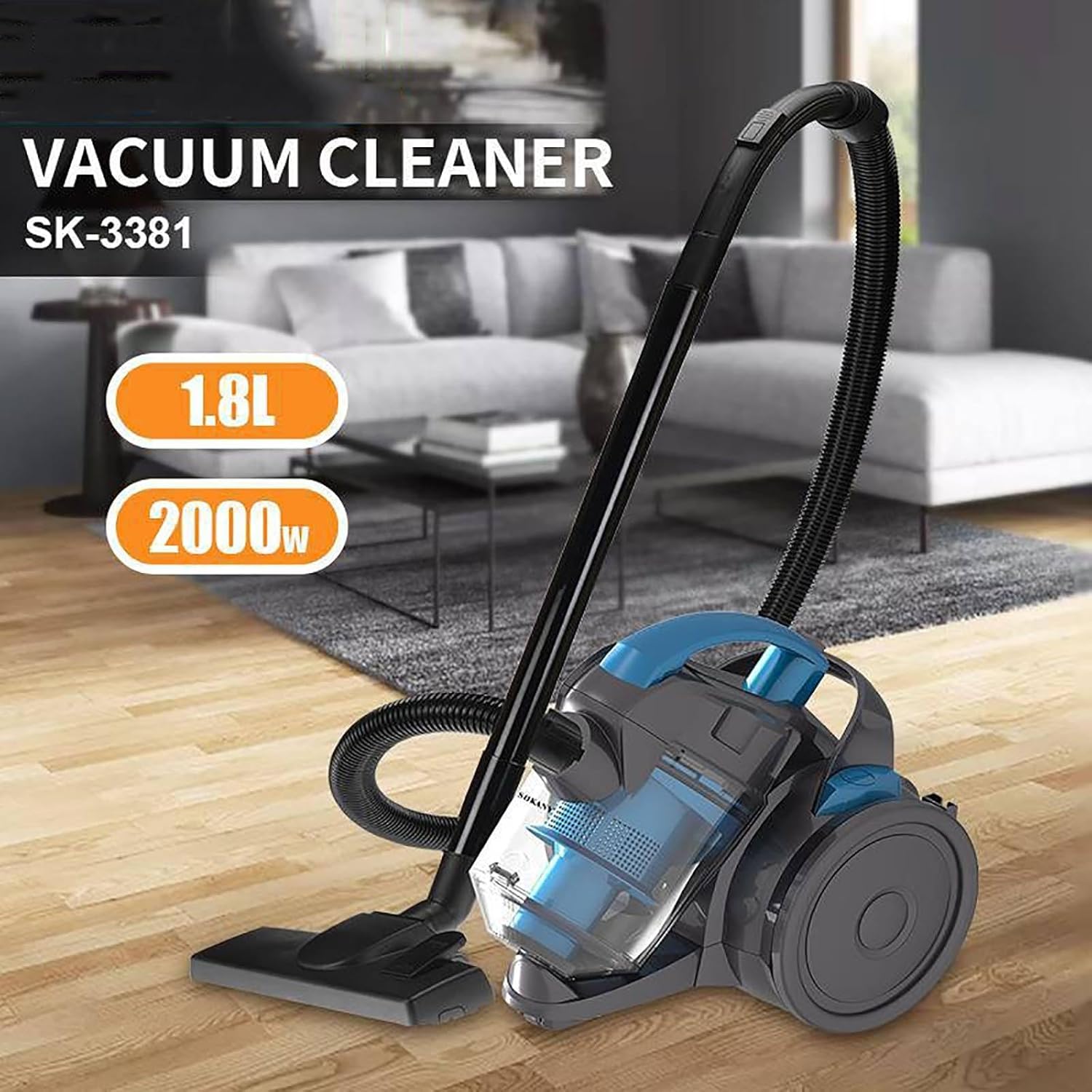

Figure 4.1: Overview of the LYAYYDS SK-3381 Vacuum Cleaner, highlighting its 1.8L dust capacity and 2000W motor.

Figure 4.2: Close-up of the versatile 2-in-1 dusting brush, which functions as both a crevice tool and a cleaning brush head for various surfaces.

Key Features:

• Powerful 2000W Motor: Provides strong suction for deep cleaning.
• Multi-cyclone Technology: Ensures consistent suction and efficient dust separation.
• Bagless Design: Features a 1.8L easy-empty dust container.
• Rotatable Cleaning Brush: Versatile 2-in-1 dusting brush for different cleaning needs.
• Airflow Controls: Integrated into the handle for easy switching between carpet, upholstery, and hard floor settings.
• Compact and Portable: Lightweight design (less than 3.7 kg) with swivel steering for easy maneuverability.
• Long Power Cord: 5-meter power cord for extended reach.

5. Setup and Assembly

Follow these steps to assemble your vacuum cleaner before first use.

1. Attach the Hose: Insert the flexible hose into the suction inlet on the main body of the vacuum cleaner until it clicks securely into place.
2. Connect the Telescopic Wand: Attach the telescopic wand to the handle end of the flexible hose. Extend the wand to your desired length by pressing the release button and pulling.
3. Attach the Floor Brush: Connect the floor brush to the end of the telescopic wand. Ensure it is firmly attached.
4. Attach Accessories (Optional): For specific cleaning tasks, attach the 2-in-1 dusting brush/crevice tool directly to the hose handle or the telescopic wand.

Figure 5.1: The vacuum cleaner featuring its 5-meter power cord for extended reach and an illustration of its multiple filtration system.

6. Operating Instructions

Your LYAYYDS vacuum cleaner is designed for efficient cleaning across various surfaces.

1. Power Connection: Unwind the power cord and plug it into a suitable electrical outlet (220-240V).
2. Power On/Off: Press the power button located on the main unit to turn the vacuum cleaner ON or OFF.
3. Adjust Suction/Airflow: Use the airflow controls integrated into the handle to adjust suction power. Select the appropriate setting for the surface you are cleaning (carpet, upholstery, or hard floors).
4. Cleaning Different Surfaces:
   • Hard Floors (Wood, Tile, Grout): Use the floor brush with the appropriate setting.
   • Carpets: Use the floor brush with the carpet setting.
   • Upholstery/Delicate Surfaces: Use the 2-in-1 dusting brush attachment with the upholstery setting.
   • Tight Spaces/Corners: Use the crevice tool attachment.
5. Maneuvering: The lightweight design and swivel steering allow for easy movement around furniture and obstacles.
6. Finishing Cleaning: Once cleaning is complete, turn off the vacuum cleaner, unplug it from the outlet, and rewind the power cord.

Figure 6.1: The vacuum cleaner's versatility in cleaning different materials and scenarios, from daily home cleaning to post-renovation debris.

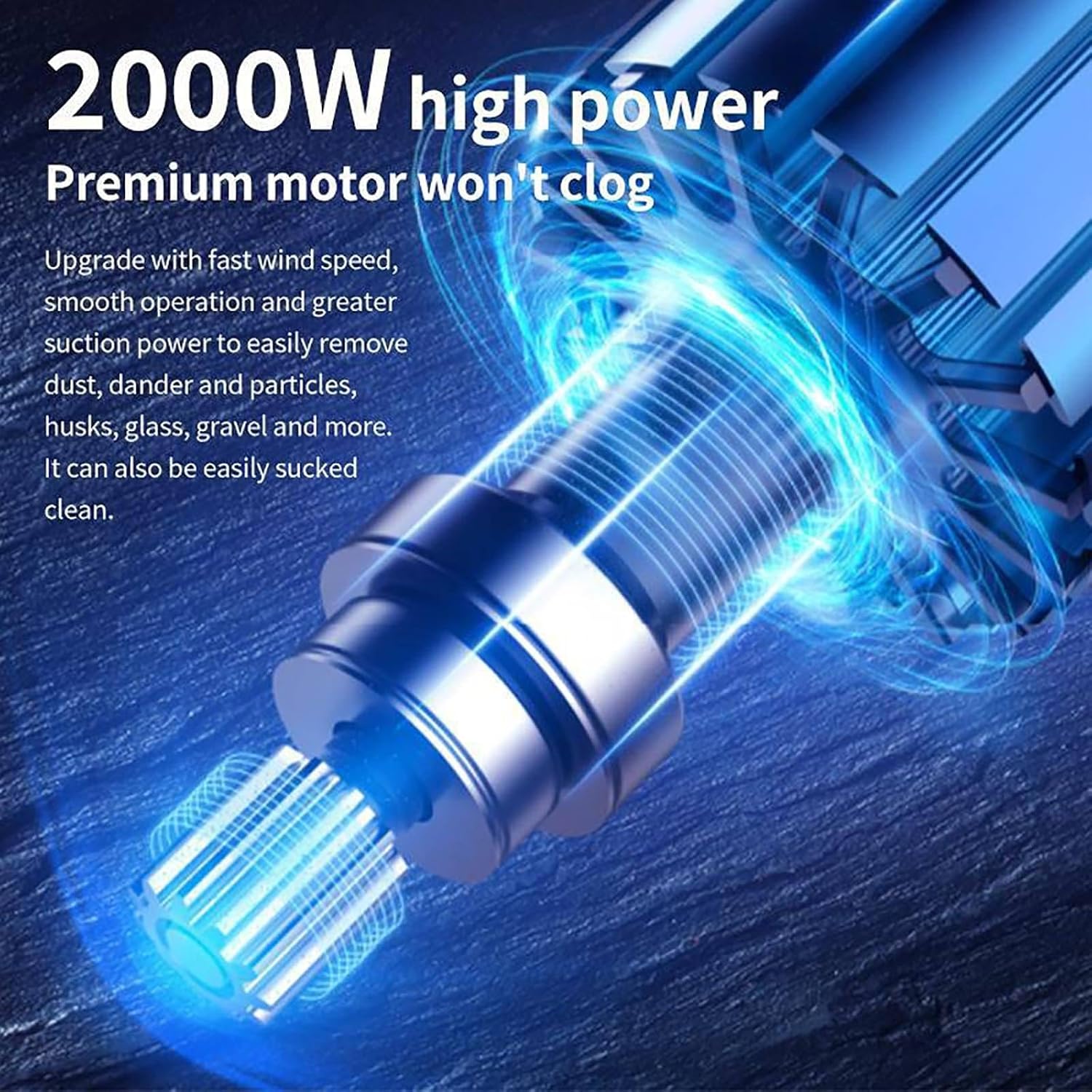

Figure 6.2: Visual representation of the powerful 2000W premium motor, designed for strong suction and clog-free operation.

7. Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your vacuum cleaner.

7.1. Emptying the Dust Container

The 1.8L dust container should be emptied regularly, especially when the 'MAX' fill line is reached or suction power decreases.

1. Ensure the vacuum cleaner is unplugged from the power outlet.
2. Locate the dust container release button/latch on the main unit. Press it to detach the dust container.
3. Position the dust container over a trash bin. Open the bottom lid of the container to release the collected dust and debris.
4. Close the lid securely and reattach the dust container to the main unit until it clicks into place.

7.2. Cleaning Filters

The vacuum cleaner features multiple filtration. Filters should be cleaned periodically to maintain suction power and air quality.

• Pre-Motor Filter: This filter protects the motor from dust. It is usually located near the dust container. Remove it and tap off loose dust. If heavily soiled, rinse under cold water and allow to air dry completely (24-48 hours) before reinserting.
• Post-Motor Filter (HEPA-type): This filter captures fine particles before air is expelled. Check your manual for its location. Tap off dust. Do not wash unless specified by the manufacturer. Replace if heavily soiled or damaged.

Note: Always ensure filters are completely dry before reinserting them into the vacuum cleaner. Using wet filters can damage the motor.

7.3. Cleaning the Floor Brush/Head

Periodically check the floor brush for tangled hair, threads, or debris. Use scissors to cut away any tangled material and remove it. This ensures the brush rotates freely and maintains effective cleaning.

8. Troubleshooting

If you encounter issues with your vacuum cleaner, refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact customer support.

9. Specifications

Detailed technical specifications for your LYAYYDS vacuum cleaner.

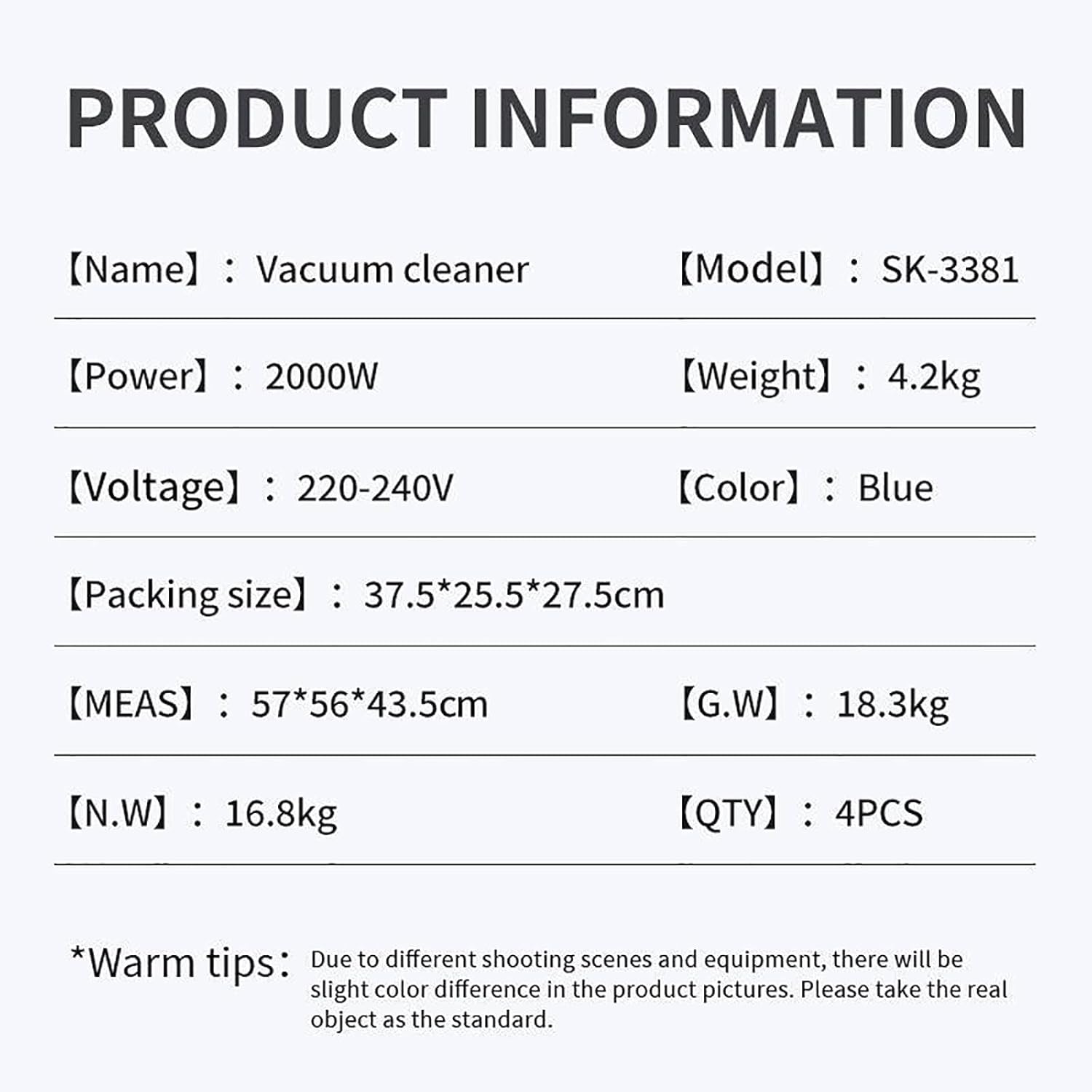

Figure 9.1: Official product information table detailing key specifications.

10. Warranty and Support

For warranty information, please refer to the warranty card included with your purchase or contact your retailer. For technical support, spare parts, or service inquiries, please contact the manufacturer LYAYYDS directly through their official channels or the point of purchase.

Please have your model number (SK-3381) and purchase date ready when contacting support.
