Introduction
This manual provides essential instructions for the safe installation, operation, and maintenance of your Americangaslogs 24-inch Liquid Propane Ventless Fireplace Logs Set. This appliance is designed for indoor use only and operates exclusively with liquid propane (LP) gas. It delivers up to 40,000 BTU, capable of heating areas up to 1,000 sq. ft., and features a remote control for convenient operation.
Please read this manual thoroughly before installation or use to ensure proper function and safety.
Important Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information, consult a qualified installer, service agency, or the gas supplier.
- This appliance is for use with Liquid Propane (LP) gas only. Do not connect to a natural gas supply.
- Ensure adequate ventilation. Ventless appliances consume oxygen from the room.
- The unit is equipped with an Oxygen Depletion Sensor (ODS) which automatically shuts off the appliance if oxygen levels become too low. Do not tamper with or bypass the ODS system.
- Maintain required clearances from combustible materials as specified in local codes and the installation instructions.
- Never store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Keep children and pets away from the appliance when it is in operation.
Image Description: A warning sign with a yellow exclamation mark. Text reads: "Choose the Right Gas Type! Warning: Please select your gas type (Natural Gas or Propane) first, then pick the size. Selecting the wrong type may cause compatibility issues!" This emphasizes the critical importance of using the correct gas type.
Package Contents
Verify that all components are present before beginning installation:
- Ceramic Logs (Black Oak style)
- Burner Assembly
- Remote Control
- Receiver Unit
- Volcanic Rock
- Glowing Embers
- Necessary Hardware for installation

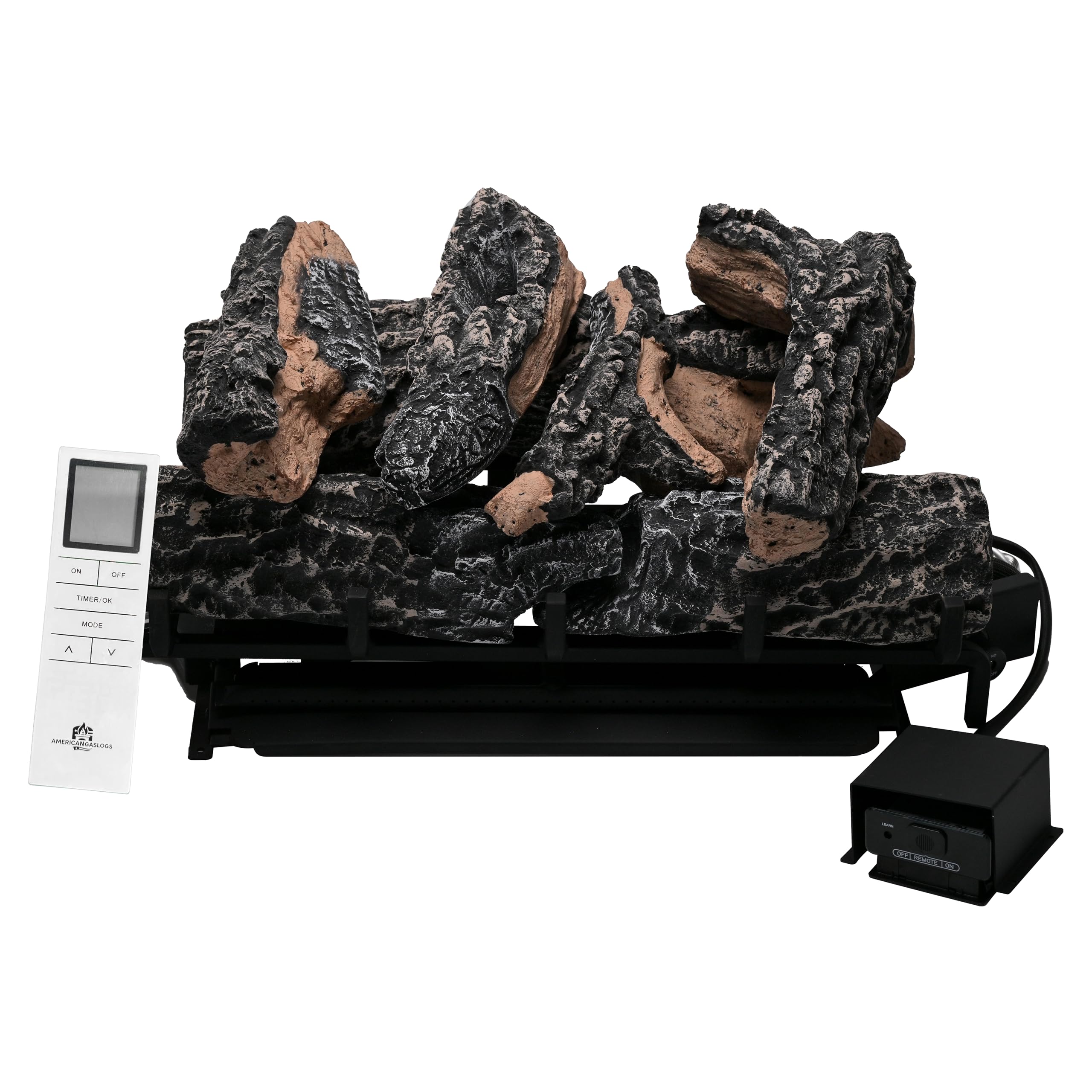

Image Description: A complete set of Americangaslogs 24-inch black oak ventless fireplace logs, including the burner assembly, ceramic logs, remote control, and receiver unit, displayed against a white background.
Setup and Installation
This log set is designed to fit fireboxes with minimum dimensions of 14 inches (H) x 24 inches (W) x 13 inches (D).
- Prepare the Firebox: Ensure your firebox is clean and meets the minimum size requirements.
- Position the Burner: Carefully place the burner assembly inside the firebox.
- Connect Gas Line: Connect the liquid propane gas supply line to the burner assembly. This connection must be performed by a qualified professional in accordance with all local codes and regulations.
- Install Ember Pan and Rock Wool: Place the ember pan beneath the burner. Distribute the volcanic rock and glowing embers (rock wool) into the ember pan to create a realistic glowing effect.
- Arrange Ceramic Logs: Carefully place the ceramic logs onto the burner grate. The black oak logs can be arranged to your preference. Ensure logs do not obstruct the burner ports or the ODS sensor.
- Connect Remote Receiver: Connect the remote receiver unit to the burner assembly's wiring. Ensure the red wire from the controller connects to the red wire, and the black wire connects to the black wire.
- Insert Remote Batteries: Open the battery compartment on the remote control and insert the required batteries (not included).
- Leak Test: After all connections are made, perform a leak test on all gas connections using a non-corrosive leak detection solution.
Image Description: A close-up view of the burner assembly, highlighting the ODS lighter and the designated area for the ember pan. Text indicates where to place volcanic rock and glowing embers.
Image Description: A detailed view of the black oak ceramic logs arranged on the burner grate, showing how the front log's placement can be adjusted for aesthetic preference.
Image Description: A close-up of the wiring connection for the remote receiver, showing the red and black wires properly connected with heat-shrink tubing.
Operating Instructions
Your fireplace logs set is operated using the included remote control.
Image Description: A white remote control with a digital display showing temperature and operational status. Buttons include ON, OFF, TIMER/OK, MODE, and arrow keys for adjustment. The Americangaslogs logo is at the bottom.
- Power On: Press the "ON" button on the remote control. The burner will ignite automatically using the battery-assisted ignition.
- Adjust Flame/Heat: Use the "MODE" button to cycle through different settings. The arrow keys (Up/Down) can be used to adjust the flame height and heat output manually.
- Set Temperature (Thermostat Function): In thermostat mode, use the arrow keys to set your desired room temperature. The unit will cycle on and off to maintain this temperature. The display shows the current room temperature.
- Timer Function: Use the "TIMER/OK" button to activate the hourly timing function. Refer to the remote display for timer settings.
- Power Off: Press the "OFF" button on the remote control to turn off the appliance.
Remote Display Indicators:
- TEMP: Indicates temperature.
- FLAME: Indicates burner/valve in operation.
- TIMER: Hourly timing function.
- SET: Used for setting the temperature.
- ROOM: Displays current room temperature.
- °C to °F: Temperature in degrees Fahrenheit or Celsius.
Maintenance
Regular maintenance ensures safe and efficient operation of your fireplace logs set.
- Cleaning: Periodically clean the exterior surfaces of the logs and burner assembly with a soft, dry cloth. Do not use abrasive cleaners.
- Log Inspection: Inspect ceramic logs for cracks or damage. Replace any damaged logs to maintain proper flame patterns and safety.
- Burner and ODS Sensor: Keep the burner ports and the ODS sensor clean and free of dust or debris. A small brush or vacuum can be used.
- Gas Connections: Annually inspect gas connections for leaks or corrosion.
- Professional Service: It is recommended to have the appliance inspected annually by a qualified service technician.
Troubleshooting
Before contacting customer support, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not ignite. | No gas supply, remote batteries low, ODS activated, loose wiring. | Check LP tank, replace remote batteries, ensure adequate ventilation, check wiring connections. |
| Weak or irregular flame. | Low gas pressure, obstructed burner ports, incorrect log placement. | Verify LP tank pressure, clean burner ports, adjust log placement. |
| Remote control not responding. | Dead batteries, remote out of range, receiver not powered. | Replace remote batteries, move closer to unit, check receiver wiring. |
| Unit shuts off unexpectedly. | ODS activation (low oxygen), gas supply interruption. | Increase ventilation, check LP tank level. Do not bypass ODS. |
If problems persist after attempting these solutions, contact a qualified service technician or Americangaslogs customer support.
Specifications
- Model Number: G49
- Product Dimensions: 24 x 13 x 14 inches (Width x Depth x Height)
- Fuel Type: Liquid Propane (LP) only
- Heat Output: Up to 40,000 BTU
- Heating Area: Up to 1,000 sq. ft.
- Efficiency: 99.9%
- Ignition: Battery-assisted
- Safety Features: Oxygen Depletion Sensor (ODS)
- Control: Remote Control with Thermostat and Timer functions
- Minimum Firebox Dimensions: 14" H x 24" W x 13" D
Warranty and Support
For information regarding warranty coverage or to obtain technical support, please contact Americangaslogs directly. Keep your purchase receipt as proof of purchase. Contact details can typically be found on the manufacturer's website or through your retailer.
Manufacturer: Americangaslogs
Product ASIN: B0DPSPCP8V
