VoltSurge D03s 5000A Car Battery Jump Starter with Air Compressor User Manual

Introduction

The VoltSurge D03s is a versatile 4-in-1 device designed for automotive emergencies and convenience. It functions as a powerful car battery jump starter, a portable air compressor, a high-capacity power bank, and a multi-mode LED emergency light. This manual provides detailed instructions for safe and effective use of your device.

What's in the Box

• 1 x VoltSurge D03s Car Battery Jump Starter
• 1 x Smart Jumper Clamps
• 1 x Inflation Hose
• 4 x Inflation Nozzles (for various items like balls, bicycles)
• 1 x USB Charging Cable
• 1 x Storage Box
• 1 x User Manual (this document)

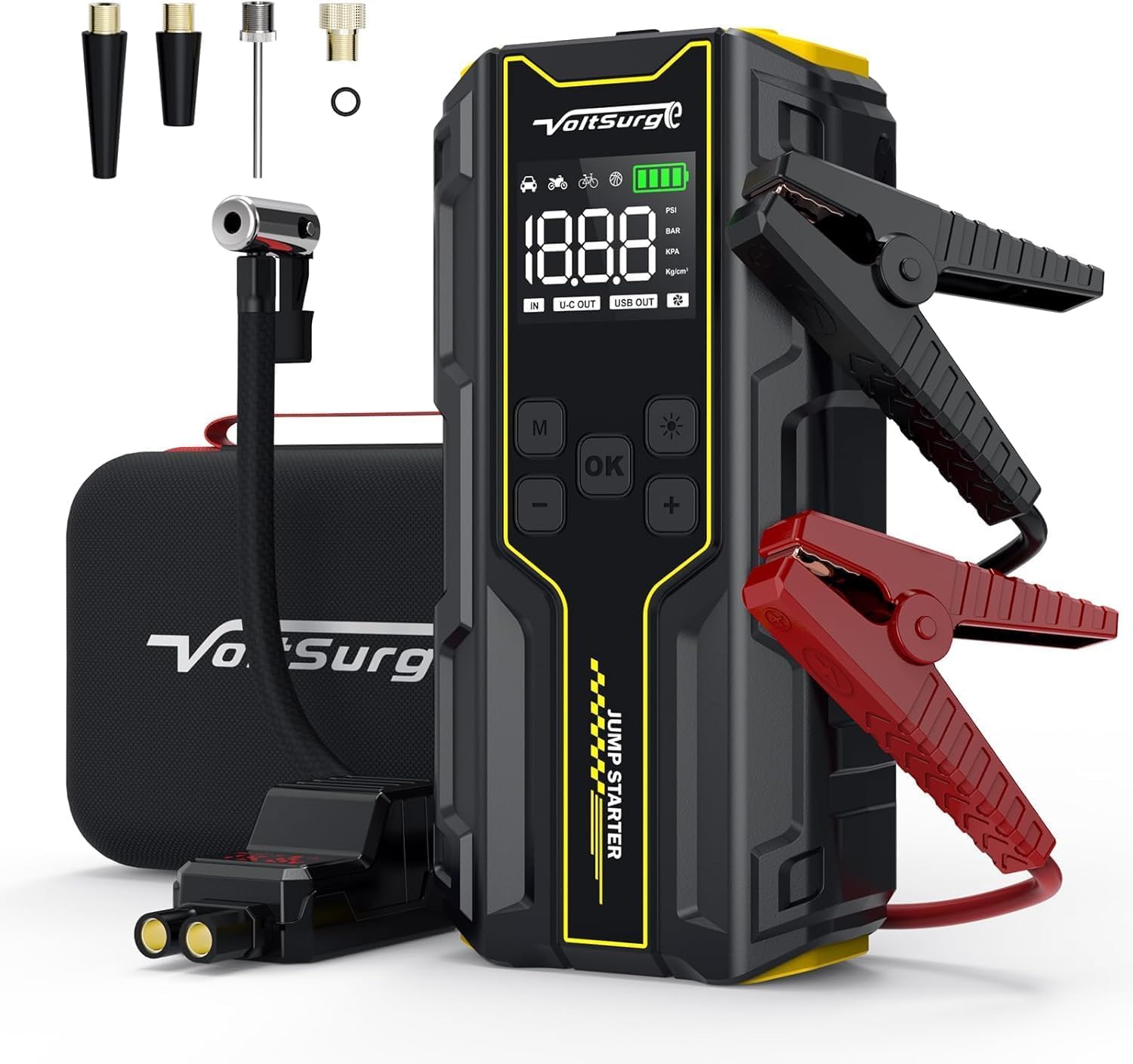

Image: All components included in the VoltSurge D03s package, neatly arranged in its storage box.

Safety Information

Read all safety warnings and instructions before using this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Always wear safety glasses and gloves when operating the jump starter.
• Do not jump start a frozen battery.
• Ensure proper polarity connection: Red clamp to positive (+), Black clamp to negative (-).
• Do not connect the positive and negative clamps together.
• Keep out of reach of children.
• Do not expose the device to rain or wet conditions.
• Do not disassemble the device.
• Use the device in a well-ventilated area.
• If the battery is swollen, leaking, or damaged, discontinue use immediately.

Setup and Charging

Initial Charge

Before first use, fully charge the VoltSurge D03s. Connect the provided USB charging cable to the Type-C input/output port on the device and to a suitable USB power adapter (not included). The LED display will indicate the charging status. A full charge is recommended every 3 months to maintain battery health.

Image: The VoltSurge D03s functioning as a power bank, charging a smartphone, tablet, and wireless earbuds. It features USB and Type-C ports for charging.

Operating Instructions

1. Car Jump Starter Function

The D03s can reliably jump start 12V vehicles with up to 10L gasoline or 8L diesel engines. Ensure the jump starter is at least 50% charged.

1. Connect the smart jumper clamps to the jump starter port.
2. Attach the RED clamp to the vehicle's positive (+) battery terminal.
3. Attach the BLACK clamp to the vehicle's negative (-) battery terminal.
4. Ensure the clamps are securely connected and the smart cable indicator light is green.
5. Start the vehicle's engine.
6. Once the engine starts, immediately remove the clamps from the car battery, first the black, then the red.
7. Disconnect the smart clamps from the jump starter.

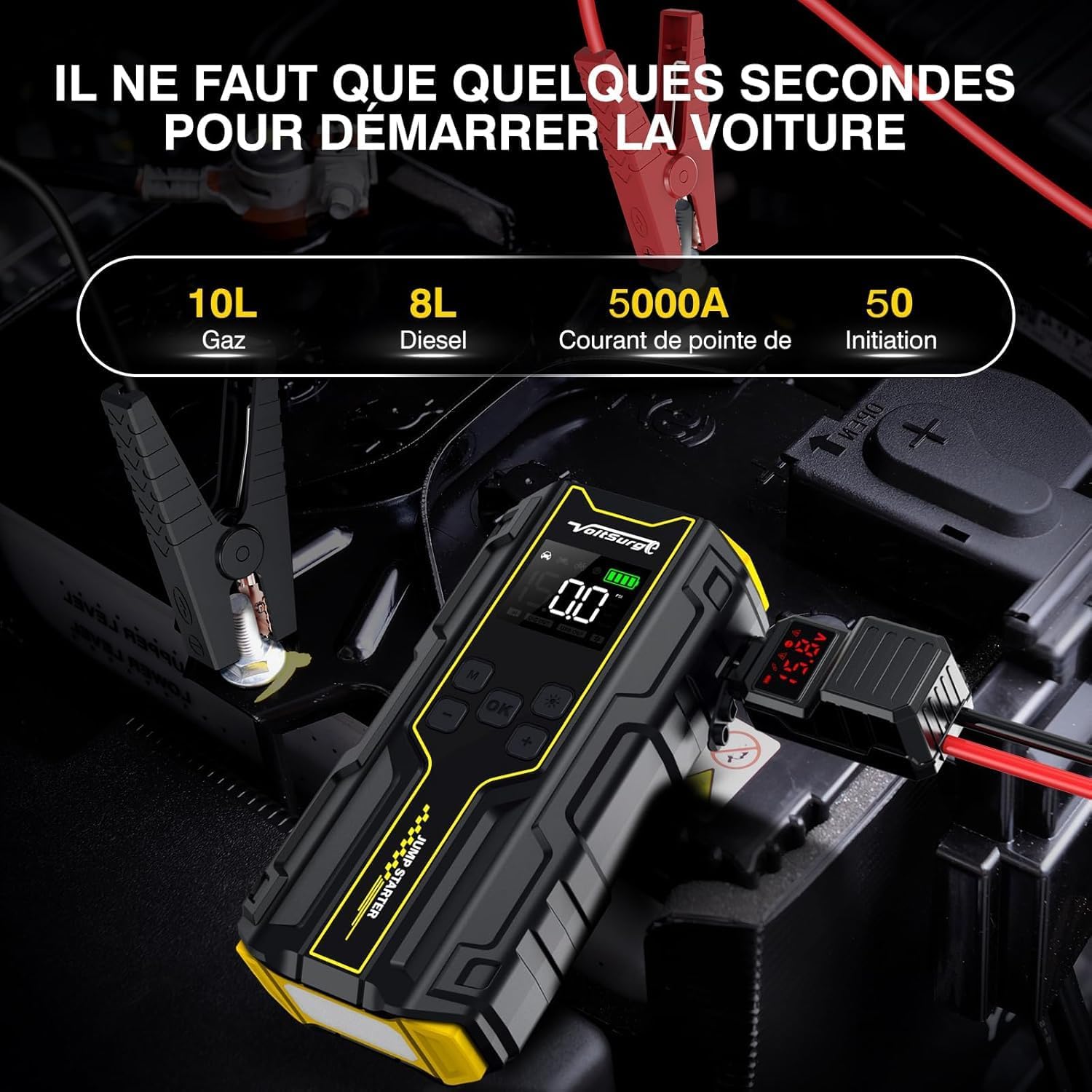

Image: The VoltSurge D03s connected to a car battery, demonstrating the jump start procedure. It is capable of starting 10L gas and 8L diesel engines with 5000A peak current.

2. Air Compressor (Tire Inflator) Function

The built-in 150 PSI air compressor can inflate tires, balls, and other inflatables.

1. Connect the inflation hose to the air output port on the device.
2. Attach the appropriate inflation nozzle to the hose and then to the item to be inflated (e.g., tire valve).
3. Power on the device. The LED display will show the current pressure.
4. Use the '+' and '-' buttons to set the desired pressure.
5. Press the 'OK' button to start inflation. The compressor will automatically stop when the preset pressure is reached.
6. Disconnect the hose and nozzle.

Image: The VoltSurge D03s inflating a car tire. The display shows 36.0 PSI. Icons indicate preset pressures for Car (36 PSI), Motorcycle (36 PSI), Bicycle (60 PSI), and Basketball (8 PSI).

3. Portable Power Bank Function

The 21800mAh battery capacity allows you to charge mobile devices.

• Connect your device's charging cable to one of the USB output ports or the Type-C input/output port on the VoltSurge D03s.
• The D03s will automatically begin charging your device.

4. LED Emergency Light Function

The integrated LED light offers three modes for various situations.

• Press the light button once for Flashlight mode (steady illumination).
• Press the light button a second time for SOS mode (Morse code signal).
• Press the light button a third time for Strobe mode (rapid flashing).
• Press the light button a fourth time to turn off the light.

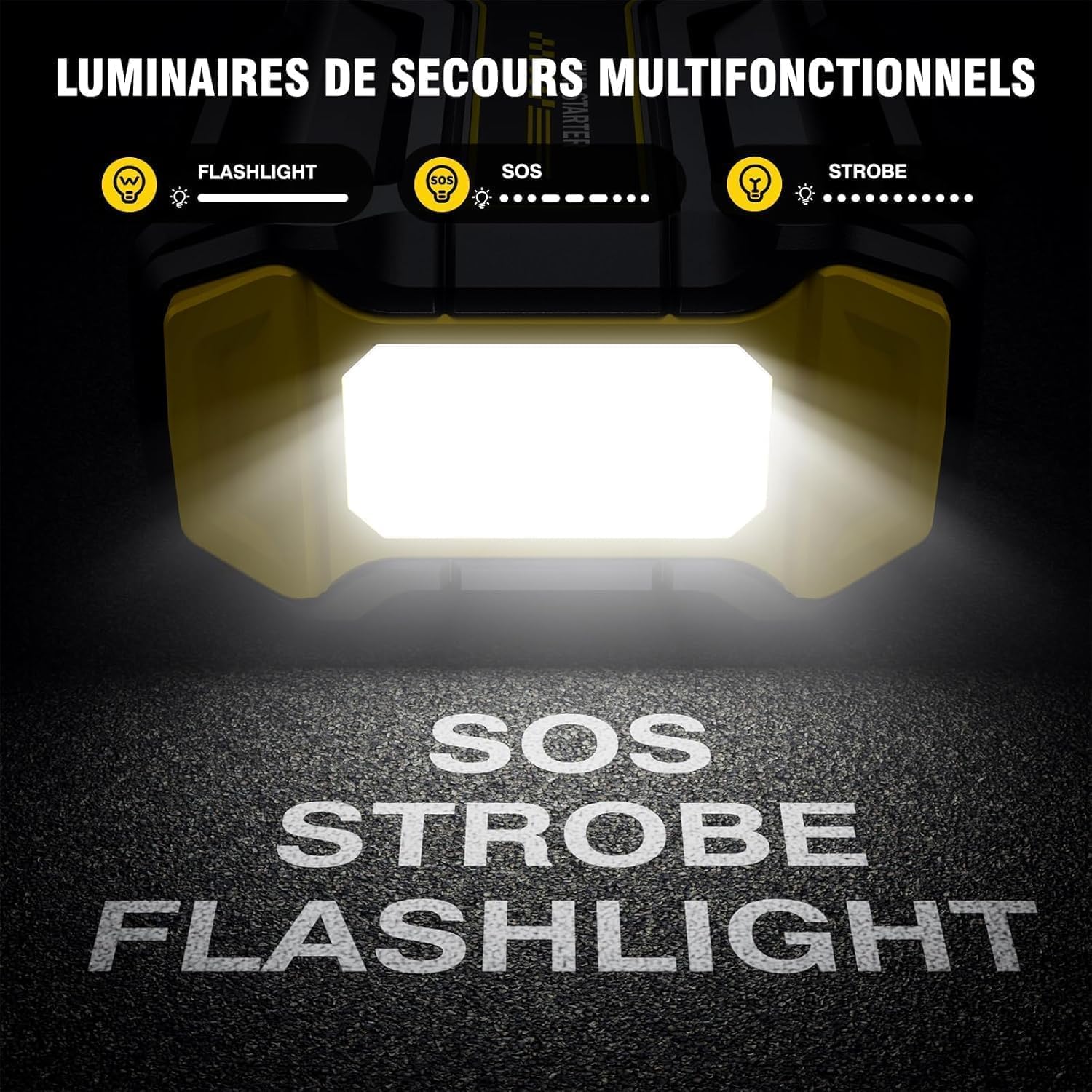

Image: The VoltSurge D03s displaying its multi-functional emergency lights, including Flashlight, SOS, and Strobe modes, useful for roadside assistance or emergencies.

Maintenance

• Store the device in a cool, dry place away from direct sunlight.
• Recharge the device every 3 months to maintain optimal battery performance, even if not in use.
• Clean the exterior with a soft, dry cloth. Do not use harsh chemicals or abrasives.
• Ensure all ports are free from dust and debris.

Troubleshooting

Specifications

• Model: D03s
• Peak Current: 5000A
• Battery Capacity: 21800mAh
• Battery Type: Lithium-ion
• Output Voltage: 12V (for jump starting)
• Air Compressor Pressure: Up to 150 PSI
• Engine Compatibility: Up to 10.0L Gasoline, 8.0L Diesel
• USB Output: Multiple ports
• Type-C Input/Output: Yes
• LED Light Modes: Flashlight, SOS, Strobe
• Dimensions: Approximately 25.4 x 17 x 11.8 cm
• Weight: Approximately 500 grams

Warranty and Support

VoltSurge products come with a 2-year free exchange policy. For any product-related inquiries, technical assistance, or warranty claims, please contact VoltSurge customer support via Amazon. Our support team aims to respond within 24 hours.

For further assistance, please refer to the contact information provided on your purchase platform or the VoltSurge official website (if applicable).
