Introduction
This manual provides detailed instructions for the safe and efficient use of your APHUWJ HX100N1 Magnetic Portable Charger. Please read this manual thoroughly before operating the device and retain it for future reference. This device is designed to provide versatile charging solutions for a variety of electronic devices, including iPhones, Apple Watches, AirPods, and other smartphones and tablets.
What's in the Box
- Magnetic Wireless Portable Charger Power Bank with 2 Built-in Cables x 1
- USB Charging Cable x 1
- User Manual x 1
Product Overview
The APHUWJ HX100N1 is a versatile 6-in-1 portable charging solution featuring a 10800mAh battery capacity. It offers multiple charging options including magnetic wireless charging for compatible iPhones, Apple Watches, and AirPods, as well as wired charging via built-in cables (iOS and Type-C) and additional USB-A and USB-C ports. The device supports 25W PD fast charging and includes an LED display to show remaining power. Its compact design makes it suitable for travel.
Image: Overview of the APHUWJ HX100N1 Magnetic Portable Charger, highlighting its 6-in-1 functionality, built-in cables, strong magnetic suction, 25W fast charging, safety features, and smart LED display.
Image: The APHUWJ HX100N1 Magnetic Portable Charger attached to an iPhone, illustrating its compact dimensions (4.37*2.8*1.02 inches) and light weight (239g), along with its 10800mAh capacity and charging capabilities for various Apple devices.
Setup
1. Initial Charging of the Power Bank
Before first use, fully charge your APHUWJ HX100N1 portable charger. This ensures optimal battery performance.
- Connect the provided USB charging cable to the USB-C port on the power bank and to a compatible USB wall adapter (not included).
- Alternatively, use the built-in Type-C cable to connect to a power source.
- The LED display will show the charging progress. A full charge typically takes 3-5 hours.
Image: Illustrates two methods for recharging the power bank: using the integrated USB-C input port or the built-in Type-C cable input.
2. Understanding the LED Display
The integrated LED display shows the remaining battery percentage of the power bank. This allows you to monitor the charge level and know when to recharge the unit.
Operating Instructions
1. Magnetic Wireless Charging (iPhone/AirPods)
The power bank features a magnetic surface for wireless charging compatible with iPhone 12-16 series and AirPods 2/3/Pro/Pro 2.
- Ensure your iPhone or AirPods are compatible with MagSafe wireless charging.
- Align your device with the magnetic charging area on the power bank. The magnets will snap into place, and charging will begin automatically.
- For optimal magnetic connection, use a MagSafe-compatible phone case or no case. Non-magnetic cases may hinder the connection.
Image: The APHUWJ HX100N1 Magnetic Portable Charger simultaneously charging an iPhone via magnetic wireless connection and an Apple Watch on its dedicated charging pad, with built-in cables also visible.
Image: Demonstrates the strong magnetic connection of the wireless charger to an iPhone, emphasizing compatibility with MagSafe cases and incompatibility with non-magnetic cases.
2. Magnetic Wireless Charging (Apple Watch)
A dedicated magnetic charging pad is integrated for Apple Watch series 1-10, Ultra 2/1, and SE.
- Place your Apple Watch onto the designated magnetic charging pad on the power bank.
- Ensure the watch is properly aligned for charging to initiate.
Image: The APHUWJ HX100N1 Magnetic Portable Charger with an Apple Watch placed on its integrated wireless charging pad, indicating active charging.
3. Wired Charging (Built-in Cables)
The power bank includes two built-in cables for convenient wired charging.
- iOS Cable (18W Output): Use this cable for iPhones and other Apple devices with a Lightning port.
- Type-C Cable (18W/25W Input/Output): Use this cable for devices with a USB-C port. This cable also supports recharging the power bank itself.
4. Wired Charging (USB Ports)
Two additional USB ports are available for wired charging.
- USB-C Port (25W Input/Output): This port supports Power Delivery (PD) for fast charging compatible devices and can also be used to recharge the power bank.
- USB-A Port (18W Output): Use this standard USB port for a wide range of devices.
Image: Illustrates the 25W PD + QC4.0 full-speed fast charging capability via wired connection, showing an iPhone 16 charging significantly faster than with standard chargers.
5. Simultaneous Charging
The APHUWJ HX100N1 can charge up to 6 devices simultaneously using a combination of its wireless charging pads, built-in cables, and USB ports.

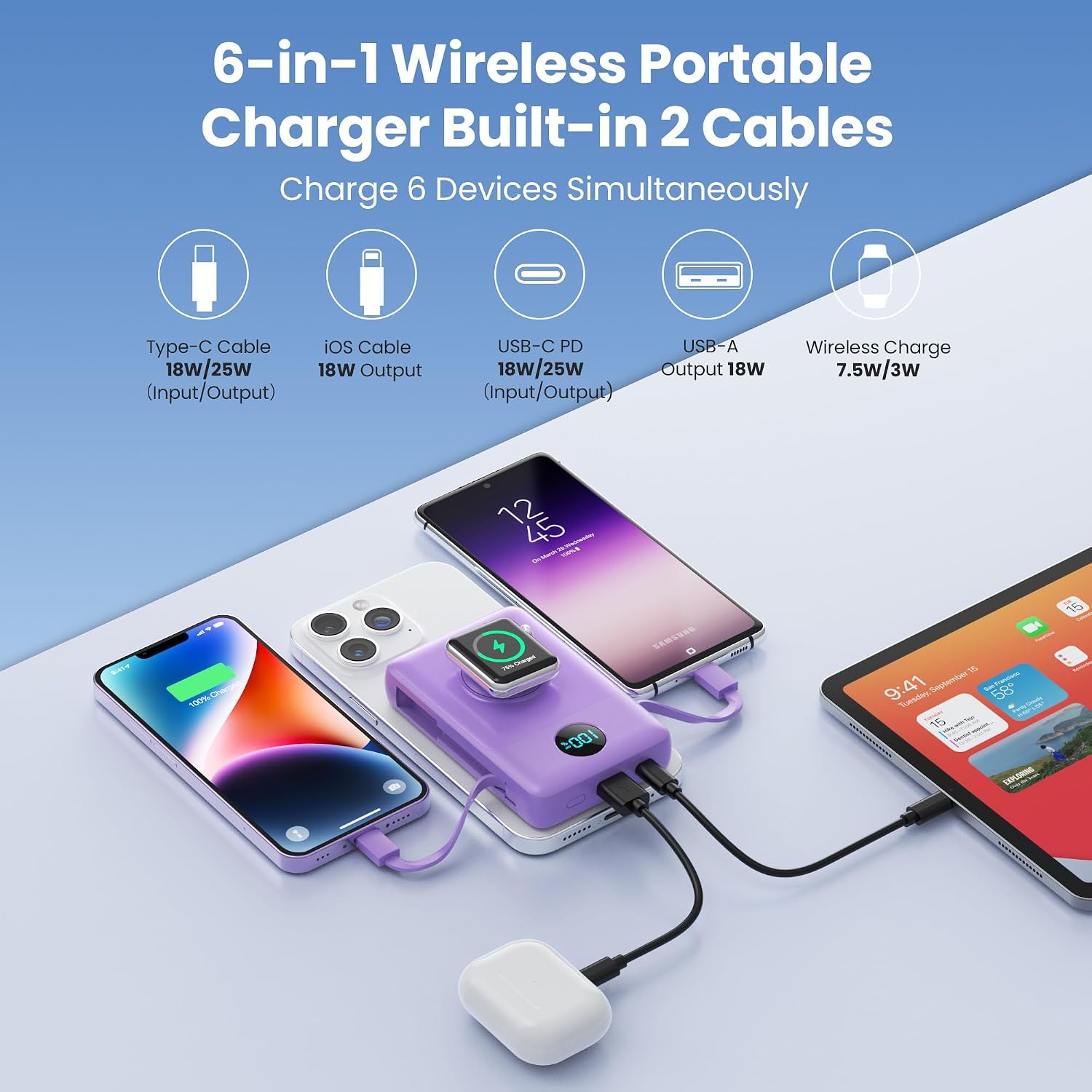

Image: The APHUWJ HX100N1 power bank simultaneously charging an iPhone, an Android phone, an Apple Watch, an iPad, and AirPods using its various built-in cables, wireless pads, and USB ports.
Maintenance
- Cleaning: Use a soft, dry cloth to clean the surface of the power bank. Avoid using harsh chemicals or abrasive materials.
- Storage: Store the power bank in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid completely discharging the power bank frequently. Recharge it when the battery level is low. Do not expose the device to water or excessive moisture.
Troubleshooting
- Device not charging:
- Ensure the power bank itself is charged. Check the LED display.
- Verify that cables are securely connected to both the power bank and the device.
- Try a different cable or port to rule out a faulty connection.
- Wireless charging not working:
- Confirm your device is compatible with magnetic wireless charging (e.g., iPhone 12 series or newer, Apple Watch).
- Ensure proper alignment of your device on the magnetic charging area.
- If using a phone case, ensure it is MagSafe-compatible. Remove non-magnetic cases.
- Slow charging:
- Ensure you are using a fast-charging compatible cable and port (e.g., USB-C PD).
- Some devices may limit charging speed if they are too hot or cold.
- LED display not working:
- Try charging the power bank to see if the display reactivates.
- If the issue persists, contact customer support.
Specifications
| Model Number | HX100N1 |
| Battery Capacity | 10800 Milliamp Hours |
| Product Dimensions | 4.61 x 4.96 x 1.54 inches |
| Item Weight | 8.4 ounces |
| Connectivity Technologies | 2 x Wireless + 4 x Wired Charging |
| Special Features | 6 Outputs 2 Inputs, 2 x Magnetic Wireless + 4 x Wired Charging, Double-sided Wireless Magnetic Portable Charger for iPhone/iWatch/Airpods, 6-in-1 Wireless Power Bank with Apple Watch Charger, 25W PD Fast Charging Mag-Safe Battery Pack with 6 Outputs and LCD Display, Fast Charging Wireless Phone Charger, Compact and Lightweight Travel Charger, Temperature Control Technology |
| Connector Type | Double-sided Magnetic, USB A/C, Type-C+iOS Cable |
| Manufacturer | Dongguan Yuanhaoxun Technology Co., Ltd |
Safety Information
The APHUWJ HX100N1 is equipped with a built-in smart chip and multi-layer protection system to ensure safe charging. This system prevents overcharge, overvoltage, over-current, and short circuits, protecting both the power bank and your connected devices.
- Do not disassemble or attempt to repair the device.
- Avoid exposing the power bank to extreme temperatures, direct sunlight, or fire.
- Keep out of reach of children.
- Dispose of the product responsibly according to local regulations.
Image: Illustrates the double-sided magnetic wireless charging modes, built-in cable fast charging mode, and simultaneous wireless+wired charging, all while incorporating multiple security protections like overdischarge, shortcircuit, overvoltage, overcurrent, and overload protection.
Warranty and Support
Warranty Information
This APHUWJ product comes with a 2-year warranty from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.
Customer Support
For any questions, technical assistance, or warranty claims, please contact APHUWJ customer support through the retailer where the product was purchased or visit the official APHUWJ website for contact information.
