1. Introduction
Thank you for choosing the Rpzloila Farmhouse 2-Light Flush Mount Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.
2. Safety Information
WARNING: RISK OF ELECTRIC SHOCK. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- All electrical connections must be in accordance with local codes and ordinances, National Electric Code (NEC), and ANSI/NFPA 70-1999.
- Consult a qualified electrician if you are unsure about the installation process.
- Use only bulbs of the specified type and wattage.
- Do not exceed the maximum wattage indicated on the fixture.
- Ensure the fixture is securely mounted to a structural element of the ceiling.
- Do not handle the fixture or bulbs with wet hands.
- Keep flammable materials away from the light fixture.
3. Product Overview
The Rpzloila Farmhouse 2-Light Flush Mount Ceiling Light combines rustic wood and durable metal to create a distinctive farmhouse and industrial aesthetic. Its open geometric cage design ensures ample light distribution, making it suitable for various indoor spaces.
Key Features:
- Farmhouse & Industrial Charm: Blends rustic wood with black metal accents for a warm and character-filled design.
- Premium Wood & Sturdy Metal Frame: Constructed with high-quality solid wood and durable metal for longevity.
- Compatible with Various Bulbs: Designed for E26 base bulbs (LED, incandescent, or Edison bulbs). Dimmable with a compatible switch (bulbs and dimmer not included).
- Easy Installation & Versatile Use: Includes all mounting hardware and detailed instructions. Ideal for hallways, bedrooms, dining areas, kitchens, and entryways.
Product Dimensions & Specifications:
- Material: Metal, Wood
- Color: Black10 (as per current variant)
- Item Dimensions (L x W x H): 11.8" x 11.8" x 5.9"
- Item Weight: 4.4 Pounds
- Power Source: Corded Electric
- Voltage: 120 Volts (AC)
- Wattage: Max 60 watts per bulb
- Number of Light Sources: 2
- Bulb Base: E26
- Light Source Type: LED (compatible)
- Installation Type: Flush Mount
- Special Features: Anti-Rust finish

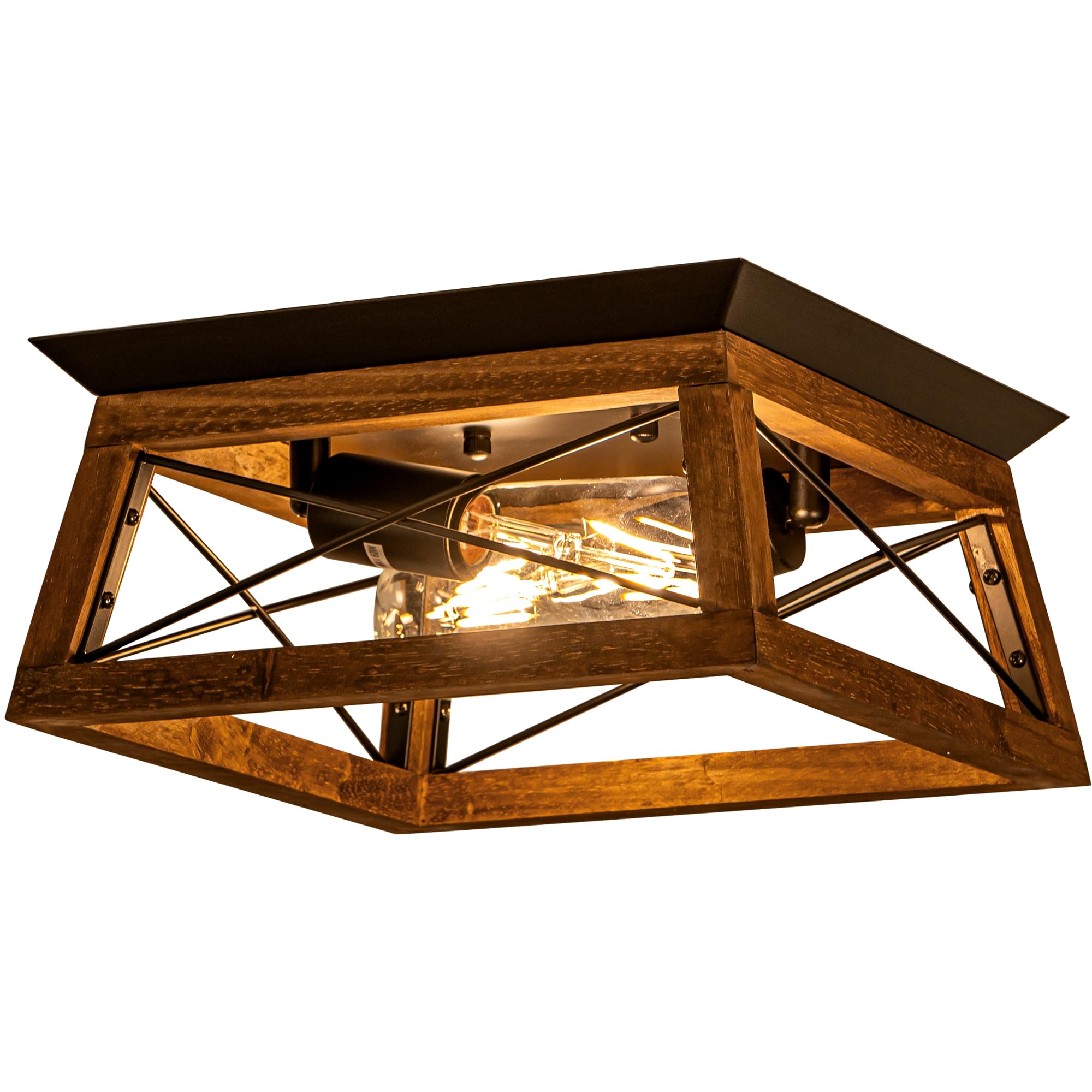

Image 3.1: The Rpzloila Farmhouse 2-Light Flush Mount Ceiling Light, showcasing its metal and wood design.
Image 3.2: Detailed dimensions and compatible E26 bulb types for the fixture.
Image 3.3: Close-up view highlighting the premium anti-rust metal, rational hollow structure, and adjustable lamp holders.
4. What's in the Box
Upon opening the package, please ensure all components are present and undamaged. If any parts are missing or damaged, please contact customer support immediately.
- 1 x Rpzloila Farmhouse 2-Light Flush Mount Ceiling Light Fixture
- Mounting Hardware (screws, wire nuts, mounting bracket)
- Instruction Manual
Note: Bulbs are not included and must be purchased separately.
5. Setup & Installation
Installation of this fixture requires basic electrical knowledge. If you are not confident in your abilities, it is recommended to consult a qualified electrician.
Before You Begin:
- Turn off power at the circuit breaker or fuse box to avoid electrical shock.
- Ensure you have all necessary tools (screwdriver, wire strippers, electrical tape, etc.) and the included mounting hardware.
- Unpack the fixture carefully and inspect for any damage.
Installation Steps:
- Attach the mounting bracket to the junction box in the ceiling using the provided screws. Ensure it is securely fastened.
- Connect the electrical wires: Connect the black wire from the fixture to the black wire from the junction box (live), the white wire from the fixture to the white wire from the junction box (neutral), and the ground wire from the fixture to the ground wire from the junction box. Secure connections with wire nuts.
- Carefully tuck all wires into the junction box.
- Align the fixture base with the mounting bracket and secure it with the provided screws or nuts.
- Install two E26 base bulbs (not included) into the sockets. Do not exceed 60 watts per bulb.
- Restore power at the circuit breaker and test the light fixture.
Image 5.1: The ceiling light fixture installed in an entryway, demonstrating its flush mount design.
Video 5.1: A demonstration of the Flush Mount Ceiling Light Fixture, showing its appearance and light output when installed.
6. Operating Instructions
Operating your Rpzloila ceiling light is straightforward once installed.
Turning On/Off:
The light fixture is controlled by a standard wall switch connected to your home's electrical system. Simply toggle the switch to turn the light on or off.
Dimming Functionality:
This fixture is compatible with dimmable E26 bulbs and a compatible dimmer switch (not included). To utilize dimming, ensure you install dimmable bulbs and connect the fixture to a dimmer switch.
Image 6.1: Visual comparison of the light fixture when turned off and on, demonstrating its illumination.
7. Maintenance
Regular maintenance will help preserve the appearance and functionality of your light fixture.
Cleaning:
- Always disconnect power before cleaning.
- Wipe the fixture with a soft, dry cloth.
- Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
Bulb Replacement:
- Ensure the power is off and the bulbs have cooled completely before attempting to replace them.
- Unscrew old bulbs and screw in new E26 base bulbs.
- Remember not to exceed the maximum 60-wattage per bulb.
8. Troubleshooting
If you encounter issues with your light fixture, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture; Loose wiring; Faulty bulb; Faulty switch | Check circuit breaker/fuse; Verify wire connections; Replace bulb; Test/replace switch |
| Light flickers | Loose bulb; Loose wiring; Incompatible dimmer switch/bulb | Tighten bulb; Check wire connections; Ensure dimmer and bulbs are compatible |
| Bulbs burn out quickly | Incorrect wattage bulb; Poor ventilation; Voltage fluctuations | Use correct wattage bulbs (max 60W); Ensure proper air circulation; Consult electrician for voltage issues |
If these solutions do not resolve the issue, please contact Rpzloila customer support.
9. Specifications
| Attribute | Detail |
|---|---|
| Brand | Rpzloila |
| Model Number | 8106-2X-BK |
| Color | Black10 |
| Material | Metal, Wood |
| Style | Farmhouse |
| Light Fixture Form | Close to Ceiling |
| Room Type | Bedroom, Dining Room, Entryway, Home Office, Kitchen |
| Indoor/Outdoor Usage | Indoor |
| Power Source | Corded Electric |
| Special Features | Anti-Rust |
| Light Source Type | LED (compatible) |
| Number of Light Sources | 2 |
| Voltage | 120 Volts (AC) |
| Wattage | 60 watts (max per bulb) |
| Bulb Base | E26 |
| Mounting Type | Ceiling Mount |
| Installation Type | Flush Mount |
| Required Assembly | No |
| Item Dimensions L x W x H | 11.8"L x 11.8"W x 5.9"H |
| Item Weight | 4.4 Pounds |
10. Warranty & Support
Warranty Information:
Rpzloila provides a 2-year warranty for any quality problems with this product. This warranty covers defects in materials and workmanship under normal use.
Customer Support:
If you have any questions, concerns, or require assistance with your Rpzloila Farmhouse 2-Light Flush Mount Ceiling Light, please do not hesitate to contact us by email. We are committed to providing excellent customer service and will reply and solve your problem within 24 hours.
Please refer to your purchase documentation for specific contact details.
