1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your DNA MOTORING 6.5-inch Flat Board Side Steps Running Boards. These running boards are designed to provide a convenient step for easier entry and exit from your vehicle, while also enhancing its appearance. Please read this manual thoroughly before beginning installation or use to ensure proper fitment and safe operation.
Product Compatibility: These running boards are specifically designed for the Nissan Pathfinder models manufactured between 2022 and 2024.
Figure 1.1: Overview of the DNA MOTORING Running Boards.
2. Package Contents
Verify that all components listed below are present and undamaged before proceeding with installation. If any parts are missing or damaged, please contact customer support.
- 2 x Stainless Steel Running Boards
- Vehicle Specific Mounting Brackets (as shown in figures)
- All necessary Hardware (bolts, washers, nuts)
Figure 2.1: Included mounting brackets and hardware.
3. Safety Information
Always prioritize safety during installation and use. Failure to follow these guidelines may result in injury or damage to your vehicle.
- Wear appropriate personal protective equipment, including safety glasses and gloves, during installation.
- Ensure the vehicle is parked on a level surface and the parking brake is engaged before beginning work.
- Do not exceed the maximum weight capacity of 350 lbs per running board.
- Regularly inspect the running boards and mounting hardware for any signs of wear, damage, or looseness. Tighten fasteners as needed.
- Keep children and pets away from the work area during installation.
4. Installation Instructions
Installation is designed to be a no-drill process, utilizing existing factory mounting points. It typically takes less than an hour for most models.
4.1 Tools Required (Not Included)
- Socket Wrench Set
- Torque Wrench
- Measuring Tape
- Marker or Grease Pencil
4.2 Step-by-Step Installation
- Identify Mounting Points: Locate the factory mounting points along the rocker panel of your Nissan Pathfinder. These are typically pre-drilled holes or threaded inserts.
- Attach Brackets: Secure the vehicle-specific mounting brackets to the factory mounting points using the provided hardware. Ensure all bolts are hand-tightened initially.
- Position Running Boards: Carefully lift each running board and align it with the attached mounting brackets. The running boards are designed with specific slots or holes to mate with the brackets.
- Secure Running Boards: Attach the running boards to the brackets using the remaining hardware. Do not fully tighten at this stage.
- Adjust and Align: Adjust the position of the running boards to ensure they are level and evenly spaced from the vehicle body. Once satisfied with the alignment, fully tighten all bolts to the manufacturer's recommended torque specifications. Refer to your vehicle's service manual for specific torque values if available, or tighten securely.
- Final Inspection: Double-check all fasteners to ensure they are tight. Test the stability of the running boards by applying moderate weight.

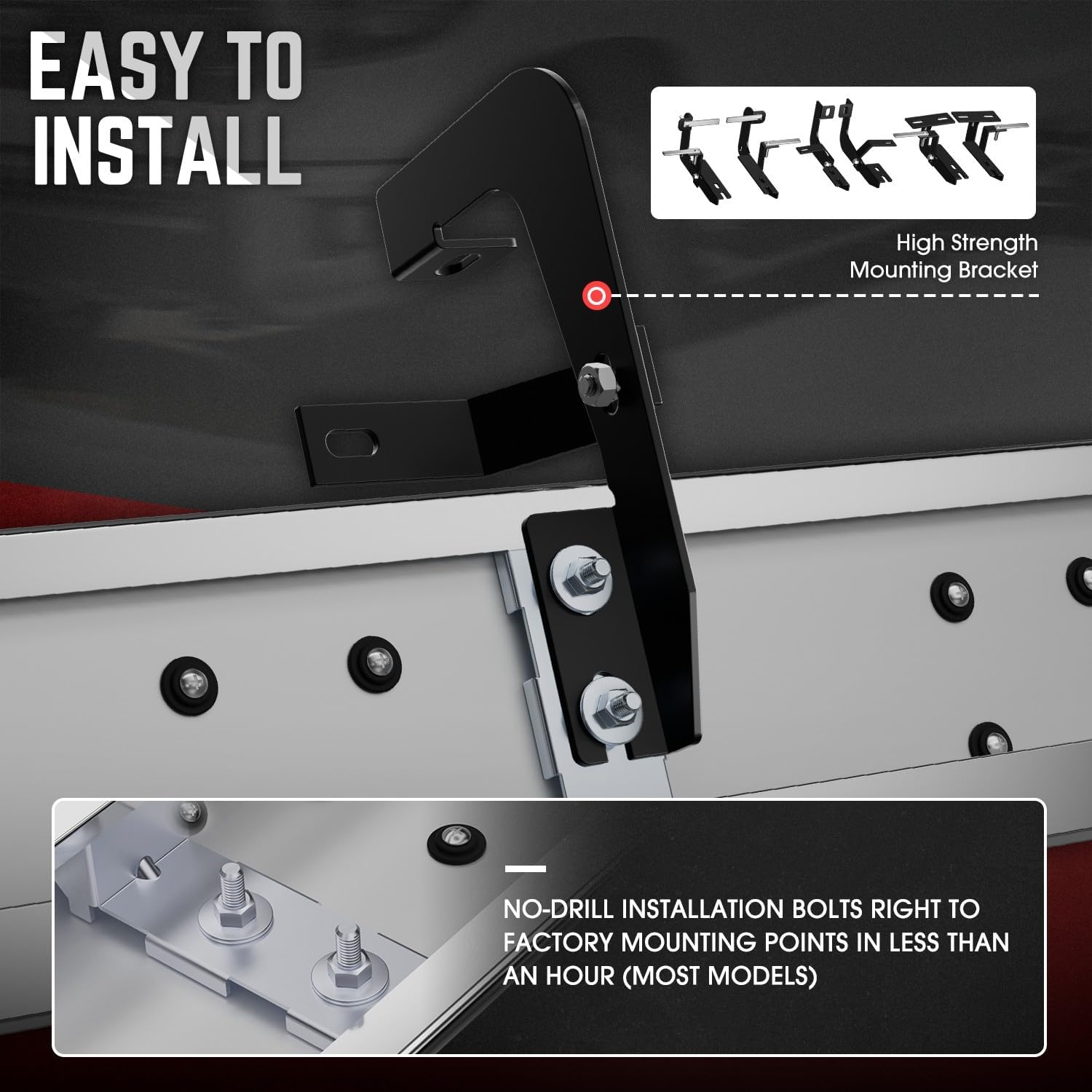

Figure 4.1: No-drill installation using factory mounting points.
Figure 4.2: Example of a high-strength mounting bracket.
5. Operation
The running boards provide a stable and secure step for accessing your vehicle. Step onto the board firmly and centrally to distribute weight evenly. The non-slip design ensures secure footing.
Figure 5.1: Demonstrating the non-slip step pad and 350 lbs capacity.
Figure 5.2: Detail of the non-slip ABS plastic covered step pads and polished stainless steel finish.
6. Maintenance
Regular maintenance will ensure the longevity and continued performance of your running boards.
- Cleaning: Clean the running boards regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish or plastic components.
- Inspection: Periodically inspect all mounting hardware for tightness. Re-tighten any loose bolts to prevent rattling or instability. Check for any signs of corrosion, cracks, or damage to the running boards or brackets.
- Winter Care: In areas with road salt or harsh winter conditions, rinse the running boards and mounting areas frequently to prevent salt buildup and corrosion.
7. Troubleshooting
Refer to the table below for common issues and their potential solutions.
| Issue | Possible Cause | Solution |
|---|---|---|
| Running board feels loose or rattles | Loose mounting hardware | Inspect and re-tighten all bolts and nuts on the mounting brackets and running board connections. |
| Difficulty stepping on/off | Incorrect installation angle or height | Review installation steps to ensure proper alignment. Adjust if possible, or consult a professional. |
| Unusual noise from running boards | Loose components or rubbing against vehicle body | Check all fasteners for tightness. Ensure no part of the running board or bracket is making contact with the vehicle's undercarriage or body panels. |
8. Specifications
Key specifications for the DNA MOTORING Running Boards (Model: STEPB-U-PF22-T1).
| Feature | Detail |
|---|---|
| Model Number | STEPB-U-PF22-T1 |
| Compatibility | Nissan Pathfinder 2022-2024 |
| Material | Stainless Steel / Mild Steel / ABS Plastic |
| Exterior Finish | Polished |
| Dimensions (L x W x H) | 73.23 x 8.66 x 3.94 inches |
| Step Width | 6.5 inches |
| Weight Limit | 350 lbs |
| Installation Type | No-Drill, Bolts to Factory Mounting Points |
| Item Weight | 39.9 pounds |
| UPC | 194286361587 |
Figure 8.1: Overall dimensions of the running boards.
9. Warranty and Customer Support
For information regarding product warranty, returns, or technical assistance, please contact DNA MOTORING customer support directly. Keep your purchase receipt and model number (STEPB-U-PF22-T1) readily available when contacting support.
You can typically find contact information on the manufacturer's official website or through your point of purchase.
