Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions before operating the bread maker.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electric shock, do not immerse cord, plugs, or the bread maker in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- To disconnect, turn any control to 'off', then remove plug from wall outlet.
- Do not use appliance for other than intended use.
Product Overview
Familiarize yourself with the components of your Sweet taize Bread Maker Machine.
Image: The Sweet taize Bread Maker Machine DL-TM018, showcasing its compact design and control panel.
Main Components:
- Main Unit: Houses the motor, heating element, and control panel.
- Bread Pan: Removable non-stick pan for baking.
- Kneading Blade: Detachable blade for mixing and kneading dough.
- Fruit and Nut Dispenser: Automatic dispenser for adding ingredients at the optimal time.
- Measuring Cup and Spoon: For accurate ingredient measurement (typically included).
Image: Close-up view highlighting key features such as the portable handle, transparent viewing window, steam outlet, and the stainless steel wire drawing shell.
Control Panel:
The control panel features an LCD HD display and intuitive buttons for program selection, time adjustment, loaf size, and crust color.
Image: The bread maker's control panel, showing the LCD display and a list of 25 available programs.
- LCD Display: Shows selected program, time remaining, loaf size, and crust color.
- Menu Button: Cycles through the 25 preset programs.
- Loaf Size Button: Selects 500g, 750g, or 1000g loaf.
- Crust Color Button: Chooses light, medium, or dark crust.
- Timer Buttons (+/-): Adjusts the delay timer for delayed baking.
- Start/Stop Button: Initiates or cancels a program.
Setup
Before first use, follow these steps:
- Unpack: Carefully remove all packaging materials and accessories.
- Clean: Wash the bread pan and kneading blade with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the main unit with a damp cloth.
- Placement: Place the bread maker on a stable, flat, heat-resistant surface, away from direct sunlight and heat sources. Ensure adequate ventilation around the appliance.
- First Bake Cycle (Empty): It is recommended to run an empty bake cycle (e.g., 'Bake' program without ingredients) for about 10 minutes to burn off any manufacturing residues. Ensure the area is well-ventilated during this process.
Operating Instructions
Follow these steps for successful bread making:
- Install Kneading Blade: Place the kneading blade onto the shaft inside the bread pan.
- Add Ingredients: Add liquid ingredients first, followed by dry ingredients. Make sure yeast is added last, separate from liquids and salt. Refer to your recipe for precise measurements.
- Insert Bread Pan: Place the bread pan into the main unit and twist gently until it locks into place. Close the lid.
- Select Program: Plug in the bread maker. Use the 'Menu' button to select one of the 25 preset programs (e.g., Basic, Whole Wheat, Gluten-Free, Dough, Jam, Yogurt).
- Choose Loaf Size and Crust Color: Press the 'Loaf Size' button to select 500g, 750g, or 1000g. Press the 'Crust Color' button for light, medium, or dark.
- Use Fruit and Nut Dispenser (Optional): If your recipe includes fruits or nuts, place them in the automatic dispenser. The machine will add them at the appropriate time during the kneading cycle.
- Set Delay Timer (Optional): If you wish to delay the start of baking, use the '+' and '-' buttons to set the desired delay time (up to 13 hours).
- Start Baking: Press the 'Start/Stop' button. The machine will begin the selected program. The LCD display will show the remaining time.
- Keep Warm Function: After baking is complete, the machine will automatically enter a 1-hour 'Keep Warm' cycle.
- Remove Bread: Once the cycle is finished, unplug the machine. Using oven mitts, carefully remove the bread pan. Invert the pan to release the bread onto a wire rack to cool. Remove the kneading blade from the bread if it remains embedded.

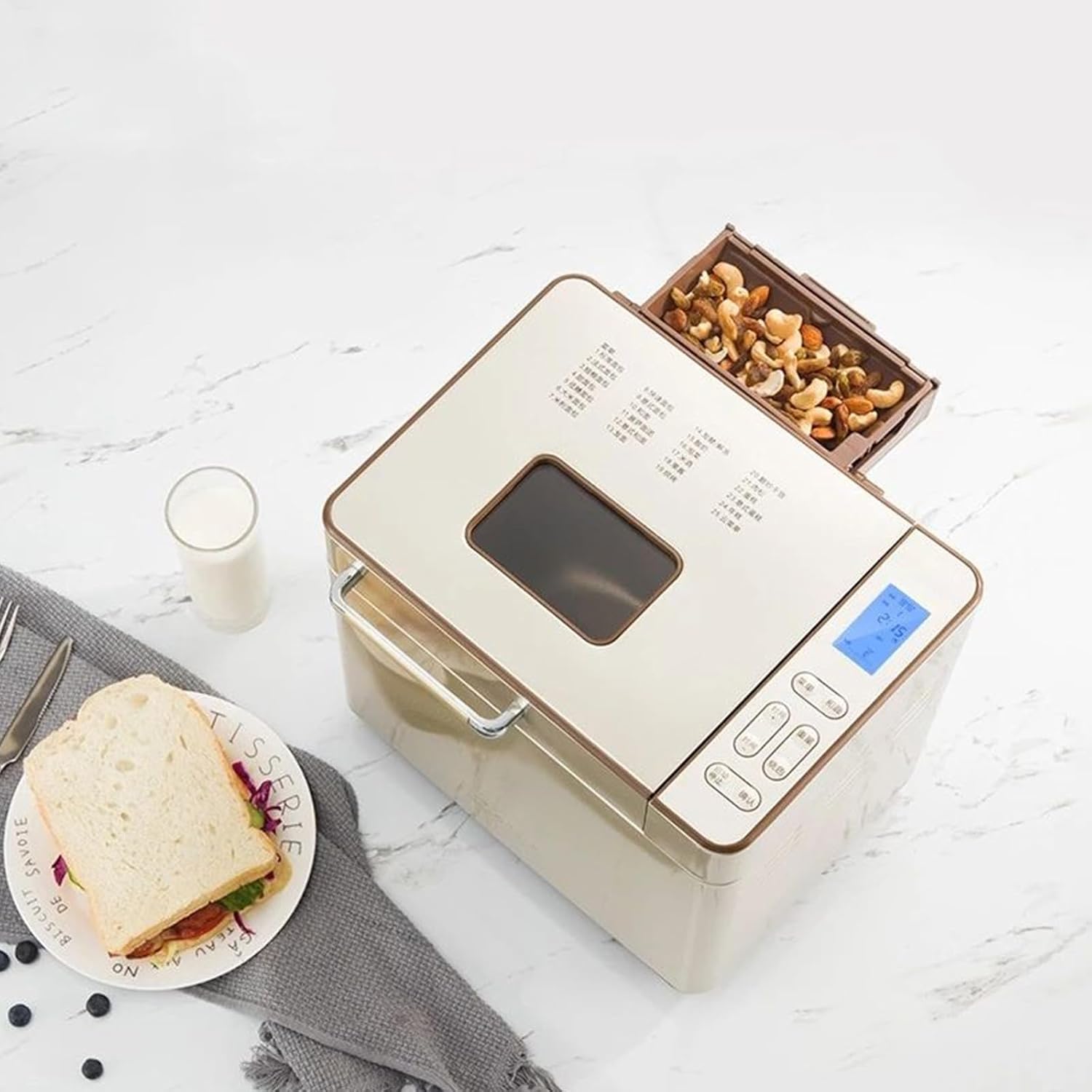

Image: Top-down view of the bread maker with the automatic fruit and nut dispenser open, showing various ingredients ready to be added.
Image: The bread maker with its lid open, revealing the bread pan containing dough, alongside flour and eggs on a marble surface.
Power Interruption Recovery:
The bread maker features a 10-minute power interruption recovery function. If power is restored within 10 minutes, the program will resume automatically from where it left off.
Maintenance
Proper care ensures the longevity of your bread maker.
Cleaning:
- Before Cleaning: Always unplug the appliance and allow it to cool completely.
- Bread Pan and Kneading Blade: Wash with warm, soapy water. Avoid abrasive cleaners or scouring pads that could damage the non-stick coating. Rinse and dry thoroughly.
- Main Unit: Wipe the exterior with a soft, damp cloth. Do not immerse the main unit in water or any other liquid.
- Lid and Viewing Window: Wipe with a damp cloth. For stubborn stains, use a mild detergent.
- Fruit and Nut Dispenser: Remove and clean thoroughly after each use to prevent residue buildup.
Storage:
Ensure the bread maker is clean and dry before storing. Store in a cool, dry place, away from direct sunlight.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bread does not rise | Expired yeast, incorrect water temperature, too much salt/sugar. | Check yeast expiry, use lukewarm water, ensure correct ingredient measurements. |
| Bread is too dense | Too much flour, not enough liquid, incorrect program. | Measure ingredients accurately, select appropriate program for recipe. |
| Machine not starting | Not plugged in, lid not closed properly, 'Start/Stop' button not pressed. | Ensure power connection, close lid securely, press 'Start/Stop' firmly. |
| Kneading blade stuck in bread | Common occurrence. | Allow bread to cool slightly, then carefully remove the blade using a non-metallic utensil. |
Specifications
Technical details for the Sweet taize Bread Maker Machine DL-TM018:
Image: Diagram illustrating the product dimensions and key specifications of the bread maker and its pan.
- Model: DL-TM018
- Voltage: 220V
- Power: 650W
- Weight: 5.1 KG
- Capacity: 500G, 750G, 1000G (approximately 1.1lb, 1.65lb, 2.2lb)
- Product Size: 310mm (L) x 220mm (W) x 295mm (H)
- Baking Temperature: 170-200 °C
- Delay Timer: Up to 13 hours
- Display: LCD HD Display
- Function Menu: 25 preset programs
Warranty and Support
For warranty information, please refer to the documentation provided with your purchase. If you require technical assistance or have questions not covered in this manual, please contact Sweet taize customer support through the retailer where the product was purchased.
