Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Sweet taize Automatic Espresso Coffee Machine. Please read all instructions carefully before using the appliance and retain this manual for future reference.
Image: Front view of the Sweet taize Automatic Espresso Coffee Machine, showcasing its polished stainless steel and wooden accents.
Important Safety Instructions
- Read all instructions before use.
- Do not immerse the appliance, power cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Always unplug the machine from the power outlet before cleaning or when not in use.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Keep hands and cords away from hot surfaces and steam.
- Use only manufacturer-recommended accessories.
- This appliance is for indoor use only.
Product Overview
Components
- E61 Brew Head: Ensures thermal stability for consistent coffee extraction.
- Water Tank: Removable, with a capacity of 2.9 liters.
- Boiler: Single boiler with heat exchanger, made of copper and brass, 1.8 liter capacity.
- Vibratory Pump: Provides 15 bar pressure for brewing.
- Frothing Nozzle: For steaming milk.
- Hot Water Nozzle: For dispensing hot water.
- Boiler Pressure Gauge: Displays boiler pressure.
- Temperature Indicator: Shows current temperature.
- PID Display: Electronic heat management system for temperature adjustments.
- Portafilter: For holding ground coffee.
- Drip Tray: Collects excess liquid.

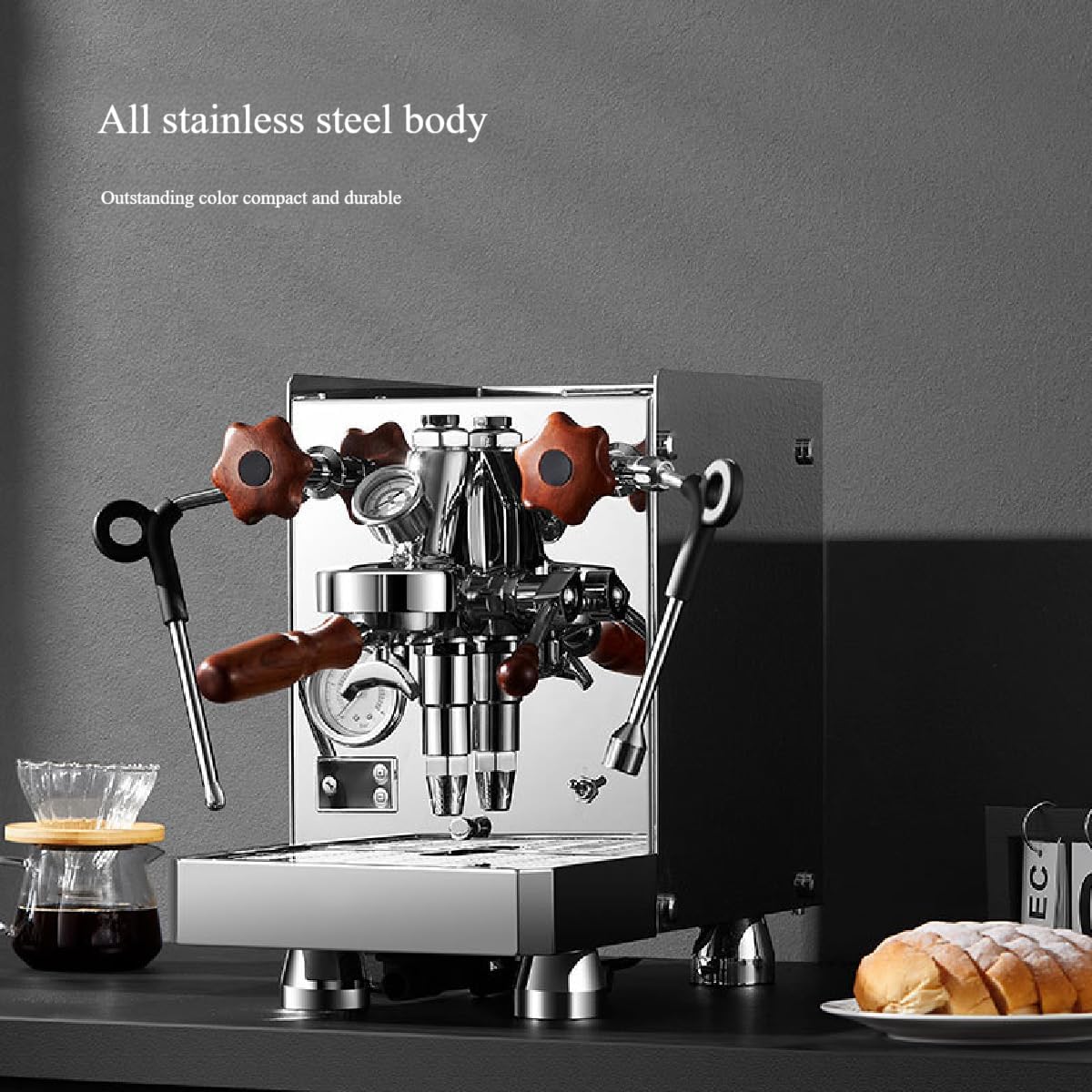

Image: Full view of the espresso machine, highlighting its stainless steel construction.
Key Features
- E61 Brew Head: Designed for exceptional thermal stability, ensuring consistent extraction for each shot.
- Durable Construction: Crafted with high-quality stainless steel and vintage walnut wood for durability and aesthetic appeal.
- Efficient Rotary Pump: Precisely regulates pressure for optimal flavor extraction.
- PID Electronic Heat Management: Offers a narrow and precise temperature range with immediate adjustment capabilities for fine-tuning the coffee-making process.
- Semi-Automatic Operation: Provides flexibility for personalization while maintaining user-friendly controls.

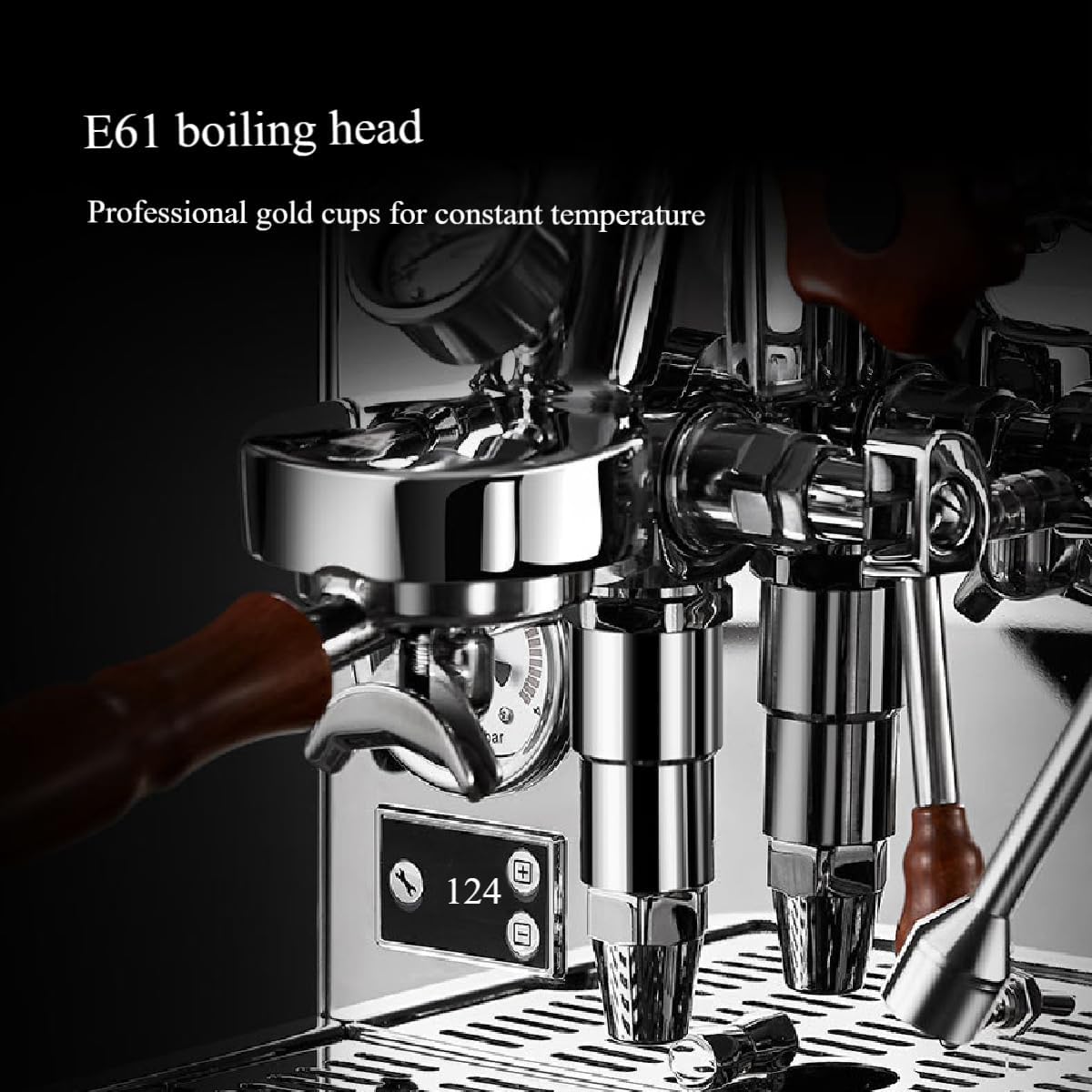

Image: Detailed view of the E61 brew head, emphasizing its professional design for temperature consistency.

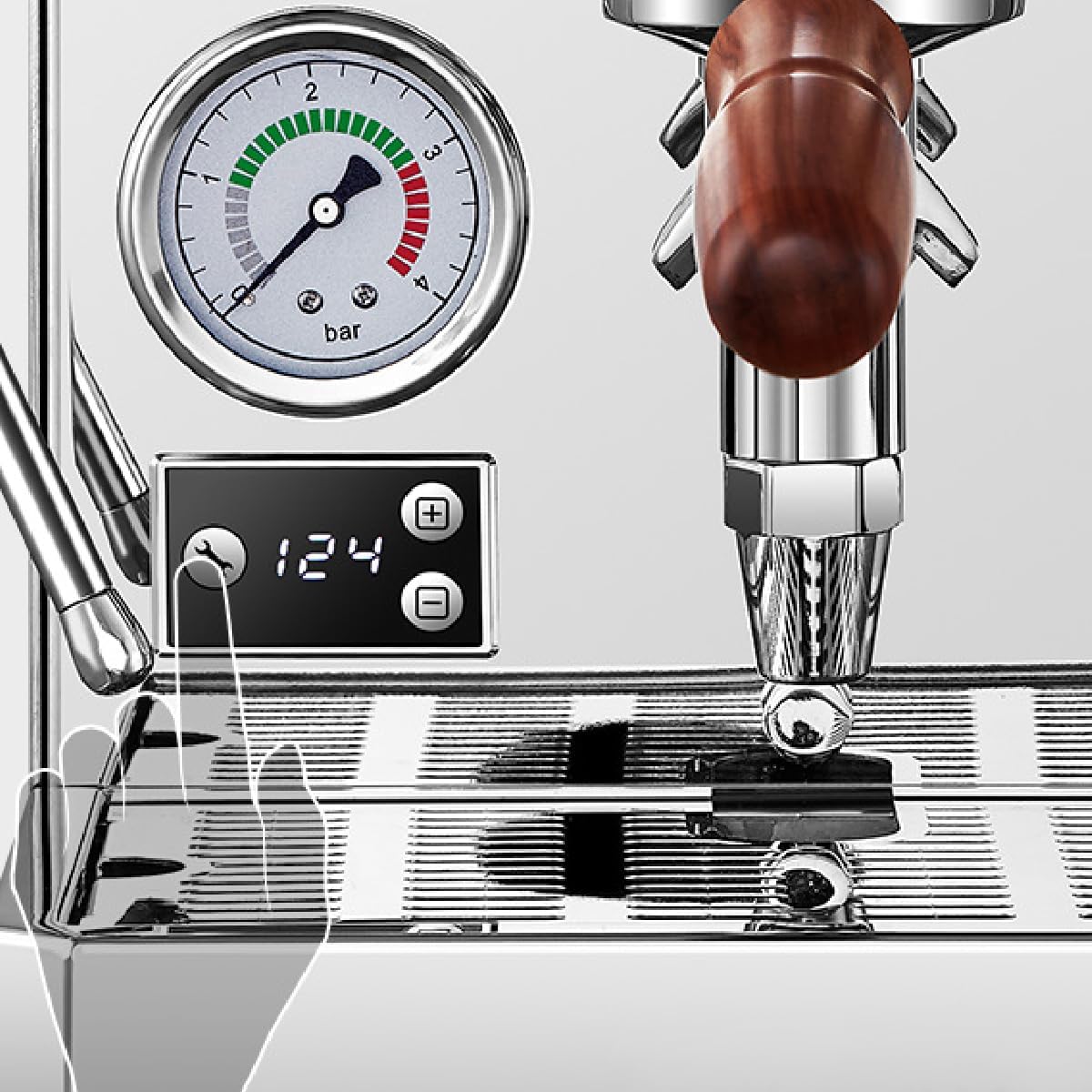

Image: Close-up of the machine's pressure gauge and digital temperature display, showing operational readings.
Setup
- Unpacking: Carefully remove all packaging materials. Inspect the machine for any damage.
- Placement: Place the machine on a stable, level, and heat-resistant surface, away from water sources and direct sunlight. Ensure adequate ventilation around the machine.
- Initial Cleaning: Before first use, wipe down the exterior with a damp cloth. Wash the water tank, portafilter, and drip tray with warm, soapy water, then rinse thoroughly.
- Fill Water Tank: Remove the water tank and fill it with fresh, cold, filtered water up to the MAX line. Reinsert the tank securely.
- Power Connection: Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the machine's requirements (220-240V, 50Hz).
- First Use Cycle (Priming): Follow the operating instructions to run a few cycles of hot water through the brew head and steam wand without coffee to prime the system and rinse out any manufacturing residues.
Operating Instructions
1. Powering On and Pre-heating
- Ensure the water tank is filled.
- Turn on the main power switch. The machine will begin to heat up.
- Allow the machine to pre-heat for at least 15-20 minutes to ensure the E61 brew head and boiler reach optimal temperature for consistent extraction. The temperature indicator and PID display will show the heating progress.
2. Brewing Espresso
- Grind fresh coffee beans to an espresso-fine consistency.
- Dose the portafilter with the desired amount of ground coffee (e.g., 7-8g for a single shot, 14-16g for a double shot).
- Tamp the coffee evenly with firm pressure. Wipe any loose grounds from the rim of the portafilter.
- Insert the portafilter into the E61 brew head and lock it into place.
- Place your espresso cup(s) under the portafilter spouts.
- Activate the brew lever to start the extraction. The machine allows for custom pre-soak time; adjust as desired for optimal flavor.
- Monitor the pressure gauge during extraction; ideal pressure is typically around 9-10 bar.
- Stop the extraction once the desired volume is reached (e.g., 25-30ml for a single shot in 25-30 seconds).

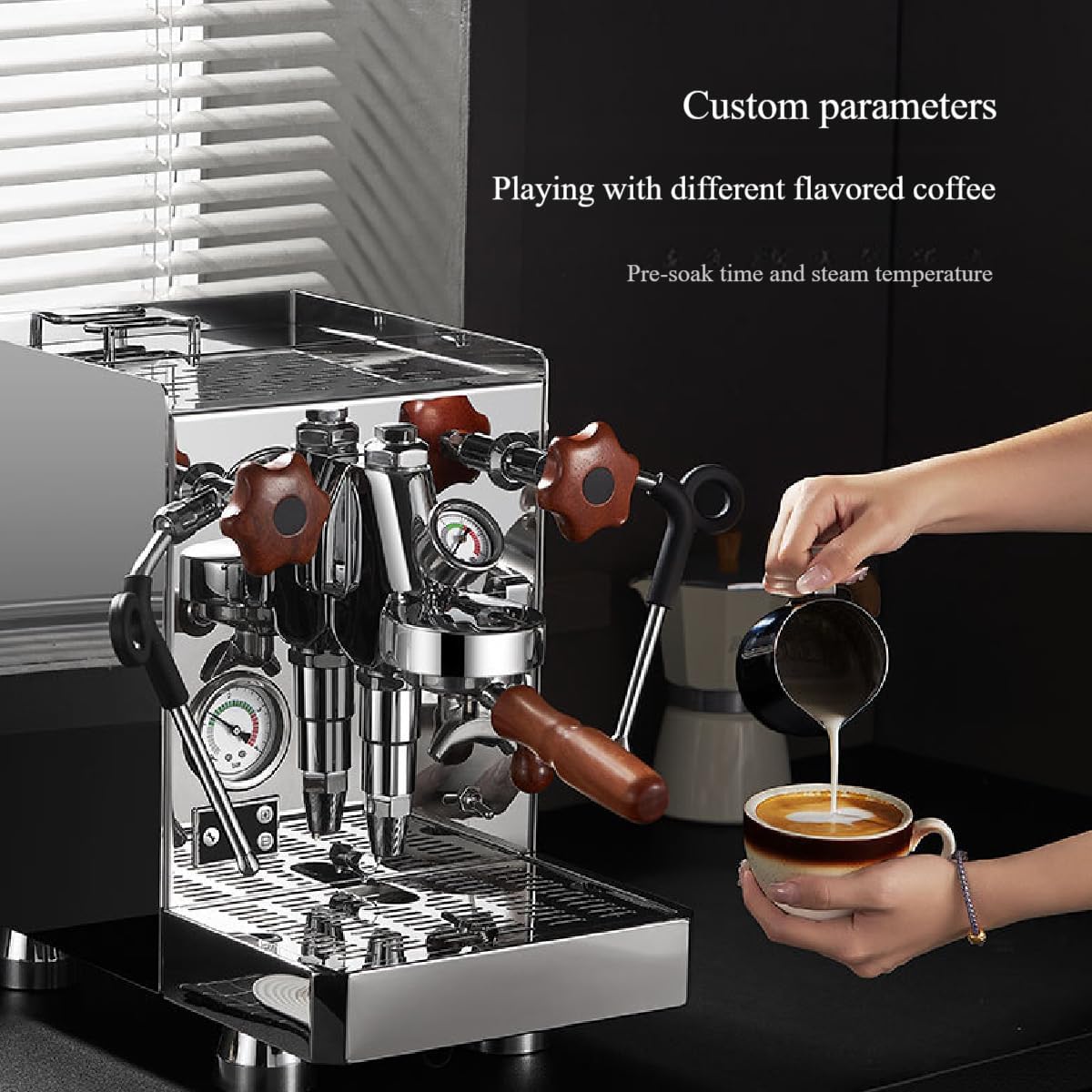

Image: A user preparing coffee, demonstrating the machine's custom parameter settings and the process of pouring milk into an espresso.
Image: A close-up of a cup of latte with latte art, resting on the machine's drip tray after preparation.
3. Frothing Milk
- Ensure the machine is at steaming temperature.
- Purge the steam wand briefly to release any condensed water.
- Immerse the tip of the steam wand just below the surface of cold milk in a stainless steel pitcher.
- Open the steam valve fully. Stretch the milk by keeping the tip near the surface to incorporate air, then submerge it deeper to create a swirling vortex for texturing.
- Close the steam valve when the milk reaches the desired temperature and texture.
- Immediately wipe the steam wand with a damp cloth and purge it again to prevent milk residue buildup.
4. Hot Water Dispensing
- Place a cup under the hot water nozzle.
- Open the hot water valve to dispense hot water.
- Close the valve when the desired amount of water is dispensed.
Maintenance
Daily Cleaning
- Portafilter and Baskets: After each use, remove the portafilter, discard coffee grounds, and rinse thoroughly under hot water.
- Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth and purge it to clear any milk residue.
- Drip Tray: Empty and rinse the drip tray daily.
- Brew Head: Perform a backflush with a blind filter and espresso machine cleaner as recommended by the cleaner's instructions.
- Exterior: Wipe down the exterior of the machine with a soft, damp cloth.
Regular Maintenance
- Water Tank: Clean the water tank weekly with warm, soapy water to prevent mineral buildup.
- Descaling: Depending on water hardness and usage, descale the machine every 1-3 months using a commercial descaling solution designed for espresso machines. Follow the descaler's instructions carefully.
- Group Head Gasket and Shower Screen: Periodically inspect and replace the group head gasket and shower screen if they show signs of wear or cracking to ensure proper sealing and water distribution.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not power on | No power supply; power switch off; faulty cord/plug | Check power outlet and plug; ensure power switch is ON; contact service if cord/plug is damaged. |
| No water flow from brew head | Empty water tank; pump not primed; clogged brew head | Fill water tank; run hot water cycle to prime pump; clean brew head and shower screen. |
| Weak or watery espresso | Coffee too coarse; insufficient coffee dose; uneven tamping; low brew temperature | Grind coffee finer; increase coffee dose; tamp evenly and firmly; allow machine to pre-heat longer or adjust PID temperature. |
| No steam from steam wand | Machine not at steaming temperature; steam wand clogged | Allow machine to reach steaming temperature; clean steam wand hole with a pin. |
| Water leaking from machine | Loose water tank; damaged gasket; overfilled drip tray | Ensure water tank is seated correctly; inspect and replace gaskets if necessary; empty drip tray. |
Technical Specifications
- Anti-vacuum valve: Yes
- Automatic electronic water level: Yes
- Heating system: Single boiler with heat exchanger
- Boiler material: Copper and brass
- Boiler capacity: 1.8 liters
- Pump type: Vibratory
- Pump pressure: 15 bar
- Water tank capacity: 2.9 liters
- Water tank removable: Yes
- Boiler pressure gauge: Yes
- Temperature indicator: Yes
- Cup warmer: Passive
- Frothing nozzle: Yes
- Hot water nozzle: Yes
- Voltage (V): 220-240 V
- Frequency (Hz): 50 Hz
- Power cord length: 1.8 meters
- Manufacturer: Sweet taize
- ASIN: B0DPKKJ8TJ
Warranty and Support
Your Sweet taize Automatic Espresso Coffee Machine is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details.
For technical support, service, or warranty claims, please contact Sweet taize customer service through the retailer where the product was purchased or visit the official Sweet taize website for contact information.
