Introduction
This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your NWOUIIAY Electric Milk Frother 4-in-1. Please read this manual thoroughly before first use and retain it for future reference.
Safety Instructions
- Ensure the frother is placed on a stable, non-slip surface away from water sources.
- Do not immerse the power base in water or any other liquid.
- Always ensure the milk frother is clean and free of dirt before each use.
- Avoid dry burning or overheating by always pouring milk into the frother before operation.
- The frother's interior and heating surfaces can become hot during and after use. Exercise caution and avoid direct contact.
- Keep out of reach of children.
Product Overview
The NWOUIIAY Electric Milk Frother 4-in-1 is designed to prepare hot milk froth, cold milk froth, heated milk, and hot chocolate. It features a separate, removable cup for convenience and a non-slip base for stability.
Image: The NWOUIIAY Electric Milk Frother displaying its four primary functions: hot milk froth, cold milk froth, hot milk, and hot cocoa.

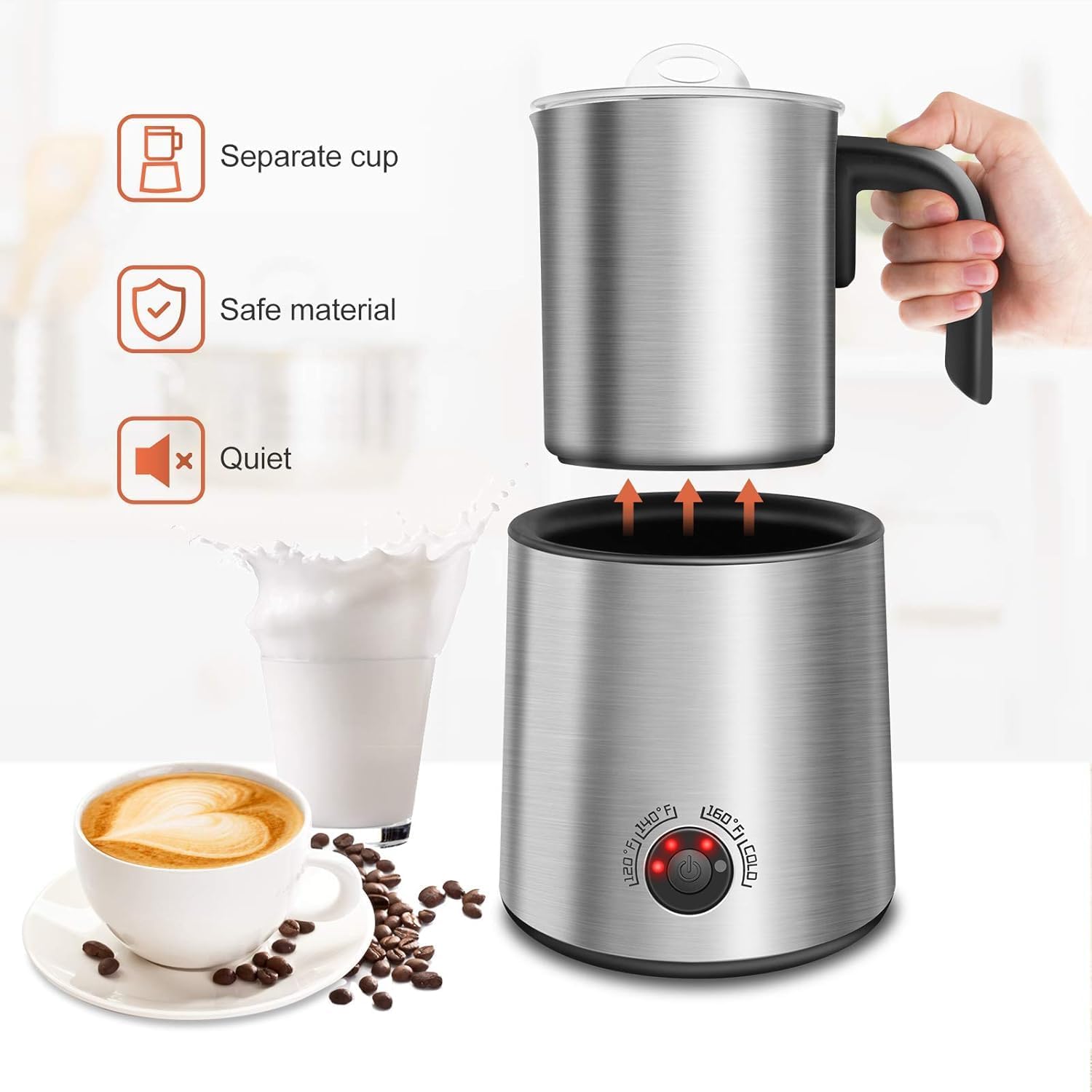

Image: The frother's separate cup design, emphasizing ease of use, safe materials, and quiet operation.
Setup
- Unpack all components: the frother base, removable cup, lid, and whisk attachments.
- Wash the removable cup and whisk attachments with warm, soapy water before first use. Rinse thoroughly and dry.
- Place the frother base on a clean, dry, and level surface. Ensure the non-slip feet are securely positioned.
- Insert the desired whisk attachment into the bottom of the removable cup.
- Place the removable cup onto the power base.
- Connect the power cord to a suitable electrical outlet (220-240V 50/60Hz).

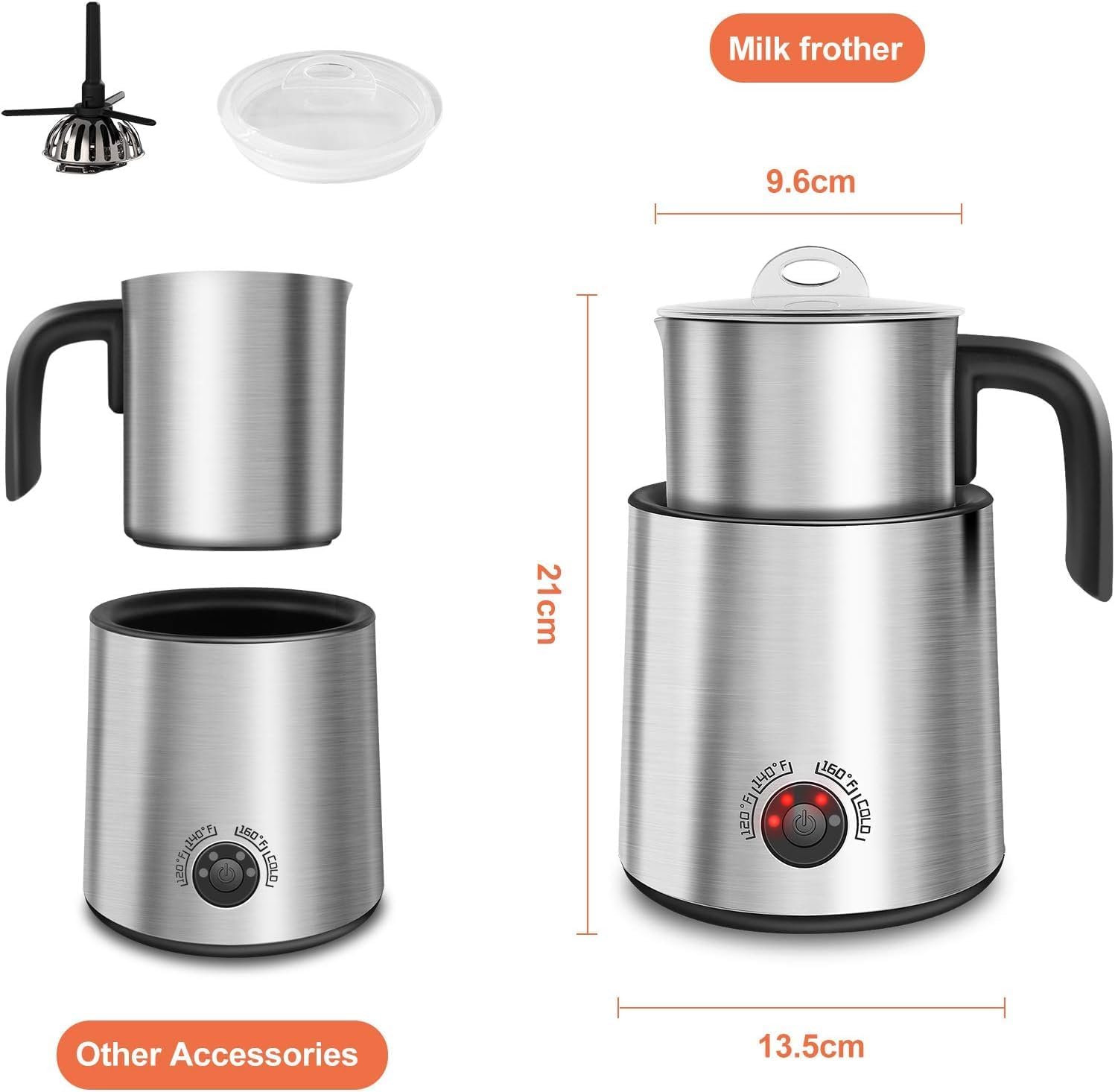

Image: Exploded view of the frother components and dimensions, including the whisk attachments.
Operating Instructions
The frother operates with a single button for mode selection and temperature adjustment.
General Operation:
- Ensure the correct whisk is installed for your desired function (frothing or heating).
- Pour milk into the removable cup. Observe the maximum fill lines: 150ml for frothing milk, and 300ml for heating non-foamed milk or hot chocolate.
- Place the lid on the cup.
- Press the power button to cycle through the available modes and temperature settings. The indicator light will show the selected setting.
- The frother will automatically stop once the process is complete.
- Carefully remove the cup from the base and pour the prepared milk.
Tips for Best Results:
- For optimal frothing, use whole milk with a fat content greater than 3%.
- Always add milk before starting the operation to prevent dry burning.
- If preparing coffee or hot chocolate, heat and froth the milk first, then prepare your beverage.
Image: The frother's temperature options (120°F, 140°F, 160°F, Cold) and capacity indicators (up to 300ml for heating, 150ml for frothing).
Image: Operational guide for heating and foaming, heating and mixing, and heating chocolate, with corresponding temperature and time ranges.
Maintenance and Cleaning
Regular cleaning ensures optimal performance and longevity of your milk frother.
- Always unplug the frother from the power outlet and allow it to cool completely before cleaning.
- Remove the cup from the power base.
- Cleaning the Interior: Wash the interior of the removable cup and the whisk attachments with a soft, non-abrasive cloth or sponge and warm, soapy water. Rinse thoroughly with warm water. The non-stick coating prevents milk from sticking, making cleaning easier.
- Cleaning the Exterior: Wipe the exterior of the frother and the power base with a soft, dry cloth. Do not use abrasive cleaners or immerse the base in water.
- Ensure all parts are completely dry before reassembling or storing the frother.
Image: The removable cup can be easily cleaned by hand or in a dishwasher, ensuring hygiene and convenience.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Frother does not start or operate. | Not plugged in; power outage; cup not correctly placed on base. | Check power connection; ensure cup is securely seated on the base. |
| Milk not frothing properly. | Incorrect milk type (low fat); insufficient milk quantity; wrong whisk attachment. | Use whole milk (fat > 3.0%); ensure milk is between min/max fill lines; verify frothing whisk is installed. |
| Milk burns or overheats. | No milk added before operation; incorrect setting. | Always add milk before starting; select appropriate temperature setting. |
| Device stops unexpectedly. | Automatic shut-off after cycle completion; safety feature activated. | This is normal operation. If it stops prematurely, check for overheating or ensure sufficient milk. |
Specifications
| Feature | Detail |
|---|---|
| Brand | NWOUIIAY |
| Model Number | 5173 |
| Functions | Hot Milk Froth, Cold Milk Froth, Heated Milk, Hot Chocolate |
| Material | Stainless Steel with Non-Stick Coating |
| Frothing Capacity | 150 ml |
| Heating Capacity | 300 ml |
| Voltage/Power | 220-240V 50/60Hz, 550W |
| Temperature Settings | 49℃/120℉, 60℃/140℉, 71℃/160℉, Cold |
| Included Components | Cleaning Brush, Cup, Stand, User Manual |
| Item Weight | 3.3 pounds |
| Package Dimensions | 9.41 x 6.89 x 6.85 inches |
Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact NWOUIIAY customer service directly. Keep your purchase receipt as proof of purchase.
