1. Introduction
This manual provides essential information for the installation, maintenance, and troubleshooting of your DOPZNJWF replacement deck pulley. This pulley is designed to be compatible with various Troy-Bilt WC33 series lawn mowers, including specific models such as 12AE763Z011, 12AE76JU711, and 12AE76M8066, and replaces part number 756-0616. Please read this manual thoroughly before attempting any installation or maintenance.
2. Safety Information
Always prioritize safety when working with machinery. Failure to follow safety instructions can result in serious injury or damage to equipment.
- Disconnect Power: Before beginning any work on your lawn mower, ensure the engine is off, the spark plug wire is disconnected, and the battery (if applicable) is disconnected to prevent accidental starting.
- Wear Protective Gear: Always wear appropriate personal protective equipment, including safety glasses and gloves.
- Consult Original Manual: Refer to your lawn mower's original owner's manual for specific safety procedures and detailed instructions pertaining to your model.
- Secure Equipment: Ensure the lawn mower is stable and cannot move or tip over during maintenance.
- Use Correct Tools: Use only the appropriate tools for the task to avoid damage to parts or injury.
3. Product Overview
The DOPZNJWF replacement deck pulley is a critical component in the lawn mower's deck drive system, responsible for guiding and tensioning the drive belt that powers the cutting blades. It features a durable metal construction with an integrated bearing for smooth rotation.

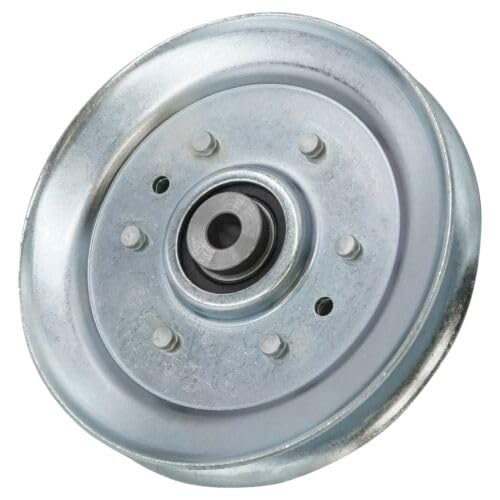

Image 3.1: DOPZNJWF Replacement Deck Pulley. This image displays the metal pulley with its central bearing and mounting points, designed for belt guidance and tensioning on a lawn mower deck.
4. Installation (Setup)
The following steps provide a general guide for replacing a deck pulley. Specific procedures may vary depending on your exact Troy-Bilt WC33 model. Always consult your mower's service manual for detailed, model-specific instructions.
- Prepare the Mower: Park the lawn mower on a flat, stable surface. Disconnect the spark plug wire and engage the parking brake. For riding mowers, lower the deck to its lowest position.
- Access the Deck: Depending on your mower type, you may need to remove the cutting deck from the mower frame or lift the mower to access the underside of the deck.
- Relieve Belt Tension: Locate the tensioning mechanism for the deck belt. Carefully release the tension on the belt to allow its removal from the pulleys.
- Remove Old Pulley: Identify the pulley to be replaced. Note its orientation and how the belt is routed around it. Remove any retaining bolts, nuts, or clips securing the old pulley. Carefully detach the old pulley.
- Install New Pulley: Position the new DOPZNJWF replacement pulley in the exact orientation of the old one. Secure it with the original fasteners, ensuring they are tightened to the manufacturer's specifications (refer to your mower's manual for torque values).
- Re-route Belt: Carefully re-route the deck belt around all pulleys, including the new one, ensuring it is correctly seated in all grooves.
- Restore Belt Tension: Re-engage the belt tensioning mechanism. Verify that the belt is properly tensioned and aligned.
- Reassemble and Test: Reattach the deck (if removed) and reconnect the spark plug wire. Perform a slow, careful test run to ensure the deck operates smoothly and quietly before full use.
5. Function and Operation
Once correctly installed, the deck pulley functions as a guide and tensioner for the mower deck's drive belt. Its proper operation is crucial for the efficient transfer of power from the engine to the cutting blades. A correctly functioning pulley ensures consistent blade speed and reduces wear on the belt and other components. No direct user operation is required for the pulley itself beyond ensuring correct installation and periodic inspection.
6. Maintenance
Regular inspection of your deck pulleys can extend the life of your mower's drive system.
- Visual Inspection: Periodically inspect the pulley for signs of wear, cracks, bends, or damage. Check the bearing for excessive play or roughness by attempting to spin the pulley by hand (with power disconnected).
- Cleanliness: Keep the pulley and surrounding area free of grass clippings, dirt, and debris, which can interfere with belt operation and cause premature wear.
- Bearing Check: Listen for unusual noises (squealing, grinding) coming from the pulley during operation, which may indicate a failing bearing.
- Belt Condition: While inspecting the pulley, also check the condition of the drive belt for cracks, fraying, or excessive wear.
7. Troubleshooting
If you experience issues with your mower deck's operation, the pulley system may be a contributing factor.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Loud squealing or grinding noise from deck | Worn or seized pulley bearing | Inspect and replace the faulty pulley. |
| Belt frequently slips off pulley | Bent or damaged pulley flange; incorrect belt tension; worn belt | Inspect pulley for damage, adjust belt tension, or replace the belt. |
| Uneven cut or reduced blade speed | Pulley not rotating freely; incorrect belt routing | Check pulley for obstructions or damage; verify belt routing against mower manual. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified service technician.
8. Specifications
- Part Number: ca20241204
- Brand: DOPZNJWF
- Compatibility: Designed for Troy-Bilt WC33 series lawn mowers, including models 12AE763Z011, 12AE76JU711, 12AE76M8066, and replaces OEM part 756-0616.
- Material: Metal (as depicted)
- Date First Available: December 4, 2024
9. Warranty and Support
For information regarding warranty coverage or technical support for your DOPZNJWF replacement deck pulley, please refer to the seller's policies or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.
