1. Introduction
This instruction manual provides essential information for the proper installation, maintenance, and care of your new DFHYTHU Front Caster Wheel. This replacement part is designed to ensure optimal performance of your compatible Dreame robot vacuum cleaner. Please read this manual thoroughly before installation and keep it for future reference.
2. Product Overview
The DFHYTHU Front Caster Wheel is a high-quality replacement accessory for select Dreame robot vacuum cleaner models. It is engineered for durability and smooth operation, ensuring your robot vacuum navigates effectively across various surfaces.
Figure 2.1: Top-down view of the DFHYTHU Front Caster Wheel, showing the wheel housing and the central axle assembly.
3. Compatibility
This front caster wheel is compatible with the following Dreame robot vacuum cleaner models:
- Dreame L10 Pro
- Dreame L10s Pro
- Dreame X30 Ultra
- Dreame X40 Ultra
Please verify your robot vacuum model before proceeding with installation.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | DFHYTHU |
| Model Number | gvrgv444 |
| Item Weight | 50 Grams |
| Number of Items | 1 |
5. Installation Instructions
Follow these steps to replace the front caster wheel on your Dreame robot vacuum cleaner. Ensure the robot vacuum is powered off and disconnected from its charging base before beginning.
- Prepare the Robot: Turn your robot vacuum cleaner upside down on a clean, soft surface to prevent scratches.
- Locate the Front Caster Wheel: Identify the existing front caster wheel assembly. It is typically located at the front center of the robot.
- Remove the Old Wheel: Gently pull the old caster wheel assembly straight out from its housing. It may require a slight amount of force. Avoid twisting or prying excessively to prevent damage to the robot's chassis.
Figure 5.1: View of the front caster wheel assembly, ready for removal or installation.
- Inspect the Housing: Once the old wheel is removed, inspect the wheel housing for any debris, hair, or dust. Clean the area thoroughly if necessary.
- Install the New Wheel: Align the shaft of the new DFHYTHU Front Caster Wheel with the opening in the robot's chassis. Push the new wheel firmly into place until you hear or feel a click, indicating it is securely seated.

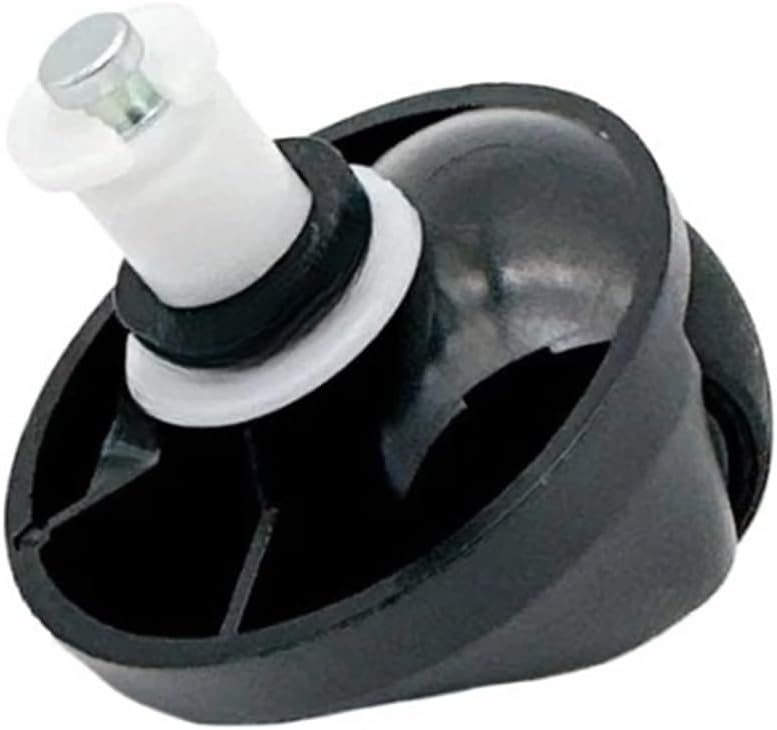

Figure 5.2: Side view of the new caster wheel, illustrating the correct orientation for insertion.
- Test the Wheel: Gently spin the new wheel with your finger to ensure it rotates freely and smoothly.
- Power On and Test: Turn the robot vacuum back over, power it on, and run a short cleaning cycle to confirm proper navigation and movement.
Figure 5.3: Angled view of the caster wheel, demonstrating its robust design for smooth movement.
6. Maintenance
Regular maintenance of your robot vacuum's front caster wheel is crucial for its longevity and optimal performance. The DFHYTHU Front Caster Wheel is designed for durability, but proper care extends its lifespan.
- Regular Cleaning: Periodically remove the front caster wheel (refer to installation steps 1-3) and clean any accumulated hair, dust, or debris from the wheel and its housing. Use a small brush or a pair of tweezers for this task.
- Inspection: Check the wheel for any signs of wear, cracks, or damage. Ensure it rotates freely without resistance. If the wheel shows significant wear or damage, consider replacing it to maintain efficient navigation.
- Avoid Obstructions: While the wheel is designed for various terrains, avoid prolonged exposure to sharp objects or excessively rough surfaces that could cause premature wear.
Figure 6.1: Full profile view of the caster wheel, illustrating its design for smooth movement and easy maintenance.
7. Troubleshooting
If you experience issues with your robot vacuum's movement after installing the new front caster wheel, consider the following:
- Wheel Not Rotating Freely: Remove the wheel and check for any trapped debris (hair, lint, small particles) in the axle or housing. Clean thoroughly and re-install.
- Robot Moving Unevenly or Stalling: Ensure the wheel is fully seated in its housing. A loose wheel can cause navigation issues. Push firmly until it clicks into place.
- Unusual Noise: If the wheel makes unusual noises, remove it and inspect for any foreign objects or damage. If the wheel itself is damaged, replacement may be necessary.
- Compatibility Check: Double-check that the wheel is indeed compatible with your specific Dreame robot vacuum model. Refer to Section 3: Compatibility.
If problems persist after following these steps, please contact the seller for further assistance.
8. Warranty and Support
Information regarding product warranty and specific support contacts is not provided within this manual. For any warranty claims, technical support, or further inquiries, please refer to your purchase documentation or contact the seller directly through the platform where the product was purchased.
