Instruction Manual

1. Product Overview

This document provides instructions for the installation, maintenance, and general information regarding the YYBParts replacement auger assembly. This auger assembly is designed as a direct replacement for specific Honda snowblower models.

Compatibility:

• Honda HS521 Snowblower
• Honda HS621 Snowblower

Part Numbers:

• Replacement Part Number: 72400-747-A12
• Replaces OEM Part Number: 72400-747-A11

2. Safety Information

Always prioritize safety when working with power equipment. Read and understand your snowblower's original owner's manual before attempting any repairs or part replacements. Failure to follow safety instructions can result in serious injury.

• Ensure the snowblower is turned off, the engine is cool, and the spark plug wire is disconnected before beginning any work.
• Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• If you are unsure about any step, consult a qualified service technician.

3. Installation (Setup)

This section outlines the general steps for replacing the auger assembly. Specific procedures may vary slightly depending on your snowblower model. Refer to your snowblower's service manual for detailed instructions.

1. Preparation: Park the snowblower on a flat, stable surface. Disconnect the spark plug wire to prevent accidental starting.
2. Access the Auger Housing: Depending on your model, you may need to remove covers or other components to gain full access to the auger housing.
3. Remove Old Auger Assembly:
   • Carefully remove any bolts, pins, or retaining clips securing the old auger assembly to the snowblower's shaft and housing.
   • Note the orientation and position of all components as you remove them.
   • Gently slide the old auger assembly out of the housing.
4. Install New Auger Assembly:


   Figure 1: Overall view of the YYBParts replacement auger assembly, showing the main body and shaft.

   • Align the new YYBParts auger assembly with the snowblower's shaft.
   • Carefully slide the auger assembly into the housing, ensuring the shaft ends engage correctly with the drive mechanism.


   Figure 2: Close-up of one end of the auger shaft, illustrating the splined connection point for the drive mechanism.

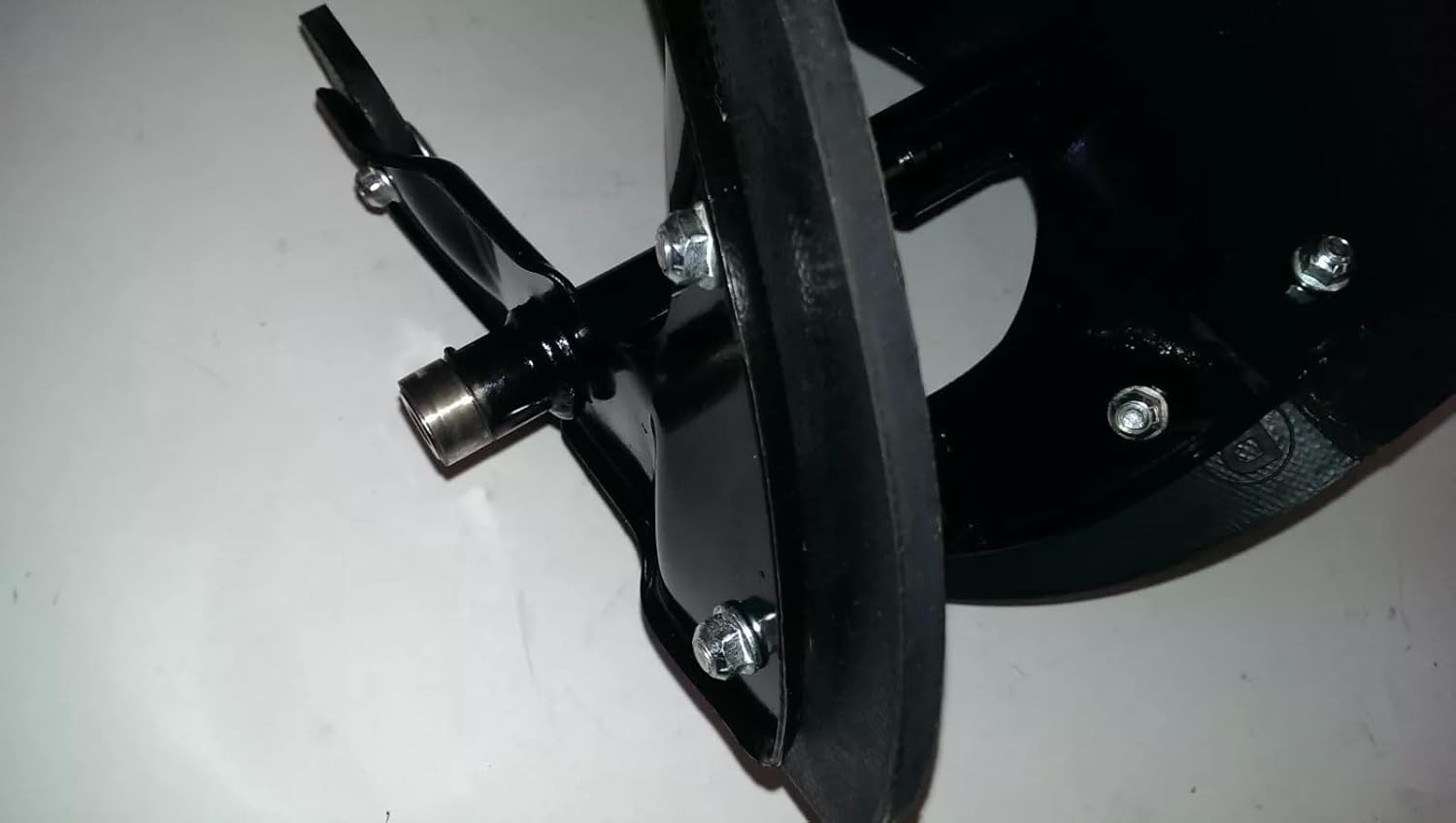

   Figure 3: Close-up of the opposite end of the auger shaft, showing its connection point.
   • Secure the new auger assembly using the appropriate bolts, pins, or retaining clips. Ensure all fasteners are tightened to the manufacturer's specifications.
5. Reassemble: Reattach any covers or components that were removed during disassembly.
6. Final Check: Reconnect the spark plug wire. Manually rotate the auger to ensure it moves freely without obstruction. Start the snowblower briefly to confirm proper operation of the auger.

4. Operating

This auger assembly is a component of your snowblower. For operating instructions, please refer to the original owner's manual provided with your Honda HS521 or HS621 snowblower. Ensure all safety guidelines in your snowblower's manual are followed during operation.

5. Maintenance

Regular maintenance helps ensure the longevity and optimal performance of your auger assembly.

• After Each Use: Clear any snow, ice, or debris from the auger blades and housing. Inspect for any visible damage or loose fasteners.
• Seasonal Inspection: Before and after the snow season, thoroughly inspect the auger blades for wear, cracks, or damage. Check the shaft for any signs of bending or corrosion. Ensure all bolts and nuts are securely tightened.
• Lubrication: Refer to your snowblower's manual for specific lubrication points and schedules for the auger shaft bearings or other moving parts.

6. Troubleshooting

If you experience issues with your snowblower's auger, consider the following common problems:

• Auger Not Turning: Check for obstructions (ice, debris) in the auger housing. Verify that the shear pins are intact and not broken. Inspect the drive belt (if applicable) for wear or breakage.
• Reduced Snow Throwing Performance: This can indicate worn auger blades or paddles. Inspect the condition of the auger components.
• Unusual Noises: Stop the snowblower immediately. Investigate for loose components, foreign objects, or damaged bearings.

For complex issues, consult your snowblower's service manual or a professional technician.

7. Specifications

8. Warranty and Support

This YYBParts auger assembly comes with a one-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.

For warranty claims, technical assistance, or any questions regarding this product, please contact YYBParts customer support. Please have your purchase information and the product part number ready when contacting support.
