VASAGLE Tall Bathroom Cabinet with Lights Instruction Manual

1. Introduction

Thank you for choosing the VASAGLE Tall Bathroom Cabinet with Lights. This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your new cabinet. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

2. Safety Information

Important Safety Instructions:

• Secure the cabinet to the wall using the included anti-tip kit to prevent tipping. This is crucial for stability and safety, especially in households with children or pets.
• Avoid exposing the cabinet to water for extended periods to prevent damage to the MDF material. Wipe up spills immediately.
• Do not overload shelves. Refer to the specifications section for weight limits.
• Ensure all screws and fasteners are tightened securely before use. Periodically check and re-tighten as needed.
• Keep small parts and packaging materials away from children during assembly.

Figure 2.1: Diagram showing the installation of the anti-tip kit to secure the cabinet to a wall.

3. Parts List

Before beginning assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

4. Setup and Assembly

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.

4.1 Unpacking and Preparation

• Open the packaging and carefully remove all components.
• Lay out all parts on a clean, soft surface (e.g., a blanket or cardboard) to prevent scratches.
• Identify all parts using the provided parts list.
• Gather necessary tools: Phillips head screwdriver (not included).

4.2 Cabinet Frame Assembly

Assemble the main cabinet frame according to the detailed diagrams in the included accessory kit instructions. Ensure all cam locks and dowels are properly aligned and secured.

4.3 Door Installation and Orientation

The cabinet doors can be installed to open either to the left or to the right, depending on your preference and space layout. Refer to the diagrams below for guidance.

Figure 4.1: Illustration of the two door setup options (left-opening and right-opening) for the cabinet.

4.4 Adjustable Shelf Installation

The cabinet features adjustable shelves with 5 height options in both the top and bottom sections. Insert the shelf pins into the desired holes and place the shelves on top.

Figure 4.2: Close-up view of the adjustable shelf mechanism, highlighting the multiple height options.

4.5 Light Strip Installation

Install the door-activated light strip in the top cabinet section. Ensure the sensor is positioned correctly to detect door opening and closing. Connect the power cable to a suitable outlet.

Figure 4.3: The interior of the top cabinet section, showing the installed door-activated light strip illuminating the contents.

5. Operating Instructions

5.1 Door-Activated Lights

The integrated light strip automatically turns on when the cabinet door is opened and turns off when the door is closed. This feature provides convenient illumination for accessing items in dim lighting conditions.

5.2 Storage Utilization

The cabinet offers versatile storage options:

• Top Cabinet: Ideal for storing skin-care products, medicines, or other personal items.
• Open Compartments: Suitable for frequently used items like towels, hair dryers, or combs, allowing for easy access.
• Bottom Cabinet: Perfect for hiding extra bathroom supplies, cleaning products, or larger items.

Figure 5.1: Overview of the cabinet's sectioned storage, illustrating suggested uses for the top cabinet, open compartments, and bottom cabinet.

6. Maintenance and Care

• Cleaning: Wipe the cabinet surface with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the painted MDF finish.
• Spills: Immediately wipe up any water or liquid spills to prevent moisture damage to the wood.
• Fasteners: Periodically check all screws and connections to ensure they remain tight. Re-tighten if necessary to maintain stability.
• Light Strip: If the light strip malfunctions, ensure it is properly connected to power. If issues persist, contact customer support.

7. Troubleshooting

8. Specifications

• Model: UBBC766C01
• Brand: VASAGLE
• Dimensions: 11.8"D x 15.7"W x 66.9"H (30cm D x 40cm W x 170cm H)
• Material: Painted MDF (Medium Density Fiberboard)
• Color: Forest Green
• Weight Limit (per shelf): Approximately 44 lbs (20 kg) for top cabinet, 264 lbs (120 kg) total weight limit.
• Special Features: Adjustable Shelves, Door-Activated Lights
• Assembly Required: Yes
• Included Components: Tall Bathroom Cabinet, Accessory Kit, Anti-Tip Kit, Instructions

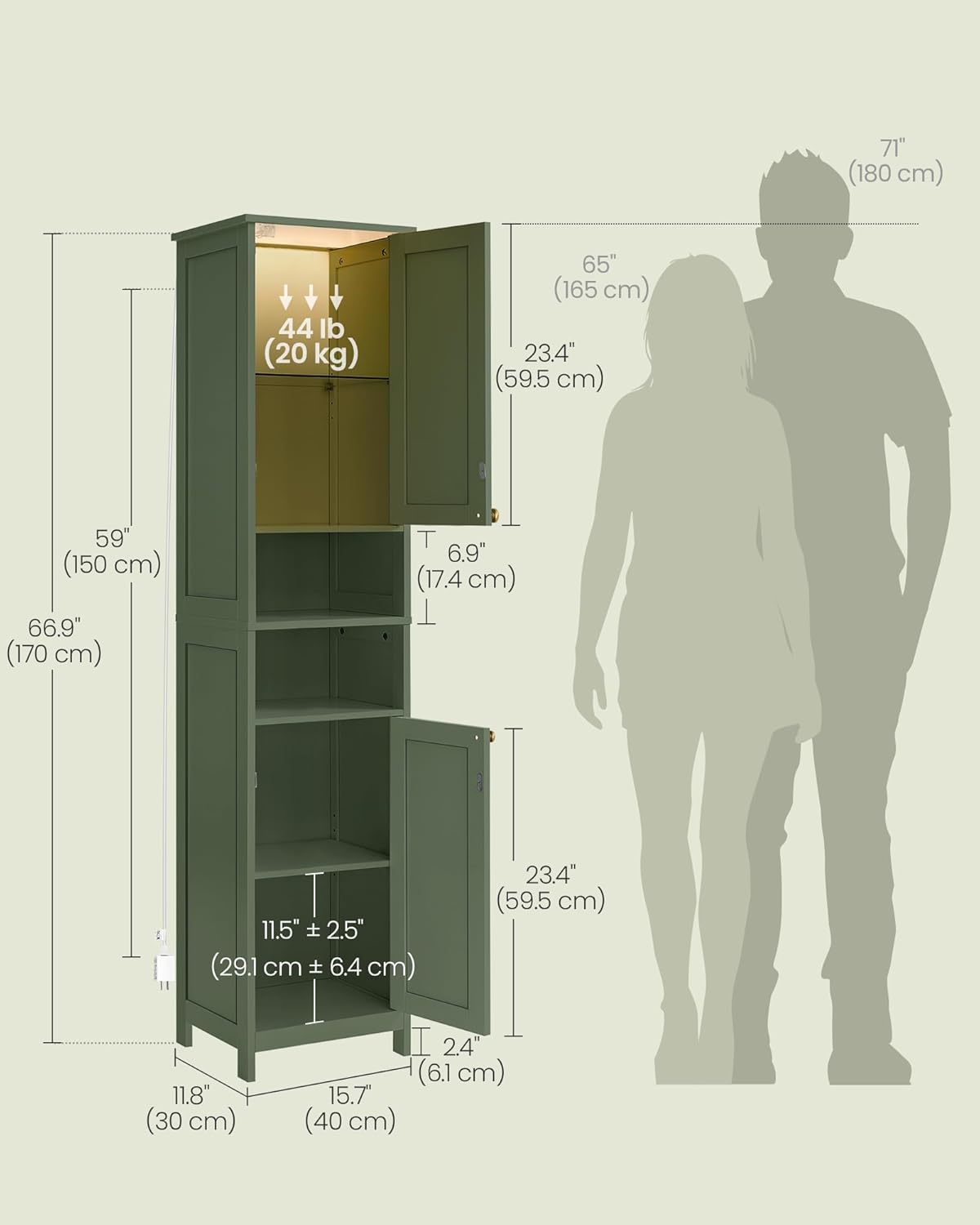

Figure 8.1: Detailed diagram illustrating the dimensions and weight capacity of the VASAGLE Tall Bathroom Cabinet.

9. Warranty and Support

For warranty information, missing parts, or technical support, please contact VASAGLE customer service through the retailer where the product was purchased. Please have your model number (UBBC766C01) and purchase date ready when contacting support.

You can also visit the official VASAGLE store for more information: VASAGLE Store

10. Product Videos

Watch these official product videos for additional visual guidance and information.
