Instruction Manual: Generic Full Canopy Bed Frame with Headboard

1. Introduction

This manual provides detailed instructions for the assembly, operation, maintenance, and troubleshooting of your Generic Full Canopy Bed Frame with Headboard. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Generic Full Canopy Bed Frame is designed to provide a comfortable and stylish sleeping solution. Constructed from solid pine and MDF, it offers a sturdy platform for your mattress without the need for a box spring.

2. Safety Information

• Always assemble the bed frame on a soft, clean surface to prevent damage to the product or your floor.
• Ensure all parts are present and undamaged before assembly. Do not proceed with assembly if any parts are missing or broken.
• Tighten all screws and bolts securely, but do not overtighten. Periodically check and retighten fasteners as needed.
• Keep small parts away from children during assembly to prevent choking hazards.
• Do not stand or jump on the bed frame.
• The maximum weight capacity for this full-size bed frame is 220 lbs. Do not exceed this limit.
• Use only the recommended mattress thickness of 8-10 inches for optimal support and safety.

3. Package Contents

Before assembly, verify that all components listed below are included in your package. If any parts are missing or damaged, please contact customer support.

• Headboard Panel(s)
• Footboard Panel(s)
• Side Rails (Left & Right)
• Canopy Posts (4)
• Canopy Rails (Top, 4)
• Support Slats (10)
• Center Support Legs (3)
• Hardware Pack (screws, bolts, washers, Allen wrench)
• Instruction Manual

Figure 3.1: Exploded view of bed frame components with key dimensions. This diagram illustrates the various parts included and their approximate measurements for reference during assembly.

4. Setup (Assembly Instructions)

Assembly typically requires two adults. Please follow these steps carefully.

1. Prepare the Area: Clear a spacious area for assembly. Lay down a blanket or cardboard to protect your floor and the bed frame components.
2. Attach Headboard and Footboard to Side Rails: Connect the headboard and footboard panels to the side rails using the provided hardware. Ensure the connections are secure.
3. Install Center Support Legs: Attach the three center support legs to the designated crossbeams or central support rail. These provide crucial stability for the mattress platform.
4. Place Support Slats: Evenly space and secure the 10 support slats across the side rails. Ensure they are firmly attached to create a stable base for your mattress.
5. Install Canopy Posts: Attach the four vertical canopy posts to each corner of the bed frame.
6. Connect Top Canopy Rails: Secure the four top canopy rails to the upper ends of the canopy posts, forming the canopy structure.
7. Final Tightening: Once all components are in place, carefully go back and tighten all bolts and screws. Do not overtighten.

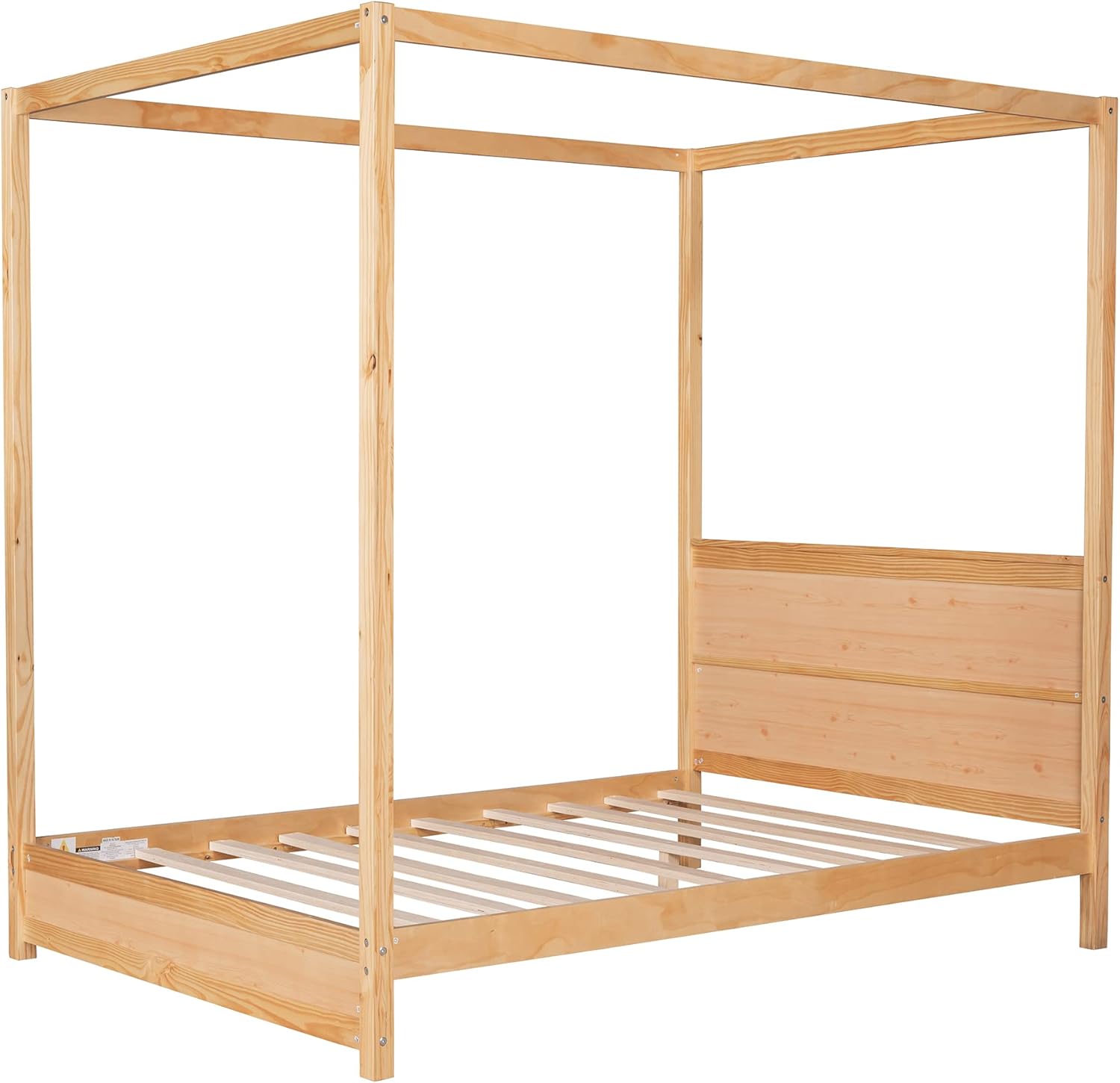

Figure 4.1: The fully assembled bed frame, demonstrating the complete structure before adding a mattress or bedding. This image provides a visual reference for the completed assembly.

5. Operating (Usage)

Once assembled, your canopy bed frame is ready for use. Place your full-size mattress directly onto the support slats. A box spring is not required for this platform bed design.

The canopy rails at the top can be used to hang decorative curtains, lighting, or other embellishments to personalize your sleeping space. Ensure any items hung from the canopy rails are lightweight and securely attached to avoid damage or injury.

Figure 5.1: The canopy bed frame in a bedroom setting, fully prepared with a mattress and bedding. This image illustrates the bed's appearance when ready for use.

6. Maintenance

• Cleaning: Wipe the wooden surfaces with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners, as these can damage the finish.
• Fastener Check: Periodically (e.g., every 3-6 months) check all screws and bolts to ensure they remain tight. Retighten as necessary to maintain stability.
• Avoid Excessive Moisture: Protect the bed frame from prolonged exposure to moisture or direct sunlight, which can cause warping or fading.
• Weight Distribution: Distribute weight evenly on the bed to prevent undue stress on specific areas of the frame or slats.

7. Troubleshooting

• Squeaking Noises: If the bed frame squeaks, check all connections and tighten any loose bolts or screws. Ensure slats are properly seated and not rubbing against the frame.
• Instability/Wobbling: Verify that all four canopy posts are securely attached and that the top canopy rails are firmly connected. Ensure the center support legs are making proper contact with the floor.
• Slats Falling Out: Ensure the slats are correctly positioned and secured according to the assembly instructions. If slats are damaged, contact support for replacements.
• Difficulty Assembling: Review the assembly instructions carefully. Ensure you are using the correct hardware for each step. If issues persist, refer to the diagrams or contact customer support.

8. Specifications

9. Warranty Information

This Generic Full Canopy Bed Frame comes with a 1-year product warranty from the date of purchase. This warranty covers manufacturing defects in materials and workmanship under normal use. It does not cover damage resulting from improper assembly, misuse, accidents, or normal wear and tear.

Please retain your proof of purchase for any warranty claims.

10. Support

If you encounter any problems with your Generic Full Canopy Bed Frame, require replacement parts, or have questions not addressed in this manual, please contact the seller directly through your order details page. Click the "Contact Seller" button to reach our support team, and we will assist you promptly.

For general inquiries or feedback, please refer to the contact information provided with your purchase documentation.
