AJOOSOS X700 Electric Scooter User Manual

1. Introduction

Welcome to the AJOOSOS X700 Electric Scooter user manual. This guide provides essential information for the safe operation, maintenance, and optimal performance of your new electric scooter. Please read this manual thoroughly before your first ride to ensure a safe and enjoyable experience.

The AJOOSOS X700 is a high-performance electric scooter designed for adults, featuring dual 1600W motors, a 60V 20AH battery, 10-inch all-terrain tires, and dual suspension for a powerful yet comfortable ride.

2. Safety Information

Your safety is paramount. Always adhere to the following guidelines:

• Always wear a helmet and appropriate safety gear (knee pads, elbow pads, gloves) when riding.
• Familiarize yourself with local laws and regulations regarding electric scooter use.
• Do not ride in adverse weather conditions (heavy rain, snow, ice). While the scooter is designed to be water-resistant, prolonged exposure to water can cause damage.
• Ensure the scooter is fully charged and all components are securely fastened before each ride.
• Maintain a safe speed and distance from other vehicles and pedestrians.
• Avoid riding under the influence of alcohol or drugs.
• The maximum load capacity is 300 lbs. Do not exceed this limit.
• Regularly inspect tires, brakes, and lights for proper function.

3. Product Overview

Figure 3.1: Overall view of the AJOOSOS X700 Electric Scooter, showing its upright and folded configurations, along with detailed views of the rear wheel and deck.

Key Features:

• Powerful Dual Motors: Equipped with 2*1600W motors, reaching a top speed of 45 MPH. Supports 3 speed gears and single/dual drive switching.
• Long-Range Battery: 60V 20AH (1200WH) lithium battery provides up to 50 miles range on a single charge. Charging time is 4-6 hours.
• All-Terrain Tires: 10-inch inflatable tubeless tires offer excellent performance and stability on various terrains, reducing bumps for a smoother ride.
• Dual Suspension System: Shock absorbers at both front and rear ensure comfort and stability, even at high speeds or on uneven surfaces.
• Dual Braking & Lighting System: Features dual disc brakes for quick and smooth stopping. A complete lighting system (headlights, turn signals, brake lights, taillights) enhances night riding safety.
• Durable Aluminum Alloy Body: Frame material is aluminum alloy, resistant to rust and breakage, designed for long-term use. Sealed body prevents water seepage.
• Cruise Control: Easily activate cruise control via the display by holding the throttle for a few seconds. Release the throttle, and the scooter will maintain that speed. To deactivate, gently press the brake or throttle again.
• Adjustable & Foldable Handlebar: Handlebars can be folded for convenient storage and transport. Height is adjustable from 40.2 to 47.2 inches.

Component Identification:

Figure 3.2: Intelligent LCD Display and Control Layout. A: Keys, B: Single/Dual Drive Button, C: Power Button, D: Throttle, E: Gear Switch Button, F: Light Switch, G: Horn, H: Turn Signal.

• A. Keys: For ignition and security.
• B. Single/Dual Drive Button: Toggles between single motor and dual motor operation.
• C. Power Button: Turns the scooter on/off.
• D. Throttle: Controls acceleration.
• E. Gear Switch Button: Cycles through speed gears (1st, 2nd, 3rd).
• F. Light Switch: Activates headlights and other lighting.
• G. Horn: Sound signal.
• H. Turn Signal: Activates left/right turn indicators.

Figure 3.3: Illustration of the 3200W dual powerful motors, highlighting their capability for high speed and climbing ability.

Figure 3.4: Depiction of the 1200WH large-capacity battery, indicating its long range and charging time.

Figure 3.5: View of the front and rear dual suspension system, showing the spring shock absorbers for enhanced ride comfort.

Figure 3.6: Illustration of the 360-degree lighting system, including bright headlights, flash turn signals, and red brake lights/taillights for visibility.

Figure 3.7: Close-up of the dual braking system, featuring electronic disc brakes for effective stopping power.

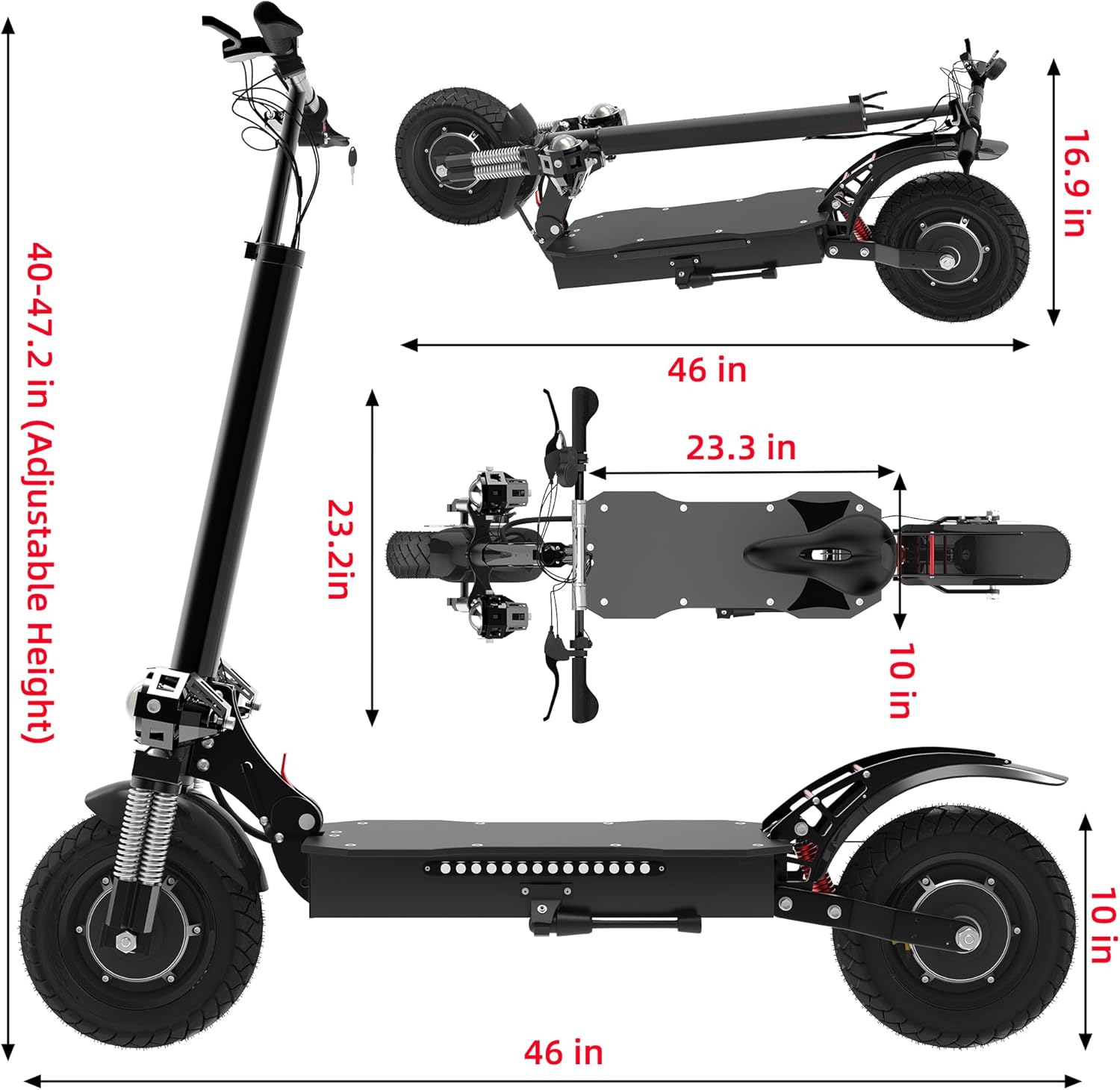

Figure 3.8: Dimensional diagram of the AJOOSOS X700 Electric Scooter, showing its length, width, height, and folded dimensions.

4. Setup and First Use

4.1 Unboxing and Assembly

1. Carefully remove all components from the packaging.
2. Unfold the scooter frame until it locks securely into place.
3. Attach the handlebars to the stem, ensuring all cables are properly connected and not pinched.
4. Tighten all screws and quick-release clamps as instructed in the included quick start guide.
5. Check tire pressure. The recommended pressure is typically listed on the tire sidewall.

4.2 Initial Charging

Before first use, fully charge the scooter's battery. This typically takes 4-6 hours.

• Locate the charging port on the scooter.
• Connect the charger to the scooter, then plug the charger into a standard wall outlet.
• The indicator light on the charger will change (e.g., from red to green) when charging is complete.
• Disconnect the charger once charging is complete to prevent overcharging.

5. Operating Instructions

5.1 Starting the Scooter

1. Insert the key into the ignition and turn it to the ON position.
2. Press and hold the Power Button (C) on the LCD display until the display illuminates.
3. For safety, the scooter requires an initial push-off before the motor engages. Give the scooter a slight push with your foot, then gently press the Throttle (D).

5.2 Controls and Functions

• Speed Gears: Use the Gear Switch Button (E) to cycle between 1st (lowest speed), 2nd, and 3rd (highest speed) gears.
• Single/Dual Drive: Press the Single/Dual Drive Button (B) to switch between single motor mode (for efficiency) and dual motor mode (for maximum power and climbing).
• Lighting: Use the Light Switch (F) to turn on/off the headlights, taillights, and turn signals.
• Cruise Control: To activate, hold the throttle at your desired speed for a few seconds. Release the throttle, and the scooter will maintain that speed. To deactivate, gently press the brake or throttle again.
• Braking: Apply the brake levers (front and rear) to slow down or stop. The dual disc brakes provide effective and smooth stopping power.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your AJOOSOS X700 scooter.

• Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water jets or immerse the scooter in water.
• Tires: Check tire pressure regularly (e.g., weekly) and inflate to the recommended PSI. Inspect tires for wear, punctures, or damage.
• Brakes: Periodically check brake pads for wear and ensure brake levers operate smoothly. Adjust if necessary.
• Battery Care: Charge the battery fully after each use. If storing for an extended period, charge to about 50-70% and recharge every 1-2 months to prevent deep discharge. Store in a cool, dry place.
• Fasteners: Regularly check all screws and bolts for tightness, especially on the handlebars, wheels, and folding mechanism.

7. Troubleshooting

If you encounter issues not listed here or require further assistance, please contact AJOOSOS customer support.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

The AJOOSOS X700 Electric Scooter comes with a limited warranty:

• Battery and Motor: 6-month warranty.
• Other Parts: 12-month warranty.

Please retain your proof of purchase for warranty claims. The warranty covers manufacturing defects but does not cover damage caused by misuse, accidents, or unauthorized modifications.

9.2 Customer Support

For technical support, warranty claims, or any questions regarding your AJOOSOS X700 Electric Scooter, please contact AJOOSOS customer service.

You can visit the official AJOOSOS store on Amazon for more information and support: AJOOSOS Store
