1. Introduction
Thank you for choosing the Pagani Design PD1676 Quartz Chronograph Watch. This manual provides detailed instructions for the proper use, setup, and maintenance of your timepiece. Please read this manual carefully to ensure optimal performance and longevity of your watch.

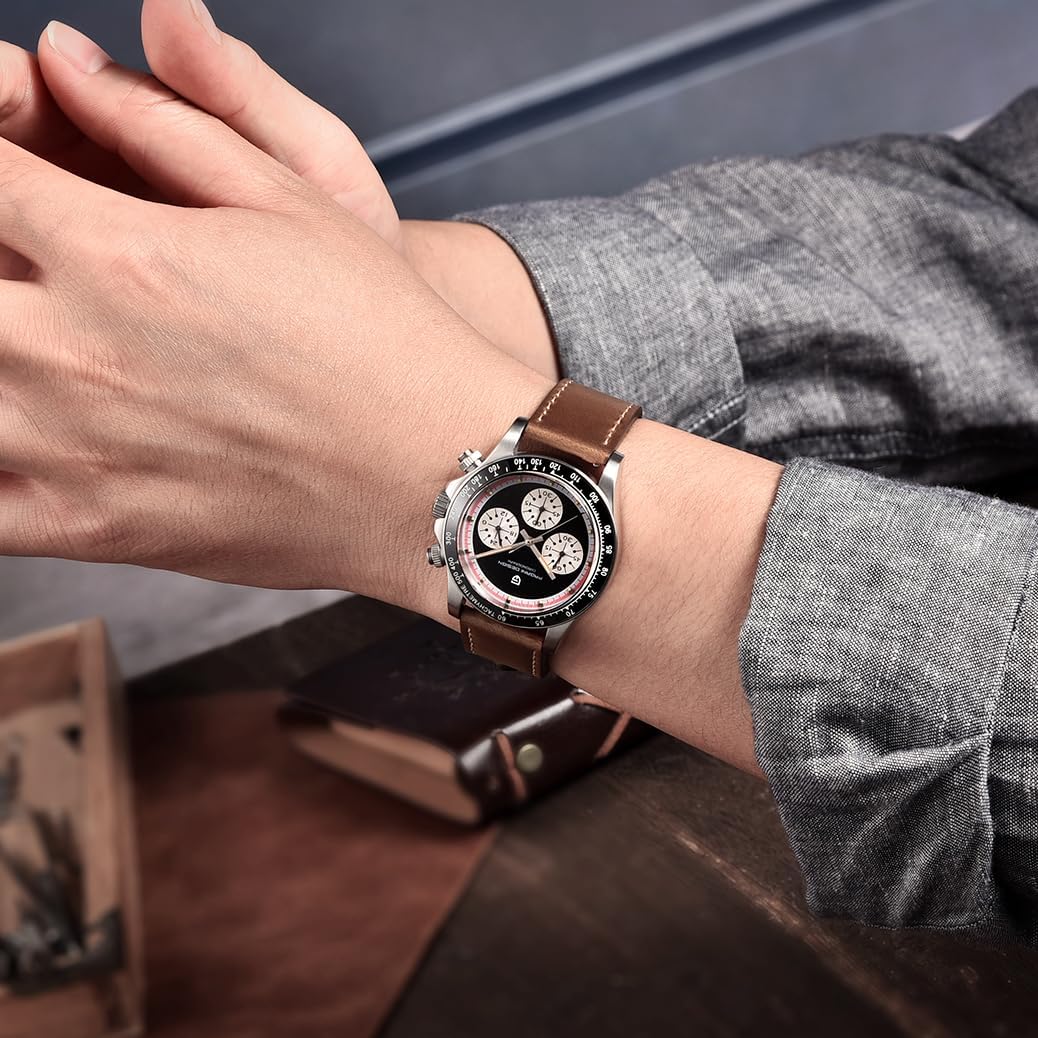

Image 1.1: The Pagani Design PD1676 Quartz Chronograph Watch worn on a wrist, showcasing its design and fit.
2. Product Features
- Movement: High-precision VK63 Quartz Chronograph movement.
- Water Resistance: 100 meters (10 ATM) waterproof, suitable for swimming and snorkeling.
- Case Material: Durable Stainless Steel.
- Crystal: Scratch-resistant Sapphire Glass.
- Dial Diameter: 40mm.
- Case Thickness: 13mm.
- Band Material: Leather (for 'Belt Black' variant) or Stainless Steel (for other variants).
- Band Width: 20mm.
- Clasp Type: Foldover Clasp.

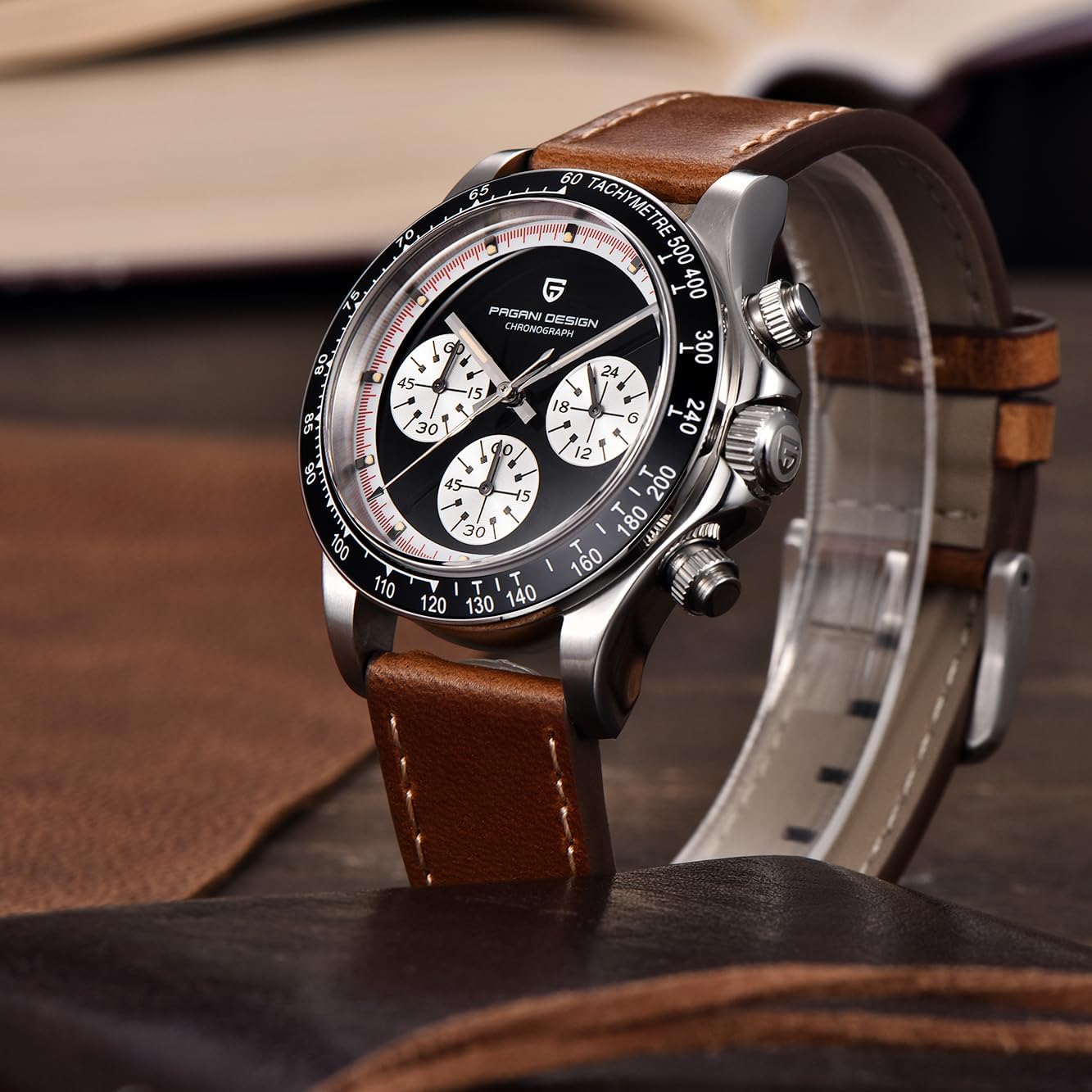

Image 2.1: Side profile of the watch, highlighting the crown and chronograph pushers.

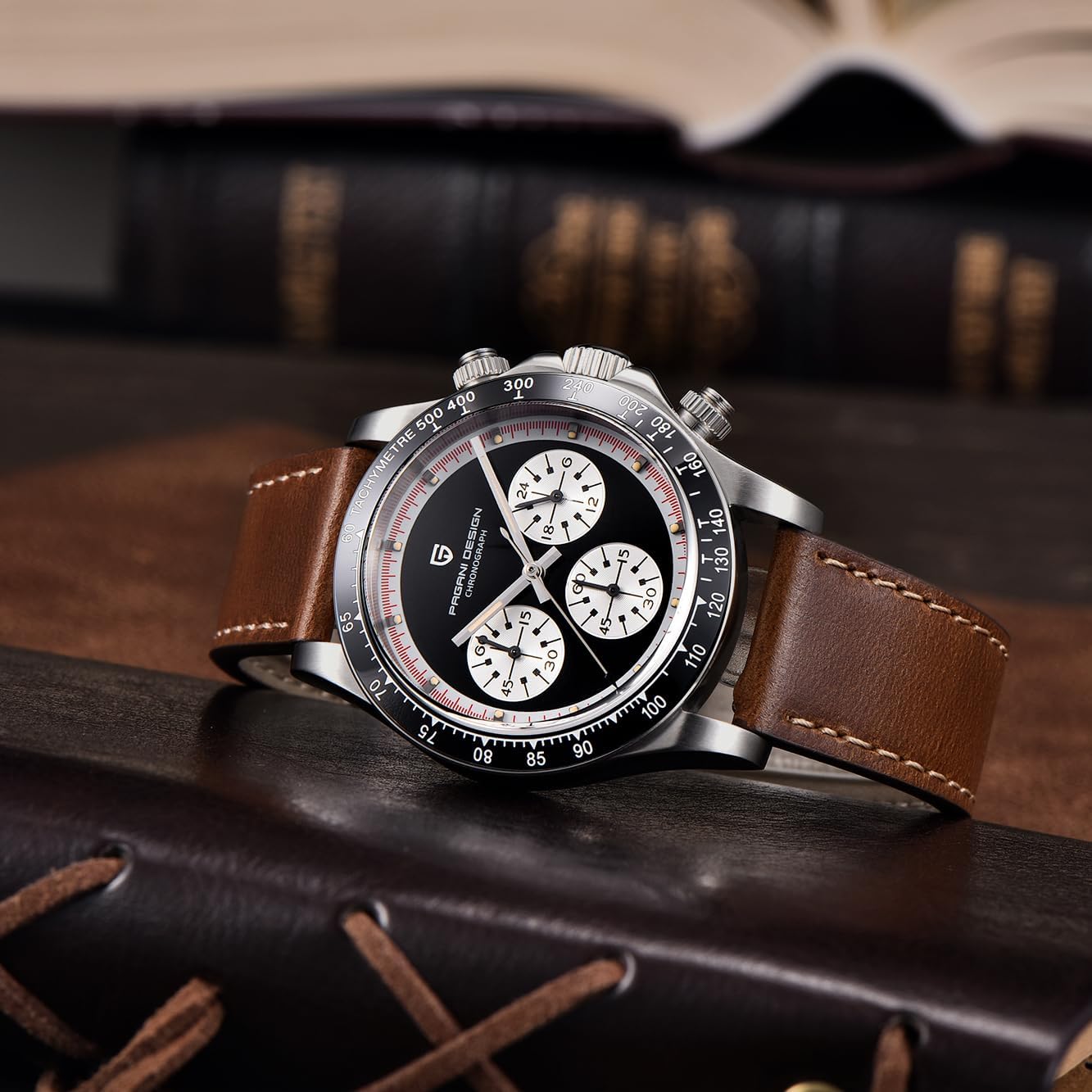

Image 2.2: Close-up of the watch dial, showing the chronograph subdials and hour markers.
3. Setup and Initial Operation
3.1. Setting the Time
- Pull the crown (B) out to position 2. The small second hand will stop.
- Turn the crown to set the hour and minute hands.
- Push the crown back to position 1 (normal position).
3.2. Setting the Date
- Pull the crown (B) out to position 1.
- Turn the crown clockwise to set the date. Avoid setting the date between 9:00 PM and 3:00 AM, as this may damage the movement. If the date needs to be set during this period, first set the time outside this range, adjust the date, then reset the time.
- Push the crown back to position 0 (normal position).
3.3. Chronograph Operation
The chronograph function allows for precise timing of events.
- Start: Press button (A) to start the chronograph. The chronograph second hand will begin to move.
- Stop: Press button (A) again to stop the chronograph. The elapsed time will be indicated by the chronograph hands.
- Reset: After stopping, press button (C) to reset the chronograph hands to their zero positions.
- Split Time: (If applicable, refer to specific VK63 movement documentation for advanced features).

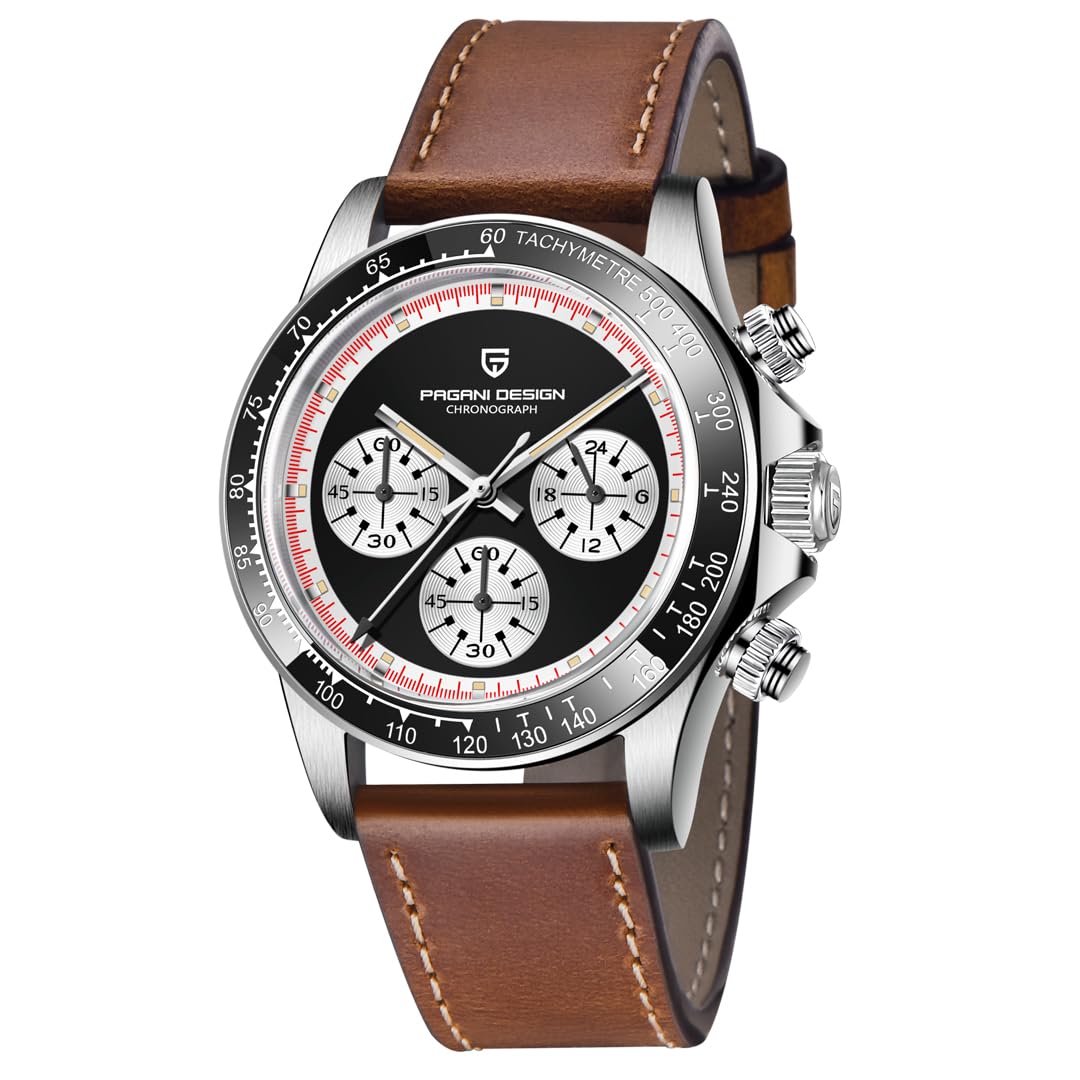

Image 3.1: Diagram showing the watch crown (B) and chronograph pushers (A and C).
4. Operating Instructions
4.1. Water Resistance Guidelines
Your Pagani Design PD1676 watch is water-resistant up to 100 meters (10 ATM). This means it is suitable for everyday use, swimming, and snorkeling. However, it is important to observe the following:
- Do not operate the crown or pushers while the watch is wet or submerged.
- Ensure the crown is fully pushed in before exposing the watch to water.
- Avoid exposing the watch to hot water, steam, or sudden temperature changes, as this can compromise the seals.
- Leather straps are generally not designed for prolonged water exposure and may degrade.
4.2. General Usage
The watch is designed for daily wear. The sapphire glass provides excellent scratch resistance, but it is not entirely impervious to damage. Avoid dropping the watch or subjecting it to severe impacts.
5. Maintenance
5.1. Cleaning
Wipe the watch case and metal bracelet regularly with a soft, dry cloth to remove dirt and perspiration. For stainless steel bracelets, a slightly damp cloth can be used, followed by a dry cloth. For leather straps, avoid excessive moisture and clean with a specialized leather cleaner if necessary.
5.2. Battery Replacement
The quartz movement is powered by a battery. When the watch stops or the second hand begins to jump erratically (indicating low battery), it is time for a battery replacement. This should be performed by a qualified watch technician to ensure the water resistance is maintained and the movement is not damaged.
5.3. Strap/Bracelet Care
Inspect the strap or bracelet periodically for wear and tear. Leather straps may need replacement over time due to natural degradation. Metal bracelets can be cleaned with mild soap and water, ensuring they are thoroughly dried afterward. Adjustments to metal bracelets (adding or removing links) should be done by a professional.
Image 5.1: The watch with its leather strap unclasped, showing the underside and construction.
6. Troubleshooting
- Watch not running: Check if the crown is fully pushed in. If it is, the battery may need replacement.
- Chronograph hands not resetting to zero: This can sometimes be corrected by performing a chronograph reset procedure (refer to the movement's specific instructions, often involving pulling the crown out and pressing pushers in a sequence). If the issue persists, professional service may be required.
- Date not changing: Ensure the time is set correctly (AM/PM cycle). If the date is stuck, avoid forcing it and consult a technician.
- Condensation inside the crystal: This indicates a breach in water resistance. Immediately seek professional service to prevent further damage to the movement.
7. Specifications
| Feature | Detail |
|---|---|
| Brand Name | Pagani Design |
| Model Number | PD1676 (PD-1676L / PD-1676ZX) |
| Movement | VK63 Quartz Chronograph |
| Case Material | Stainless Steel |
| Case Thickness | 13mm |
| Band Width | 20mm |
| Dial Diameter | 40mm |
| Band Length | 21cm |
| Water Resistance Depth | 100 Meters (10 ATM) |
| Crystal Type | Sapphire Glass |
| Clasp Type | Foldover Clasp |
| Display Type | Analog |
8. Warranty and Support
Your Pagani Design PD1676 watch comes with a limited warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For any service, repairs, or technical inquiries not covered in this manual, please contact the authorized service center or your retailer. Attempting to repair the watch yourself may void the warranty.
