King of Car Tuning Deployable Electric Running Board

1. Introduction and Overview

This manual provides essential information for the installation, operation, and maintenance of your King of Car Tuning Deployable Electric Running Boards. These running boards are designed to provide convenient and safe vehicle access for the INEOS Grenadier 2024-2025 models. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Safety Information

• Professional Installation Recommended: Due to the electrical and mechanical nature of this product, professional installation by a qualified technician is strongly recommended. Improper installation can lead to product malfunction, vehicle damage, or personal injury.
• Weight Capacity: Each running board has a maximum load capacity of 600 lbs (272 kg). Do not exceed this weight limit.
• Pinch Points: Keep hands, feet, and clothing clear of the running boards during deployment and retraction to avoid pinch injuries.
• Regular Inspection: Periodically inspect the running boards, mounting hardware, and wiring for any signs of wear, damage, or loose connections. Address any issues immediately.
• Vehicle Compatibility: Ensure these running boards are compatible with your specific vehicle model and year (INEOS Grenadier 2024-2025).

3. Package Contents

Please verify that all components are present before beginning installation:

• Deployable Electric Running Boards (2)
• Mounting Brackets (set)
• Installation Hardware (screws, bolts, washers, nuts)
• Wiring Harness and Control Module

Image 1: Overview of the Deployable Electric Running Board kit, showing the two running boards, various mounting brackets, and an INEOS Grenadier vehicle, illustrating the product's intended application.

4. Specifications

5. Installation and Setup

Installation of the Deployable Electric Running Boards requires mechanical and electrical expertise. It is highly recommended that installation be performed by a certified automotive technician to ensure safety and proper functionality.

General Installation Steps (Consult a professional for detailed instructions):

1. Preparation: Park the vehicle on a level surface, engage the parking brake, and disconnect the vehicle's battery.
2. Mounting Bracket Installation: Securely attach the provided mounting brackets to the vehicle's chassis at the designated points. Ensure all bolts are tightened to the manufacturer's specifications.
3. Running Board Attachment: Mount the running boards onto the installed brackets. Verify that they are level and properly aligned with the vehicle's body.
4. Wiring Connection: Connect the wiring harness to the running board motors and the vehicle's electrical system. This typically involves connecting to door sensors and a power source. Ensure all electrical connections are secure and properly insulated.
5. Control Module Integration: Install and connect the control module as per the specific wiring diagram provided with the product.
6. Testing: Reconnect the vehicle's battery and test the deployment and retraction of the running boards.

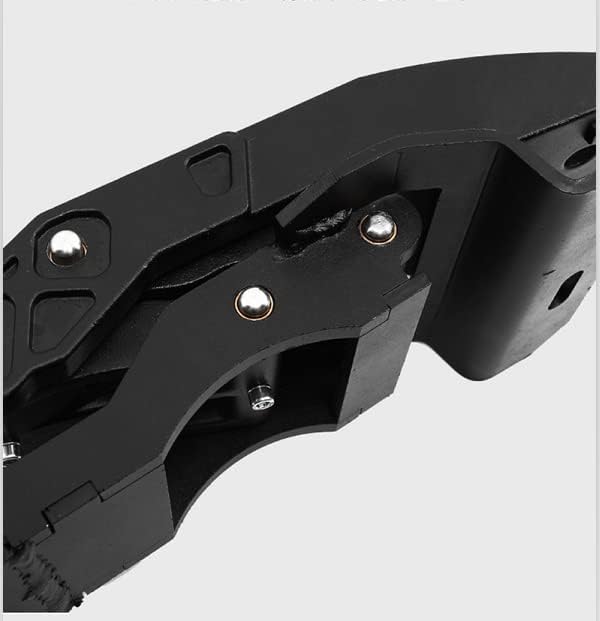

Image 2: A detailed close-up of the running board's mechanical deployment system, showing the robust hinges and pivot points that allow the step to extend and retract smoothly.

Image 3: An electric motor, which powers the running board's movement, shown partially submerged in water. This illustrates the motor's waterproof design, ensuring durability in various weather conditions.

6. Operation

The Deployable Electric Running Boards operate automatically based on your vehicle's door status:

• Deployment: When a vehicle door is opened, the corresponding running board will automatically deploy within approximately 1-2 seconds.
• Retraction: After all vehicle doors are closed, the running boards will retract automatically after a 3-second delay. This delay allows occupants sufficient time to exit or enter the vehicle before the boards retract.

Image 4: The electric running board fully deployed on the side of a white vehicle, with the vehicle door open, demonstrating its extended position for easy access.

Image 5: The electric running board in its retracted position on a white vehicle, showing how it tucks neatly beneath the vehicle's body, maintaining ground clearance and a sleek appearance.

7. Maintenance

Regular maintenance helps ensure the longevity and proper function of your running boards:

• Cleaning: Clean the running board surfaces regularly with mild soap and water to remove dirt, mud, and road salt. Avoid abrasive cleaners or harsh chemicals.
• Inspection: Periodically check all mounting hardware for tightness. Inspect the electrical wiring for any signs of fraying, cuts, or corrosion.
• Lubrication: If recommended by the manufacturer (refer to specific product documentation if available), apply a suitable lubricant to moving parts of the deployment mechanism to ensure smooth operation.

8. Troubleshooting

If you encounter issues with your Deployable Electric Running Boards, consider the following common troubleshooting steps:

• Running Boards Not Deploying/Retracting:
  • Check all vehicle doors to ensure they are fully closed or open as required.
  • Inspect the wiring harness for any loose connections or damage.
  • Verify that the vehicle's battery has sufficient charge.
  • Check for any obstructions preventing movement of the boards.
• Unusual Noises During Operation:
  • Inspect the mechanism for dirt or debris that might be causing friction.
  • Check for loose mounting hardware.
• One Side Not Working:
  • This may indicate an issue with the wiring or motor specific to that side. Professional diagnosis is recommended.

For persistent issues, it is advisable to contact a qualified automotive technician or the product manufacturer for assistance.

9. Warranty and Support

Warranty information for this product is not provided within this manual. Please refer to the original purchase documentation or contact the manufacturer, King of Car Tuning, directly for details regarding warranty coverage and customer support.
