BELLEZE 74-Inch Rustic TV Stand with 48-Inch Electric Fireplace User Manual

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your BELLEZE 74-Inch Rustic TV Stand with an integrated 48-Inch Electric Fireplace. Please read all instructions carefully before beginning assembly or operation to ensure safe and proper use of the product.

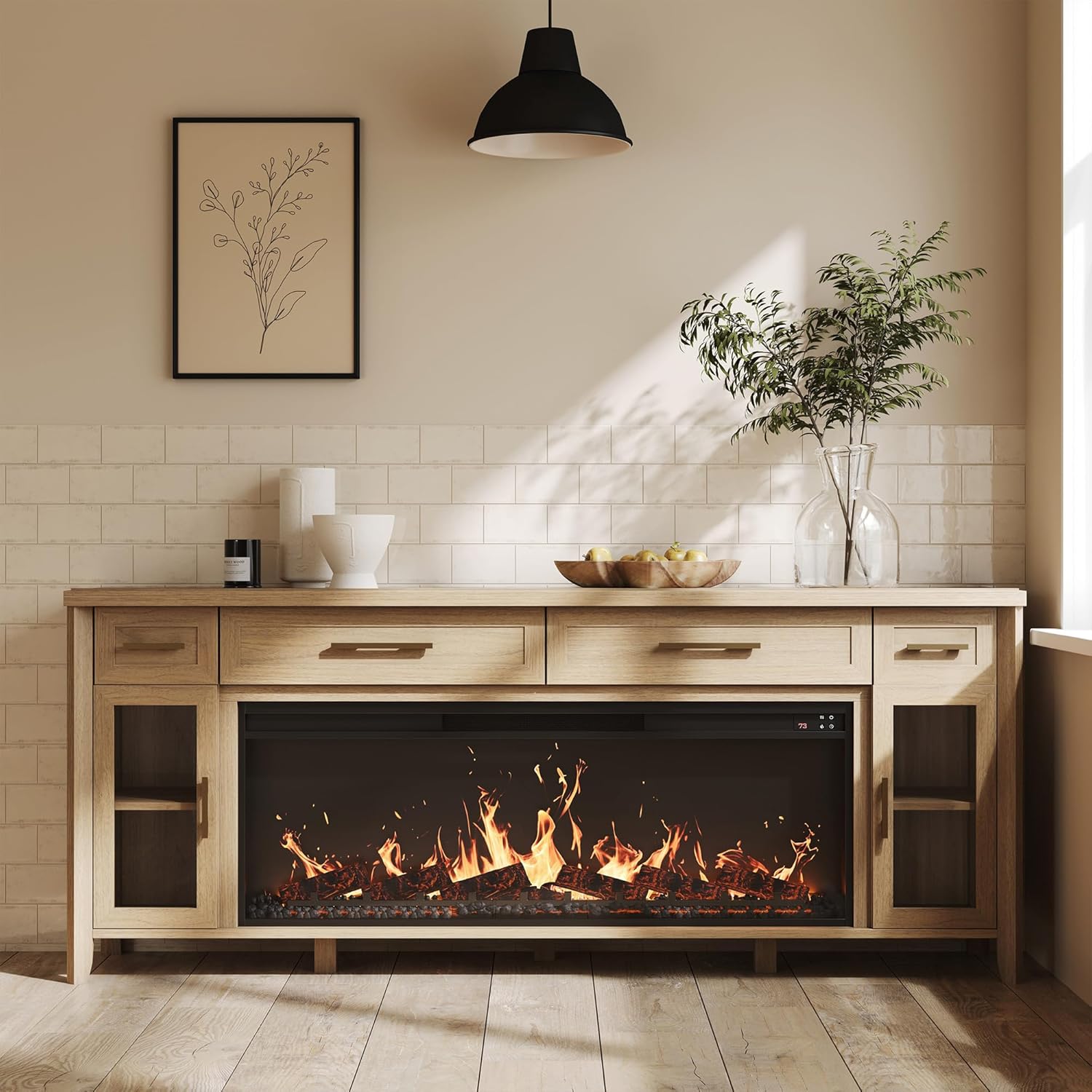

Image 1.1: BELLEZE 74-Inch Rustic TV Stand with 48-Inch Electric Fireplace.

The TV stand features four spacious drawers and two cabinets with adjustable shelves, designed for organized storage of media components, books, and decorative items. The integrated electric fireplace offers supplemental heating and ambient flame effects.

2. Safety Information

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

• Read all instructions before using this appliance.
• Do not operate any fireplace with a damaged cord or plug, or if the heater malfunctions or has been dropped or damaged in any manner.
• Always unplug the fireplace when not in use.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the front of the fireplace.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• The TV stand has a maximum weight capacity of 70 lbs. Do not exceed this limit to prevent structural damage or injury.
• Ensure the TV stand is placed on a level, stable surface.
• Keep small parts away from children during assembly.

3. Package Contents

Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, contact BELLEZE customer support.

• TV Stand Panels and Hardware
• 48-Inch Electric Fireplace Unit
• Remote Control for Fireplace
• Assembly Manual

4. Assembly Instructions

Assembly typically requires two adults. Please follow the step-by-step diagrams and instructions provided in the included assembly manual. Common tools required include a Phillips head screwdriver and a hammer (not included).

1. Unpack and Identify Parts: Carefully remove all components from the packaging. Lay them out on a soft, clean surface to prevent scratches. Identify each part using the provided parts list and diagrams.
2. Assemble the Main Frame: Begin by connecting the side panels to the base and top panels using the designated hardware. Ensure all connections are secure.
3. Install Shelves and Dividers: Insert any fixed or adjustable shelves and internal dividers as indicated in the instructions.
4. Assemble Drawers: Construct the four drawers according to the instructions. Pay close attention to screw labeling; some users have reported minor discrepancies (e.g., 'S' labeled as 'AA'). Verify screw sizes and types before insertion.
5. Attach Drawer Slides and Handles: Secure the drawer slides to both the drawers and the TV stand frame. Attach the gunmetal gray aluminum alloy handles to the drawers and cabinet doors.
6. Install Cabinet Doors: Mount the cabinet doors to the side compartments. Adjust hinges as necessary for proper alignment.
7. Integrate Electric Fireplace: Carefully slide the 48-inch electric fireplace unit into its designated opening in the center of the TV stand. Ensure it fits snugly and is properly aligned.
8. Final Checks: Once assembled, gently move the TV stand to its desired location. Ensure all connections are tight and the unit is stable.

Image 4.1: Exploded view highlighting storage features and fireplace integration.

Image 4.2: Detail views of handles, tapered legs, and cabinet interior.

5. Operating Instructions (Electric Fireplace)

The electric fireplace can be operated using the built-in control panel or the included remote control.

Image 5.1: Fireplace Built-in Display Control Panel and Remote Control.

Control Panel / Remote Functions:

• Power Button: Turns the fireplace ON or OFF.
• Heater Control: Activates or deactivates the heating function. The heater provides 5000 BTUs, capable of heating up to 400 square feet. Temperature can be adjusted between 64°F and 82°F.
• Flame Control: Adjusts the brightness of the flame effect. There are 4 levels of brightness available.
• Timer Control: Sets an automatic shut-off timer for the fireplace, ranging from 1 to 8 hours.

Ensure the fireplace is plugged into a grounded 120V AC outlet. Do not use extension cords or power strips with this appliance.

6. Maintenance

TV Stand Care:

• Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners.
• Periodically check and tighten all hardware connections to ensure stability.
• Protect the surface from direct sunlight and extreme temperature changes.

Electric Fireplace Care:

• Ensure the fireplace is unplugged and cool before cleaning.
• Clean the exterior surfaces with a soft, damp cloth.
• Do not use abrasive cleaners or spray liquids directly onto the fireplace.
• Periodically check the air intake and exhaust vents for dust or obstructions and clean as needed.

7. Troubleshooting

• Fireplace does not turn on: Ensure the power cord is securely plugged into a working electrical outlet. Check the circuit breaker.
• No heat output: Verify that the heater function is activated on the control panel or remote. Ensure the temperature setting is above the ambient room temperature.
• Flame effect not working: Check if the flame control is set to a visible brightness level.
• Remote control not working: Replace the batteries in the remote control. Ensure there are no obstructions between the remote and the fireplace sensor.
• TV Stand instability: Re-check all assembly hardware to ensure they are fully tightened. Ensure the stand is on a flat, level surface.

8. Specifications

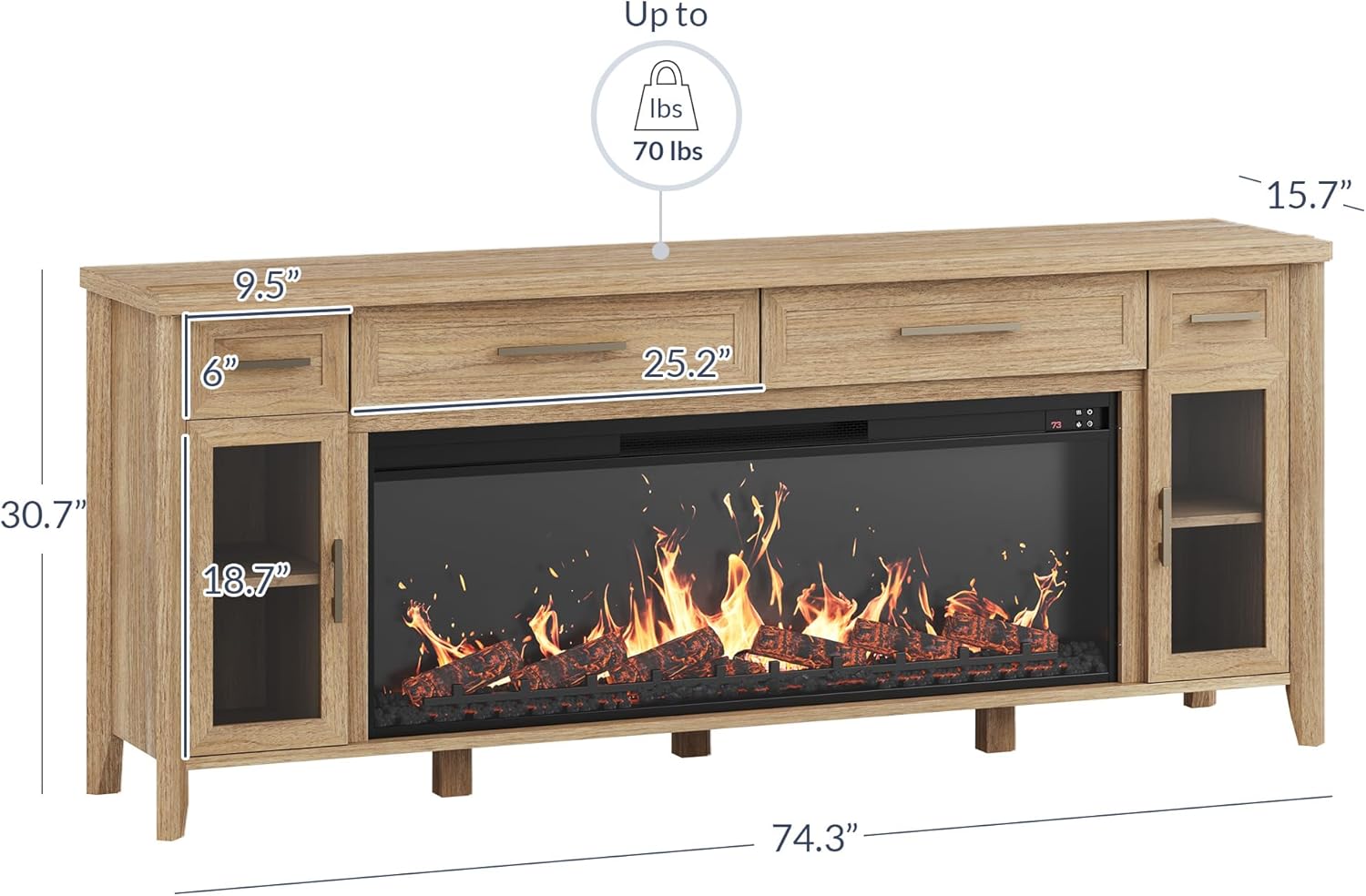

Image 8.1: Product dimensions and weight capacity.

9. Warranty and Support

BELLEZE products are designed for quality and durability. While specific warranty details are not provided in this document, BELLEZE typically offers customer support and a return policy for products purchased through authorized retailers.

For assistance with missing parts, damaged components, or operational issues, please contact BELLEZE customer support directly. Refer to your purchase documentation for specific return and support contact information.

You may also visit the BELLEZE Store on Amazon for additional product information and support resources.
