4 EVER WINNER 53" Fireplace TV Stand Instruction Manual

Product Overview

The 4 EVER WINNER 53-inch Fireplace TV Stand is a versatile entertainment center designed to accommodate TVs up to 65 inches. It features a 50-inch electric fireplace with a unique three-sided tempered glass display, offering various flame settings and heating capabilities. The stand also includes three spacious drawers for organized storage, making it a functional and aesthetic addition to any living space.

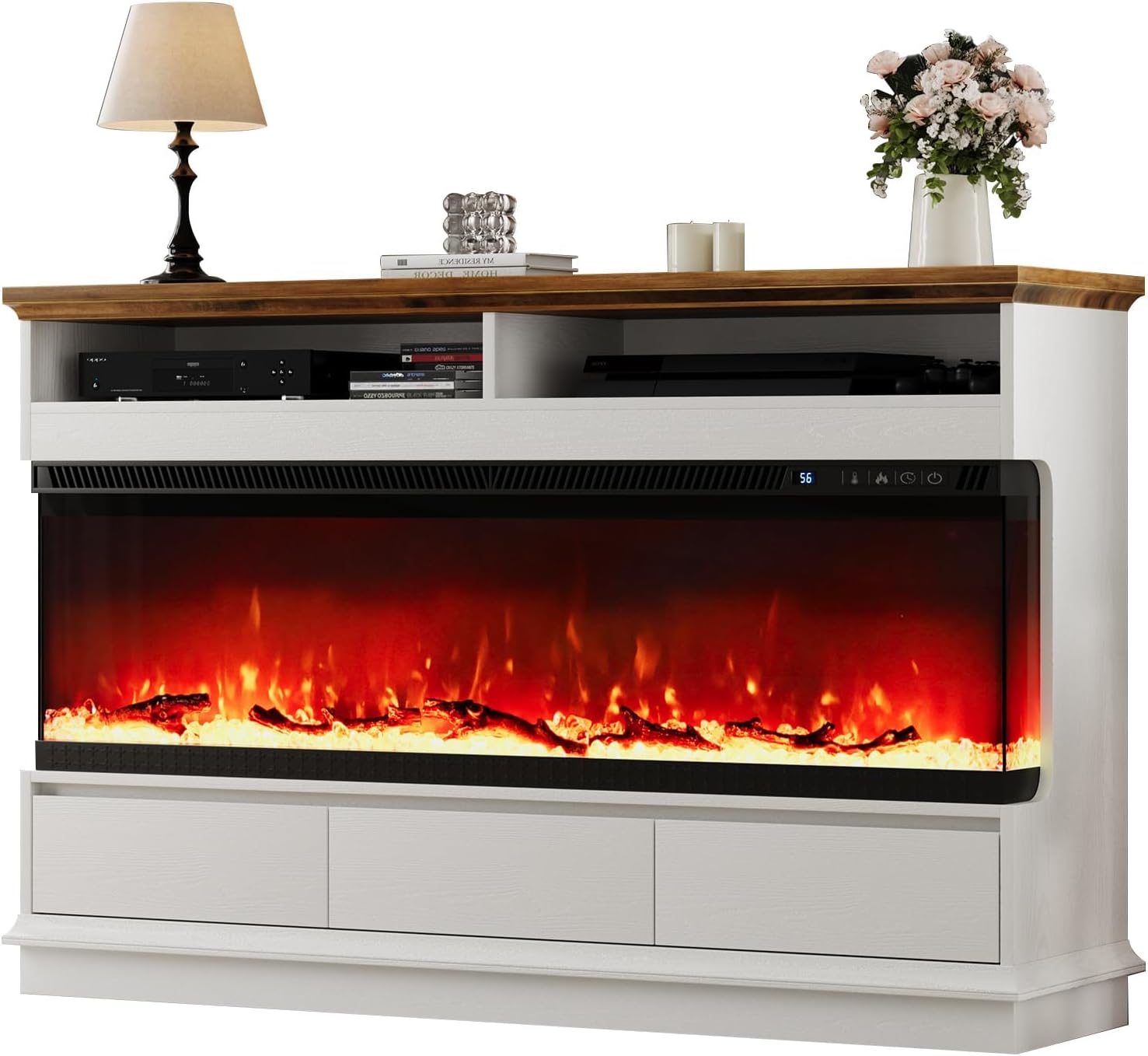

Image: Front view of the assembled TV stand with the electric fireplace displaying flames, a lamp, and decorative items on its top surface.

Safety Information

Please read all safety warnings and instructions carefully before assembly and operation to prevent injury or damage.

• Electrical Safety: Ensure the fireplace is connected to a properly grounded outlet. Do not overload circuits. Keep power cords away from heated surfaces and foot traffic.
• Heat Output: The electric fireplace is a 1500-watt heater. Maintain adequate clearance from combustible materials (curtains, furniture, etc.). Do not block the air vents.
• Overheat Protection: The fireplace is equipped with overheat protection. If the unit overheats, it will automatically shut off. Unplug the unit and allow it to cool before restarting.
• Child Lock: Utilize the child lock feature on the fireplace control panel or remote to prevent unintended operation by children.
• Weight Capacity: The wide and thick mantelpiece can hold up to 120 pounds. The overall stand can support up to 300 pounds. Do not exceed these weight limits.
• Stability: Ensure the TV stand is placed on a flat, stable surface. Consider using anti-tip restraints if available, especially in homes with children or pets.
• Material: The stand is constructed from medium-density fiberboard (MDF). Avoid exposing it to excessive moisture or direct sunlight to prevent warping or discoloration.

Package Contents

Your 4 EVER WINNER Fireplace TV Stand will be shipped in two separate packages, which may arrive on different days. Please verify all components are present before beginning assembly.

Image: Important note regarding the delivery of the TV stand in two separate packages.

Expected Components:

• TV Stand Panels (top, side, base, shelves, drawers)
• 50-inch Electric Fireplace Insert
• Remote Control for Fireplace
• Crystal Stones and Wood Burning Log Set for Fireplace
• Assembly Hardware (screws, dowels, cam locks, etc.)
• Detailed Instruction Manual (separate from this document)

Assembly Instructions

The 4 EVER WINNER Fireplace TV Stand is designed for easy assembly. All necessary components and hardware are clearly numbered and detailed in the included assembly guide.

General Steps:

1. Unpack and Identify: Carefully unpack all components and hardware. Lay them out and identify each part using the provided numbering in the assembly manual.
2. Assemble Frame: Begin by assembling the main frame of the TV stand according to the step-by-step instructions.
3. Install Drawers: Assemble and install the three storage drawers into their designated slots.
4. Insert Fireplace: Carefully slide the 50-inch electric fireplace insert into the central opening of the TV stand. Ensure it is securely seated.
5. Final Touches: Attach any remaining decorative elements or back panels as instructed.

Note: For detailed, step-by-step assembly instructions, please refer to the separate assembly manual included in your package.

Image: The TV stand's spacious desktop and three functional storage drawers.

Operating Instructions (Electric Fireplace)

The 50-inch electric fireplace offers a realistic flame experience with various customization options. It can be controlled via the touch screen panel on the unit or the included remote control.

Image: Overview of the electric fireplace features and controls.

Key Functions:

• Power On/Off: Press the power button to turn the fireplace on or off.
• Flame Settings:
  • Flame Colors: Choose from 12 different flame colors to match your mood or decor.
  • Flame Brightness: Adjust the flame intensity with 5 brightness settings (L1-L5).
  • Flame Speed: Control the speed of the flame effect (P1-P5).
• Heat Function:
  • The fireplace provides 1500 watts of heat, capable of warming a room up to 400 square feet.
  • Set the desired temperature between 60°F (15.5°C) and 99°F (37.2°C).
  • The heating element is infrared quartz.
• Timer: Set an automatic shut-off timer from 0.5 to 12 hours.
• Child Lock: Activate the child lock feature to prevent accidental changes to settings.
• Media Bed: The fireplace comes with crystal stones and a wood burning log set for an authentic appearance.

Image: Examples of various flame colors available on the electric fireplace.

Maintenance

Proper maintenance will ensure the longevity and optimal performance of your 4 EVER WINNER Fireplace TV Stand.

Cleaning the TV Stand:

• Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the painted finish or engineered wood.
• For spills, wipe immediately to prevent staining or moisture absorption.

Cleaning the Electric Fireplace:

• Always unplug the fireplace before cleaning.
• Wipe the exterior surfaces and glass with a soft, lint-free cloth. A glass cleaner can be used for the tempered glass display, applied to the cloth first, not directly to the unit.
• Do not use abrasive cleaners or polishes on the fireplace.
• Periodically check the air intake and exhaust vents for dust accumulation and gently clean with a vacuum cleaner attachment if necessary.

Troubleshooting

If you encounter issues with your 4 EVER WINNER Fireplace TV Stand or electric fireplace, refer to the following common solutions:

If the problem persists after attempting these solutions, please contact 4 EVER WINNER customer support for further assistance.

Specifications

Detailed specifications for the 4 EVER WINNER 53" Fireplace TV Stand, Model FTS1120:

• Brand: 4 EVER WINNER
• Model Name: FTS1120
• Material: Engineered Wood
• Color: White
• Finish Type: Painted
• Product Dimensions: 52.68 x 15.67 x 37.6 inches (Length x Width x Height)
• Item Weight: 180 Pounds
• Maximum Compatible TV Size: Up to 65 inches
• Installation Type: Freestanding
• Fireplace Type: Electric, 3-Sided Glass Display
• Power Source: Corded Electric
• Heat Output: 1500 Watts
• Heating Coverage: Approximately 400 square feet (4300 sq ft BTU equivalent)
• Temperature Range: 60°F - 99°F
• Flame Settings: 12 colors, 5 brightness levels, 5 speed levels
• Timer: 0.5 - 12 hours
• Included Components: Fireplace insert, remote control, crystal stones, wood burning log set

Image: Detailed product dimensions for the TV stand.

Warranty and Support

The 4 EVER WINNER 53" Fireplace TV Stand comes with a Limited Warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty information provided in your product packaging or contact 4 EVER WINNER customer service.

Customer Support:

For any questions, concerns, or assistance with your product, please contact 4 EVER WINNER customer support. You can often find contact information (phone, email, or website) in your product's assembly manual or by visiting the official 4 EVER WINNER store page on Amazon:
