1. Safety Instructions
Read all safety warnings and instructions before operating this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
General Safety
- Always wear eye protection and hearing protection when operating the leaf blower.
- Do not operate the blower in wet conditions or rain.
- Keep children and bystanders at a safe distance (at least 15 meters) from the operating area.
- Inspect the work area before use. Remove objects that can be thrown or become entangled in the blower.
- Do not point the blower nozzle at people or animals.
- Always hold the blower firmly with both hands during operation.
Battery Safety
- Use only the specified charger for the battery pack.
- Do not charge the battery in damp or wet locations.
- Do not incinerate the battery pack, even if it is severely damaged or completely dead. The battery can explode in a fire.
- Store batteries away from metal objects that could short-circuit the terminals.
- If battery fluid comes into contact with skin, wash immediately with soap and water. If it gets into eyes, flush with water for at least 15 minutes and seek medical attention.
2. Product Overview
The DAZECK 21V Cordless Electric Leaf Blower is designed for efficient outdoor cleaning tasks such as blowing leaves, debris, and dust. Its lightweight and cordless design offers convenience and powerful performance.
Key Features
- Powerful and Efficient Performance: Equipped with a high-speed motor, this 21V cordless leaf blower delivers a strong and consistent airflow for effective cleaning.
- Long-lasting Battery Life: Includes two 21V rechargeable lithium batteries for extended operation. A fast charger ensures minimal downtime.
- 6 Adjustable Speed Modes: Easily switch between six speed settings to suit various cleaning needs, from delicate surfaces to stubborn debris.
- Lightweight and Portable Design: Ergonomic and compact, making it easy to carry and handle during prolonged use. The cordless design provides maximum mobility.
- Multi-purpose Cleaning Tool: Ideal for blowing leaves from lawns, driveways, patios, and decks, as well as removing dust in garages and light indoor cleaning.
Components
- Blower Body with Handle and Motor
- Blower Nozzle
- 21V Lithium-Ion Battery (x2)
- Battery Charger
- User Manual
Figure 2.1: The DAZECK 21V Cordless Electric Leaf Blower in action, demonstrating its use for clearing leaves.

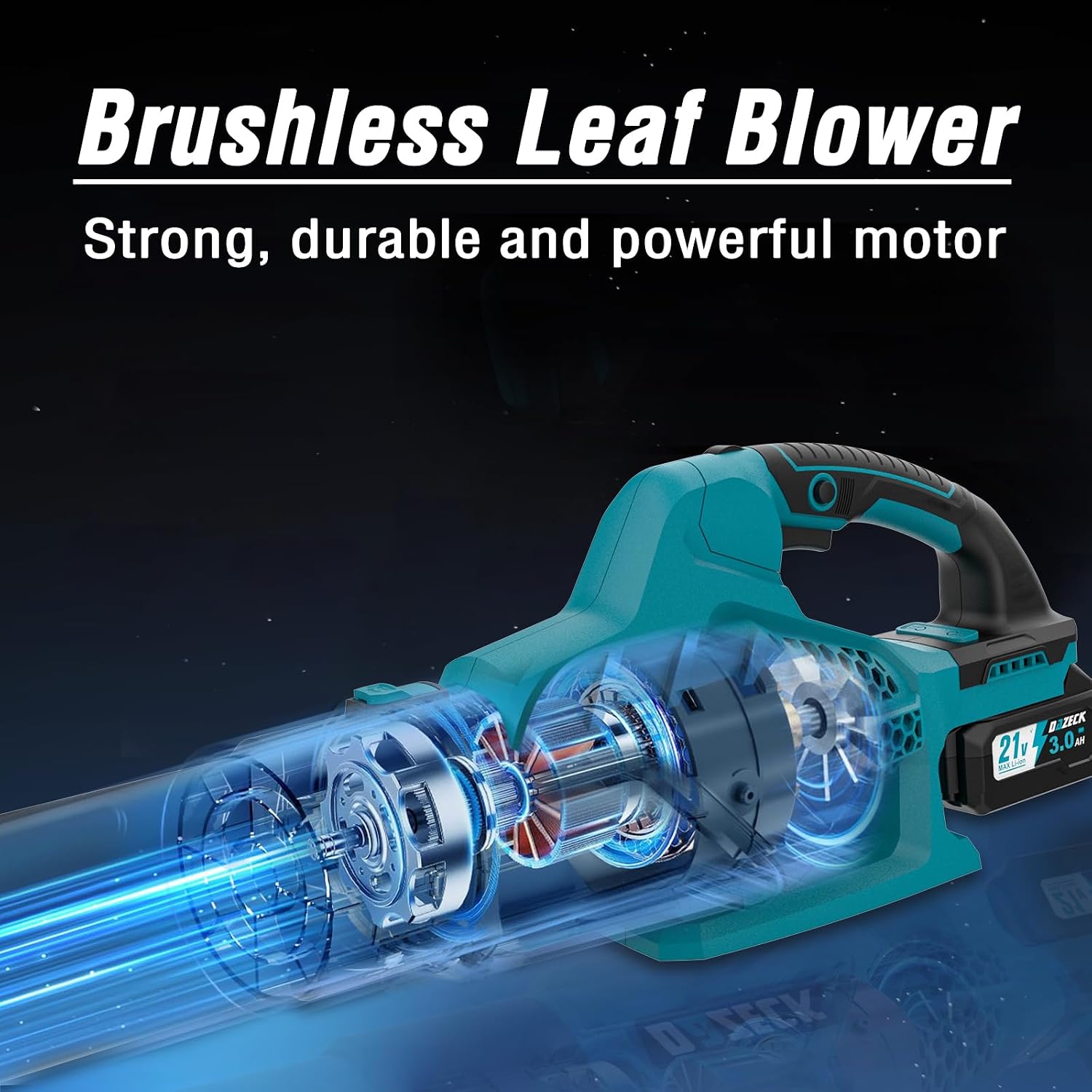

Figure 2.2: Internal view highlighting the brushless motor and efficient 12-blade turbofan axial design for strong airflow.
3. Setup
3.1 Charging the Battery
- Connect the charger to a standard power outlet.
- Insert the battery pack into the charger. Ensure it clicks into place.
- The indicator light on the charger will show the charging status. Charge until the battery is fully charged (indicator light changes color or turns off).
- Once charged, remove the battery from the charger.

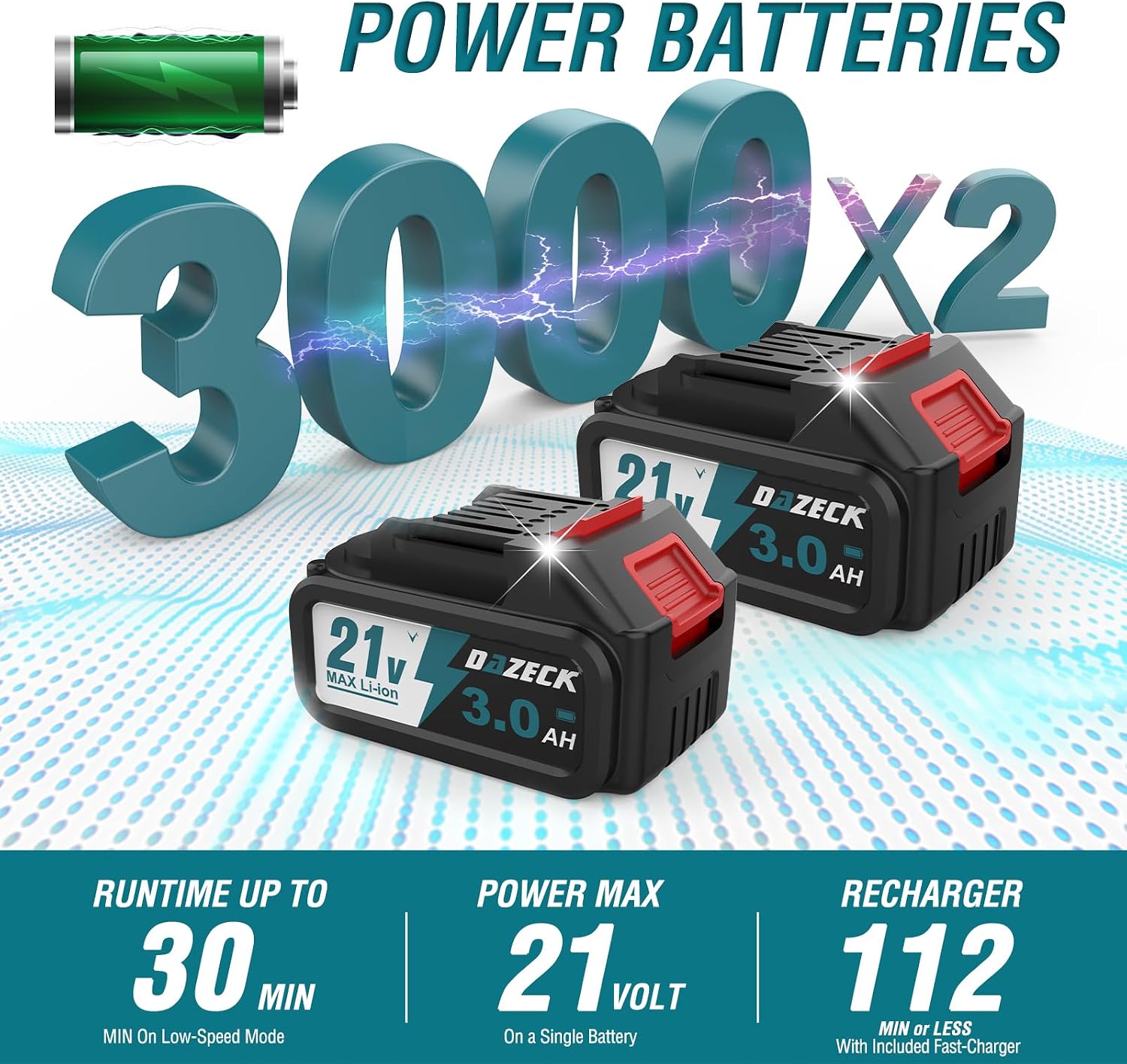

Figure 3.1: The two 21V 3.0Ah lithium-ion batteries provided with the blower, ready for charging.
3.2 Assembling the Blower
- Ensure the battery is removed from the blower body before assembly.
- Align the blower nozzle with the outlet on the blower body.
- Press the lock button on the blower body and push the nozzle onto the body until it securely locks into place.
- Verify that the nozzle is firmly attached and does not wobble.
Figure 3.2: Visual guide for assembling the blower, including attaching the nozzle and inserting the battery.
4. Operating Instructions
4.1 Inserting the Battery
- Ensure the blower is turned off.
- Slide the charged battery pack into the battery slot on the blower body until it clicks into place.
- To remove the battery, press the battery release button and slide the battery out.
4.2 Starting and Stopping the Blower
- To Start: Press and hold the trigger switch on the handle.
- To Stop: Release the trigger switch.
4.3 Adjusting Speed
The blower features 6 adjustable speed modes to control the airflow intensity.
- Locate the speed control switch on the side of the handle.
- Rotate the switch to select the desired speed setting (1-6). Lower settings are suitable for light debris and delicate areas, while higher settings provide maximum power for heavy or wet leaves.

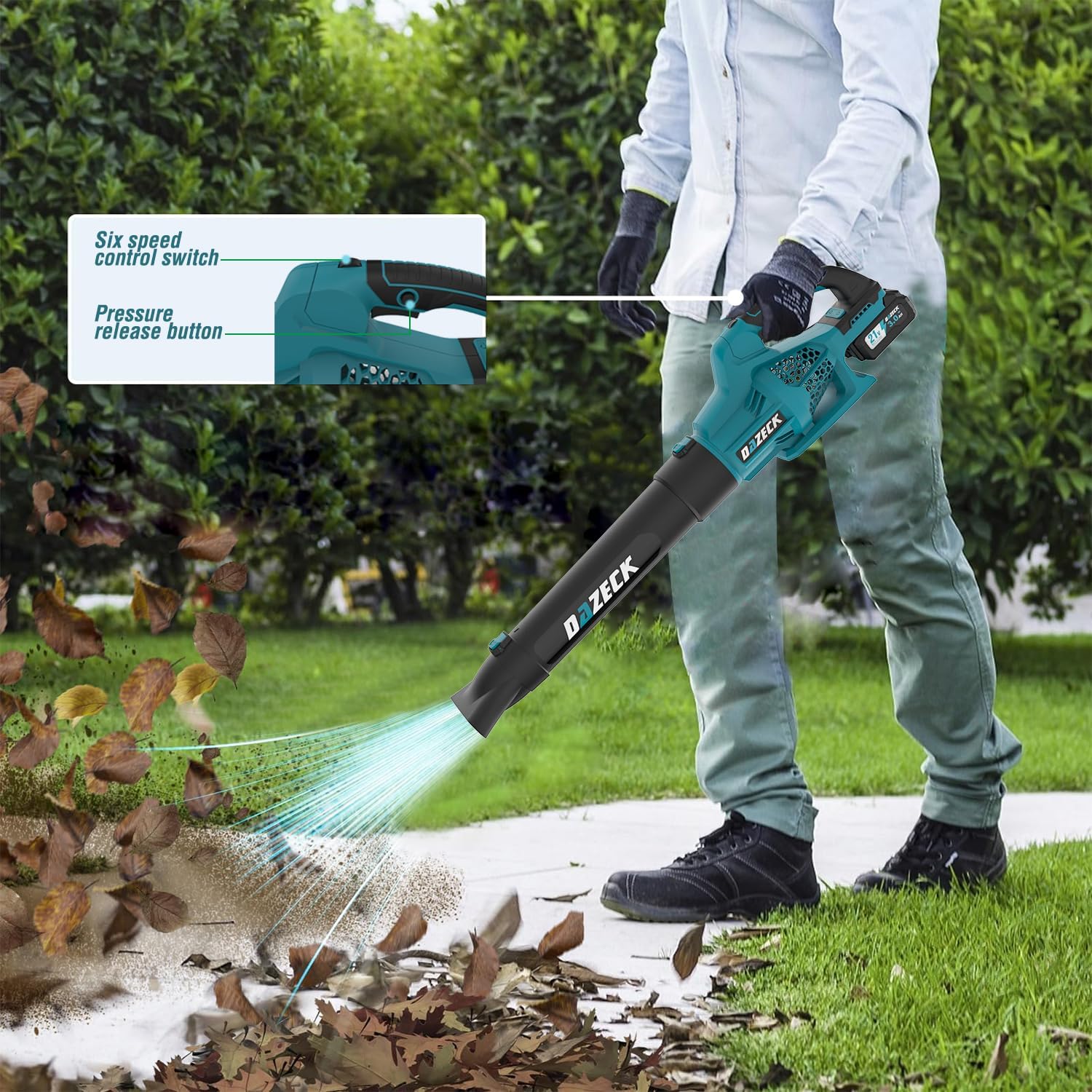

Figure 4.1: Detail of the handle, illustrating the six-speed control switch for adjusting airflow.
4.4 Usage Tips
- For best results, blow debris into a pile rather than scattering it.
- Use lower speeds for light debris on hard surfaces and higher speeds for heavier debris on grass or uneven terrain.
- Avoid blowing directly into flower beds or delicate plants.
- When clearing large areas, work in sections.
Figure 4.2: Examples of the blower's versatility, including clearing leaves, snow, grass, and dust.
5. Maintenance
Regular maintenance ensures optimal performance and extends the life of your leaf blower.
5.1 Cleaning the Blower
- Always remove the battery pack before cleaning.
- Wipe the exterior of the blower with a clean, damp cloth. Do not use harsh detergents or solvents.
- Clear any debris from the air intake vents and the blower nozzle to ensure proper airflow.
- Do not immerse the blower in water or spray it with a hose.
5.2 Battery Care and Storage
- Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures.
- For long-term storage, charge batteries to approximately 50% capacity.
- Do not store batteries in a discharged state for extended periods.
5.3 General Storage
- Store the blower in a dry, secure location out of reach of children.
- Remove the battery pack before storing the blower.
- If storing for an extended period, consider disassembling the nozzle for more compact storage.
6. Troubleshooting
If you encounter issues with your DAZECK leaf blower, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Blower does not start | Battery not inserted correctly Battery is discharged Trigger switch not fully pressed | Ensure battery is fully seated and clicks into place Charge the battery fully Press the trigger switch completely |
| Low airflow or power | Battery charge is low Air intake or nozzle is blocked Speed setting is too low | Recharge the battery Clear any debris from intake and nozzle Increase the speed setting |
| Blower stops during operation | Battery is depleted Overheating protection activated | Replace with a charged battery Allow the blower to cool down before resuming use |
7. Specifications
| Feature | Specification |
|---|---|
| Brand | DAZECK |
| Model Name | DAZECKLB02 |
| Model Number | DK3000 |
| Power Source | Battery Powered |
| Battery Voltage | 21V |
| Battery Type | Lithium-Ion |
| Max Wind Speed | 120 MPH |
| Speed Modes | 6 Adjustable Speeds |
| Material | Plastic |
| Color | Blue |
| Dimensions (L x W x H) | 91.4L x 19.3W x 21.8H cm |
| Special Features | Adjustable Tube Length, Rechargeable, Adjustable Speed |
| Components Included | Blower, 2 Batteries, Charger, User Manual |
8. Warranty and Support
8.1 Warranty Information
DAZECK products are manufactured to high-quality standards. For specific warranty details, please refer to the warranty card included with your purchase or contact DAZECK customer support.
8.2 Customer Support
If you have any questions, require technical assistance, or need to report a problem with your product, please contact DAZECK customer support. Contact information can typically be found on the product packaging, the official DAZECK website, or through your retailer.
Please have your model number (DAZECKLB02) and purchase date ready when contacting support.
