ALisasin Instant Electric Kitchen Water Heater Faucet

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ALisasin Instant Electric Kitchen Water Heater Faucet, Model ws0432. Please read this manual thoroughly before installation and use, and retain it for future reference.

Safety Information

Important Safety Instructions:

• This appliance must be installed by a qualified electrician or plumber in accordance with all local and national electrical and plumbing codes.
• Ensure the power supply matches the voltage requirements specified on the product label.
• Do not operate the water heater if the power cord or plug is damaged.
• Never immerse the main unit in water or other liquids.
• The product features internal insulation walls and water-electricity separation technology for safety. Do not attempt to modify or bypass these safety features.
• Always ensure water flow before activating the heating function to prevent dry heating.
• Keep children away from the appliance during operation, as hot water can cause burns.
• Regularly inspect the faucet for any signs of damage or leakage.

Product Features

• Instant Hot Water: Delivers hot water in approximately 3 seconds with a 3000-watt heating element.
• Dual-Use Temperature Control: A single handle allows for easy switching between hot and cold water.
• Intelligent Digital Display: Shows the real-time water temperature for precise control.
• Enhanced Safety: Features internal insulation, water-electricity separation design, IPX4 waterproof rating, and built-in anti-dry heating protection.
• Durable Construction: Made with a high-quality 304 stainless steel heating core, environmental refined copper, and ABS engineering plastics.
• Flexible Design: Includes a 360° rotating water pipe and a universal hose for versatile use.

Package Contents

Please refer to the product packaging for a complete list of included components. Typically, the package contains:

• ALisasin Instant Electric Kitchen Water Heater Faucet main unit
• Shower head and hose (if applicable to your model variant)
• Mounting accessories
• User Manual

Setup and Installation

Installation of this electric water heater faucet should be performed by a qualified professional to ensure safety and proper function.

1. Preparation: Ensure the water supply is turned off and the electrical circuit is disconnected at the main breaker.
2. Mounting: The unit is designed for floor mount installation. Secure the faucet base firmly to the desired location on your sink or countertop.
3. Water Connection: Connect the cold water inlet to your existing cold water supply. Ensure all connections are tight to prevent leaks.
4. Electrical Connection: Connect the power cord to a dedicated, properly grounded electrical outlet. Verify that the voltage and current ratings match the product specifications.
5. Initial Water Flow: Before turning on the power, open the faucet to allow water to flow through the unit for a few minutes. This purges air from the system and ensures the heating element is fully submerged.
6. Power On: Once water flows steadily, turn on the electrical circuit breaker.

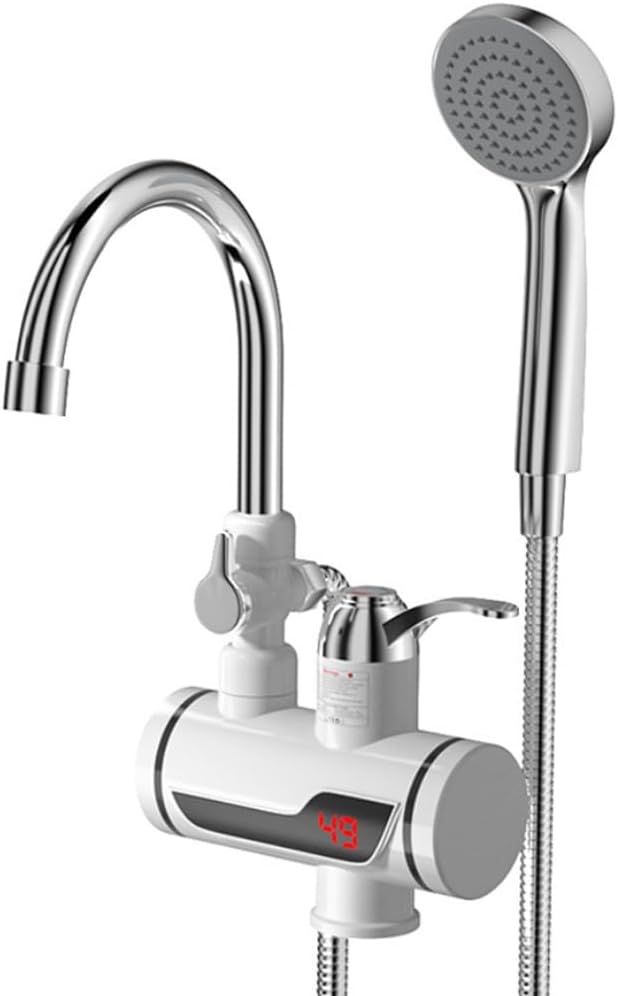

Image: The ALisasin Instant Electric Kitchen Water Heater Faucet, showing the main faucet, digital display, and optional shower attachment.

Image: An illustrative view of the internal 3000W heating element, demonstrating the rapid heating process.

Operating Instructions

1. Turning On/Off: Rotate the main handle to initiate water flow. The unit will automatically begin heating when the handle is moved towards the hot water position.
2. Temperature Adjustment:
   • Turn the handle to the right for cold water.
   • Turn the handle to the left for hot water. Adjust the handle position to achieve the desired temperature.
3. Digital Temperature Display: The integrated digital display will show the current water temperature as it flows.
4. Shower Function (if applicable): If your model includes a shower attachment, use the shower switch (typically a small lever or button on the unit) to divert water flow from the faucet spout to the shower head.

Image: A user washing their face, demonstrating the practical application of the instant hot water faucet in a kitchen or bathroom setting.

Image: A detailed view of the faucet's control handle, illustrating the clear indicators for hot (red) and cold (blue) water selection.

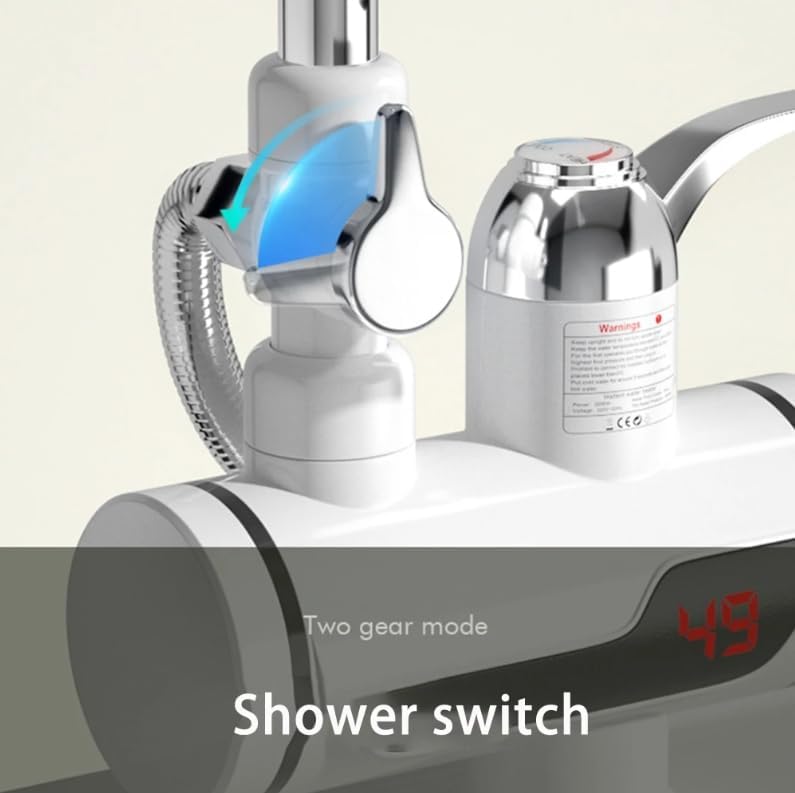

Image: A close-up of the unit's digital display showing the water temperature and the shower switch mechanism.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your water heater faucet.

• Cleaning: Clean the exterior of the faucet with a soft, damp cloth and mild detergent. Avoid abrasive cleaners or solvents that could damage the finish.
• Spout and Shower Head: Periodically check the spout and shower head nozzles for mineral buildup. If necessary, gently clean them to maintain consistent water flow.
• Leak Inspection: Regularly inspect all connections for any signs of leaks. Tighten connections if necessary, but do not overtighten.
• Winterization (if applicable): In areas prone to freezing temperatures, ensure the unit and pipes are properly drained or protected to prevent damage from freezing.

Troubleshooting

If you encounter issues with your ALisasin Instant Electric Kitchen Water Heater Faucet, refer to the following common problems and solutions:

• No Hot Water:
  • Check if the power supply is connected and the circuit breaker is on.
  • Ensure the water flow is sufficient before expecting hot water.
  • Verify the handle is turned fully to the hot water position.
• Low Water Flow:
  • Check for kinks in the water supply lines.
  • Clean the aerator on the faucet spout or shower head for mineral buildup.
  • Ensure the main water supply valve is fully open.
• Water Leakage:
  • Tighten all water connections. Do not overtighten.
  • If leakage persists, contact a qualified plumber.
• Digital Display Not Working:
  • Check the power supply.
  • If the unit is receiving power but the display is off, contact customer support.

For issues not covered here, or if problems persist, please contact ALisasin customer support or a qualified service technician.

Specifications

Warranty and Support

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official ALisasin website. For technical support, troubleshooting assistance, or replacement parts, please contact ALisasin customer service through the contact information provided in your product documentation.
