1. Safety Information
For your safety and to prevent damage to the product, please adhere to the following guidelines:
- Do not load the bed frame with more than 1200 pounds (approximately 544 kg).
- Exercise caution around sharp edges during assembly and when handling the storage drawers.
- Always follow the provided assembly instructions precisely to prevent instability or collapse.
- Ensure all connections for the LED lighting and charging station are secure before use.
2. Package Contents
Verify that all components are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- Headboard with integrated LED lights and charging station
- Side Rails (2)
- Footboard
- Wooden Slats
- Under-bed Storage Drawers (4) with wheels and fixtures
- Support Legs and Center Support Bar
- Assembly Hardware (screws, washers, wrench)
- Power Adapter for LED and Charging Station
- Remote Control for LED Lights
3. Assembly Instructions
Assembly is straightforward and requires two adults. Please refer to the detailed video guide below for visual step-by-step instructions.
Assembly Overview:
- Unpack all components and lay them out on a clean, soft surface to prevent scratches.
- Assemble the main bed frame structure, including side rails, footboard, and support legs.
- Attach the headboard to the assembled frame.
- Install the wooden slats onto the bed frame.
- Assemble the four under-bed storage drawers and insert them into the frame.
- Connect the LED lighting and charging station power cables.

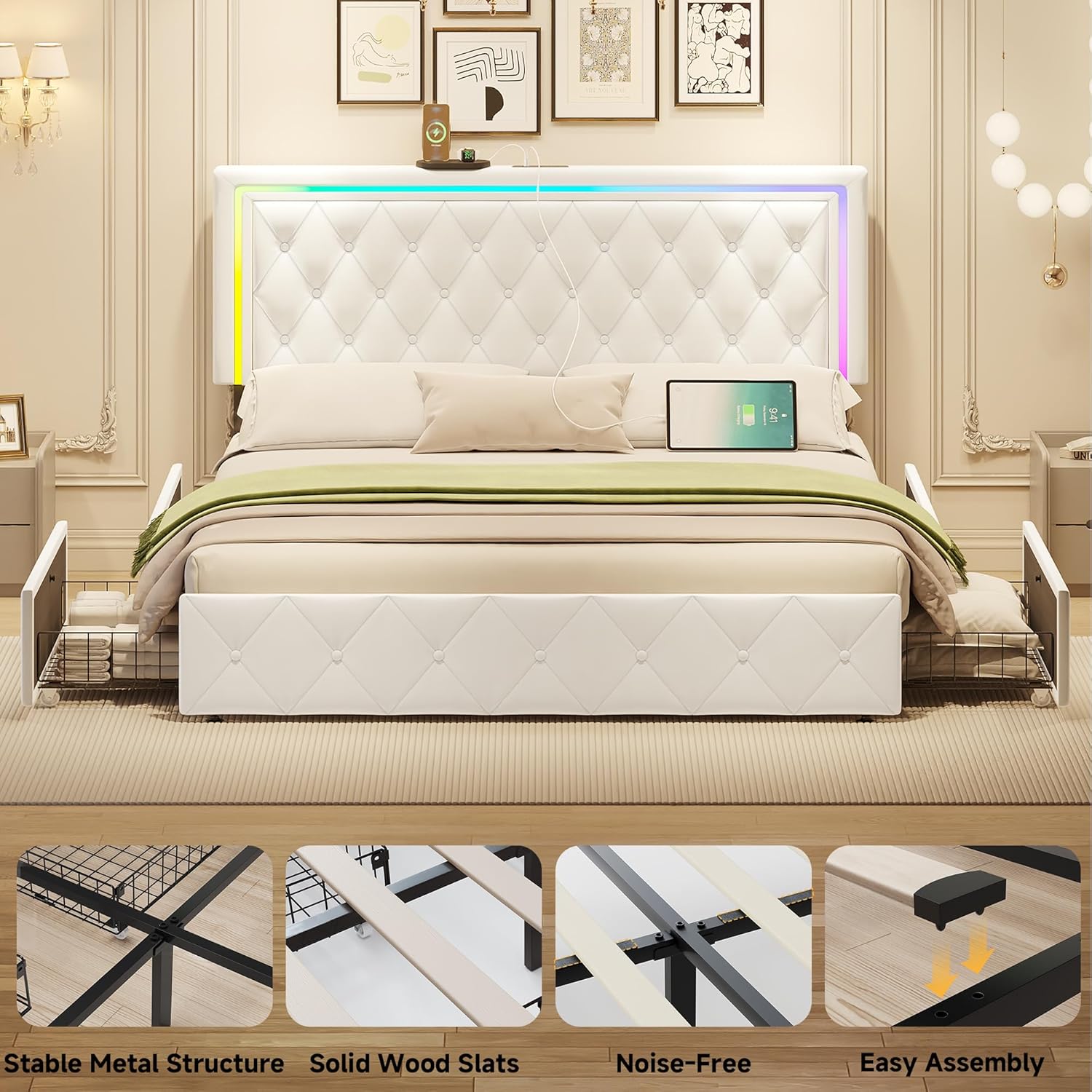

Image: Overview of the bed frame's structural components and assembly features.
Detailed Assembly Video Guide:
Video: A comprehensive guide demonstrating the step-by-step assembly process for the QFP LED Queen Bed Frame.
4. Operating Instructions
4.1 LED Lights Operation
The integrated LED lights in the headboard offer various customization options:
- Control Methods: Use the included remote control or a compatible mobile application to manage the LED lights.
- Color and Brightness: Adjust colors, brightness levels, and choose from multiple dynamic lighting modes.
- Music Sync: Activate Music Sync mode to make the LED lights flash in rhythm with your audio.
- Timing Function: Set timers for the lights to turn on or off automatically.
Image: Features of the LED lighting system, including app/remote control, RGB colors, brightness adjustment, music mode, and timing function.
Video: Demonstration of the LED lights and charging station features of the bed frame.
4.2 Charging Station Usage
The headboard includes a convenient charging station:
- Ports: Features 2 USB ports (5V/2A) and 2 AC outlets (125V/12A).
- Power Cord: Equipped with a 6.6-foot power cord for easy connection to a wall outlet.
- Functionality: Allows for convenient charging of electronic devices directly from the headboard.
Image: Detailed view of the built-in charging station with USB ports and AC outlets.
4.3 Adjustable Headboard
The upholstered headboard can be adjusted to two different heights:
- Height Options: The headboard can be set to either 41 inches or 45 inches.
- Adjustment: Adjust the height during assembly or by re-positioning the headboard attachment points.
Image: Headboard height adjustment options.
4.4 Storage Drawers
The bed frame includes four large under-bed storage drawers:
- Mobility: Each drawer is equipped with silent casters for smooth movement.
- Security: Features fixtures designed to prevent drawers from accidentally rolling out.

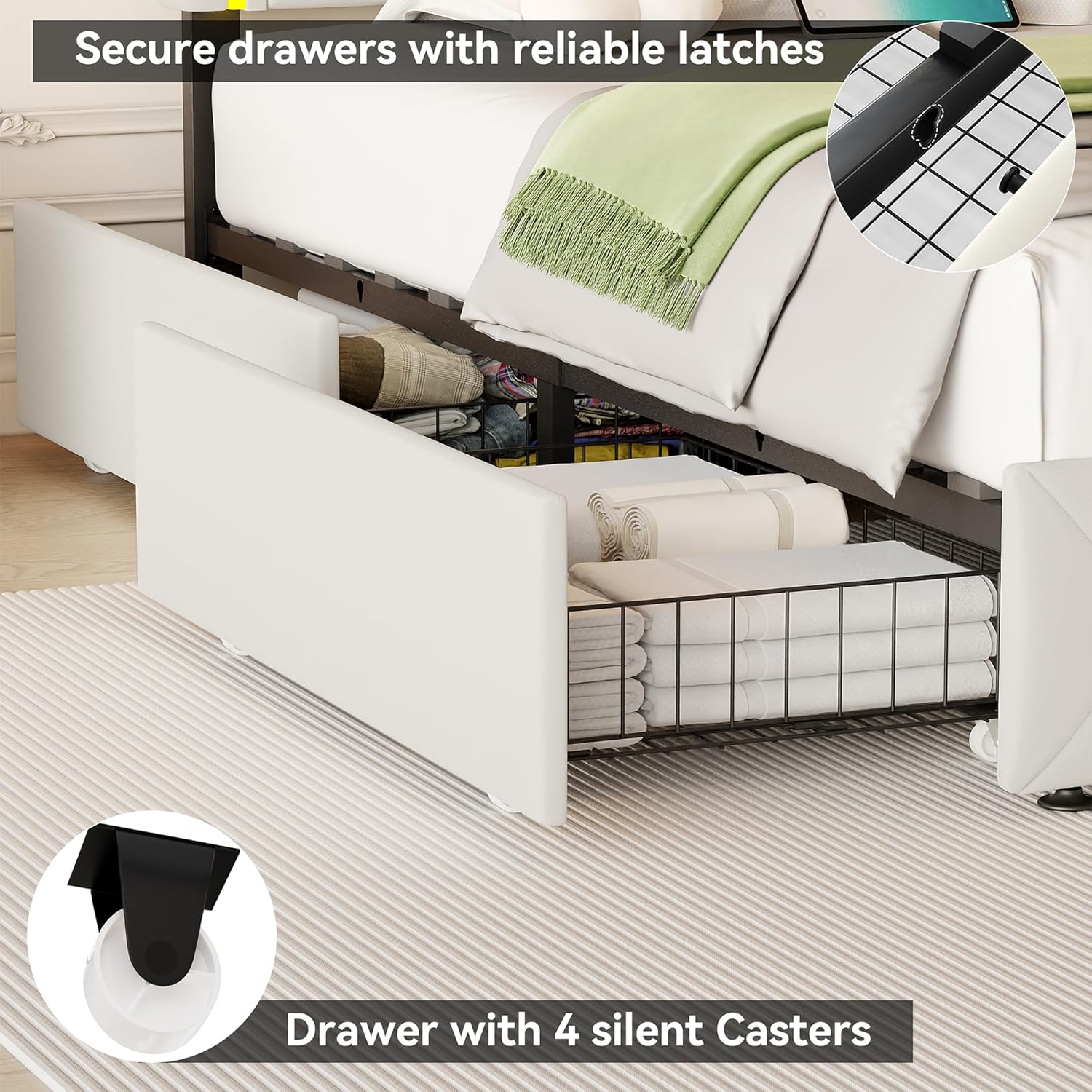

Image: Detail of the secure drawers with reliable latches and silent casters.
5. Maintenance
Proper care will extend the life and appearance of your bed frame:
- Cleaning: Wipe the bed frame surfaces with a dry cloth. For the velvet upholstery, use a soft brush or vacuum with an upholstery attachment to remove dust. Spot clean with a mild fabric cleaner if necessary, testing on an inconspicuous area first.
- Hardware: Periodically check all bolts and screws to ensure they are tight. Re-tighten as needed to maintain stability.
- LED Lights: Avoid direct contact with water or harsh chemicals. If the lights malfunction, refer to the troubleshooting section.
- Drawers: Keep the drawer tracks and wheels free of debris for smooth operation.
6. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| LED lights not working | Loose connection, power outage, remote battery dead, app issue. | Check all power connections. Ensure the power adapter is plugged in. Replace remote batteries. Restart the mobile app. |
| Bed frame is wobbly or noisy | Loose hardware, uneven floor, incorrect assembly. | Tighten all bolts and screws. Ensure the bed is on a level surface. Review assembly instructions. |
| Storage drawers do not slide smoothly | Debris in casters, overloaded drawer, misaligned. | Clean casters and tracks. Reduce drawer load. Ensure drawers are correctly aligned. |
| Charging station not working | Power cable disconnected, device not compatible, power outlet issue. | Check the power cable connection to the headboard and wall outlet. Test with a different device. Ensure the wall outlet is functional. |
7. Specifications
Image: Key dimensions and features of the QFP Queen Bed Frame.
| Feature | Detail |
|---|---|
| Size | Queen |
| Product Dimensions (L x W x H) | 82.6" x 63.1" x 45" |
| Item Weight | 114 pounds |
| Weight Capacity | 1200 pounds |
| Color | White |
| Material | Metal, Wood, Velvet Upholstery (Headboard Foam) |
| Special Features | Adjustable Headboard, Charging Station (2 USB, 2 AC Outlets), LED Lighting, 4 Storage Drawers |
| Assembly Required | Yes |
| Product Care Instructions | Wipe with Dry Cloth |
8. Warranty and Support
For specific warranty details regarding your QFP LED Queen Bed Frame, please refer to the documentation included with your purchase or contact the seller directly. Protection plans may be available for extended coverage.
If you encounter any issues or require assistance, please reach out to QFP customer support through the retailer where the product was purchased or visit the official QFP store online.
