Introduction
This manual provides essential information for the safe and efficient operation of your TRAMROOT 18 Amp Golf Cart Charger. Designed for 36 Volt EZGO Marathon Lead Acid Batteries with an Anderson SB-50 plug, this intelligent charger ensures optimal battery health and performance. Please read this manual thoroughly before use.
Image: The TRAMROOT 18 Amp Golf Cart Charger, featuring its red aluminum casing, cooling fan, and Anderson SB-50 plug.
What's in the Box
- 1 x TRAMROOT 18 Amp Golf Cart Charger
- 1 x User Manual
Image: Visual representation of the charger and user manual included in the product packaging, along with key dimensions.
Key Features
- 18 Amp Intelligent Charging: Designed for 36 Volt EZGO Marathon Lead Acid Batteries with Anderson SB-50 plug. Features automatic shutdown and trickle mode upon full charge.
- Temperature Compensation: Automatically adjusts charging curve based on ambient temperature for optimal charging.
- Superior Durability: Constructed with a durable aluminum body and IP67 weather resistance rating, providing high dust and waterproof protection.
- Portable Design: Compact and lightweight (5.5 lbs) with a convenient carrying handle. Total cable length of 16 ft for versatile use.
- Safety Protections: ETL and FCC certified. Includes built-in overload, overvoltage, overcurrent, overheat, short circuit, and reverse polarity connection protection.
- Smart Charging System: Features indicator lights for standby (yellow flashing), charging (green flashing), and charging complete (solid green).
- Fast Heat Dissipation: Equipped with a cooling fan to prevent overheating during operation, maintaining quiet operation below 40 decibels.
Image: Diagram illustrating the multiple safety protections of the charger, including over-current, over-load, over-voltage, short-circuit, over-heat, and reverse polarity protections.
Image: The charger showcasing its IP67 waterproof and dustproof rating, highlighting its durable aluminum construction against sand and water backgrounds.
Image: A graph depicting the smart charging curve (CC/CV) and the indicator light status: yellow flashing for standby/no-load, green flashing for charging, and solid green for charging complete.
Image: The charger next to icons indicating its smaller size, lighter weight (5.5 lbs), and portable handle, emphasizing its ease of use and storage.
Setup
- Prepare the Charger: Uncoil the charger cables and ensure they are free from kinks or damage. The charger features a durable, covered cable with Velcro straps for organization.
- Connect to Golf Cart: Locate the charging port on your 36 Volt EZGO Marathon golf cart. Align the Anderson SB-50 plug from the charger with the golf cart's charging port, ensuring the plus and minus indicators match. Gently slide the plug straight in until it is fully seated.
- Connect to Power Outlet: Plug the three-pronged AC power cord into a standard wall outlet (110-120V AC).
- Verify Connection: Once plugged in, the charger's indicator light will begin flashing green, and the cooling fan will activate, indicating that charging has commenced.

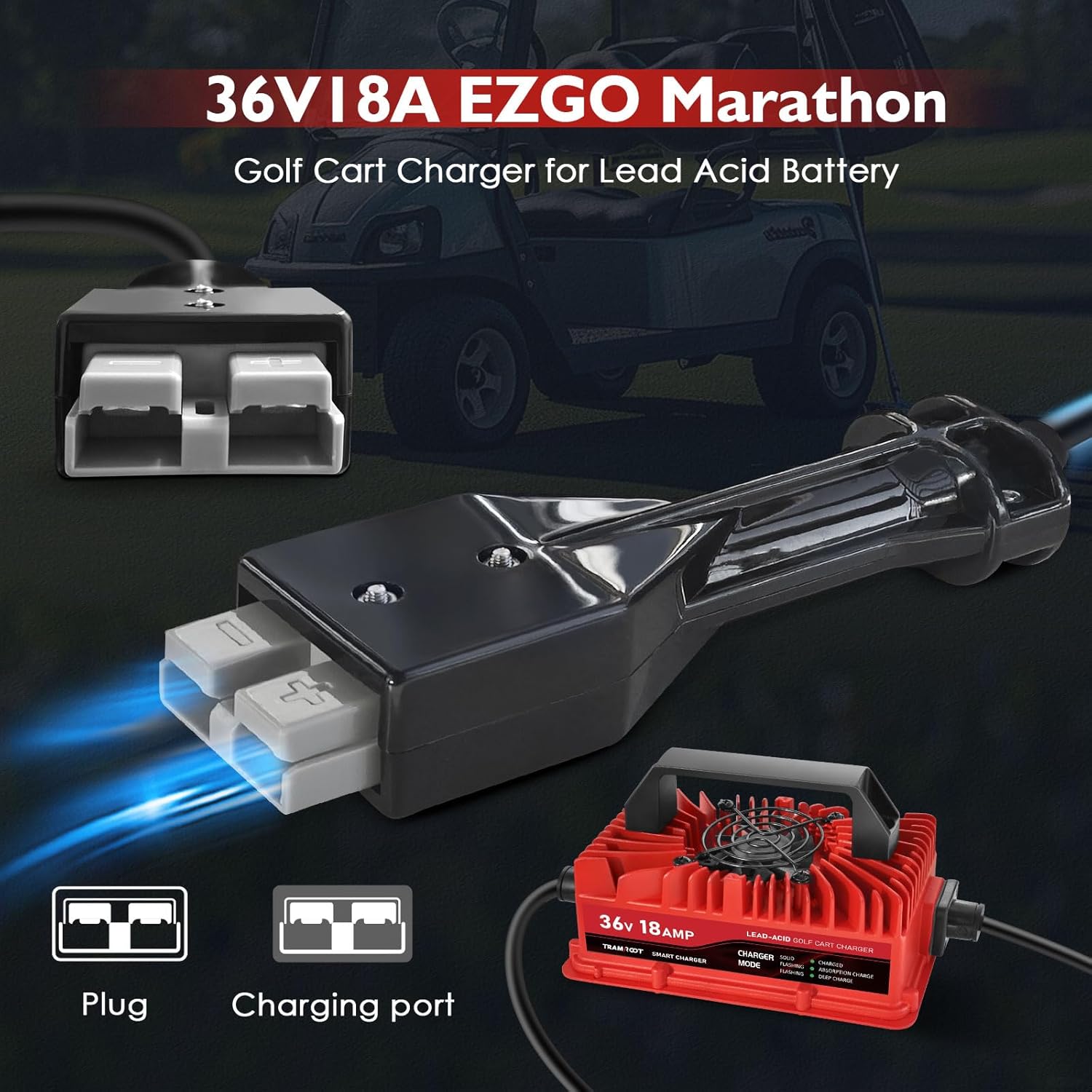

Image: Close-up view of the Anderson SB-50 plug and the golf cart's charging port, illustrating the connection points.
Operating Instructions
The TRAMROOT golf cart charger is designed for intelligent and automatic operation. Follow these steps for charging:
- Initiate Charging: After connecting the charger to both the golf cart and a power outlet, the charger will automatically begin the charging process.
- Monitor Indicator Lights:
- Yellow Light Flashing: Standby mode or No-load.
- Green Light Flashing: Charging in progress. The cooling fan will operate to prevent overheating.
- Solid Green Light: Charging is complete. The charger will automatically switch to trickle mode to maintain optimal battery health.
- Charging Time: The charger provides 800W high power output for quick charging. Actual charging time may vary depending on the battery's state of charge and capacity.
- Disconnecting: Once the solid green light indicates a full charge, first unplug the AC power cord from the wall outlet, then disconnect the Anderson SB-50 plug from the golf cart.
Image: The charger with a graphic highlighting its 800W high power output, indicating faster charging compared to 600W chargers.
Maintenance
- Cleaning: Keep the charger clean and free from dust and debris. Use a dry, soft cloth for cleaning. Do not use liquid cleaners.
- Storage: Store the charger in a cool, dry place when not in use. Utilize the integrated Velcro straps to keep cables neatly organized.
- Inspection: Periodically inspect the charger, cables, and plugs for any signs of wear, damage, or corrosion. Do not use if any damage is observed.
- Environmental Protection: The IP67 rating provides protection against water and dust, but avoid prolonged submersion or exposure to extreme conditions.
Image: The charger depicted in both water and dusty environments, emphasizing its IP67 waterproof and dustproof capabilities.
Troubleshooting
If you encounter issues with your TRAMROOT golf cart charger, consider the following general troubleshooting steps:
- Charger Not Activating: Ensure both the golf cart plug and the AC power plug are securely connected. Check the power outlet for functionality.
- No Indicator Light: Verify that the charger is properly plugged into a live power outlet and the golf cart.
- Overheating: The charger has a built-in cooling fan. Ensure the fan is not obstructed and the charger is placed in a well-ventilated area during use.
- Slow Charging: Confirm that the charger is compatible with your battery type and voltage (36 Volt Lead Acid). Ensure the battery itself is in good condition.
For persistent issues, please refer to the Warranty and Support section for contact information.
Specifications
| Attribute | Detail |
|---|---|
| Product Dimensions | 7.5 x 4.1 x 4.7 inches |
| Item Weight | 5.5 pounds |
| ASIN | B0DP6Z4XMV |
| Date First Available | November 28, 2024 |
| Manufacturer | Shenzhen Yileide Technology Co.,Ltd. |
| Compatibility | 36 Volt EZGO Marathon Lead Acid Battery with Anderson SB-50 Plug |
| Output Current | 18 Amp |
| Power Output | 800W |
| Weather Resistance | IP67 (Dustproof & Waterproof) |
| Cable Length | 16 ft (Total) |
Warranty and Support
The TRAMROOT golf cart charger includes a one-year limited warranty from the date of purchase. Our responsive support team is available to assist with any inquiries or issues you may encounter. Most issues are resolved within 24 business hours.
For support, please contact TRAMROOT customer service through the platform where you purchased the product or visit the official TRAMROOT store for contact details.
