Yuezhongoo 2-Slice Stainless Steel Toaster Instruction Manual

1. Product Overview

This manual provides essential information for the safe and efficient operation of your Yuezhongoo 2-Slice Stainless Steel Toaster. Please read it thoroughly before first use and retain it for future reference.

Model: Yuezhongooc8w9r6p7b4

Key Features:

• Customizable Browning: Offers six distinct browning settings to achieve your preferred toast shade.
• Even Toasting: Automatic centering guides ensure uniform heating for consistent results.
• User-Friendly Operation: Features intuitive controls and a high-lift lever for easy removal of smaller items.
• Enhanced Safety: Equipped with jam-proof and automatic shut-off functions.
• Convenient Cleaning: Includes a removable crumb tray for simple maintenance.
• Compact Design: Space-saving form factor suitable for various kitchen countertops.

2. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the toaster.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plug, or toaster in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not use appliance for other than intended use.
• Oversize foods, metal foil packages, or utensils must not be inserted in a toaster as they may create a fire or risk of electric shock.
• A fire may occur if toasters are covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not attempt to dislodge food when the toaster is plugged in.
• Do not rinse the inside of the machine directly with water.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.

3. Components

Familiarize yourself with the parts of your Yuezhongoo 2-Slice Toaster:

• Toasting Slots: Two wide slots for bread, bagels, and other items.
• High-Lift Lever: Lowers and raises items into the toasting slots.
• Browning Control Dial: Adjusts the toast shade from 1 (lightest) to 6 (darkest).
• STOP/Cancel Button: Immediately stops the toasting cycle.
• Removable Crumb Tray: Collects crumbs for easy cleaning.
• Power Cord: Connects the toaster to an electrical outlet.

Figure 3.1: Front view of the Yuezhongoo 2-Slice Toaster, highlighting the browning control dial with settings 1 through 6 and the 'STOP' button, along with the toast lift lever.

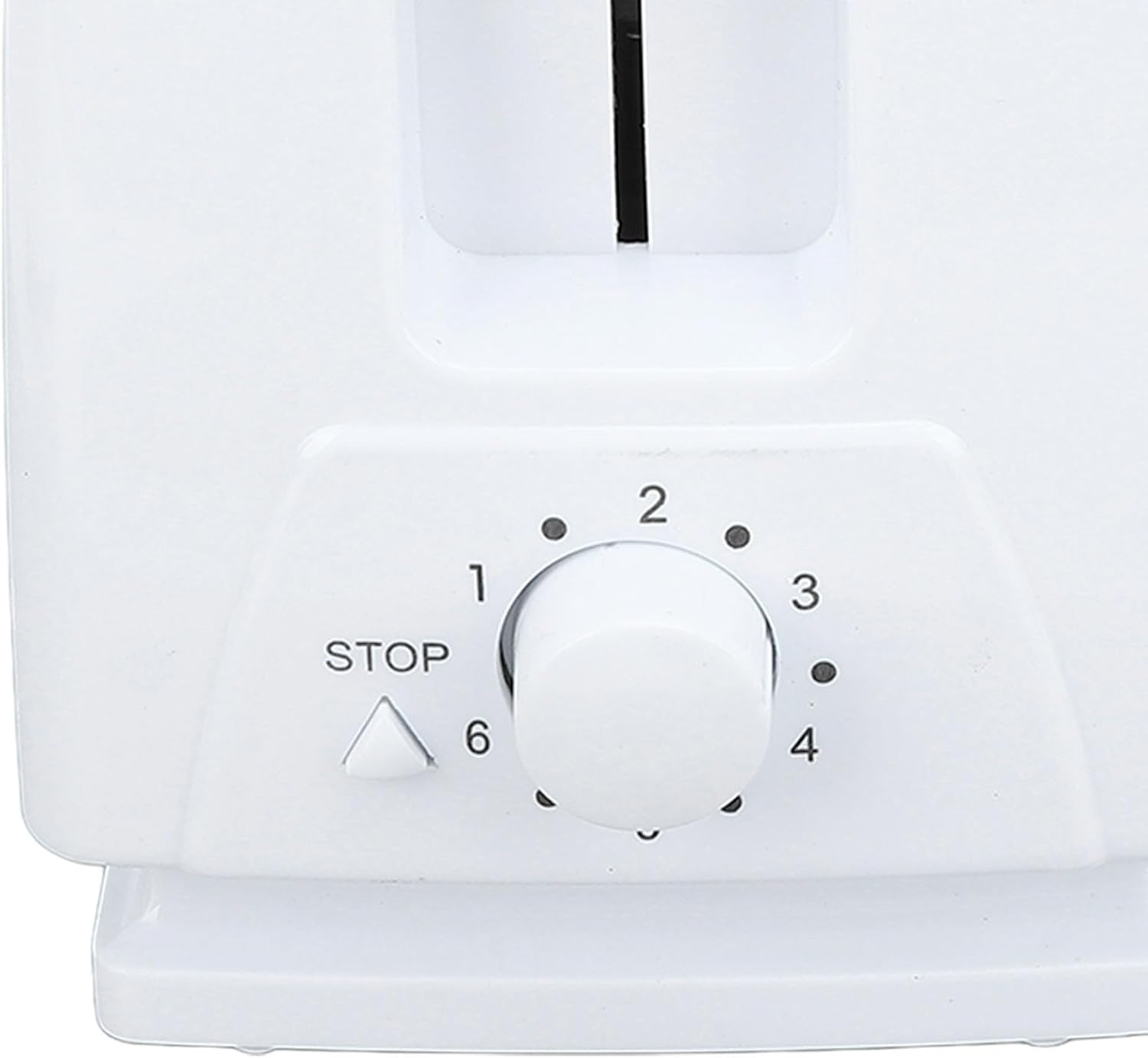

Figure 3.2: A detailed view of the toaster's control panel, featuring the rotary browning dial with settings from 1 to 6 and the triangular 'STOP' button for manual cancellation.

Figure 3.3: A view from directly above the toaster, showcasing the two wide slots designed to accommodate various bread types, including bagels.

4. Setup

1. Unpack: Carefully remove the toaster and all packaging materials. Ensure all components are present and undamaged.
2. Placement: Place the toaster on a stable, heat-resistant, and dry surface, away from flammable materials such as curtains or walls. Ensure adequate ventilation around the appliance.
3. First Use (Burn-Off Cycle): Before toasting food for the first time, operate the toaster without bread on the highest setting (6) for one cycle. This will burn off any manufacturing residues and eliminate initial odors. It is normal for a slight odor or smoke to be present during this process. Ensure the area is well-ventilated.
4. Connect Power: Plug the power cord into a standard electrical outlet.

5. Operating Instructions

Toasting Bread:

1. Ensure the crumb tray is properly inserted.
2. Place up to two slices of bread or other items into the toasting slots. The automatic centering guides will hold the items in place.
3. Select your desired browning level using the Browning Control Dial (1 for light, 6 for dark).
4. Press the High-Lift Lever down until it locks into place. The toasting cycle will begin.
5. Once the selected browning cycle is complete, the toast will automatically pop up, and the toaster will shut off.
6. Use the High-Lift Lever to carefully retrieve your toasted items.

Using the STOP/Cancel Function:

To stop the toasting cycle at any time, press the 'STOP' button. The High-Lift Lever will immediately release, and the toast will pop up.

Figure 5.1: The toaster with two slices of bread positioned in the slots, ready for the toasting process to begin.

6. Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your toaster.

1. Always unplug the toaster from the power outlet and allow it to cool completely before cleaning.
2. Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or metal scouring pads, as these can scratch the finish.
3. Crumb Tray Cleaning:
   • Locate the removable crumb tray at the bottom of the toaster.
   • Pull out the crumb tray.
   • Discard accumulated crumbs.
   • Wipe the tray clean with a damp cloth, then dry thoroughly before reinserting.
   • Push the crumb tray back into place until it clicks securely.
4. Internal Cleaning: Do not rinse the inside of the machine directly with water. If food particles are stuck inside, gently shake the toaster upside down over a sink to dislodge them, ensuring the toaster is unplugged and cool.

7. Troubleshooting

If you encounter issues with your toaster, refer to the following common problems and solutions:

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact Yuezhongoo customer service directly. Keep your purchase receipt as proof of purchase.
