Ruitutedianzi SAMP-200 HiFi Dual Core TPA3255 Stereo Amplifier Board User Manual

1. Introduction

The Ruitutedianzi SAMP-200 is a high-performance Class D digital stereo amplifier board designed for high-fidelity audio applications. It utilizes two TPA3255 power amplifier modules to deliver robust and clear sound. This manual provides essential information for the safe and effective use of your amplifier board.

Image 1.1: Overview of the SAMP-200 amplifier board.

2. Safety Instructions

• Always ensure the power supply is disconnected before making any connections or adjustments to the amplifier board.
• Do not operate the amplifier board in wet or damp conditions. Avoid exposure to liquids.
• Ensure proper ventilation around the amplifier board, especially the heatsink, to prevent overheating. Do not obstruct airflow.
• This product is an electronic component and requires careful handling and installation. It is recommended that installation be performed by individuals familiar with electronics.
• Use a DC power supply within the specified voltage range (19V to 52V). Using an incorrect voltage can damage the device.
• Avoid touching components on the board when powered, as some may become hot.

3. Product Features

• Dual TPA3255 Modules: Utilizes two American TI-TPA3255 power amplifier modules for enhanced output power separation.
• High Output Power: Delivers up to 600W+600W at 2 ohms, 315W+315W at 4 ohms, and 200W+200W at 8 ohms.
• Advanced Feedback Design: Features an integrated feedback design and proprietary PurePath Ultra HD high-speed gate driver error correction for ultra-low distortion across the audio frequency band.
• Dynamic Boost Circuit: Front-end differential input circuit incorporates boost technology for a more dynamic listening experience.
• Wide Frequency Response: 20Hz-30kHz.
• Low Distortion: THD+N of 0.006% at 1W/4Ω.
• Flexible Power Supply: Operates with a DC power supply voltage range of 19V to 52V.
• Quality Components: Includes fully shielded, low-loss sealed inductors and robust filter capacitors.
• High Efficiency: Combines high power efficiency with ultra-low power level idle losses (less than 2.5W) due to 85mR MOSFETs and an optimized gate driver scheme.
• Analog Input: 2 VRMS analog input interface for seamless connection with high-performance DACs.

Image 3.1: Close-up view of the TPA3255 chip.

Image 3.2: Detail of the dynamic boost circuit.

Image 3.3: Fully shielded low loss dedicated output inductors.

4. Package Contents

The package includes the following items:

• 1 x Ruitutedianzi SAMP-200 Digital Power Amplifier Board

5. Setup

Follow these steps to set up your amplifier board:

1. Power Supply Connection: Connect a DC power supply within the 19V to 52V range to the designated power input terminals on the board. Ensure correct polarity (positive to +V, negative to GND). The higher the input voltage and current, the greater the potential output power.
2. Speaker Connection: Connect your passive speakers to the output terminals. Ensure correct positive and negative connections for each channel (Left and Right). This amplifier supports speaker impedances from 2 ohms to 8 ohms.
3. Audio Input Connection: Connect your audio source (e.g., DAC, preamplifier) to the analog input interface. This interface supports a 2 VRMS input signal.
4. Initial Power-Up: After all connections are secure and verified, connect the power supply to an AC outlet. Observe for any unusual behavior or indicators.

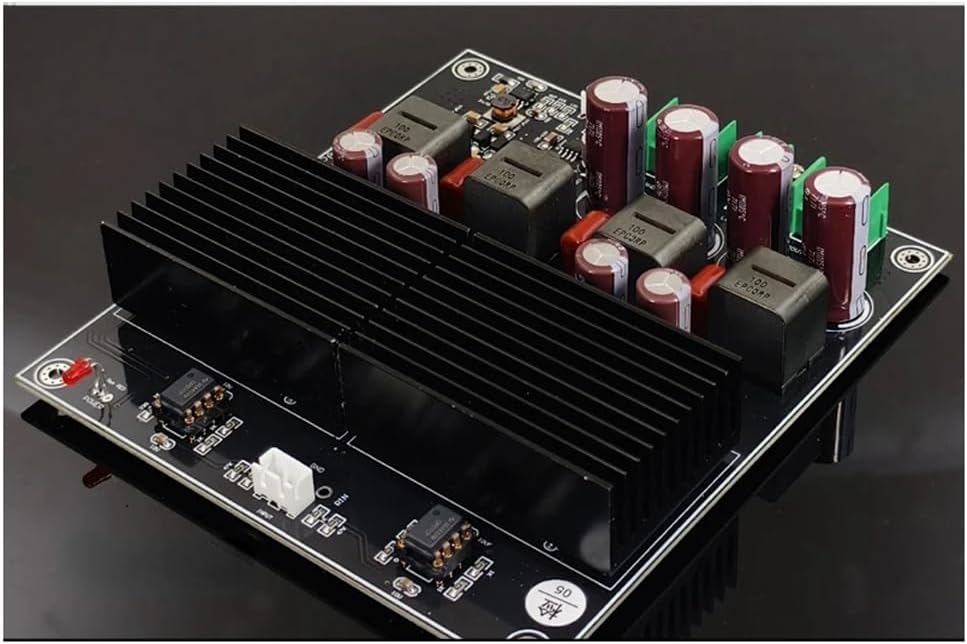

Image 5.1: Top-down view illustrating component layout and connection areas.

Image 5.2: Detail of the output terminals and filter capacitors.

6. Operating Instructions

Once the amplifier board is properly set up and powered on, it will be ready to receive an audio signal. Adjust the volume from your audio source or preamplifier. The amplifier operates in AD mode, providing efficient power delivery to your speakers.

• Ensure your audio source is playing music or audio content.
• Gradually increase the volume from your audio source to a comfortable listening level.
• Monitor the sound quality. If distortion occurs, reduce the input volume.

7. Maintenance

To ensure the longevity and optimal performance of your amplifier board, follow these maintenance guidelines:

• Cleaning: Keep the amplifier board free from dust and debris. Use a soft, dry brush or compressed air to gently clean the components and heatsink. Do not use liquid cleaners.
• Ventilation: Always ensure adequate ventilation around the heatsink to prevent overheating. Do not place the board in an enclosed space without proper airflow.
• Environmental Conditions: Avoid exposing the amplifier board to moisture, extreme temperatures, or direct sunlight.
• Connections: Periodically check all connections (power, speaker, audio input) to ensure they are secure and free from corrosion.

8. Troubleshooting

If you encounter issues with your amplifier board, refer to the following troubleshooting tips:

• No Sound Output:
  • Check all power and audio input connections for proper seating and polarity.
  • Verify that the power supply is providing the correct voltage (19V-52V DC) and sufficient current.
  • Ensure speakers are correctly wired and functional. Test with another audio source if possible.
  • Confirm the audio source is playing and its volume is turned up.
• Distorted Sound:
  • Check the audio input signal level; avoid overdriving the input. Reduce the volume from your audio source.
  • Verify that speaker impedance matches the amplifier's capabilities (2-8 ohms).
  • Ensure the power supply is stable and sufficient for the desired output power. A weak power supply can cause distortion at higher volumes.
  • Inspect speaker wires for shorts or damage.
• Overheating:
  • Ensure proper ventilation around the heatsink. Remove any obstructions.
  • Reduce output power if operating at maximum levels for extended periods.
  • Verify speaker impedance is not too low, which can cause the amplifier to work harder and generate more heat.

9. Specifications

10. Warranty and Support

For warranty information, technical assistance, or customer support regarding your Ruitutedianzi SAMP-200 amplifier board, please refer to the documentation provided at the time of purchase or contact the manufacturer, Ruitutedianzi, directly through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
