TEMAI Tesla Model Y Car Refrigerator User Manual

Product Overview

The TEMAI Tesla Model Y Car Refrigerator is a compact, vertical 12V/16V DC car fridge designed specifically for the Tesla Model Y. It functions as both a freezer and a cooler, offering an adjustable temperature range from 23°F (-5°C) to 68°F (20°C). This appliance is ideal for travel, camping, and daily use, providing convenient cooling or freezing for beverages and snacks.

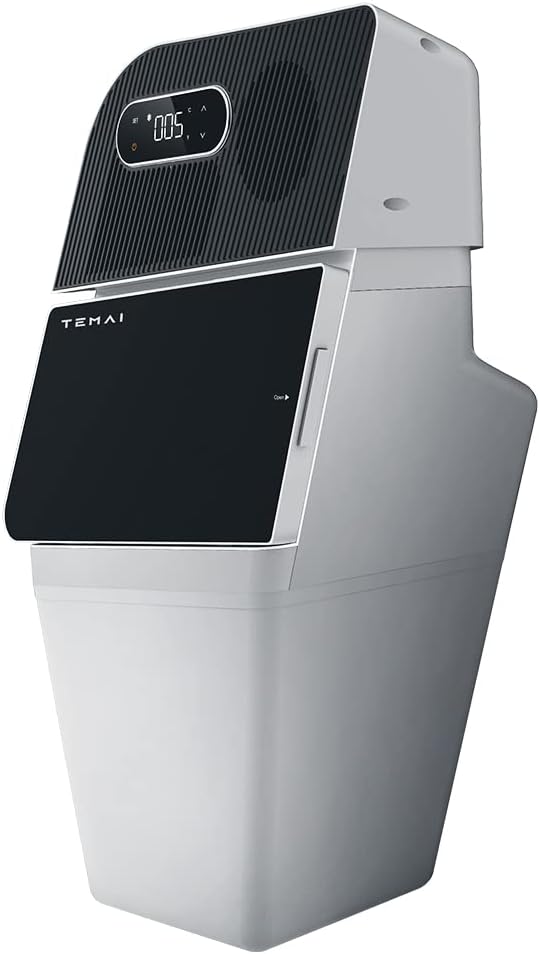

Figure 1: Front view of the TEMAI Tesla Model Y Car Refrigerator.

Safety Information

Please read all safety instructions carefully before operating the appliance. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Ensure the refrigerator is securely installed in the Tesla Model Y trunk to prevent movement during driving.
• Only connect the refrigerator to the designated 12V power outlet in the Tesla Model Y trunk. Do not use other power sources unless specified.
• Do not block ventilation openings. Ensure adequate airflow around the unit for optimal performance and to prevent overheating.
• Do not immerse the appliance in water or expose it to excessive moisture.
• Keep children away from the appliance during operation.
• Unplug the refrigerator before cleaning or performing any maintenance.
• Avoid placing hot items directly into the refrigerator. Allow them to cool down first.

What's in the Box

Upon unpacking, please verify that all components are present and undamaged:

• TEMAI Tesla Model Y Car Refrigerator Unit
• User Manual (this document)

Setup and Installation

The TEMAI Car Refrigerator is designed for seamless integration into the Tesla Model Y's trunk space, specifically utilizing the hidden space in the left storage compartment.

1. Unpack the Refrigerator: Carefully remove the refrigerator from its packaging. Inspect for any signs of damage.
2. Locate Installation Area: Identify the left storage compartment in your Tesla Model Y's trunk. The refrigerator is designed to fit flush within this area.
3. Position the Unit: Gently slide the refrigerator into the designated compartment. Ensure it sits securely and is flush with the side wall, as shown in Figure 2.

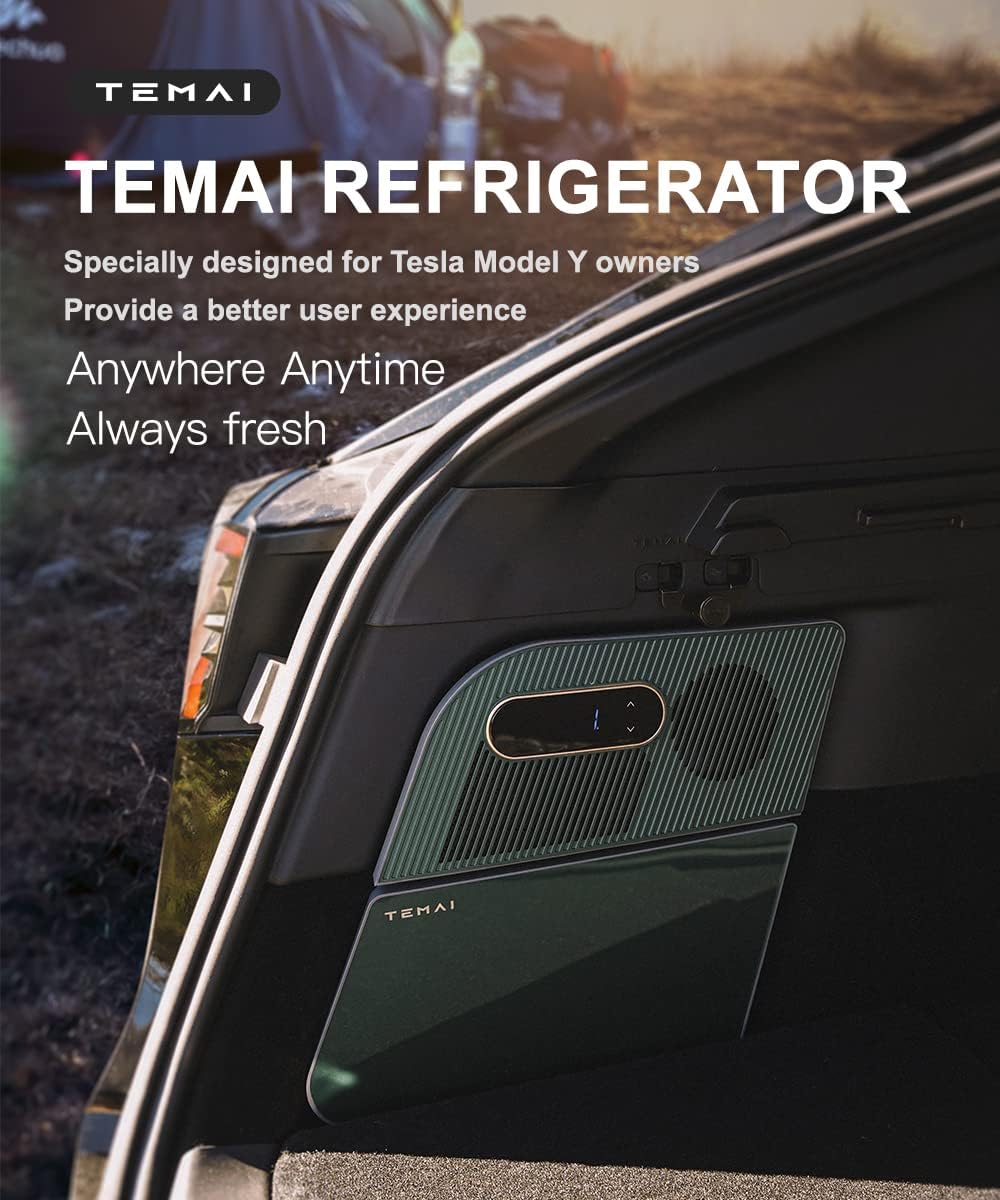

   Figure 2: Refrigerator installed in the Tesla Model Y trunk, showing its compact fit.

4. Connect Power: Locate the 12V power outlet in the left side of the original car trunk. Plug the refrigerator's power cable directly into this outlet. No modifications to the vehicle's wiring are required. Refer to Figure 3 for the power outlet location.


   Figure 3: Location of the 12V power outlet in the Tesla Model Y trunk for refrigerator connection.

5. Initial Power On: Once connected, the refrigerator will power on. The touch screen display will show the internal real-time temperature.

Note: A user review mentioned difficulty with installation, suggesting to assemble the unit fully before pushing it into position. While the official instruction is to slide it in, if you encounter resistance, ensure proper alignment and gentle force. The power plug may also be tight; ensure it is fully inserted to establish electrical connection.

Operating Instructions

The refrigerator features a modern touch screen for easy temperature control and monitoring.

Control Panel Overview

Figure 4: Close-up of the touch screen control panel.

The touch screen displays the current internal temperature and allows for precise adjustments. It includes a built-in anti-misoperation design and a power-off memory function, retaining your last settings.

Temperature Adjustment

• Use the SET button to enter temperature adjustment mode.
• Use the Up (^) and Down (v) arrows on the touch screen to increase or decrease the desired temperature.
• The temperature range is adjustable from 23°F (-5°C) to 68°F (20°C). The default setting is 41°F (5°C).
• The display will show the real-time temperature.

Cooling Modes

The advanced cooling system features optimized condenser tubing and an automatic energy-saving mode.

• MAX Mode (Rapid Cooling): For quick cooling, the unit will operate at maximum power.
• ECO Mode (Energy-Saving): For sustained cooling with reduced power consumption. The temperature sensor automatically switches between MAX and ECO modes for efficiency.

Figure 5: Illustration of the energy-saving features, consuming less than 0.5 kWh per day.

The refrigerator can maintain 24-hour continuous power supply when the Tesla Model Y's Sentry mode or camping mode is active.

Capacity and Functionality

With a 16.9-quart (16L) capacity, the unit offers both refrigeration and freezing functions.

Figure 6: Internal view showing capacity and temperature zones for refrigeration and freezing.

• Freezing Zone: Capable of reaching temperatures down to 23°F (-5°C).
• Refrigeration Zone: Maintains temperatures up to 68°F (20°C).
• High-density foam insulation walls contribute to energy efficiency and constant temperature maintenance.

Maintenance and Care

Regular maintenance ensures the longevity and optimal performance of your TEMAI Car Refrigerator.

• Cleaning:
  • Before cleaning, always unplug the refrigerator from the 12V power outlet.
  • Wipe the interior and exterior surfaces with a soft cloth dampened with mild soap and water.
  • Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the surfaces.
  • Ensure the unit is completely dry before plugging it back in.
• Defrosting: The refrigerator features automatic defrost. If excessive ice buildup occurs, manually defrost by unplugging the unit and allowing the ice to melt naturally. Wipe away melted water.
• Ventilation: Periodically check that the ventilation openings are clear of dust and debris to ensure proper airflow and cooling efficiency.
• Storage: If storing the refrigerator for an extended period, ensure it is clean, dry, and unplugged. Store in a cool, dry place.

Troubleshooting

This section addresses common issues you might encounter with your TEMAI Car Refrigerator.

If the problem persists after attempting these solutions, please contact TEMAI customer support.

Technical Specifications

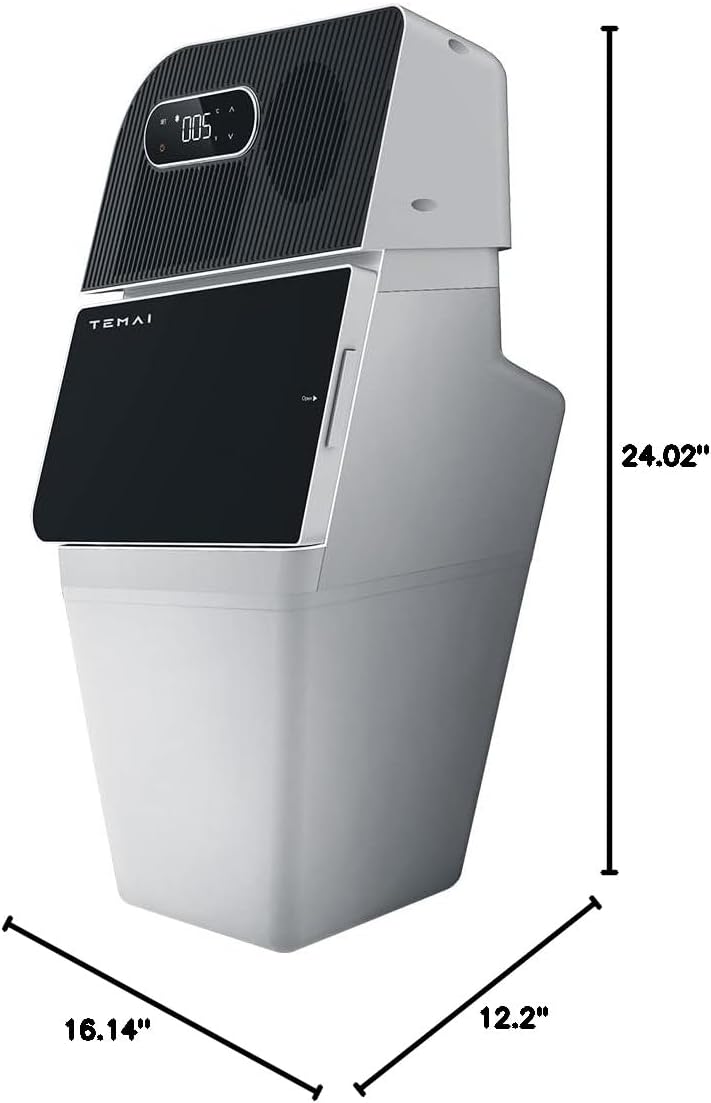

Figure 7: Dimensions of the TEMAI Tesla Model Y Car Refrigerator.

Warranty and Support

The TEMAI Tesla Model Y Car Refrigerator is backed by a 24-month warranty from the date of purchase, providing peace of mind regarding manufacturing defects and performance issues under normal use.

For technical support, warranty claims, or any inquiries regarding your product, please contact TEMAI customer service. Refer to the contact information provided on the product packaging or the official TEMAI website.

Note: Keep your purchase receipt as proof of purchase for warranty validation.
