1. Introduction
This manual provides comprehensive instructions for the assembly, operation, and maintenance of your FTZxHKLX Modern Black Bookshelf with Drawers, Model FBC0001. Please read this manual thoroughly before beginning assembly and retain it for future reference.
Image 1.1: The FTZxHKLX Modern Black Bookshelf with Drawers, featuring a 6-tier design with open shelves and three lower drawers, presented in a contemporary living space.
2. Safety Information
To ensure safe use of this product, please observe the following precautions:
- Always assemble the unit on a soft, clean surface to prevent scratches.
- Ensure all screws and fasteners are securely tightened before use.
- Do not overload shelves or drawers. Refer to the 'Specifications' section for weight limits.
- Always use the included anti-tipping device to secure the bookshelf to a wall. This is crucial to prevent accidental tipping, especially in households with children or pets.
- Keep small parts and packaging materials away from children.

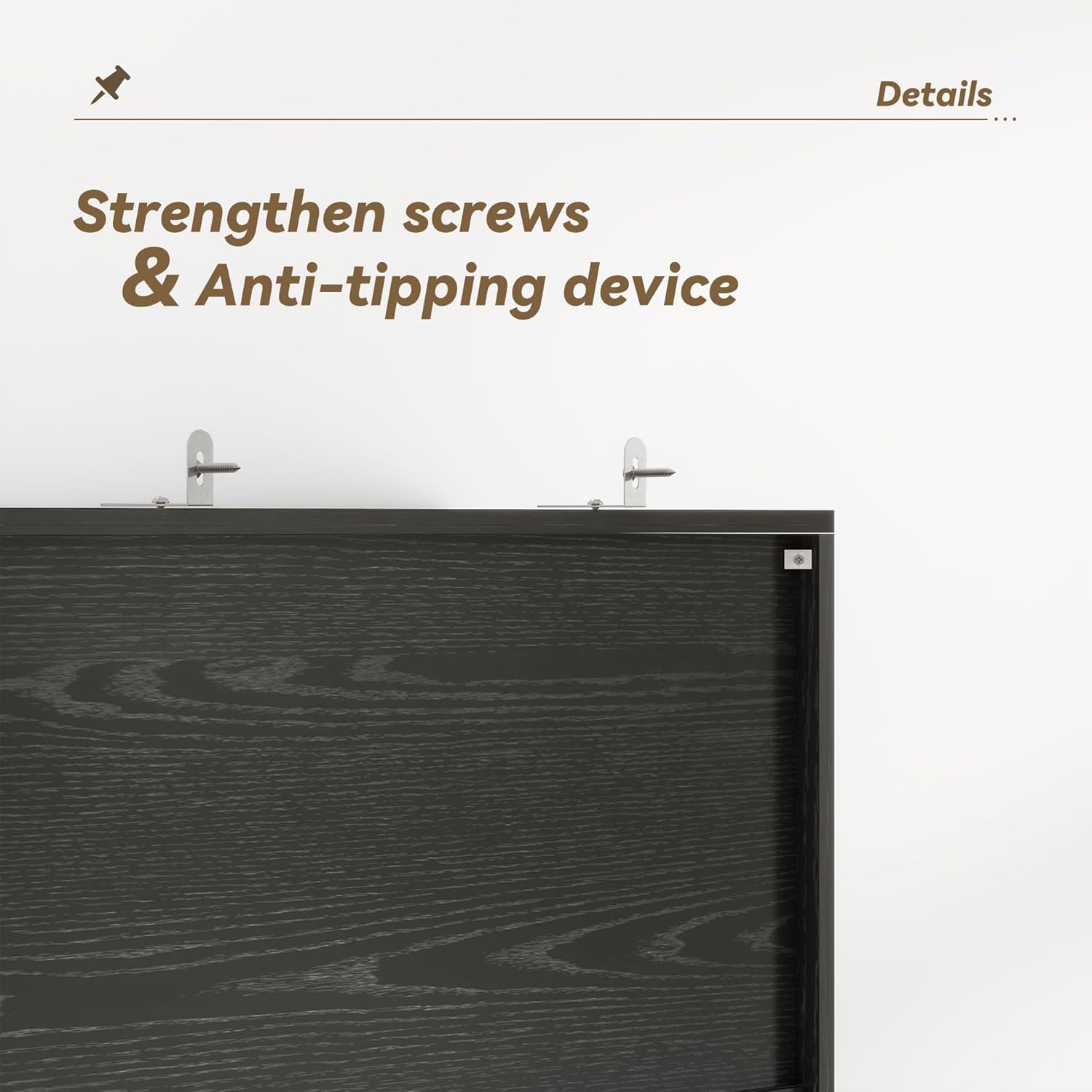

Image 2.1: Detail of the anti-tipping device, showing the metal bracket attached to the top rear of the bookshelf, designed to secure the unit to a wall for stability.
3. Package Contents
Before assembly, verify that all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
3.1. Hardware and Accessories
All necessary accessories and hardware are included in a single package. Each accessory is labeled for easy identification.
3.2. Main Components
The bookshelf consists of engineered wood panels for the frame, shelves, and drawers. The surface features a rich wood grain finish.
Image 3.1: Close-up details of the bookshelf's construction, highlighting the golden sheet handles on the drawers, the smooth three-section drawer slides, the anti-tipping device for wall attachment, and the sturdy arched base design.
4. Setup (Assembly Instructions)
Assembly is designed to be straightforward. Follow the included diagrammatic instructions carefully. An estimated assembly time is approximately 80 minutes, though individual times may vary.
- Unpack and Identify Parts: Lay out all components and hardware on a clean, soft surface. Match each part to the labels in the instruction manual.
- Assemble the Frame: Connect the side panels to the base and top panels using the designated screws and dowels. Ensure all connections are snug.
- Install Shelves: Insert the open shelves into the pre-drilled holes at your desired height. Secure them with the provided fasteners.
- Assemble Drawers: Construct the three drawers according to the diagrams. Attach the golden sheet handles to the drawer fronts.
- Install Drawer Slides: Carefully attach the three-section drawer slides to both the drawer sides and the bookshelf frame. Ensure they are aligned for smooth operation.
- Insert Drawers: Slide the assembled drawers into their respective compartments.
- Attach Anti-Tipping Device: Secure the anti-tipping device to the top rear of the bookshelf and then to a wall stud using appropriate wall anchors (not always included, check local hardware store if needed). This step is critical for safety.
If you encounter any difficulties during assembly, please refer to the troubleshooting section or contact customer support.
5. Operating (Usage)
The FTZxHKLX bookshelf offers versatile storage for various items in your living room, bedroom, study, entryway, or office.
- Open Shelves: The three open shelves are ideal for displaying books, artwork, photos, and decorative items.
- Drawers: The three lower drawers provide concealed storage for personal items, documents, or other clutter, helping to maintain a tidy space. The drawers are dust-proof and offer private storage.
- Top Surface: The top surface can be used to place lamps, alarm clocks, photo frames, perfumes, or small potted plants.
Image 5.1: A detailed view of the three lower drawers, demonstrating their full extension for easy access and ample storage capacity for various items.
Image 5.2: An arrangement of multiple FTZxHKLX bookshelves and complementary drawer units, illustrating how they can be combined to create extensive and flexible storage configurations in a room.
6. Maintenance
Proper care will extend the life and appearance of your bookshelf.
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, which can damage the finish.
- Dusting: Regularly dust with a dry, soft cloth to prevent buildup.
- Spills: Clean spills immediately to prevent staining or damage to the engineered wood.
- Inspection: Periodically check all screws and fasteners to ensure they remain tight. Re-tighten if necessary.
- Sunlight: Avoid prolonged exposure to direct sunlight, which can cause fading or discoloration.
7. Troubleshooting
If you encounter issues with your bookshelf, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit feels wobbly or unstable. | Screws are loose; anti-tipping device not installed or improperly installed. | Ensure all screws are tightened. Install or re-secure the anti-tipping device to a wall stud. |
| Drawers do not slide smoothly. | Drawer slides are misaligned or damaged; debris in slides. | Check alignment of drawer slides. Clear any debris. If damaged, contact customer support for replacement parts. |
| Parts are missing or damaged upon arrival. | Shipping damage or packaging error. | Do not proceed with assembly. Contact customer support immediately with your order details. |
If the problem persists or is not listed here, please contact FTZxHKLX customer service for assistance.
8. Specifications
Detailed product specifications for the FTZxHKLX Modern Black Bookshelf with Drawers, Model FBC0001.
- Brand: FTZxHKLX
- Model Number: FBC0001
- Material: Engineered Wood
- Color: Black
- Style: Modern, Industrial
- Mounting Type: Floor Mount
- Room Type: Living Room, Office, Bedroom, Study, Entryway
- Number of Open Shelves: 3
- Number of Drawers: 3
- Product Dimensions (Overall): 30 cm (Depth) x 60 cm (Width) x 180 cm (Height)
- Shelf Load Capacity: Up to 40 lbs (approx. 18 kg) per shelf
- Drawer Load Capacity: Up to 60 lbs (approx. 27 kg) per drawer
- Product Weight: Approximately 58 lbs (approx. 26.3 kg)
- Special Features: Durable, Anti-tipping device included
Image 8.1: A detailed diagram illustrating the overall dimensions of the bookshelf (70.9 inches / 180 cm height, 23.6 inches / 60 cm width, 11.8 inches / 30 cm depth) and the weight capacities for shelves (40 lbs) and drawers (60 lbs).
9. Warranty and Support
FTZxHKLX is committed to providing quality products and customer satisfaction. For any questions regarding your bookshelf, including assembly, missing parts, or operational issues, please contact our customer service team.
Our experienced customer service team is available to respond to inquiries within 24 hours.
Contact Information: Please refer to your purchase documentation or the seller's contact details on the platform where the product was purchased for specific support channels.
