1. Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of your Masterpart genuine replacement vacuum cleaner hose. This hose is specifically designed to be compatible with Dyson DC23 and DC32 vacuum cleaner models, ensuring optimal performance and fit.
2. Product Overview
The Masterpart vacuum cleaner hose is a high-quality, authentic replacement part manufactured to meet the specifications of Dyson DC23 and DC32 vacuum cleaners. It features a durable plastic construction in a grey color, designed for longevity and efficient airflow.

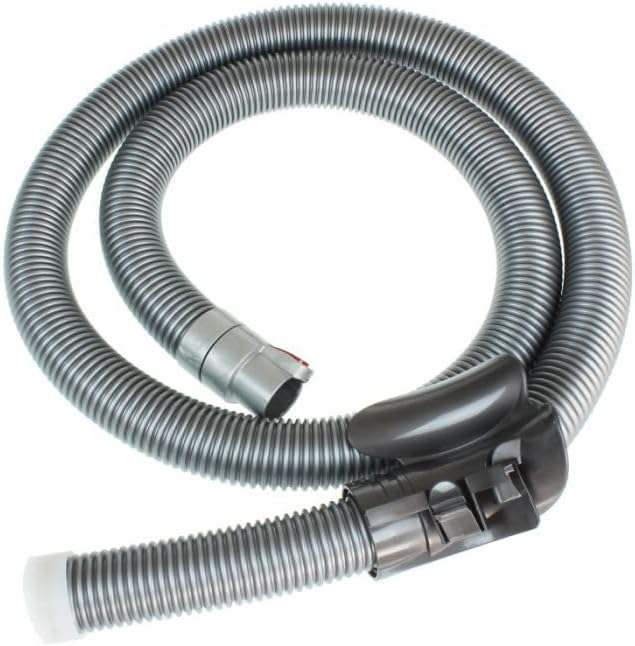

Figure 2.1: The Masterpart replacement vacuum cleaner hose, shown coiled. This image displays the grey corrugated hose with its attachment ends, including the handle and the connection point for the vacuum cleaner.
Figure 2.2: A closer view of the Masterpart vacuum cleaner hose, highlighting the connection mechanism with a visible red release button. This image provides a detailed look at the hose's texture and the design of its attachment points.
2.1 Key Features:
- Genuine replacement part (Manufacturer Part Number: 914851-01)
- Durable plastic construction
- Grey color
- Designed for optimal airflow and suction
3. Compatibility
This Masterpart vacuum cleaner hose is compatible with the following Dyson vacuum cleaner models:
- Dyson DC23
- Dyson DC32
Ensure your vacuum cleaner model matches one of the listed compatible models before attempting installation.
4. Setup and Installation
Follow these steps to properly install the replacement vacuum cleaner hose:
- Power Off: Before beginning, ensure your Dyson vacuum cleaner is unplugged from the power outlet to prevent accidental activation.
- Remove Old Hose (if applicable): Locate the connection point of the existing hose to the vacuum cleaner body. Depending on your specific Dyson model (DC23 or DC32), there may be a release button or latch. Press the release button or disengage the latch and gently pull the old hose away from the vacuum cleaner.
- Inspect Connection Point: Examine the vacuum cleaner's hose inlet for any debris or obstructions. Clean if necessary.
- Attach New Hose: Align the connection end of the Masterpart replacement hose with the inlet on your Dyson vacuum cleaner. Push the hose firmly into the inlet until it clicks securely into place. You should hear or feel a positive engagement.
- Verify Connection: Gently tug on the hose to ensure it is securely attached and will not detach during use.
- Attach Handle/Wand: If the hose comes separate from the handle or wand, attach your existing handle/wand to the other end of the new hose. This connection typically involves aligning and pushing until it locks.
Note: Refer to your original Dyson vacuum cleaner manual for specific instructions on hose removal and attachment if you encounter difficulties.
5. Operating Instructions
Once the Masterpart replacement hose is securely installed, operate your Dyson vacuum cleaner as you normally would. The hose functions identically to the original part, providing the necessary conduit for airflow and debris collection.
- Ensure all connections are secure before turning on the vacuum cleaner.
- Avoid kinking or sharply bending the hose during operation, as this can restrict airflow and reduce suction efficiency.
- Do not pull the vacuum cleaner by the hose; always move the unit by its main body or designated handle.
6. Maintenance and Care
Proper care will extend the life of your Masterpart vacuum cleaner hose:
- Regular Inspection: Periodically inspect the hose for any signs of damage, such as cracks, tears, or blockages.
- Cleaning: If the exterior of the hose becomes dirty, wipe it down with a damp cloth. Do not immerse the hose in water.
- Clearing Blockages: If suction is reduced, check the hose for blockages. Carefully remove any large debris that may be obstructing the airflow. Do not use sharp objects that could puncture the hose.
- Storage: Store the hose in a clean, dry place, away from direct sunlight and extreme temperatures. Avoid storing it in a tightly coiled or kinked position for extended periods.
7. Troubleshooting
If you experience issues with your vacuum cleaner after installing the new hose, consider the following:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Suction | Hose blockage; Loose connection; Full dustbin/filter. | Check hose for obstructions and clear them. Ensure hose is securely connected to vacuum. Empty dustbin and clean/replace filters. |
| Hose Detaches During Use | Improper installation; Damaged locking mechanism. | Re-attach hose, ensuring it clicks firmly into place. If problem persists, inspect the locking mechanism on both the hose and vacuum for damage. |
| Unusual Noise from Hose | Small tear or hole; Debris trapped inside. | Inspect hose for visible damage. Check for and remove any trapped debris. |
If troubleshooting steps do not resolve the issue, contact Masterpart customer support or a qualified service technician.
8. Specifications
| Attribute | Detail |
|---|---|
| Manufacturer | Masterpart |
| Manufacturer Part Number | 914851-01 |
| Product Dimensions (L x W x H) | 37 x 33 x 0.1 cm (approx.) |
| Item Weight | 970 Grams |
| Color | Grey |
| Material | Plastic |
| Included Components | Vacuum Hose Assembly |
| Compatible Models | Dyson DC23, Dyson DC32 |
9. Warranty and Support
Specific warranty information for this Masterpart replacement hose is not provided in the product details. For warranty inquiries or technical support, please contact Masterpart directly through their official website or customer service channels.
When contacting support, please have the following information ready:
- Product Name: Masterpart Vacuum Cleaner Hose
- Model Number: 914851-01
- Date of Purchase
- Description of the issue
