WONDER FAMILY Portable Espresso Machine User Manual

1. Product Overview

The WONDER FAMILY Portable Espresso Machine (Model: pem_1) is a compact and versatile device designed for brewing espresso on the go. It supports both ground coffee and various capsule types, offering flexibility for your coffee preferences. Featuring internal water heating and USB-C recharging, it's an ideal companion for travel, camping, or daily use.

Image: The WONDER FAMILY Portable Espresso Machine in red, highlighting its compact design (1.32 lbs / 0.6 kg) and features such as 20 bar pump pressure, 176°F (80°C) extraction temperature, and a capacity of up to 150 cups on a single battery charge.

Package Contents:

• Portable Espresso Machine
• Built-in Cup
• Compact Travel Case
• Measuring Spoon
• Coffee Jar
• Cleaning Brush
• 3 Coffee Adapters (for ground coffee, small capsules, large capsules)
• USB-C Charging Cable
• User Manual

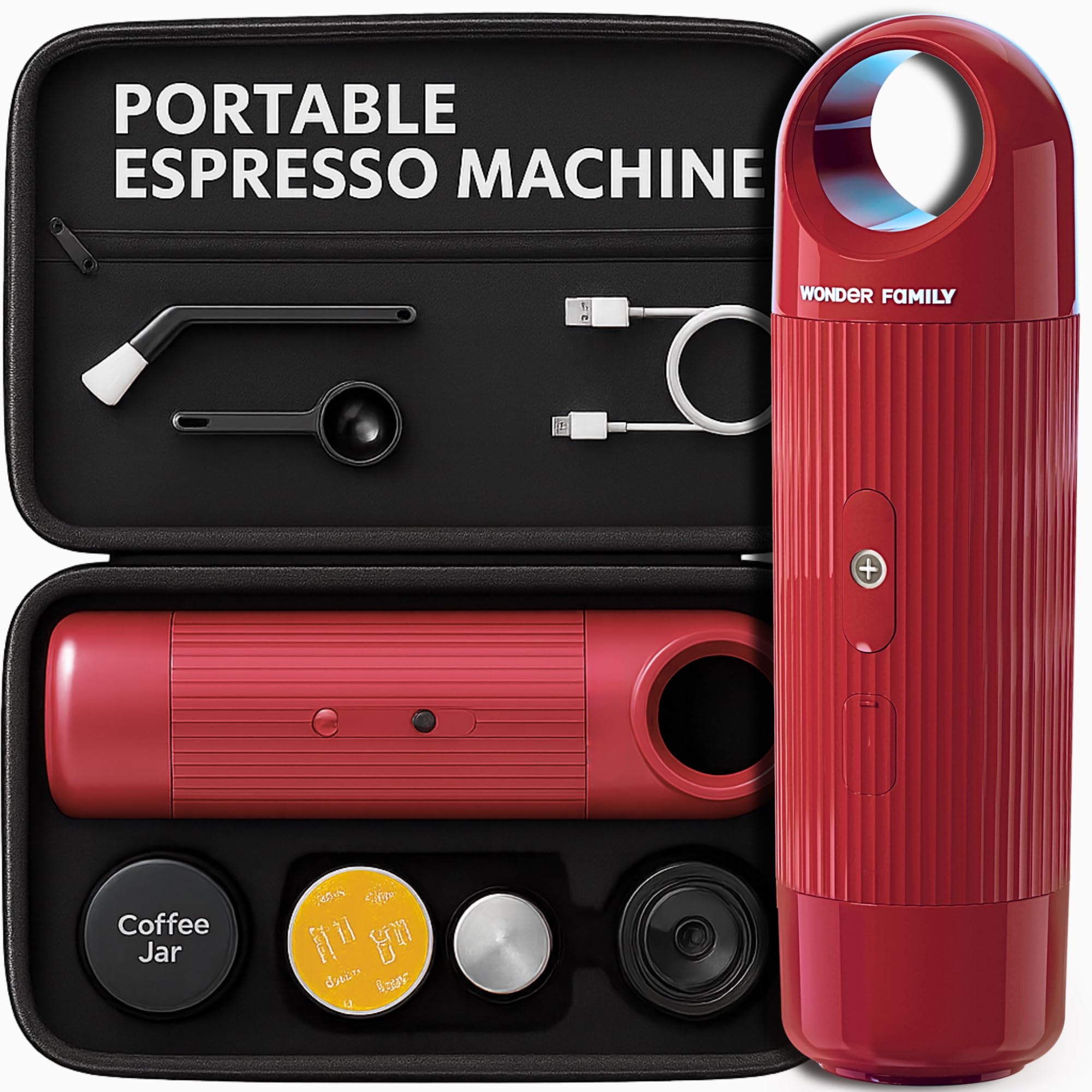

Image: A view of the complete coffee kit, including the red espresso machine, compact travel case, ground coffee jar, cleaning brush, USB-C cable, and three coffee adapters for various capsule types.

2. Setup

2.1 Initial Charging

Before first use, fully charge the device using the provided USB-C charging cable. The charging port is located on the side of the machine, protected by a silicone cover. A full charge ensures optimal performance.

Image: The portable espresso machine connected to a USB-C charger in a car, demonstrating its car-friendly charging capability.

2.2 Cleaning Before First Use

Disassemble all removable parts (cup, portafilter, adapters) and wash them with warm, soapy water. Rinse thoroughly and allow to air dry completely before reassembly.

3. Operating Instructions

3.1 Preparing Coffee

The machine is compatible with both ground coffee and capsules. Choose the appropriate method:

1. For Ground Coffee: Fill the ground coffee adapter with 0.18-0.28 oz (5-8g) of your preferred ground coffee. Tamp lightly if desired.
2. For Capsules: Insert your chosen capsule (Nespresso Original Line or Dolce Gusto compatible) into the corresponding small or large capsule adapter.

Image: Demonstrates how to prepare coffee by either inserting 0.18-0.28 oz (5-8g) of ground coffee into its adapter or placing a coffee capsule into its respective adapter.

3.2 Assembling the Machine

1. Disassemble the lower part of the machine by twisting off the integrated cup.
2. Load the prepared coffee adapter (ground or capsule) into the portafilter, then tightly screw the portafilter onto the main body of the machine.
3. Place the integrated coffee cup onto the bottom of the portafilter assembly.

Image: A person disassembling the lower part of the espresso machine, showing the main body and the detachable cup.

Image: Illustrates the process of loading the coffee adapter into the portafilter and securely screwing it onto the machine's main body, with the coffee cup attached at the bottom.

3.3 Adding Water

Remove the upper lid of the machine. Pour 2.1-2.7 fl oz (60-80 mL) of water into the water tank. The maximum capacity is marked inside. Replace the lid securely.

Image: A person pouring water from a pitcher into the top water tank of the espresso machine, showing the internal maximum fill line.

3.4 Brewing Espresso

1. Press and hold the power button for 3 seconds to turn on the machine. The indicator light will illuminate.
2. For Cold Water Heating & Brewing: Press the power button once. The machine will heat the water to 176°F (80°C) and then automatically begin brewing. This process takes approximately 4-5 minutes.
3. For Preheated Water Brewing: If you have already added hot water, press the power button twice. The machine will immediately begin brewing. This process is faster than heating from cold water.

Image: A close-up of the espresso machine dispensing a stream of rich espresso into a small white cup, illustrating the final brewing stage.

4. Maintenance

4.1 Cleaning

After each use, disassemble the portafilter, coffee adapter, and cup. Discard used grounds or capsules. Use the provided cleaning brush to remove any residue. Wash all removable parts with warm, soapy water and rinse thoroughly. Do not place any parts in a dishwasher or microwave.

Image: The disassembled components of the espresso machine, including the main body, cup, and various adapters, are shown on a surface, emphasizing its easy-to-clean design.

4.2 Storage

Ensure all components are clean and dry before storing. Store the machine and its accessories in the provided compact travel case in a cool, dry place, away from direct sunlight.

5. Troubleshooting

If you encounter any issues with your WONDER FAMILY Portable Espresso Machine, please refer to the following common solutions:

• Machine Not Turning On: Ensure the device is fully charged. Connect it to a USB-C power source and allow it to charge.
• Coffee Not Brewing: Check that the water tank is filled to the appropriate level and that the coffee adapter is correctly assembled and securely attached. Ensure the power button is pressed according to the desired brewing mode (once for heating+brewing, twice for preheated brewing).
• Weak Espresso: Verify that the correct amount of ground coffee (0.18-0.28 oz / 5-8g) is used and that it is tamped properly. For capsules, ensure they are correctly inserted into the appropriate adapter.
• Battery Life Concerns: The machine provides approximately 5 cups of espresso when heating cold water internally. If using preheated water, it can produce up to 150 cups on a single charge. For extended use, consider using preheated water or carrying a power bank for recharging.

For more detailed troubleshooting or persistent issues, please consult the full user manual or contact WONDER FAMILY customer support.

6. Specifications

7. Warranty & Support

For warranty information, product support, or to inquire about protection plans, please contact WONDER FAMILY customer service directly. Refer to the contact details provided in your product packaging or on the official WONDER FAMILY website.
