XINMEILAN Electric Scooter 60V 1000W 25A Brushless Controller User Manual

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of the XINMEILAN 60V 1000W 25A Brushless Controller, Model QB60V25A6G. This controller is specifically designed as a replacement part for the Kaabo Mantis10 electric scooter's front and rear dual-drive systems. It is crucial to understand that this controller is intended for direct replacement and is not compatible with other scooter models or modified setups. Please read this manual thoroughly before proceeding with any installation or use.

2. Safety Information

• Professional Installation Required: The installation of this controller involves complex wiring. It is strongly recommended that installation be performed by a qualified and experienced technician to prevent damage to the product, the scooter, or personal injury.
• Compatibility Verification: Before installation, verify that your electric scooter is a Kaabo Mantis10 and that its version matches the requirements for this controller. Incompatibility can lead to malfunction or damage.
• Power Disconnection: Always ensure the scooter's power supply is completely disconnected before attempting any installation or maintenance.
• Electrical Hazards: Exercise extreme caution when handling electrical components. Avoid contact with live wires and ensure all connections are secure and insulated.
• No Modifications: Do not attempt to modify the controller or its wiring. Unauthorized modifications can void warranties and create safety hazards.

3. Product Overview

The XINMEILAN 60V 1000W 25A Brushless Controller is a critical component for the dual-drive system of the Kaabo Mantis10 electric scooter. It manages power delivery to the motors, ensuring smooth and efficient operation.

3.1. What's in the Box

• One (1) XINMEILAN 60V 1000W 25A Brushless Controller (Model QB60V25A6G)

3.2. Controller Components

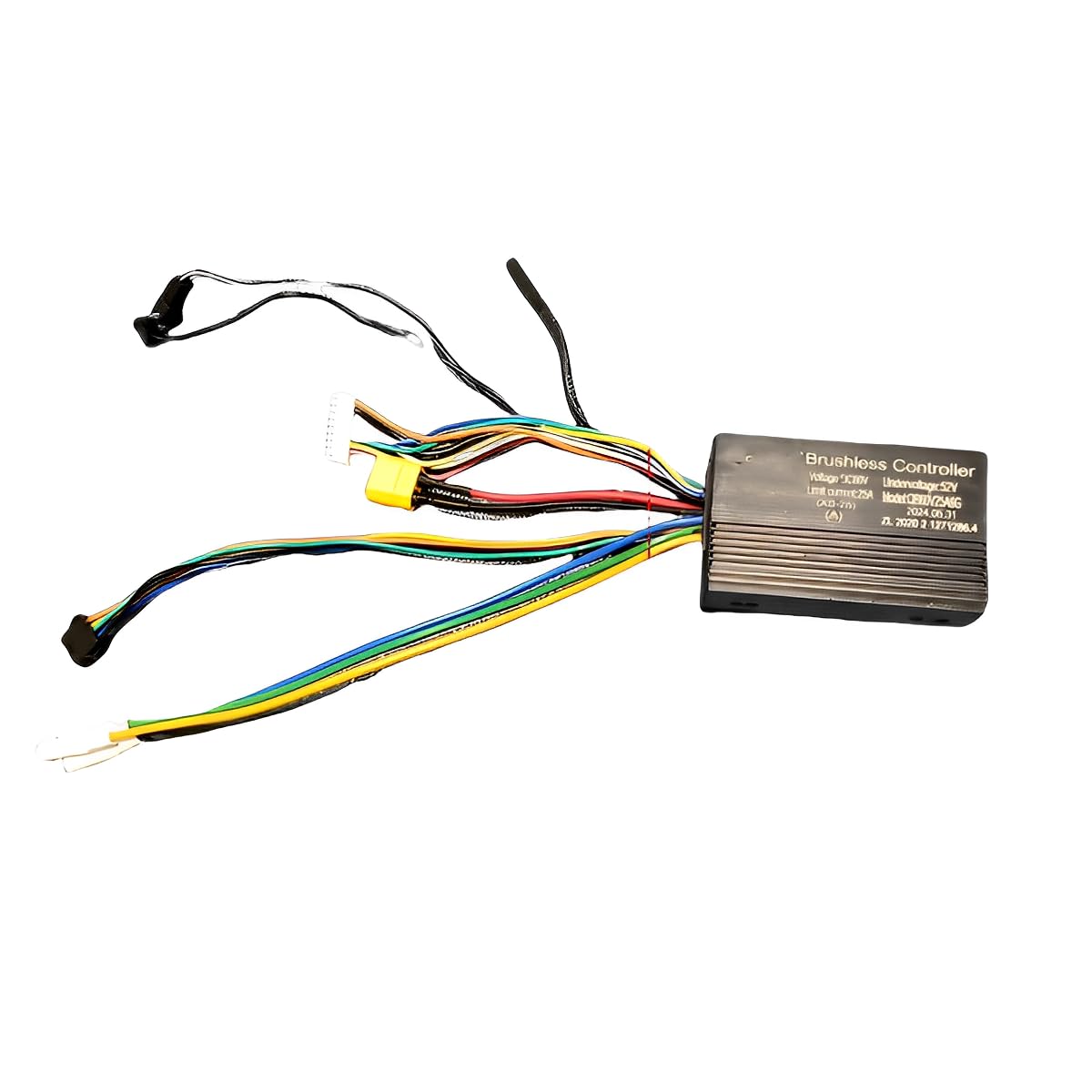

This image displays the XINMEILAN 60V 1000W 25A Brushless Controller. The black rectangular unit features multiple colored wires extending from one end, indicating its connection points. Printed on the controller are specifications including 'Voltage: DC60V', 'Undervoltage: 52V', 'Limit current: 25A', and 'Model: QB60V25A6G'.

The controller unit is a sealed black box with various color-coded wires for connecting to the scooter's motor, battery, display, and other sensors. Key specifications are printed on the casing for identification.

4. Setup and Installation

Warning: Due to the complexity of the wiring, professional installation is mandatory. Incorrect installation can lead to severe damage or injury.

1. Verify Compatibility: Confirm that your scooter is a Kaabo Mantis10 and that the controller version (A or B) matches the required replacement. For overall replacement, both A and B controllers should be selected.
2. Disconnect Power: Ensure the scooter's battery is completely disconnected before beginning any work.
3. Access Controllers: Locate and access the existing front and/or rear controllers on your Kaabo Mantis10 scooter.
4. Document Connections: Before disconnecting, carefully photograph or diagram the existing wiring connections to serve as a reference.
5. Disconnect Old Controllers: Carefully disconnect all wires from the old controller(s).
6. Connect New Controllers: Connect the new XINMEILAN controller(s) according to the wiring diagram of your Kaabo Mantis10 model. Ensure all connections are firm and correctly matched (e.g., motor phase wires, Hall sensor wires, battery power, throttle, brake, display).
7. Secure Wiring: Route and secure all wires to prevent pinching, abrasion, or interference with moving parts.
8. Initial Test: Reconnect the battery. Perform a preliminary test of the scooter's functions (power on, throttle response, brake cut-off) in a safe, controlled environment before full operation.
9. Final Assembly: Once confirmed functional, reassemble any covers or panels removed during installation.

Note: This is a general guide. Always refer to the specific wiring diagram for your Kaabo Mantis10 model or consult a professional technician for detailed installation instructions.

5. Operation

Once correctly installed, the XINMEILAN Brushless Controller operates automatically as an integral part of your Kaabo Mantis10 electric scooter's electrical system. It translates inputs from the throttle, brakes, and other sensors into motor commands, regulating speed and power.

• Power On/Off: The controller powers on and off with the scooter's main power switch.
• Throttle Control: The controller responds to throttle input to adjust motor speed.
• Brake Function: It integrates with the scooter's braking system, potentially including motor cut-off functions.
• Display Integration: The controller communicates with the scooter's display unit to show speed, battery level, and other operational data.

For detailed instructions on operating your Kaabo Mantis10 electric scooter, please refer to the scooter's original user manual.

6. Maintenance

Proper maintenance ensures the longevity and reliable performance of your controller.

• Keep Clean and Dry: Ensure the controller unit remains free from dirt, dust, and moisture. Avoid exposing it to water or extreme humidity.
• Inspect Wiring: Periodically check all visible wiring connections for signs of wear, fraying, or corrosion. Ensure all connections remain secure.
• Avoid Overheating: Ensure the controller has adequate ventilation if its mounting location allows. Avoid operating the scooter in conditions that could lead to excessive heat buildup.
• Temperature Control: Do not expose the controller to extreme temperatures, either hot or cold, for extended periods.

7. Troubleshooting

If you encounter issues after installing the controller, consider the following basic troubleshooting steps:

• No Power: Check all battery connections and the scooter's main power switch. Ensure the battery is charged.
• Motor Not Responding: Verify all motor phase wires and Hall sensor wires are correctly connected and secure. Check throttle connections.
• Erratic Behavior: Re-check all wiring connections for looseness or incorrect pairing. Ensure no wires are pinched or damaged.
• Incompatibility: Confirm that the controller model and your scooter's version are indeed compatible. This controller is specifically for Kaabo Mantis10.

If problems persist after performing these checks, it is recommended to consult a qualified electric scooter technician for diagnosis and repair.

8. Specifications

9. Warranty and Support

For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your retailer. For technical support or assistance with installation, it is recommended to reach out to the seller or a certified electric scooter service center.
