1. Introduction
This manual provides essential information for the installation, operation, and maintenance of the WWEIFUS Compatible Hisense Air Conditioner Main Circuit Board, model PCB05-470-V02. This replacement part is designed to restore the functionality of your Hisense air conditioning unit. Please read these instructions carefully before proceeding with installation or any maintenance.
Safety Warning: Installation and repair of electrical components should only be performed by qualified personnel. Disconnect power to the air conditioner before attempting any installation or repair to prevent electrical shock or damage to the unit.
2. Compatibility
This main circuit board is compatible with various Hisense air conditioner models and specific PCB versions. Verify your existing board's model number against the list below to ensure proper fit and function.
Compatible PCB Models:
- PCB05-404-V02
- PCB05-410-V02
- PCB05-458-V02
- PCB05-470-V02 (Current Model)
- Hisense Part Number: 1550982.B

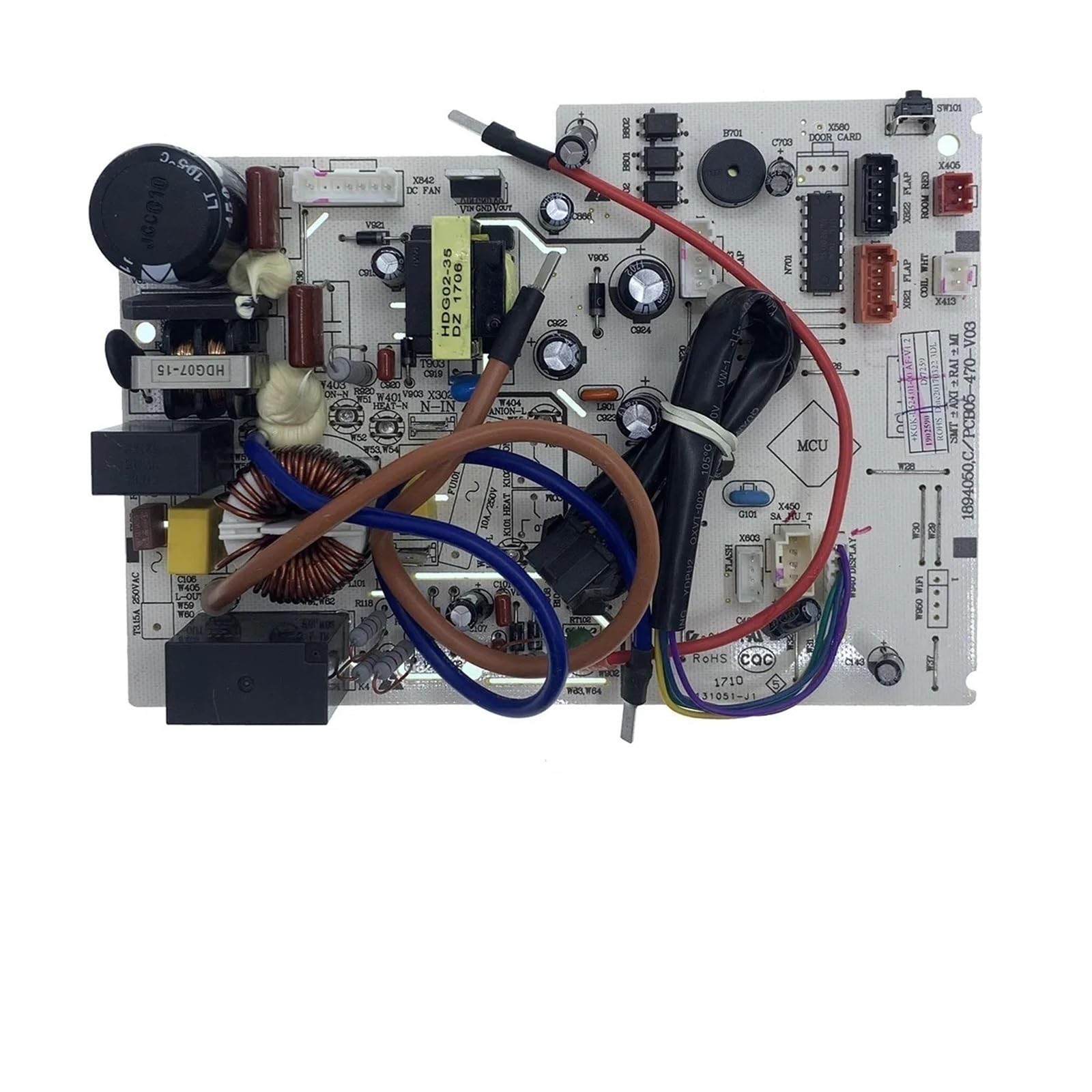

Image 1: The WWEIFUS Compatible Hisense Air Conditioner Main Circuit Board, model PCB05-470-V02. This image shows the specific circuit board for this product variant, highlighting its layout and components.
Image 2: A collage displaying several compatible Hisense Air Conditioner Main Circuit Boards, including models like PCB05-404-V02, PCB05-410-V02, PCB05-458-V02, and PCB05-470-V02. This image helps in identifying the correct replacement board by comparing the physical appearance of different compatible versions.
3. Features
- Reliable Replacement: Designed to replace original Hisense air conditioner main circuit boards, ensuring optimal performance and reliability.
- Broad Compatibility: Compatible with multiple PCB models, offering versatile use across various Hisense units.
- Durable Construction: Manufactured with quality components and subjected to rigorous testing for long-lasting functionality.
- Performance Restoration: Provides an effective solution for restoring your air conditioner's cooling efficiency and overall operation.
4. Installation Guide
Important Safety Precautions:
- Always disconnect the main power supply to the air conditioner unit before beginning any installation or repair work.
- Wear appropriate personal protective equipment (PPE), such as insulated gloves.
- If you are not confident in your ability to perform this installation, consult a qualified HVAC technician.
Tools Required:
- Screwdriver set (Phillips and flathead)
- Needle-nose pliers
- Multimeter (for testing, optional but recommended)
- Digital camera (for documenting connections, highly recommended)
Installation Steps:
- Power Disconnection: Locate the circuit breaker for your air conditioner and turn it OFF. Verify power is off using a multimeter.
- Access the Control Panel: Open the outdoor or indoor unit's access panel where the main circuit board is located. Refer to your air conditioner's specific service manual for panel removal instructions.
- Document Connections: Before disconnecting anything, take clear photos of all wire connections to the existing circuit board. Pay close attention to the color and position of each wire.
- Disconnect Wires: Carefully disconnect all wires and connectors from the old circuit board. Use needle-nose pliers if necessary for stubborn connectors.
- Remove Old Board: Unscrew or unclip the old circuit board from its mounting points.
- Install New Board: Position the new WWEIFUS circuit board in the same location and secure it with the original screws or clips.
- Reconnect Wires: Using your documented photos as a guide, carefully reconnect all wires and connectors to the new board. Ensure each connection is secure and correctly placed.
- Close Panel: Once all connections are verified, close and secure the access panel.
- Restore Power: Turn the circuit breaker back ON.
- Test Unit: Power on your air conditioner and test its functions to ensure proper operation.
5. Operation
The main circuit board acts as the central control unit for your air conditioner. Once correctly installed, it will manage the various functions of your unit, including fan speed, compressor operation, temperature regulation, and error detection. The operation of the air conditioner itself will be controlled via your unit's standard thermostat or remote control, as before.
If the air conditioner does not power on or function correctly after installation, refer to the Troubleshooting section.
6. Maintenance
The main circuit board itself requires minimal direct maintenance. However, to ensure its longevity and the overall health of your air conditioning system, consider the following:
- Regular System Checks: Ensure your air conditioner undergoes regular professional maintenance to keep all components, including the circuit board, in optimal condition.
- Cleanliness: Keep the area around the circuit board free from dust, debris, and moisture. Dust accumulation can lead to overheating and component failure.
- Environmental Control: Protect the outdoor unit from extreme weather conditions and ensure proper ventilation to prevent excessive heat buildup around electronic components.
7. Troubleshooting
If your air conditioner experiences issues after installing the new circuit board, consider these common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air conditioner does not power on. | Loose wire connection, tripped circuit breaker, incorrect board installation. | Check all wire connections for tightness. Reset the circuit breaker. Re-verify installation steps. |
| Unit powers on but does not cool. | Incorrect wiring, faulty sensor connection, refrigerant issues (unrelated to board but check). | Review wiring against photos. Ensure all sensors are properly connected. If issues persist, consult a technician. |
| Error codes displayed. | Specific component failure, sensor malfunction, communication error. | Refer to your Hisense air conditioner's user manual for specific error code meanings. Check relevant connections. |
| Intermittent operation. | Loose connections, power fluctuations, component overheating. | Ensure all connections are secure. Check power supply stability. Ensure proper ventilation. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a professional HVAC technician for further diagnosis and repair.
8. Specifications
- Brand: WWEIFUS
- Model: PCB05-470-V02
- Compatible With: Hisense Air Conditioners
- Item Weight: 1.76 ounces
- Package Dimensions: 0.39 x 0.39 x 0.39 inches
- Number of Pieces: 1
- Assembly Required: No (referring to the board itself, not the installation into the AC unit)
9. Customer Support
For technical assistance, warranty information, or any questions regarding your WWEIFUS Compatible Hisense Air Conditioner Main Circuit Board, please contact the seller or manufacturer directly through the platform where the purchase was made. Provide your order details and the model number (PCB05-470-V02) for efficient support.
