1. Introduction

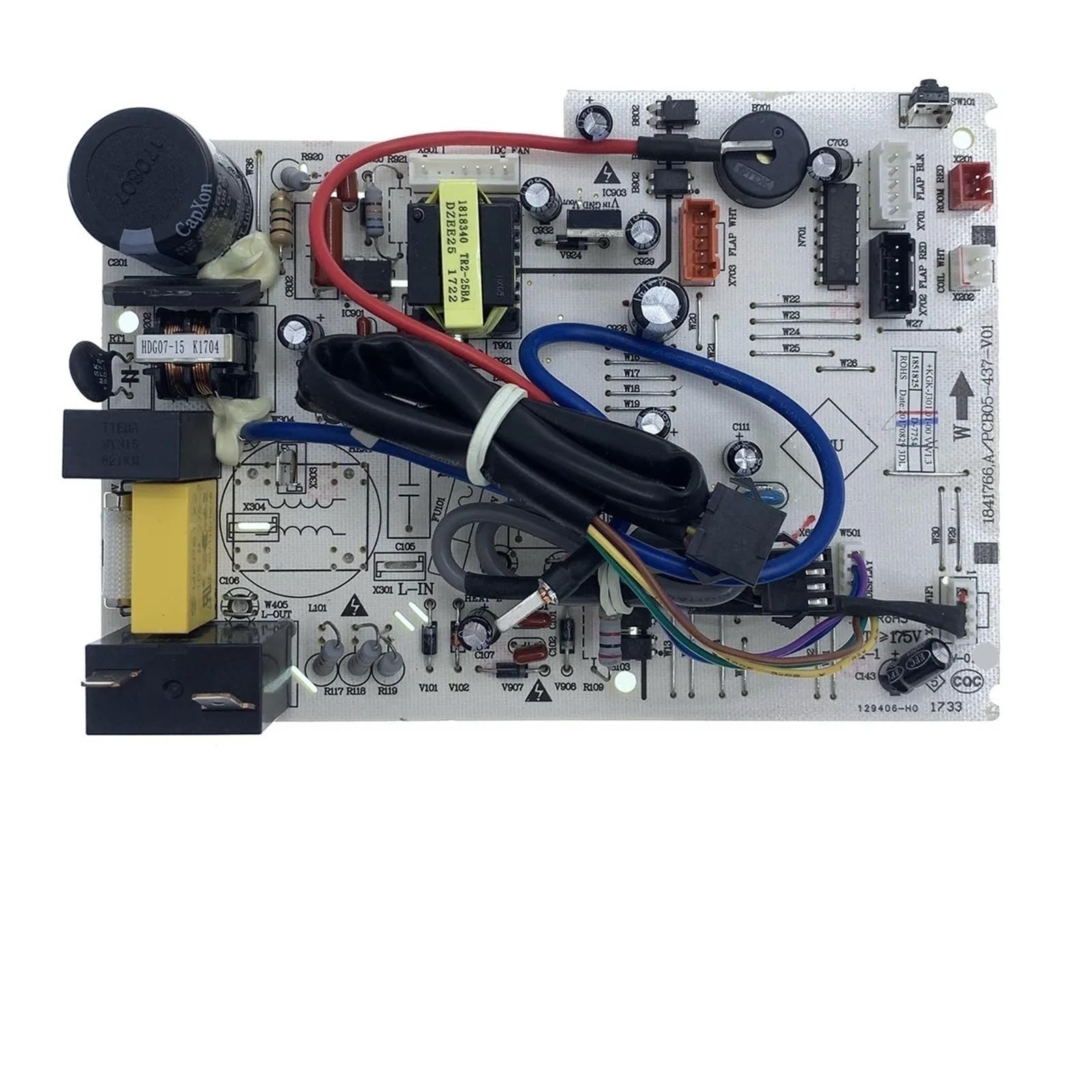

This manual provides essential instructions for the installation, operation, and maintenance of the WWEIFUS compatible Hisense Air Conditioner Main Circuit Board, model PCB05-437-V01. This component is designed as a direct replacement part for specific Hisense air conditioning units, ensuring proper functionality and restoring optimal performance. Please read this manual thoroughly before proceeding with installation or any related procedures.
2. Safety Information
Warning: Electrical components can be hazardous. Improper installation or handling may result in electric shock, injury, or damage to the air conditioning unit. Always observe the following safety precautions:
- Disconnect Power: Before attempting any installation, maintenance, or repair, ensure the main power supply to the air conditioner unit is completely disconnected at the circuit breaker.
- Professional Installation Recommended: Installation of this circuit board should ideally be performed by a qualified HVAC technician or a professional with experience in electrical and air conditioning systems.
- Handle with Care: Circuit boards are sensitive to electrostatic discharge (ESD). Handle the board by its edges and avoid touching components directly. Use anti-static precautions if available.
- Verify Compatibility: Ensure this replacement board (PCB05-437-V01) is compatible with your specific Hisense air conditioner model before installation. Refer to your air conditioner's service manual for verification.
- No User Serviceable Parts: The circuit board itself contains no user-serviceable parts. Do not attempt to repair the board.
3. Package Contents
Upon opening the package, verify that all components are present and undamaged:
- 1 x WWEIFUS Compatible Hisense Air Conditioner Main Circuit Board (Model: PCB05-437-V01)
If any items are missing or damaged, please contact your supplier immediately.
4. Installation Instructions
This section outlines the general steps for replacing the main circuit board. Specific procedures may vary depending on your air conditioner model. Always refer to your air conditioner's service manual for detailed, model-specific instructions.
4.1 Pre-Installation Checks
- Ensure the new circuit board (PCB05-437-V01) matches the model number of the board being replaced.
- Gather necessary tools, which may include screwdrivers, pliers, and a multimeter.
- Wear appropriate personal protective equipment (PPE), including insulated gloves.
4.2 Replacement Procedure
- Disconnect Power: Turn off the air conditioner and disconnect the main power supply at the circuit breaker. Confirm power is off using a multimeter.
- Access the Control Panel: Carefully open the air conditioner's outdoor or indoor unit casing to access the main control board compartment. This usually involves removing screws and panels.
- Document Connections: Before disconnecting any wires, take clear photographs or make detailed diagrams of all wire connections to the old circuit board. Pay close attention to the color coding and connector positions.
- Disconnect Wires: Carefully disconnect all wiring harnesses and individual wires from the old circuit board. Note any clips or locking mechanisms.
- Remove Old Board: Unscrew or unclip the old circuit board from its mounting points.
- Install New Board: Position the new PCB05-437-V01 circuit board in the same location and secure it using the original screws or clips.
- Reconnect Wires: Using your photographs or diagrams, carefully reconnect all wires and harnesses to the new circuit board. Ensure each connection is secure and correctly seated. Double-check all connections.
- Close Casing: Once all connections are verified, carefully close and secure the air conditioner's casing.
- Restore Power: Reconnect the main power supply at the circuit breaker.
- Test Unit: Turn on the air conditioner and test its functions to ensure proper operation. Monitor for any unusual noises, smells, or error codes.
5. Operating Instructions
The main circuit board is an internal component that controls the overall functions of your Hisense air conditioner. Once correctly installed, the air conditioner should operate as designed by the manufacturer. Refer to your air conditioner's user manual for specific operating instructions, including setting modes, temperature, and fan speeds.
6. Maintenance
The circuit board itself requires minimal maintenance. However, to ensure its longevity and the efficient operation of your air conditioner, consider the following:
- Keep Clean: Periodically, and with power disconnected, ensure the area around the circuit board is free from dust, debris, and moisture. Use a soft, dry brush or compressed air for cleaning.
- Inspect Connections: During routine air conditioner maintenance, visually inspect the wiring connections to the board for any signs of looseness or corrosion.
- Avoid Moisture: Protect the air conditioner unit from excessive moisture exposure, which can damage electronic components.
7. Troubleshooting
If your air conditioner is not functioning correctly after replacing the main circuit board, consider the following troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Air conditioner does not power on. | No power supply; incorrect wiring; faulty new board. | Check circuit breaker. Verify all wire connections are secure and correct. If issues persist, consult a professional. |
| Unit powers on but does not cool/heat. | Sensor issues; incorrect wiring; other component failure. | Ensure all sensor wires are correctly connected. This issue may indicate a problem beyond the main circuit board. Professional diagnosis is recommended. |
| Error codes displayed. | Wiring error; component malfunction; sensor issue. | Refer to your air conditioner's service manual for the meaning of specific error codes. Recheck all connections. |
| Intermittent operation. | Loose connections; power fluctuations. | Inspect all wire connections for tightness. Ensure stable power supply. |
If troubleshooting steps do not resolve the issue, it is recommended to contact a qualified HVAC technician for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Product Type | Air Conditioner Control Board |
| Model Number | PCB05-437-V01 |
| Compatibility | Compatible with Hisense Air Conditioners (and other listed PCB models: PCB05-404-V02, PCB05-410-V02, PCB05-458-V02, PCB05-470-V02, 1550982.B) |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
| Item Weight | 1.76 ounces |
| Manufacturer | hsujd (Brand: WWEIFUS) |
| Assembly Required | No (component replacement) |
| Number of Pieces | 1 |
9. Warranty and Support
For information regarding warranty coverage or technical support, please refer to the purchase documentation or contact the seller directly. Ensure you have your purchase details and the product model number (PCB05-437-V01) available when contacting support.
