HZLIMJDQ Fuel Injection Pump Assembly User Manual

1. Product Overview

This manual provides essential information for the installation, operation, maintenance, and troubleshooting of the HZLIMJDQ Fuel Injection Pump Assembly. This component is designed for specific air-cooled diesel engines, ensuring precise fuel delivery for optimal engine performance and efficiency. Please read this manual thoroughly before installation and use.

2. Specifications

3. Key Features

• Effortless Maintenance: Designed for easy disassembly and replacement, reducing maintenance costs and time.
• Enhanced Fuel Efficiency: Precisely regulates fuel delivery, maximizing engine performance and improving overall fuel efficiency.
• Durable & Reliable Design: Crafted from advanced materials using cutting-edge manufacturing processes for exceptional precision and reliability.
• Intelligent Efficiency Optimization: Features smart adjustment capabilities based on engine load and speed, optimizing combustion efficiency and lowering fuel consumption and emissions.
• Responsive Performance: Quickly adapts to engine conditions and driver commands, enhancing power output and responsiveness.

4. Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your fuel injection pump. If you are unsure about any step, consult a qualified mechanic.

4.1 Safety Precautions

• Ensure the engine is cool and disconnected from its power source before beginning any work.
• Wear appropriate personal protective equipment (PPE), including gloves and eye protection.
• Be aware of residual fuel pressure and handle fuel lines with care to prevent spills.

4.2 Installation Steps

1. Preparation: Gather all necessary tools and ensure you have a clean workspace. Confirm the new pump assembly matches the specifications of your engine.
2. Remove Old Pump (if applicable): Carefully disconnect fuel lines and any electrical connections from the existing fuel injection pump. Unbolt and remove the old pump, noting its orientation.
3. Install New Pump: Position the new HZLIMJDQ Fuel Injection Pump Assembly in the correct orientation. Secure it with the appropriate bolts, tightening them to the manufacturer's specified torque.
4. Connect Fuel Lines: Reconnect the fuel inlet and outlet lines securely. Ensure all connections are tight to prevent leaks.
5. Connect Electrical (if applicable): If your pump has electrical connections, reattach them firmly.
6. Priming the Fuel System: After installation, the fuel system may need to be primed to remove air. Refer to your engine's specific service manual for the correct priming procedure. This typically involves operating a hand primer pump or cycling the ignition.
7. Leak Check: Once the system is primed, start the engine and carefully inspect all fuel connections for any signs of leaks. Address any leaks immediately.

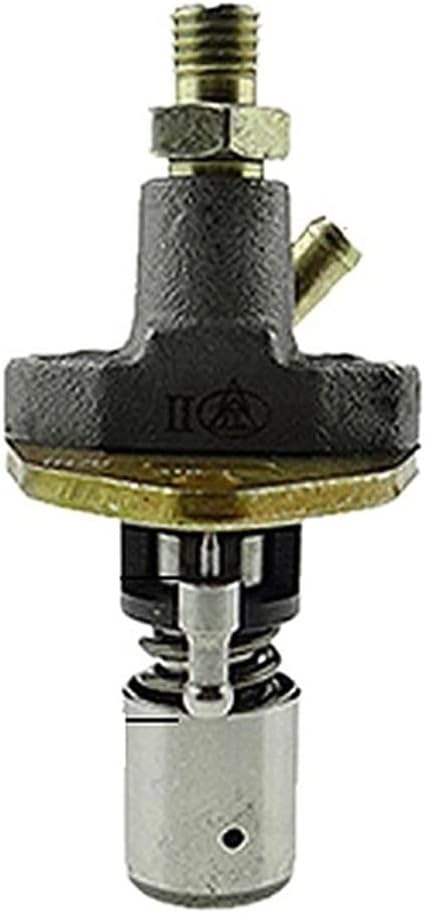

Figure 1: Front view of the HZLIMJDQ Fuel Injection Pump Assembly.

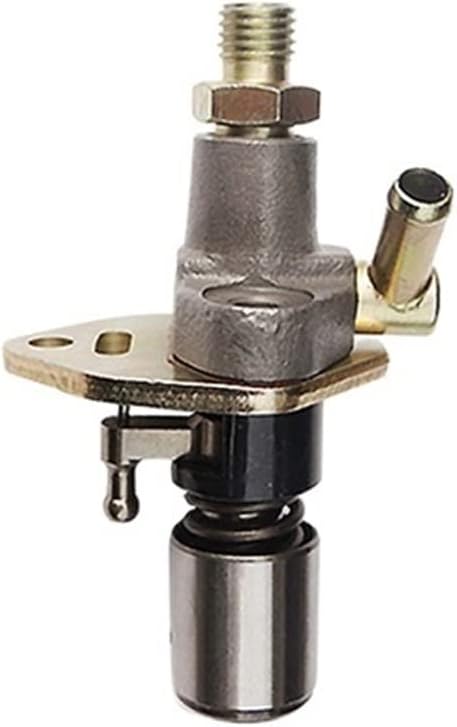

Figure 2: Side view of the HZLIMJDQ Fuel Injection Pump Assembly, showing fuel line connection points.

5. Operating Instructions

The fuel injection pump assembly is an integral part of your diesel engine's fuel system. It operates automatically to deliver pressurized fuel to the engine's cylinders at the precise moment for combustion. There are no direct user operating controls for the pump itself, as its function is managed by the engine's operational parameters.

Ensure your engine's fuel system is always supplied with clean, appropriate diesel fuel. Regular checks of the fuel level and quality are recommended to prevent issues with the fuel injection system.

6. Maintenance

Regular maintenance helps ensure the longevity and efficient operation of your fuel injection pump and the entire engine.

• Fuel Filter Replacement: Regularly replace the engine's fuel filter according to the engine manufacturer's recommendations. A clogged fuel filter can restrict fuel flow to the pump, leading to reduced performance or damage.
• Inspect for Leaks: Periodically inspect all fuel lines and connections around the pump for any signs of fuel leaks. Address any leaks immediately to prevent fuel loss and potential hazards.
• Fuel Quality: Always use high-quality, clean diesel fuel. Contaminants in the fuel can cause significant damage to the precision components within the fuel injection pump.
• General Cleanliness: Keep the engine area, especially around the fuel system components, clean and free from dirt and debris.

7. Troubleshooting

If you experience issues with your engine's fuel system, consider the following common troubleshooting steps. For complex problems, professional assistance is recommended.

7.1 Common Symptoms and Solutions

• Engine Not Starting or Hard Starting:
  • Check fuel level.
  • Inspect fuel filter for clogging; replace if necessary.
  • Check for air in the fuel system and prime if needed.
  • Ensure all fuel line connections are secure.
• Loss of Engine Power or Rough Running:
  • Check fuel filter for restriction.
  • Inspect fuel lines for kinks or damage.
  • Ensure fuel quality is adequate.
• Fuel Leaks:
  • Immediately locate the source of the leak.
  • Tighten loose connections or replace damaged fuel lines/seals.

If these steps do not resolve the issue, or if you suspect internal pump failure, it is advisable to consult a certified diesel engine technician.

8. Warranty and Support

For information regarding the warranty period and terms for your HZLIMJDQ Fuel Injection Pump Assembly, please refer to the documentation provided at the time of purchase or contact the seller directly. Specific warranty details are not included in this manual.

For technical support or further assistance, please reach out to the retailer or manufacturer through their official contact channels.
