ZTGD 25.4cc Gas Chainsaw 12 Inch User Manual

1. Important Safety Information

Always read and understand all safety warnings and instructions before operating the chainsaw. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including a safety helmet, eye protection, hearing protection, heavy-duty gloves, chainsaw protective trousers, and safety boots.
• Work Area Safety: Keep the work area clean and well-lit. Do not operate chainsaws in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. Keep bystanders, children, and pets at a safe distance.
• Fuel Handling: Handle fuel in a well-ventilated area, away from ignition sources. Do not smoke while fueling. Ensure the fuel cap is securely tightened after fueling.
• Kickback Prevention: Be aware of kickback, which can occur when the moving chain contacts an object at the upper quadrant of the guide bar's tip. Always maintain a firm grip with both hands on the chainsaw.
• Starting Safety: The chainsaw features a starting rope design. Ensure the safety start switch lock is engaged before attempting to start to prevent accidental activation.
• Maintenance Safety: Disconnect the spark plug wire before performing any maintenance or adjustments.

2. Product Overview and Components

The ZTGD 25.4cc Gas Chainsaw is a powerful and portable tool designed for cutting wood, tree trimming, and other logging tasks. It features a 2-stroke engine and an automatic oiler for efficient operation.

Figure 2.1: Key Components of the ZTGD Gas Chainsaw. This diagram illustrates the main parts including the Fuel Tank, Primer Bulb, Trigger, Trigger Lockout, Air Filter Cover, Starter Handle, Starter Cover, Chain Oil Tank, Bumper Spike, Guide Bar, and Saw Chain.

Key Features:

• Powerful 2-Cycle Engine: 25.4CC full crank 2-stroke engine for high power and reduced vibration.
• Automatic Oiler: Ensures continuous lubrication of the chain and guide bar during operation.
• Safety Start Mechanism: Features a starting rope design with a safety start switch lock to prevent unintended starts.
• Ergonomic Design: Balanced design with a wraparound handle for comfortable grip and reduced user fatigue.
• Durable Construction: Made from high-quality ABS and metal materials.
• Lightweight: Weighs approximately 8 pounds for easy handling.

3. Setup and Assembly

Before first use, ensure all components are present and properly assembled according to the instructions below.

Figure 3.1: Included components for assembly and maintenance, such as the guide plate, chain, installation kit, and protective case.

3.1 Unpacking and Inspection:

1. Carefully remove all contents from the packaging.
2. Verify that all included components are present: 1 x Gas Chainsaw, 1 x Guide Plate, Chain, 1 x Installation Kit, 1 x Protective Case, 1 x User Manual.
3. Inspect the chainsaw for any signs of damage during shipping. Do not use if damaged.

3.2 Guide Bar and Chain Installation:

1. Ensure the chainsaw is turned off and the spark plug wire is disconnected.
2. Remove the chain cover.
3. Place the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction.
4. Fit the guide bar onto the studs and replace the chain cover.
5. Adjust chain tension: The chain should be snug against the guide bar but still able to be pulled freely by hand. Refer to the user manual for specific tensioning procedures.
6. Tighten the chain cover nuts securely.

3.3 Fueling and Oiling:

1. Fuel: This chainsaw requires a mixture of gasoline and 2-stroke engine oil. Refer to the engine oil manufacturer's instructions for the correct mixing ratio (typically 25:1 or 50:1, depending on oil type). Fill the fuel tank (capacity 260 ml) in a well-ventilated area.
2. Chain Oil: Fill the chain oil tank with high-quality bar and chain oil. The automatic oiler system will lubricate the chain during operation. Regularly check the oil level.

4. Operating Instructions

Proper operation ensures safety and extends the life of your chainsaw.

Figure 4.1: The ergonomic design and anti-slip handle reduce vibration and provide comfortable operation.

4.1 Starting the Chainsaw:

1. Place the chainsaw on a firm, flat surface. Ensure the chain brake is engaged.
2. Press the primer bulb several times until fuel is visible.
3. Engage the choke (if applicable, refer to specific model controls).
4. Pull the starter handle firmly and smoothly until the engine fires (usually a few pulls).
5. Once the engine fires, disengage the choke.
6. Pull the starter handle again until the engine runs consistently.
7. Allow the engine to warm up for a few moments before disengaging the chain brake and beginning operation.

4.2 Cutting Techniques:

• Always maintain a balanced stance and firm grip on both handles.
• Identify potential kickback zones and avoid cutting with the tip of the guide bar.
• When cutting, let the chainsaw do the work. Do not force it.
• Be aware of falling branches and logs. Plan your cuts to ensure safe felling and limbing.
• The chainsaw is suitable for forest logging, family logging, trimming branches, and cutting bamboo.

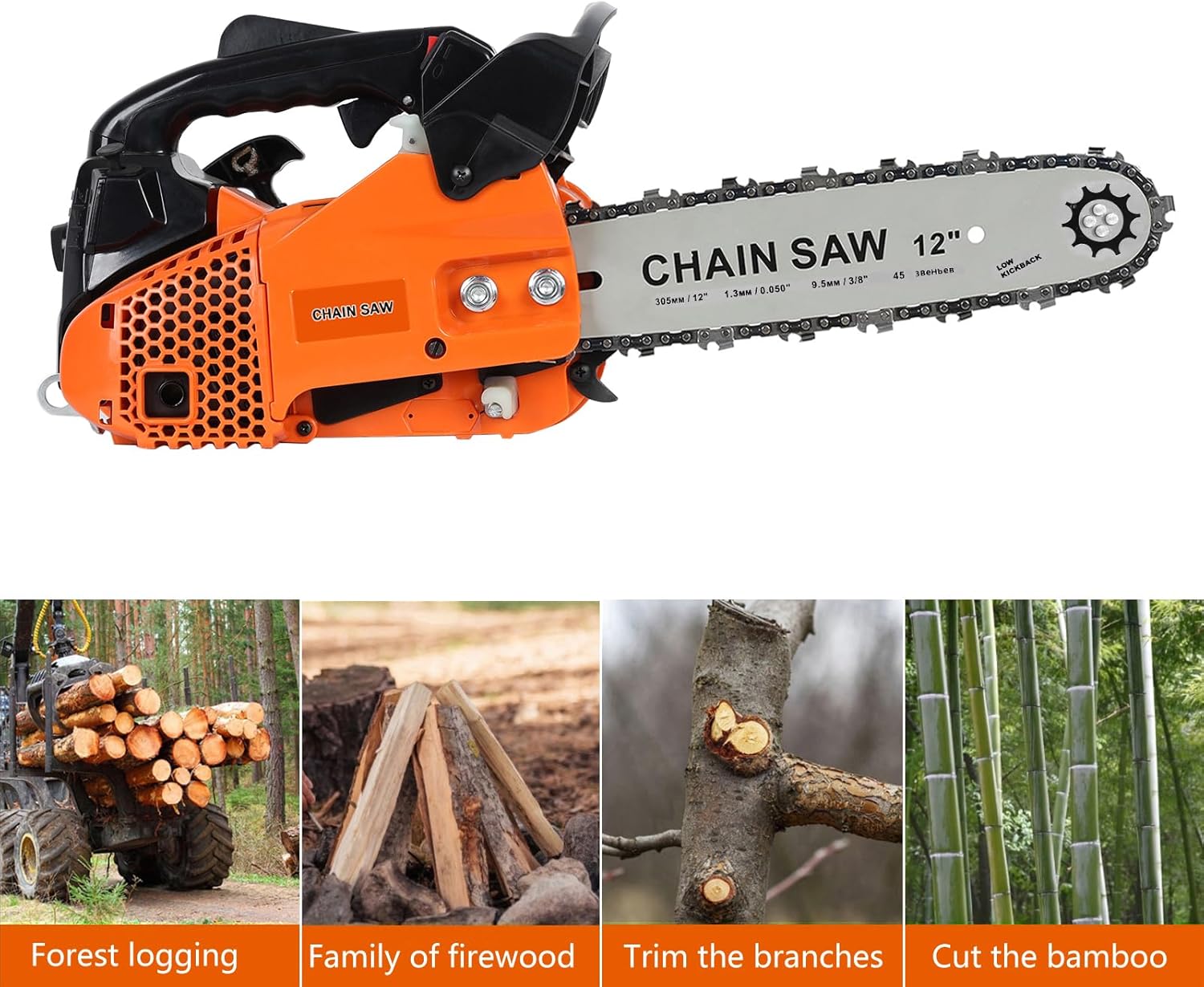

Figure 4.2: Examples of suitable applications for the ZTGD Gas Chainsaw.

5. Maintenance

Regular maintenance is essential for optimal performance and longevity of your chainsaw.

• Chain Sharpening: A sharp chain is crucial for safe and efficient cutting. Sharpen the chain regularly or replace it when dull. Refer to the chain manufacturer's specifications for sharpening angles.
• Guide Bar Maintenance: Clean the guide bar groove and oil holes regularly. Flip the guide bar periodically to ensure even wear.
• Air Filter Cleaning: Inspect and clean the air filter frequently, especially in dusty conditions. A clogged air filter can reduce engine performance.
• Spark Plug Inspection: Check the spark plug for wear and proper gap. Replace if necessary.
• General Cleaning: After each use, clean the chainsaw thoroughly, removing sawdust, debris, and oil residue from all surfaces.
• Storage: When storing the chainsaw for extended periods, drain the fuel tank and chain oil tank. Clean the unit and store it in a dry, secure location.

6. Troubleshooting

This section provides solutions to common operational issues. For problems not listed here, contact customer support.

7. Specifications

Detailed technical specifications for the ZTGD 25.4cc Gas Chainsaw.

Figure 7.1: Summary of key specifications for the ZTGD Gas Chainsaw.

8. Warranty and Support

ZTGD is committed to providing quality products and support. While specific warranty terms are not detailed here, ZTGD is a professional source supplier that can provide replacement parts for their products.

For technical assistance, replacement parts, or any inquiries regarding your ZTGD 25.4cc Gas Chainsaw, please contact the manufacturer directly through their official channels. Refer to the product packaging or the seller's information for contact details.

Always use genuine ZTGD replacement parts to ensure compatibility and maintain product performance and safety.
