UDPATIO Outdoor Storage Shed

1. Introduction

This instruction manual provides essential information for the assembly, operation, and maintenance of your UDPATIO Outdoor Storage Shed. Please read this manual thoroughly before beginning assembly or use to ensure safe and efficient operation.

Key Features:

• Spacious 8ft x 8ft design providing 363.5 Cu.ft of storage.
• Constructed from 12mm high-quality polypropylene resin plastic for durability.
• Recyclable, corrosion-resistant, waterproof, and rust-preventative material.
• Sturdy structure to protect items from rain and mold.
• Lockable doors for enhanced security.
• Versatile use for lawn mowers, bicycles, yard tools, garden tools, pet shelter, or garbage collection.

2. Important Safety Information

Always keep the doors locked when not in use. Be cautious while handling and assembling the product to prevent injuries. Some parts have sharp edges; please be careful when handling components. Always wear work gloves, eye protection, and long sleeves when assembling or performing any maintenance on your shed. Do not attempt assembly on days with strong winds or low temperatures.

3. Components List

Before starting assembly, ensure all parts are present and undamaged. Refer to the detailed parts list provided in your assembly instructions manual. Each part is labeled with a unique number for easy identification. Please prepare these components in advance at the beginning of each stage.

4. Setup and Assembly

Assembly of the UDPATIO Outdoor Storage Shed requires careful attention to detail. It is recommended that two people work together for installation, which typically takes 2-3 hours. While the shed is designed for straightforward assembly, having an extra pair of hands will significantly ease the process.

Site Preparation:

• Level the ground surface where the shed will be placed.
• It is recommended to construct a wooden or concrete base as a foundation for optimal stability and longevity.

Required Tools:

• Drill (electric drill recommended for screws)
• Ladder
• Screwdriver
• Adjustable Wrench
• Work Gloves (provided)
• Eye Protection

Assembly Tips:

• Follow the step-by-step instructions provided in the manual.
• Ensure all screws are tightened securely for maximum stability.
• If any metal sheets are slightly bent, wear gloves and gently stretch the corners until they are flat. This will not affect the assembly.

Assembly Videos:

5. Operating Instructions

Your UDPATIO Outdoor Storage Shed is designed for straightforward operation. Simply open the double-hinged doors to access the spacious interior. Utilize the integrated steel door lock to secure your belongings when not in use. The shed's design includes windows for bright natural light and vents for optimal airflow, ensuring a suitable environment for stored items.

6. Maintenance

To ensure the longevity and optimal performance of your UDPATIO Outdoor Storage Shed, regular maintenance is recommended:

• Cleaning: Periodically clean the exterior and interior of the shed with mild soap and water. Avoid abrasive cleaners that could damage the resin plastic.
• Inspection: Regularly check for any loose screws, damaged panels, or signs of wear. Tighten any loose fasteners immediately.
• Waterproofing: While the shed is waterproof, some users have noted that additional caulking or sealing of seams may be beneficial to prevent any potential leaks, especially in areas with heavy rainfall.
• Snow Load: The roof has a snow load capacity of 15 PSF. In areas with heavy snowfall, it is advisable to clear excessive snow from the roof to prevent structural stress.

7. Troubleshooting

Here are some common issues and their potential solutions:

• Bent Panels: As noted in the assembly instructions, some thin metal pieces may arrive slightly bent due to shipping. Wear gloves and gently stretch the corners until they are flat. This will not affect the structural integrity once assembled.
• Water Leakage: If you experience water puddles inside the shed after rain, inspect all seams and screw points. Apply a silicone sealant or caulk to any gaps or joints to ensure a watertight seal.
• Difficulty Assembling: Ensure you have all required tools and follow the instructions carefully. It is highly recommended to have two people for assembly, especially when handling larger panels and the roof.

8. Specifications

• Brand: UDPATIO
• Color: Light Brown
• Material: Polypropylene Resin Plastic (12mm thick)
• Product Dimensions: 99.21"D x 85.93"W x 88.98"H
• Roof Dimensions: 90.55"L x 103.54"W
• Base Dimensions: 85.83"L x 99.21"W
• Height: 89 inches
• Base Material: Wood (user-provided foundation recommended)
• Frame Material: Metal
• Water Resistance Level: Waterproof
• Door Style: Single Hinged, Double Hinged
• Door Width: 46.06 Inches
• Item Weight: 240 pounds
• Snow Load Capacity: 15 PSF
• Wind Load Capacity: Up to 26 MPH

9. Product Images

The 8x8 FT shed with its double doors open, showcasing ample space for pool accessories and outdoor gear.

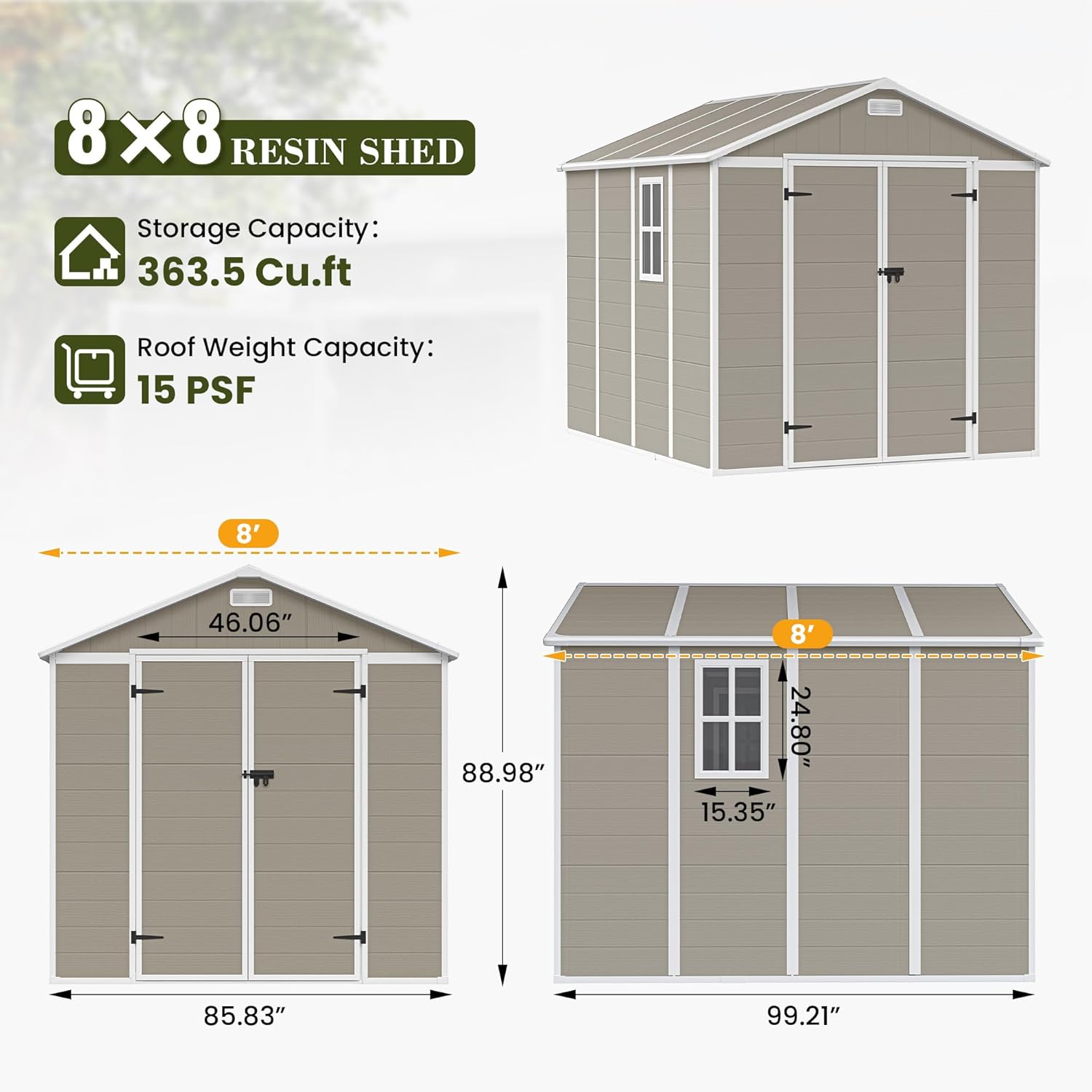

Detailed dimensions of the 8x8 FT shed, including roof, base, and height measurements.

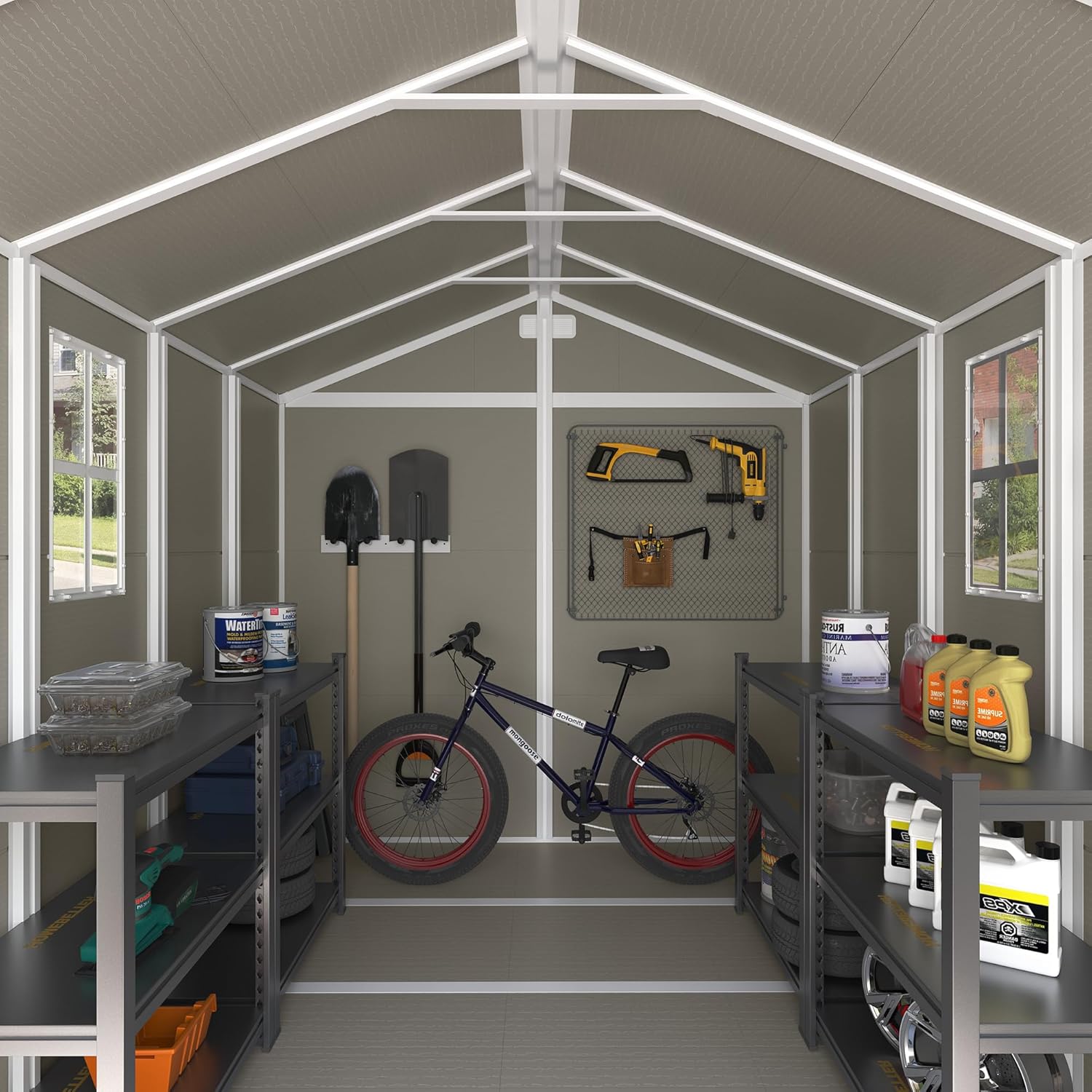

The spacious interior of the shed, organized with shelving, a bicycle, and various garden tools.

The shed integrated into a garden, with its doors open for easy access to stored items.

A close-up of the shed's roof, showing the durable resin material and its weather-resistant properties.

Visual representation of the shed's weather resistance, including snow load capacity and wind load.

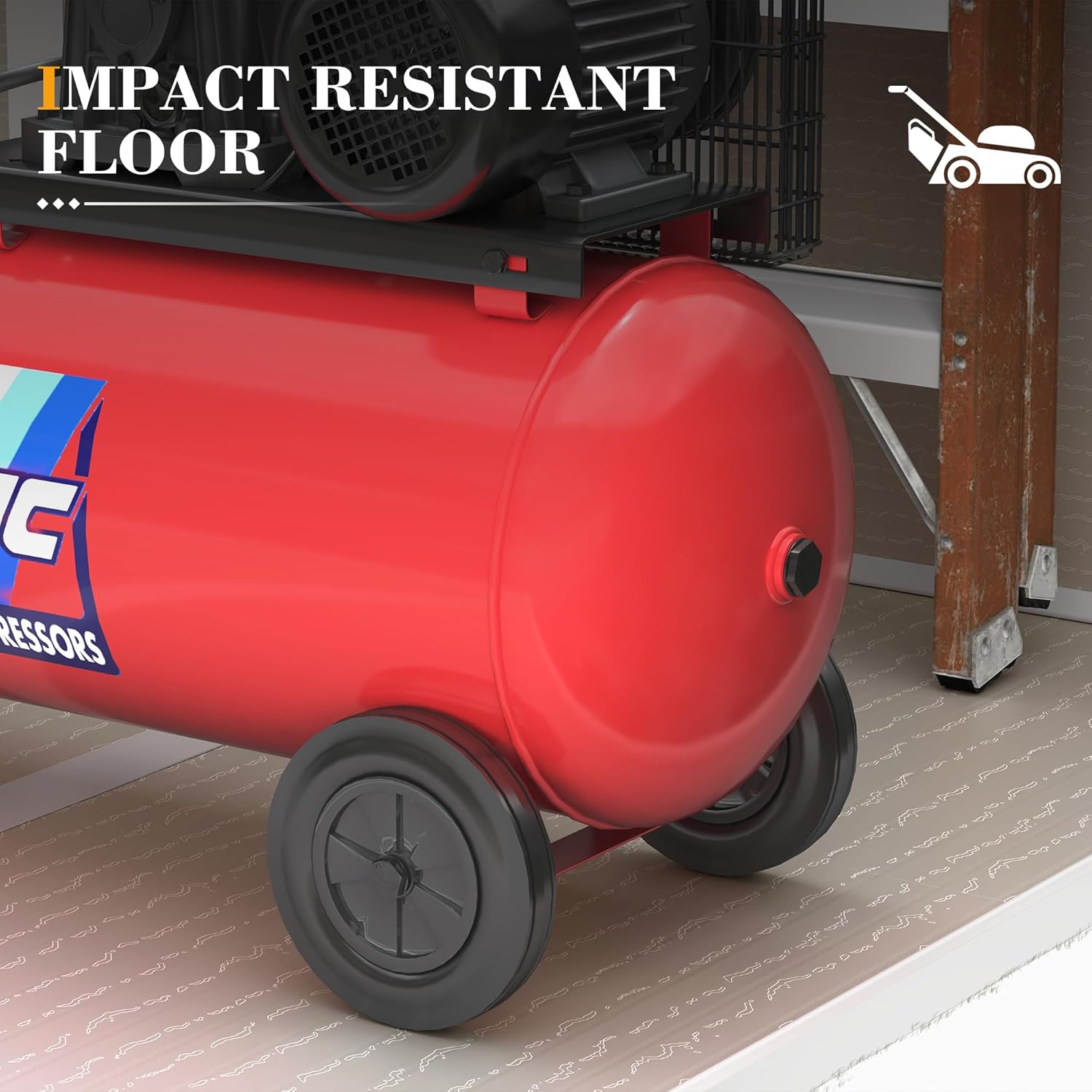

A detailed view of the shed's impact-resistant floor, built to support heavy equipment.

Another perspective of the shed in a backyard, highlighting its functional design and storage capabilities.

The shed positioned near a pool, offering convenient storage for pool toys and equipment.

10. Warranty and Support

• Returns: Enjoy 30-day easy returns.
• Customer Support: For any inquiries or assistance, please contact customer support.
