ORYMUSE 17-inch 24 Bottle Single Zone Compressor Wine Cooler Refrigerator User Manual

1. Introduction and Overview

This manual provides essential information for the safe and efficient operation of your ORYMUSE 17-inch 24 Bottle Single Zone Compressor Wine Cooler Refrigerator. Please read it thoroughly before use and retain it for future reference.

The ORYMUSE wine cooler is designed to store up to 24 standard 750ml wine bottles, maintaining optimal temperatures for various wine types. It features an efficient compressor cooling system, digital temperature control, and a sleek design suitable for any space.

Image 1: Front view of the ORYMUSE 17-inch 24 Bottle Single Zone Compressor Wine Cooler Refrigerator, showcasing its sleek black exterior and glass door filled with wine bottles.

2. Safety Information

• Ensure the appliance is properly grounded.
• Do not operate the appliance with a damaged power cord or plug.
• Keep ventilation openings clear of obstruction.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• This appliance is intended for household use only.
• The appliance features a lockable door for added safety, especially in households with children. Keep keys out of reach of children.

3. Setup and Installation

3.1 Unpacking

Carefully remove all packaging materials. Retain packaging for future transport or service needs. Ensure all components are present and undamaged.

3.2 Placement

This unit is designed for freestanding installation. Allow adequate space around the unit for proper ventilation. Avoid placing the unit in direct sunlight or near heat sources. The product dimensions are 18.89"D x 16.92"W x 29.76"H.

Image 2: The ORYMUSE wine cooler placed in a kitchen setting, with dimensions labeled, illustrating its compact size suitable for various locations.

3.3 Leveling

The wine cooler is equipped with adjustable screw feet. Use these to level the unit on uneven surfaces, ensuring stability and optimal performance.

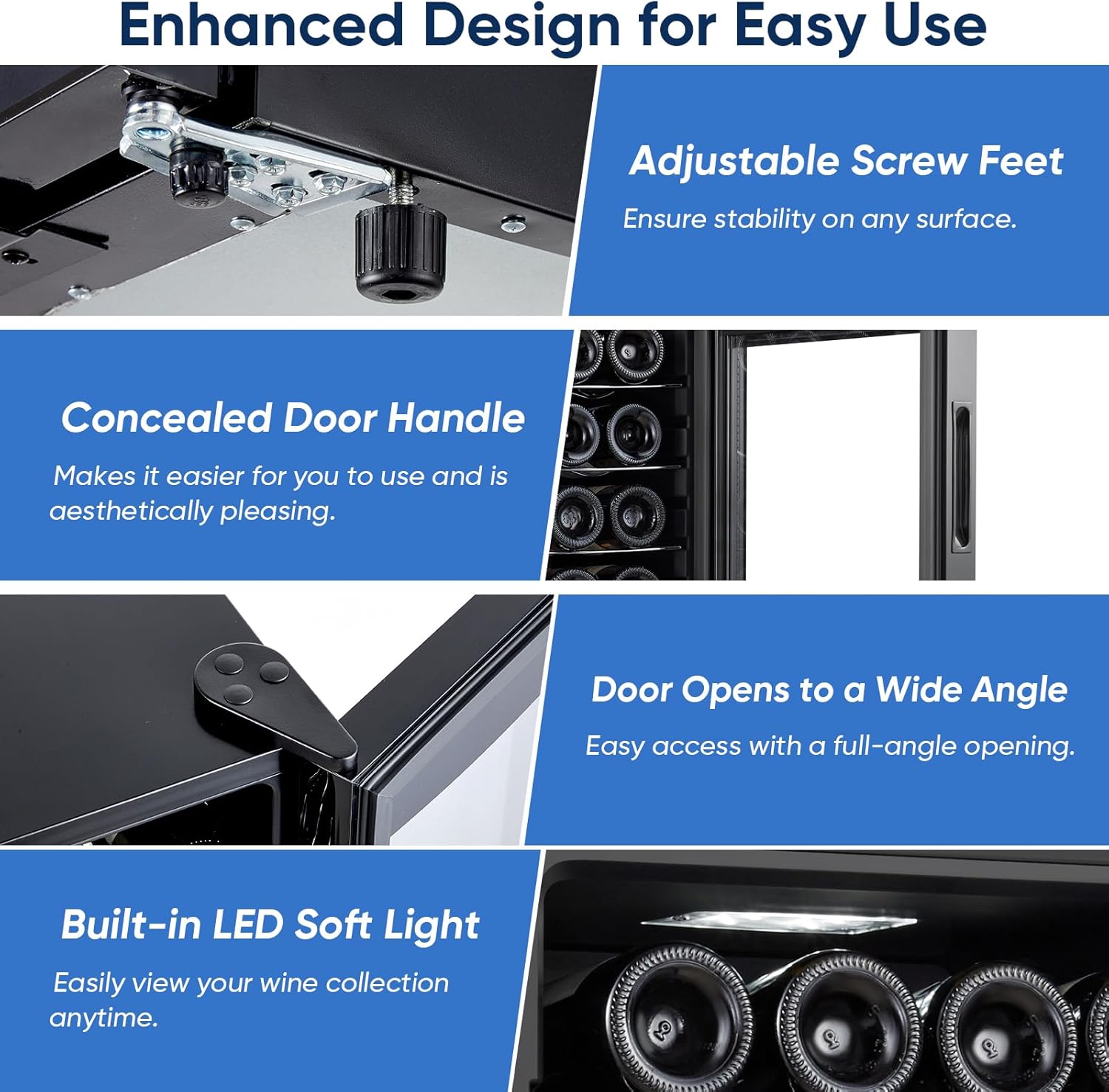

Image 3: A detailed view of the adjustable screw feet, concealed door handle, wide-angle door opening, and built-in LED soft light, highlighting user-friendly design features.

3.4 Power Connection

Connect the unit to a dedicated 115 Volt power outlet. Do not use extension cords.

4. Operating Instructions

4.1 Digital Control Panel

The wine cooler features an easy-to-use digital control panel with a clear LCD display located on the top of the door. This panel allows for precise temperature adjustments and light control.

Image 4: A close-up of the digital control panel, showing buttons for temperature adjustment (up/down), light control, unit conversion (°F/°C), and power switch.

4.2 Temperature Adjustment

Use the 'Temp Up' (▲) and 'Temp Down' (▼) buttons on the digital control panel to set your desired temperature. The adjustable temperature range is 41°F to 64°F (5°C to 18°C). The LCD screen will display the current setting. The compressor cooling system ensures stable temperatures for optimal wine preservation.

4.3 Internal Lighting

The unit includes built-in soft LED lighting. Use the 'Light' button on the control panel to turn the internal light on or off, allowing you to view your wine collection without opening the door.

4.4 Flexible Storage

The wine cooler comes with removable shelves, allowing you to customize the storage space to accommodate various bottle sizes, including standard and larger bottles. The shelves are designed for easy rearrangement.

Image 5: The interior of the wine cooler with bottles arranged on removable shelves, demonstrating flexible storage options for different wine types and bottle sizes.

4.5 Door Lock

The wine cooler is equipped with a lockable door to secure your wine collection and prevent unauthorized access. Use the provided key to lock and unlock the door.

Image 6: An illustration showing the double-layer tempered glass door and the built-in door safety lock, emphasizing protection against UV rays and secure storage.

4.6 Video: Temperature and Light Control Demonstration

Video 1: This video demonstrates how to adjust the temperature settings and control the internal lighting of the ORYMUSE wine cooler using the digital touch panel.

5. Maintenance

5.1 Cleaning

Regularly clean the interior and exterior of the wine cooler with a mild detergent and a soft cloth. Avoid abrasive cleaners or solvents that could damage the surfaces. Ensure the unit is unplugged before cleaning.

5.2 Defrosting

The ORYMUSE wine cooler features an automatic defrost system, minimizing the need for manual defrosting. If excessive frost builds up, unplug the unit and allow it to defrost naturally, then wipe away any melted water.

5.3 Air Circulation

The unit incorporates a built-in circulation fan to ensure even cooling. Periodically check that the fan is free from obstructions to maintain optimal performance.

Image 7: An illustration detailing the efficient compressor cooling system and built-in circulation fan, which work together to maintain consistent temperatures and prevent hot spots.

6. Troubleshooting

• Unit not cooling: Check if the power cord is securely plugged in. Ensure the temperature setting is appropriate. Verify that the unit is not placed in direct sunlight or near a heat source.
• Excessive noise: Ensure the unit is level using the adjustable feet. Check for any obstructions around the fan or compressor.
• Temperature fluctuations: Confirm the door is sealing properly. Avoid frequent door openings. Ensure adequate ventilation around the unit.
• Water on the floor: This may indicate a drainage issue. Check the drain pan and ensure it is not overflowing or blocked.

If problems persist after attempting these troubleshooting steps, please contact customer support.

7. Specifications

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your product or visit the official ORYMUSE website. Protection plans are available for purchase to extend coverage beyond the standard warranty period.

You may also contact customer support for assistance with any issues or questions regarding your ORYMUSE wine cooler.
