1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Madesa 4 Doors 4 Drawers Storage Cabinet, Model MDDR02004509. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Image 1: Madesa 4 Doors 4 Drawers Storage Cabinet, White.
2. Safety Information
To ensure safe use and prevent injury or damage, please observe the following safety guidelines:
- Wall-Mounting: It is mandatory to fix the furniture to the wall using the provided wall-mounting hardware for secure and stable installation. This prevents tipping.
- Assembly: Always follow the assembly instructions precisely. It is recommended that two people perform the assembly.
- Weight Limits: Do not overload shelves or hanging racks. Each shelf has a weight capacity of 33 lbs. The sturdy hanging rack supports up to 26 lbs.
- Children: Keep children away from the assembly area. Do not allow children to climb on or play with the cabinet.
- Placement: Place the cabinet on a level surface.

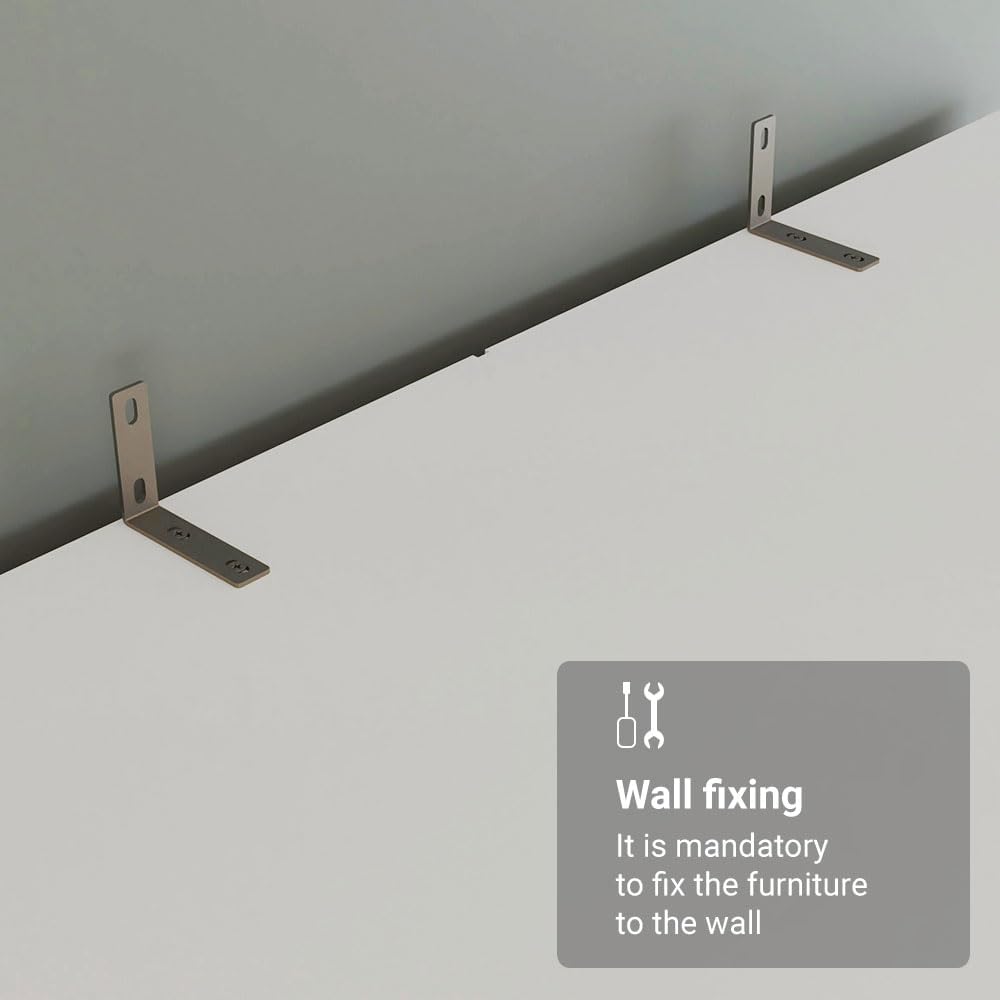

Image 2: Wall-mounting hardware for securing the cabinet.
3. Product Overview and Features
The Madesa Storage Cabinet is designed for versatile storage in bedrooms, utility areas, or offices. It features a durable construction and practical storage solutions.
- Storage Capacity: Includes two hanging racks, two upper shelves, and four spacious drawers.
- Hanging Space: Wide space ideal for dresses, suits, and other lengthy garments.
- Drawers: Four drawers with metallic slides for smooth operation and full access.
- Material: Manufactured from renewable wood with a high-durability finish.
- Modular Design: Can be configured as separate modules to suit your space.
Image 3: Interior storage space with hanging clothes and shelves.
Image 4: Drawers with metallic slides for complete opening.
Image 5: Metallic hanging rail for clothes.
4. Setup and Assembly
The Madesa Storage Cabinet requires assembly. User-friendly illustrated instructions and all necessary hardware are included in the packaging. For a visual guide, please refer to the official assembly video.
- Preparation: Clear a spacious area for assembly. Ensure all parts are present before starting.
- Tools: Basic tools (e.g., screwdriver, hammer) may be required in addition to the included hardware.
- Team Assembly: It is highly recommended to have two people for assembly to ensure stability and ease of construction.
- Wall Fixing: After assembly, secure the cabinet to the wall using the provided anti-tip hardware as detailed in the safety section.
Image 6: Two-person assembly recommended; hardware included.
Assembly Video Instructions
For a step-by-step visual guide, watch the official Madesa Wardrobe Collection assembly video:
Video 1: Madesa Wardrobe Collection Overview (0:44). This video showcases the modularity and features of the Madesa wardrobe system, including the 4-door, 4-drawer configuration.
Video 2: Madesa Wardrobe Collection Features (0:37). This video highlights key features such as hanging space, shelves, and drawers within the Madesa wardrobe range.
5. Operating Instructions
Using your Madesa Storage Cabinet is straightforward:
- Doors: Gently open and close the cabinet doors using the metallic handles. Avoid forcing them.
- Drawers: Pull drawers open smoothly using the handles. The metallic slides allow for full extension. Push firmly to close completely.
- Shelves: Place items evenly on shelves, ensuring not to exceed the 33 lbs weight limit per shelf.
- Hanging Rod: Hang clothes on hangers on the metallic hanging rod. Do not exceed the 26 lbs weight limit.
6. Maintenance
Proper care will extend the life and appearance of your Madesa Storage Cabinet:
- Cleaning: Wipe surfaces with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that can damage the finish.
- Spills: Clean spills immediately to prevent staining or damage to the wood.
- Sunlight: Avoid prolonged exposure to direct sunlight to prevent fading or discoloration.
- Humidity: Maintain a stable humidity level in the room to prevent warping or cracking of the wood.
- Hardware: Periodically check all screws and fasteners to ensure they are tight. Retighten if necessary.
7. Troubleshooting
If you encounter any issues with your cabinet, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Cabinet is wobbly or unstable. | Uneven floor; loose fasteners; not wall-mounted. | Ensure cabinet is on a level surface. Tighten all assembly fasteners. Securely attach the cabinet to the wall using the provided hardware. |
| Drawers do not slide smoothly. | Misaligned slides; obstruction; overloaded drawer. | Check that drawer slides are correctly installed and aligned. Remove any obstructions. Reduce the weight in the drawer. |
| Doors do not close properly. | Misaligned hinges; obstruction. | Adjust door hinges as per assembly instructions. Ensure no items are blocking the door closure. |
8. Specifications
Detailed specifications for the Madesa 4 Doors 4 Drawers Storage Cabinet:
- Brand: Madesa
- Model Name: MDDR02004509
- Color: White
- Product Dimensions: 63" L x 20" D x 71" H (160cm L x 50cm D x 180cm H)
- Item Weight: 233 Pounds
- Material: Engineered Wood (Frame, Top, Back), Wood (Handle)
- Finish Type: Painted
- Number of Doors: 4
- Number of Drawers: 4
- Number of Shelves: 2
- Weight Capacity per Shelf: 33 lbs
- Hanging Rack Capacity: 26 lbs
- Mounting Type: Wall Mount (hardware included)
- Assembly Required: Yes
Image 7: Product dimensions diagram.
9. Warranty and Support
For any questions, assistance, or to inquire about protection plans, please contact Madesa customer support. Information regarding extended protection plans may be available at the point of purchase.
- Customer Support: Refer to your purchase documentation or the Madesa website for contact details.
- Protection Plans: A 3-Year Protection Plan is available for purchase.
Note: Specific warranty terms and conditions are subject to the retailer and manufacturer policies at the time of purchase.
