1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the USSKYBOY FSPD140 Level 2 Whole House Surge Protection Device. This device is designed to protect your home's electrical system and connected appliances from damaging power surges. Please read this manual thoroughly before installation and keep it for future reference.
2. Important Safety Instructions
WARNING: Risk of electric shock. Installation must be performed by a qualified electrician in accordance with all national and local electrical codes.
- Always disconnect power at the main service panel before installing or servicing the surge protection device.
- Verify that the voltage and current ratings of the device match your electrical system.
- Do not install this device in wet locations unless specifically rated for such environments. The FSPD140 is suitable for indoor or outdoor installation.
- Ensure all connections are secure and properly insulated.
- Do not attempt to open or repair the device. There are no user-serviceable parts inside.
3. Product Overview
3.1 Product Features
- Level 2 Surge Protection: Provides robust protection for your entire home.
- High Surge Current Rating: Rated for 140,000 Amps (140kA) to handle significant surge events.
- Wide Compatibility: Designed for 120/240V, Single Phase, 3-Wire applications, compatible with various load centers and circuit breakers.
- Visual and Audible Indicators: Features LED status indicators and an audible alarm to signal operational status and when replacement is needed.
- Flexible Installation: Durable enclosure made of high-quality polycarbonate allows for both indoor and outdoor installation.
- Comprehensive Protection: Protects smart home appliances, TVs, computers, heating/cooling systems, and other electronic devices from power surges.
3.2 Device Components

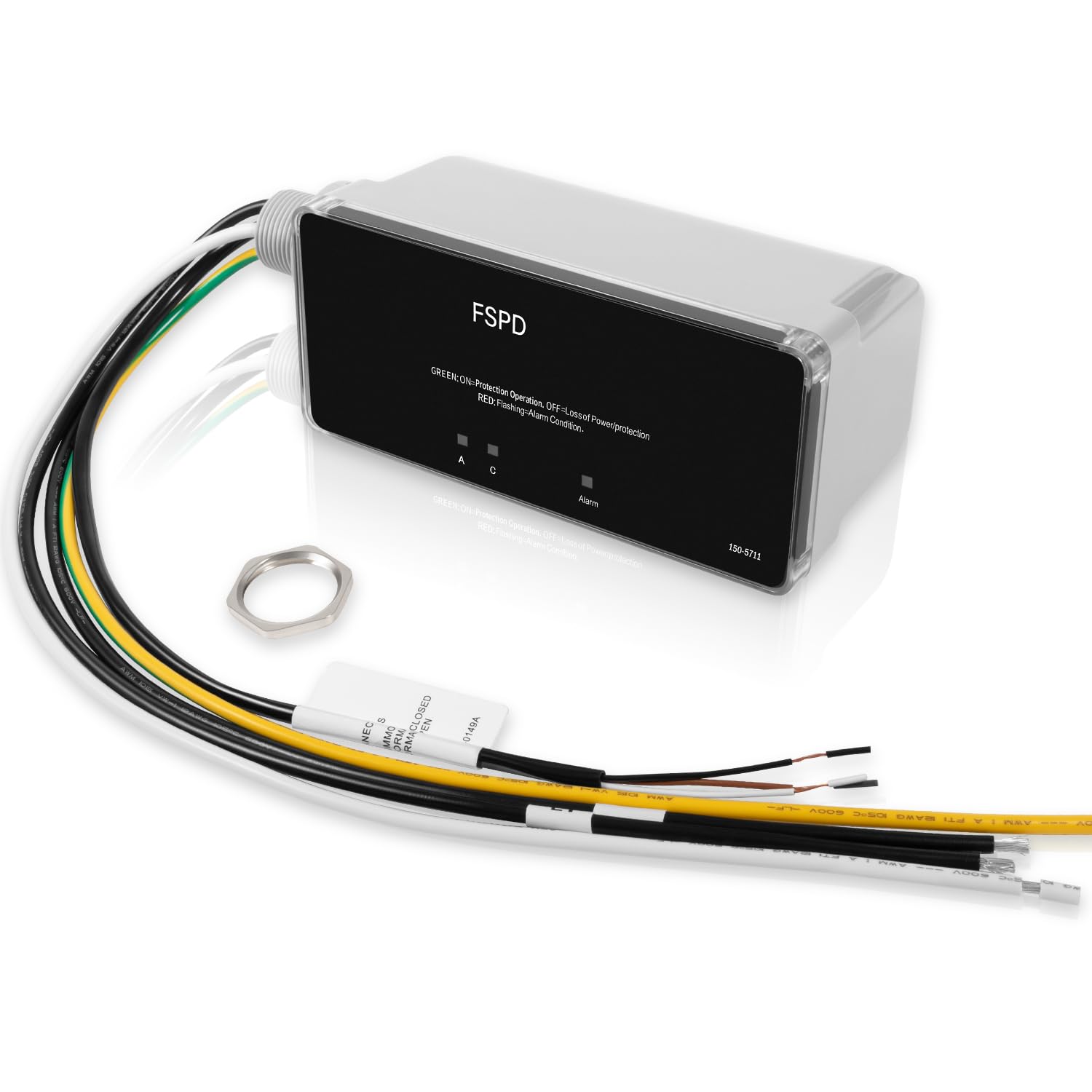

The FSPD140 device consists of a robust enclosure housing the surge protection circuitry, integrated wiring for connection to the electrical panel, and visual/audible indicators on the front panel.

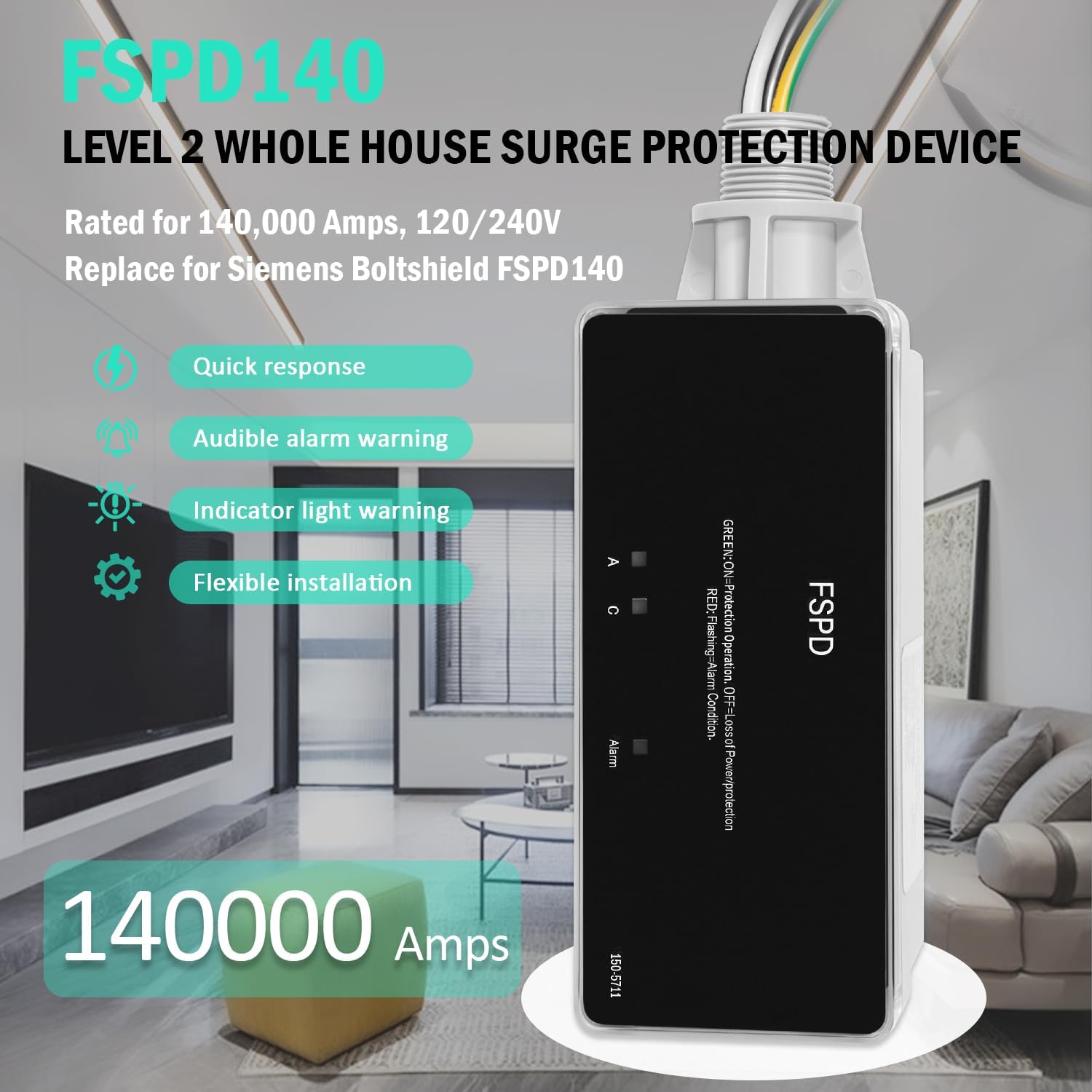

Image: Front view of the FSPD140 surge protector, highlighting its key features and 140,000 Amps rating.
4. Technical Specifications
| Specification | Value |
|---|---|
| Model Number | FSPD140 |
| Surge Current Protection | 140 kA (140,000 Amps) |
| Voltage Rating | 120/240V, Single Phase, 3-Wire |
| Short Circuit Current Rating (SCCR) | 200 kA |
| I-nominal Rating | 20 kA |
| Protection Modes | L-N, L-G, N-G (Line-Neutral, Line-Ground, Neutral-Ground) |
| Enclosure Material | Polycarbonate |
| Connection Thread | 3/4"-14 NPT Thread |
| Wire Length | Approximately 15.1 inches |
Image: Dimensions of the FSPD140 device.
5. Installation Guide
Installation of this device involves working with high voltage electricity. It is strongly recommended that installation be performed by a licensed electrician.
5.1 Before Installation
- Ensure the main power to the electrical panel is turned OFF at the utility meter or main disconnect. Verify with a voltage tester.
- Select a suitable mounting location near your main electrical panel. The FSPD140 can be installed indoors or outdoors.
- Gather necessary tools: screwdriver, wire strippers, conduit fittings, drill, etc.
5.2 Wiring Instructions
- Mount the FSPD140 device securely to a wall or suitable surface using appropriate fasteners.
- Connect the device's wires to the main electrical panel. The FSPD140 typically connects to a dedicated 2-pole circuit breaker (not included) or directly to the main lugs.
- Identify the wires:
- Black Wires (2): Connect to the two hot (L1 and L2) terminals of a 2-pole circuit breaker or main lugs.
- White Wire: Connect to the neutral bus bar.
- Green Wire: Connect to the ground bus bar.
- Ensure all connections are tight and secure.
- Route wires neatly and secure them to prevent damage.
- Once wiring is complete and verified, restore power to the electrical panel.
Image: Example of FSPD140 installation and technical details.
Image: Flexible installation options and material quality of the FSPD140.
6. Operation and Status Indicators
The FSPD140 provides clear visual and audible indicators to inform you of its operational status.
- Green LED (ON): Indicates that the device is operational and providing surge protection.
- Red LED (Flashing): Indicates a loss of protection or an alarm condition. This means the device needs to be replaced.
- Audible Alarm: An audible alarm will sound upon suppression element failure, indicating the device requires replacement.
Regularly check the LED indicators to ensure your home remains protected.
7. Maintenance
The USSKYBOY FSPD140 is designed for minimal maintenance. However, periodic checks are recommended:
- Visual Inspection: Periodically inspect the device for any visible damage to the enclosure or wiring.
- Status Check: Regularly observe the LED indicators. If the Red LED is flashing or the audible alarm is sounding, the device has absorbed a significant surge and needs replacement.
- Cleaning: If installed outdoors, keep the enclosure free from excessive dirt, debris, or insect nests. Use a damp cloth for cleaning; do not use harsh chemicals.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No LEDs illuminated after power restoration. | No power to the device, incorrect wiring, or device failure. | Verify power to the circuit breaker. Check wiring connections. If power is present and wiring is correct, the device may be faulty and require replacement. Consult a qualified electrician. |
| Red LED flashing and/or audible alarm sounding. | The surge protection components have been compromised due to a power surge. | The device has performed its function and needs to be replaced to restore surge protection. Disconnect power before replacement. |
| Device appears operational (Green LED on), but appliances are still damaged by surges. | Extremely large or multiple surges exceeding device capacity, or improper installation. | Ensure proper installation by a qualified electrician. Consider additional point-of-use surge protection for sensitive electronics. If surges persist, consult a power quality specialist. |
9. Warranty Information
The USSKYBOY FSPD140 Level 2 Whole House Surge Protection Device comes with a 1-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, misuse, accidents, or unauthorized repairs. For warranty claims, please contact USSKYBOY customer support with your proof of purchase.
10. Customer Support
If you have any questions regarding the installation, operation, or troubleshooting of your USSKYBOY FSPD140 surge protection device, please contact USSKYBOY customer support. For technical assistance or complex electrical issues, it is always recommended to consult a qualified and licensed electrician.
For further information, please refer to the official USSKYBOY website or contact their support channels.
