Bellemave Twin Loft Bed with Slide and Ladder

Introduction

This manual provides essential information for the safe assembly, operation, and maintenance of your Bellemave Twin Loft Bed with Slide and Ladder. Please read these instructions thoroughly before beginning assembly and retain this manual for future reference. This low loft bed is designed to maximize space and provide a fun, secure sleeping and play area for children.

Figure 1: The Bellemave Twin Loft Bed with Slide and Ladder, shown in a child's bedroom setting.

Safety Information

WARNING: Failure to follow these warnings and instructions could result in serious injury or death.

• Always follow the manufacturer’s recommended mattress size and thickness.
• Ensure all connections are tight and secure before use. Periodically check and tighten hardware as needed.
• Do not allow children under 6 years of age on the upper bunk.
• Prohibit more than one person on the upper bunk.
• Prohibit jumping on the bed.
• Always use the ladder for entering and exiting the upper bunk.
• The slide is intended for single-user descent only. Ensure the area at the bottom of the slide is clear before use.
• Do not attach or hang items on any part of the bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.
• Keep all assembly tools and small parts out of reach of children during assembly.
• This product is designed for indoor use only.

Package Contents

Before beginning assembly, ensure all parts listed below are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact Bellemave customer support for assistance.

Note: The manufacturer recommends checking the hardware packaging carefully as some customers have reported mislabeled or missing parts.

Setup and Assembly

Assembly typically requires two adults. Please follow the steps below carefully. It is recommended to assemble the bed in the room where it will be used.

Tools Required (Not Included):

• Phillips Head Screwdriver
• Rubber Mallet (optional, for gentle tapping)

Assembly Steps:

1. Step 1: Unpack and Identify Parts.

   Carefully unpack all components and lay them out on a clean, soft surface (e.g., a rug or blanket) to prevent scratching. Identify each part by comparing it to the parts list in your physical manual. Note that some wooden pieces may not be alphabetically labeled, requiring careful identification based on shape and pre-drilled holes.



   Figure 2: Overview of bed components before assembly.

2. Step 2: Assemble the Bed Frame.

   Attach the side rails to the headboard and footboard using the provided bolts and Allen wrench. Do not fully tighten all bolts until the entire frame is assembled to allow for minor adjustments.



   Figure 3: Illustrates the connection points for the bed frame components.
3. Step 3: Install the Ladder.

   Securely attach the ladder rails to the designated points on the bed frame. Ensure the ladder steps are firmly in place and level. The ladder is designed with wider steps for easier climbing.

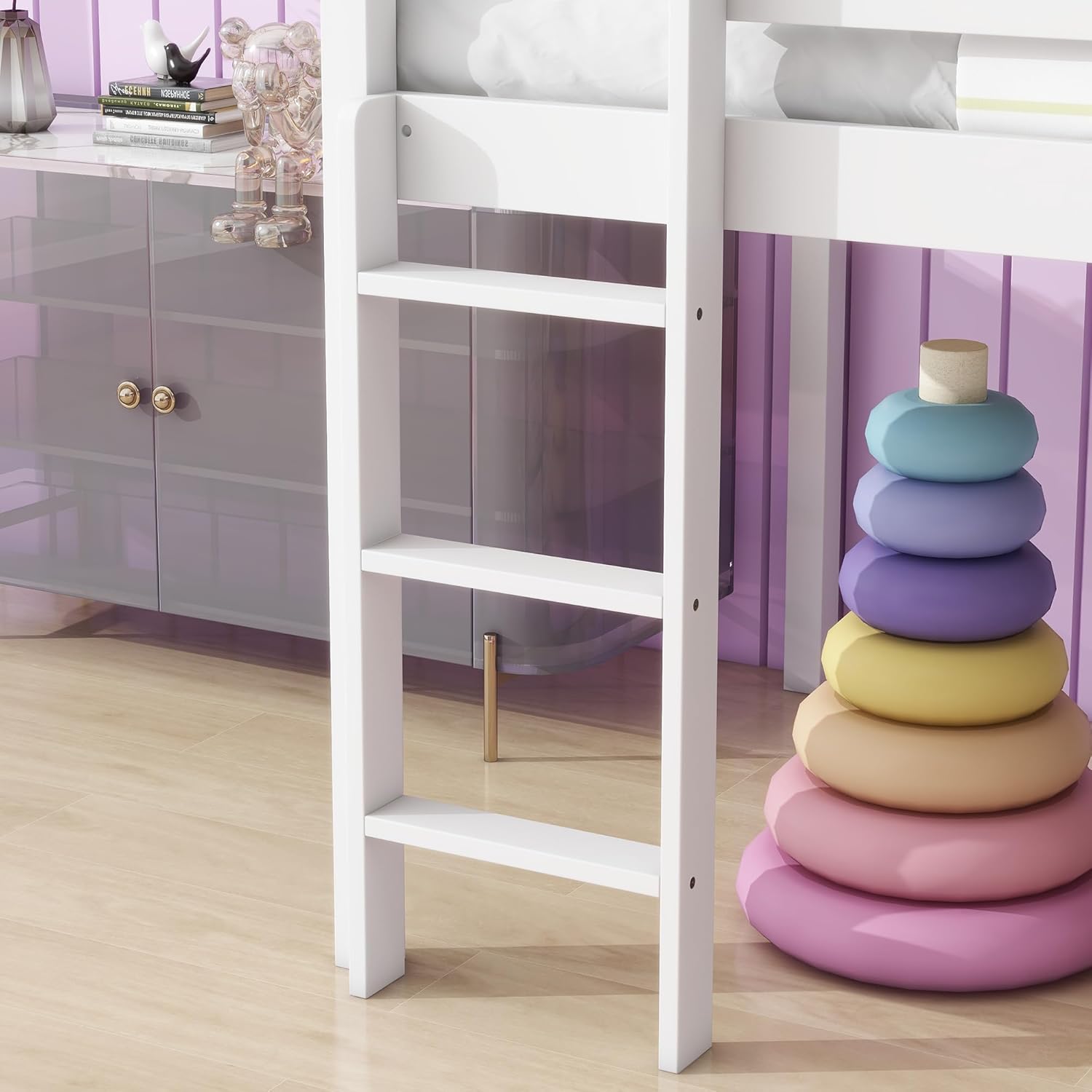

   Figure 4: Detail of the sturdy ladder construction.

4. Step 4: Attach the Slide.

   Connect the slide panels to the bed frame according to the instructions. Ensure the slide is securely fastened and stable. The slide features a smooth panel for safe and fun descent.



   Figure 5: The slide securely attached to the bed frame.

5. Step 5: Place the Slats.

   Lay the 13 poplar plywood slats across the bed frame supports. Ensure they are evenly spaced and secured if attachment points are provided. These slats provide strong stability and eliminate the need for a box spring.



   Figure 6: The wooden slats providing mattress support.
6. Step 6: Final Tightening.

   Once all components are in place and aligned, go back and fully tighten all bolts and screws. Do not overtighten. Ensure the bed is stable and does not wobble.

Operating Instructions

The Bellemave Twin Loft Bed is designed for safe and enjoyable use. Please adhere to the following guidelines:

• Using the Ladder: Always use the integrated ladder to access and exit the loft bed. Ensure hands and feet are dry to prevent slipping.
• Using the Slide: The slide is for single-user descent only. Ensure the landing area at the bottom of the slide is clear of obstructions and other children before sliding. Slide feet first.
• Weight Capacity: Adhere to the recommended weight capacity for the loft bed to ensure safety and structural integrity. (Refer to Specifications section for details).
• Supervision: Young children should always be supervised when using the loft bed, especially the slide and ladder.

Maintenance

Regular maintenance will help prolong the life and safety of your Bellemave Twin Loft Bed.

• Cleaning: Wipe down the bed frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the lacquered finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Tighten any loose hardware to ensure the bed remains stable and secure.
• Structural Integrity: Check for any signs of wear, cracks, or damage to the wooden components. If significant damage is found, discontinue use and contact customer support.
• Mattress Care: Rotate and flip the mattress regularly according to mattress manufacturer guidelines to ensure even wear.

Troubleshooting

Specifications

Figure 7: Detailed dimensions of the Bellemave Twin Loft Bed.

Warranty and Support

Bellemave stands behind the quality of its products. For specific warranty information, please refer to the warranty card included with your purchase or visit the official Bellemave website. If you have any questions, require replacement parts, or need assistance with assembly or troubleshooting, please contact Bellemave customer support.

Customer Support:

• Online: Visit the Bellemave Store on Amazon: Bellemave Store
• Email: Refer to your purchase documentation for direct email support.
• Phone: Refer to your purchase documentation for direct phone support.

Please have your model number (FST00139-T-SK1) and purchase date ready when contacting support.
