Braun Replacement Shaver Body S7 360 Flex Instruction Manual

Introduction

This manual provides essential information for the proper use and maintenance of your Braun Replacement Shaver Body S7 360 Flex, Type 5764. This component is designed to replace the main body of your existing Braun shaver, allowing you to continue using your current shaver head, power cord, and other accessories. Please read these instructions carefully to ensure correct installation and optimal performance.

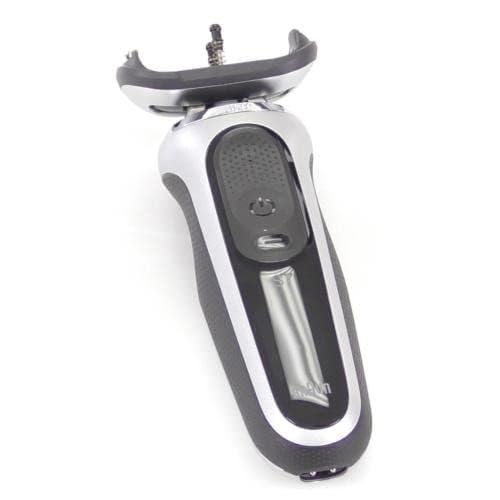

Image: Braun Replacement Shaver Body S7 360 Flex, showing the main unit without the shaving head.

Identifying Your Shaver Type Number

It is crucial to identify the correct type number of your Braun shaver to ensure compatibility with replacement parts. The type number is a four-digit number, typically starting with '5'. It is not the series number (e.g., Series 7, Series 9), as multiple models exist within each series.

How to Locate the Type Number:

1. For shavers with a slide-up trimmer on the back: Slide the trimmer fully upwards. The type number will be visible in the track revealed beneath the trimmer. An example is type 5793.
2. For shavers with a slide-up trimmer on the front: Slide the trimmer fully upwards. The type number will be visible in the area revealed beneath the trimmer.
3. For newer models with a removable shaving head: Carefully remove the shaving head from the shaver body. The type number may be located inside the shaver body, in the area where the shaving head connects. This area might accumulate shaving debris, so cleaning it thoroughly may be necessary to view the number clearly.

Due to the small size and often imprinted nature of the numbering, good lighting and magnification may be required to read the type number accurately.

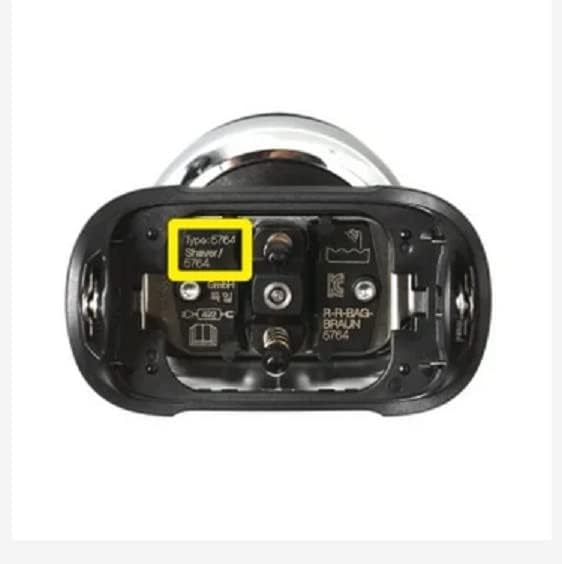

Image: Example of a Braun shaver's bottom, highlighting the location where the type number (e.g., Type 5764) can be found.

Compatibility

This Braun Replacement Shaver Body (Type 5764) is compatible with the following Braun shaver models:

• 7011
• 7012
• 7018
• 7020
• 7027
• 7071
• 7075
• 7081
• 70-B1000s
• 70-B1200s
• 70-B4200cs
• 70-N1000s
• 70-N1200s
• 70-N4300cs
• 70-N7200cc
• 70-S1000s
• 70-S1200s
• 70-S4200cs
• 70-S7000cc
• 70-S7200cc
• 70-S7320cc

Ensure your existing shaver head, cord, and accessories are compatible with this replacement body.

Setup and Installation

This replacement body is designed for easy installation with your existing Braun shaver head and accessories.

1. Preparation: Ensure your original shaver is turned off and unplugged from any power source. Remove the existing shaving head from your old shaver body.
2. Attach Shaving Head: Align your existing Braun shaving head with the top of the new replacement body. Gently press down until it clicks securely into place.
3. Attach Accessories: If your shaver uses additional accessories (e.g., charging stand, cleaning station), ensure they fit correctly with the new body.
4. Initial Charge: It is recommended to fully charge the shaver body before its first use, following the instructions provided with your original shaver's power cord.

Operating Your Shaver

Once the shaving head is securely attached and the unit is charged, operate your shaver as you normally would. The replacement body functions identically to the original, providing power and housing for the internal components. Refer to your original Braun shaver's instruction manual for detailed operating procedures, including wet/dry usage, trimming functions, and battery indicators.

Maintenance and Cleaning

Regular cleaning and maintenance are essential for the longevity and performance of your shaver. While the replacement body itself requires minimal maintenance, proper care of the shaving head and internal components is vital.

• Daily Cleaning: After each use, remove the shaving head and tap out any loose hair. Rinse the shaving head and the area beneath it on the shaver body under warm running water. Allow both parts to air dry completely before reassembling.
• Deep Cleaning: Periodically, perform a more thorough cleaning as described in your original shaver's manual. This may involve using a cleaning brush or a cleaning solution if your model supports it.
• Lubrication: Some shaver heads benefit from occasional lubrication. Consult your original shaver's manual for specific recommendations.
• Storage: Store the shaver in a dry place, away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues with your shaver after replacing the body, consider the following common troubleshooting steps:

• Shaver Not Turning On:
  • Ensure the shaver is fully charged.
  • Verify the power cord is securely connected to both the shaver and the power outlet.
  • Check if the power button is functioning correctly.
• Shaver Head Not Attaching Securely:
  • Ensure the shaving head is correctly aligned with the body's connection points.
  • Apply firm, even pressure until you hear a click.
  • Inspect both the shaver head and the body for any obstructions or damage that might prevent a secure fit.
• Reduced Shaving Performance:
  • This is typically related to the shaving head, not the body. Ensure the shaving head is clean and not worn out. Replace the shaving head if necessary (Braun recommends replacing shaving heads every 18 months).

For issues not resolved by these steps, please refer to your original shaver's comprehensive troubleshooting guide or contact Braun customer support.

Specifications

Warranty and Support

Specific warranty information for this replacement shaver body is not provided in this manual. Please refer to the product packaging or contact the seller, Shaver Outlet, Inc., for details regarding warranty coverage and customer support. For general Braun product support, visit the official Braun website or contact their customer service.

Seller: Shaver Outlet, Inc.
