EGGER Aquadura Hybridboden EDF200 User Manual

1. Product Overview

The EGGER Aquadura Hybridboden EDF200 is a high-quality, water-resistant flooring solution designed for various living spaces, including moisture-prone areas like bathrooms and kitchens. This hybrid flooring combines durability with an elegant natural wild oak appearance, featuring an ultra-matte "Matt-Touch" surface that mimics oiled wood.

Key features include a water-resistant Aqua CLIC it! click system providing 24-hour moisture protection, an integrated impact sound insulation layer made from recycled natural fibers, and a dirt-repellent, easy-to-clean surface. It is suitable for heavy domestic use and moderate commercial use (Usage Class 32).

Image: Overview of the EGGER Aquadura Hybridboden EDF200 in a room setting, showcasing its natural wild oak appearance.

2. Safety Instructions

• Ensure the subfloor is clean, dry, level, and structurally sound before installation.
• Always wear appropriate personal protective equipment (PPE) such as gloves and safety glasses during installation.
• Store flooring planks in their original packaging in the room where they will be installed for at least 48 hours prior to installation to allow for acclimatization.
• Keep children and pets away from the installation area to prevent accidents.
• Dispose of waste materials responsibly according to local regulations.
• Avoid prolonged exposure to standing water, despite the water-resistant properties. Wipe up spills promptly.

3. Setup and Installation

The EGGER Aquadura Hybridboden features the Aqua CLIC it! click system for straightforward installation. Each package contains 8 planks, covering a total area of 1.995 m². A detailed installation guide is included with each package.

3.1 Preparation

1. Acclimatization: Allow the sealed packages of flooring to acclimatize in the installation room for at least 48 hours at a stable room temperature (18-25°C) and relative humidity (50-60%).
2. Subfloor: Ensure the subfloor is clean, dry, flat, and free of cracks. Any unevenness greater than 3mm over 1 meter should be leveled.
3. Vapor Barrier: For mineral subfloors (concrete, screed), install a suitable vapor barrier to protect against residual moisture.
4. Integrated Underlay: The flooring comes with an integrated impact sound insulation mat made from recycled natural fibers, eliminating the need for an additional underlay.

3.2 Installation Steps

1. Begin laying the first row of planks along the longest wall, ensuring a consistent expansion gap of 10-15mm from the wall using spacers.
2. Connect planks end-to-end by angling and dropping them into place using the Aqua CLIC it! system.
3. For subsequent rows, angle the long side of the new plank into the previously laid row and then gently press down to engage the click mechanism on the short end.
4. Stagger the end joints of adjacent rows by at least 30cm for stability and aesthetic appeal.
5. Cut planks to size using appropriate tools, ensuring clean cuts.
6. Install matching skirting boards (e.g., L667) and corner elements after the flooring is laid to cover expansion gaps.

Image: A single plank of EGGER Aquadura Hybridboden, showing its profile and natural wood grain.

Image: Cross-section diagram illustrating the multi-layered structure of the EGGER AquaDura Hybridboden, including the ultra-matte wear layer, decorative layer, HDF+ core board, balancing layer, integrated sound insulation, and the Aqua CLIC it! connection system.

Image: A view of the EGGER Aquadura Hybridboden planks laid out, demonstrating the appearance of the installed floor.

4. Operating and Usage

The EGGER Aquadura Hybridboden is designed for versatile use in residential and light commercial settings. Its robust construction and water-resistant properties make it suitable for various rooms.

• Suitable Areas: Ideal for living rooms, bedrooms, hallways, and especially for moisture-prone areas like kitchens and bathrooms due to its 24-hour water resistance.
• Pet-Friendly: The durable and easy-to-clean surface is well-suited for households with pets, resisting scratches and making cleaning pet messes simple.
• Underfloor Heating: Compatible with most common underfloor heating systems. Consult the detailed installation guide for specific requirements and temperature limits.
• Sound Reduction: The integrated impact sound insulation significantly reduces walking noise, contributing to a quieter indoor environment.

Image: The EGGER Aquadura Hybridboden installed in a child's room, demonstrating its suitability for active household environments.

5. Maintenance and Care

Maintaining your EGGER Aquadura Hybridboden is simple due to its dirt-repellent and easy-care surface. Regular cleaning will preserve its appearance and longevity.

• Daily Cleaning: Use a soft broom, vacuum cleaner with a hard floor attachment, or a damp mop. Ensure the mop is well-wrung to avoid excessive moisture.
• Spills: Wipe up any spills immediately with a clean, dry cloth. Although water-resistant, prolonged exposure to standing water should be avoided.
• Deep Cleaning: For more thorough cleaning, use a mild, pH-neutral floor cleaner specifically designed for laminate or hybrid flooring. Avoid abrasive cleaners, waxes, or polishes.
• Protection: Use felt pads under furniture legs to prevent scratches. Place doormats at entrances to trap dirt and grit.
• Avoid: Do not use steam cleaners, highly acidic or alkaline cleaning agents, or steel wool, as these can damage the surface.

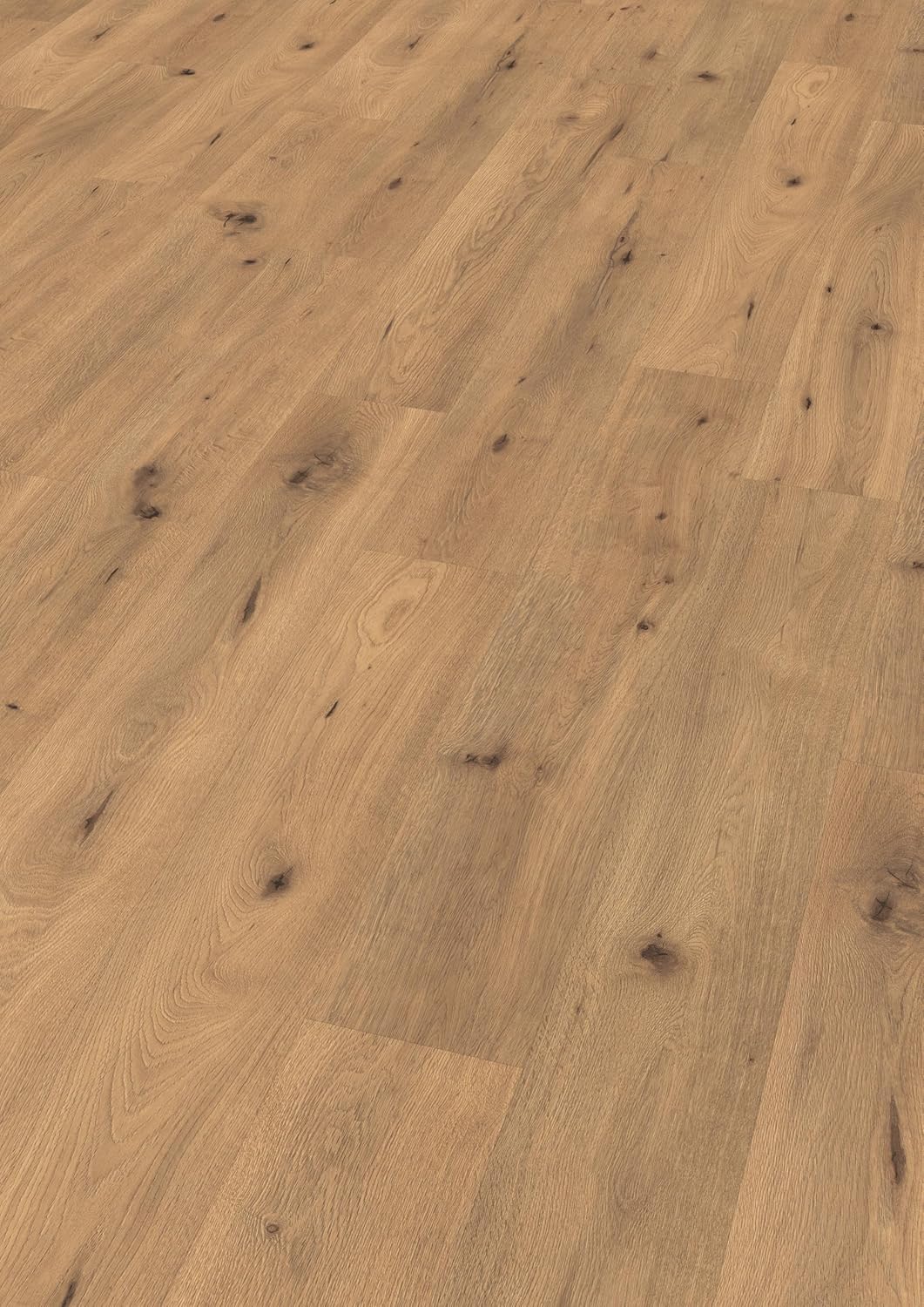

Image: A close-up view of the EGGER Aquadura Hybridboden surface, highlighting its natural wood texture and clean appearance, which is easy to maintain.

6. Troubleshooting

This section addresses common issues you might encounter with your EGGER Aquadura Hybridboden.

7. Specifications

Detailed technical specifications for the EGGER Aquadura Hybridboden EDF200.

Image: Visual representation of key technical specifications, including warranty period, plank format, usage class, thickness, click profile, antistatic surface, 4-sided bevel, Aqua CLIC it! system, 24-hour water resistance, and overall dimensions.

8. Warranty and Support

The EGGER Aquadura Hybridboden EDF200 comes with a 20-year warranty, reflecting its high quality and durability. This warranty covers manufacturing defects and ensures long-term performance under normal use and maintenance conditions.

For detailed warranty terms, claims, or technical support, please refer to the official Egger website or contact your authorized Egger dealer. Keep your purchase receipt as proof of purchase for warranty purposes.

Image: Information regarding EGGER's commitment to sustainability and environmental certifications, including the Blue Angel, EU Ecolabel, and PEFC, highlighting responsible material sourcing and low emissions.
