1. Introduction
Thank you for choosing the DMASUN Model 106b Magnetic Rowing Machine. This manual provides essential information for the safe and efficient use of your new fitness equipment. Please read it thoroughly before assembly and operation, and keep it for future reference.
The DMASUN Model 106b is designed for home use, offering a full-body workout with 16 levels of silent magnetic resistance, app compatibility, and a comfortable seat. Its robust design supports users up to 158.8 kg (350 lbs).
2. Important Safety Information
Before starting any exercise program, consult with your physician. This is especially important for individuals over the age of 35 or those with pre-existing health conditions.
- Read all instructions in this manual before using the rowing machine.
- Keep children and pets away from the equipment during use.
- Place the rowing machine on a flat, stable surface with adequate clearance around it.
- Inspect the equipment for loose or worn parts before each use. Do not use if damaged.
- Wear appropriate exercise clothing and footwear.
- Do not exceed the maximum user weight of 158.8 kg (350 lbs).
- Stop exercising immediately if you feel faint, dizzy, or experience pain.
- Ensure all bolts and nuts are securely tightened before use.
3. Product Overview
Your DMASUN Model 106b Magnetic Rowing Machine features several key components and design elements for an effective workout. Please familiarize yourself with them.
Figure 1: Key features and components of the DMASUN Model 106b Magnetic Rowing Machine.
The rowing machine is built with an upgraded magnetic control system for stronger resistance and a high-quality large flywheel for smooth, quiet operation. Its automotive-grade steel structure ensures durability and a high load-bearing capacity of 158.8 kg (350 lbs). The double slide rails contribute to a stable and silent workout experience.
4. Assembly Instructions
The DMASUN Model 106b rowing machine is designed for easy assembly, with most users completing it within 20 minutes. Follow these steps carefully. An assembly video is also provided for visual guidance.
4.1 Assembly Video Guide
Video 1: JOROTO JR30 Rowing Machine Installation Video. This video demonstrates the step-by-step assembly process for a similar rowing machine model, providing clear visual instructions. Please note that while the model shown is JOROTO JR30, the assembly steps are generally applicable to the DMASUN Model 106b.
4.2 Step-by-Step Assembly
- Unpack Components: Carefully remove all parts from the packaging and lay them out. Verify against the parts list in your physical manual.
- Install the Front Foot Tube: Attach the front foot tube to the main frame using the provided bolts and washers. Ensure it is securely fastened.
- Install the Seat Cushion Bracket: Secure the seat cushion bracket to the sliding rail.
- Install the Sliding Rail: Connect the sliding rail to the main body of the rowing machine. Ensure the connection is firm and stable. The double sliding rail design enhances stability and safety.
- Install the Handle: Attach the handle to the designated area on the main frame.
- Install the Footpads and Seat Cushion: Attach the footpads to the base and the comfortable seat cushion to the seat bracket.
- Install the Electronic Meter: Insert batteries into the LCD monitor and connect it to the main unit. Secure the monitor in its holder.
- Final Check: Before first use, double-check all connections and ensure all bolts are tightened.
5. Operating Instructions
The DMASUN Model 106b offers a versatile workout experience. Familiarize yourself with its features for optimal performance.
5.1 Adjusting Resistance Levels
Your rowing machine features 16 levels of magnetic resistance, allowing you to customize your workout intensity from beginner to advanced. Rotate the tension control knob located on the main unit to increase or decrease resistance.
Figure 2: Resistance adjustment knob and suggested intensity levels. Levels 1-4 are for beginners, 5-8 for aerobic training, 9-12 for fat burning, and 13-16 for high resistance.
5.2 Smart Fitness Tracking & App Connectivity
The integrated LCD screen displays real-time workout data including time, stroke count, speed, distance, and calories burned. For an enhanced experience, connect your smartphone or device via Bluetooth to compatible fitness applications like KINOMAP. This allows for virtual rowing experiences and advanced workout planning.
Note: When using a connected app, the rowing machine's LCD screen may not display data simultaneously.
5.3 Proper Rowing Technique
To maximize effectiveness and prevent injury, maintain proper rowing form:
- Catch: Knees bent, shins vertical, arms extended forward, back straight, shoulders relaxed.
- Drive: Push off with your legs, then lean back slightly, and finally pull the handle towards your abdomen.
- Finish: Legs extended, body leaning back slightly, handle at your abdomen, elbows past your body.
- Recovery: Extend arms forward, then lean forward, and finally bend knees to return to the catch position.
6. Maintenance and Storage
Regular maintenance ensures the longevity and optimal performance of your rowing machine.
6.1 Cleaning
- Wipe down the machine with a damp cloth after each use to remove sweat and dust.
- Avoid using abrasive cleaners or solvents that could damage the finish.
6.2 Inspection
- Periodically check all bolts, nuts, and moving parts for tightness and wear. Tighten as necessary.
- Ensure the sliding rail is clean and free of debris to maintain smooth seat movement.
6.3 Storage
The DMASUN Model 106b is designed for convenient vertical storage, saving up to 90% of floor space. Integrated transport wheels facilitate easy movement.

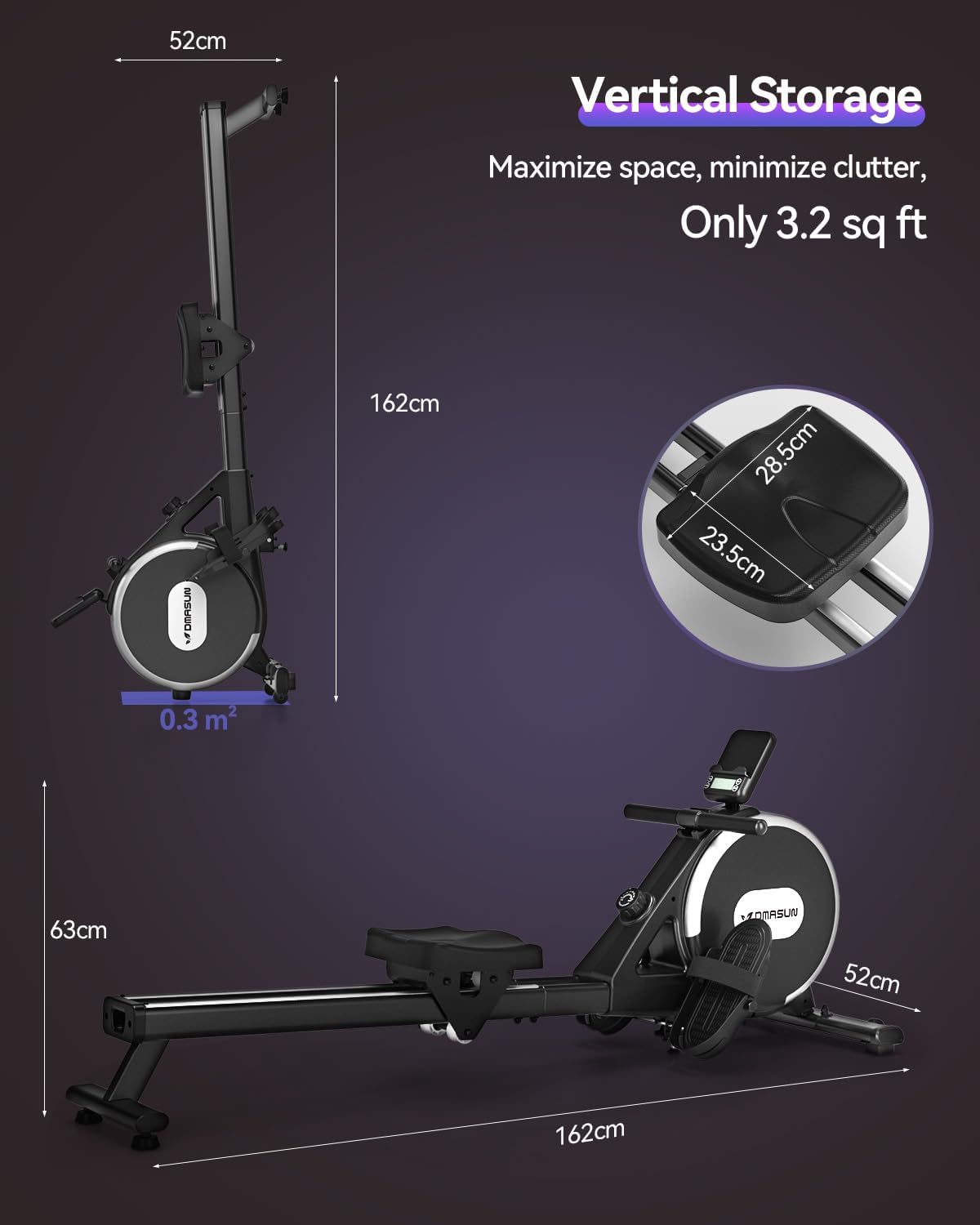

Figure 3: Vertical storage configuration of the rowing machine, highlighting its compact footprint.
- To store vertically, lift the rear of the machine until it stands upright. Ensure it is stable before leaving it unattended.
- Store in a dry, cool place away from direct sunlight and extreme temperatures.
7. Troubleshooting
If you encounter any issues with your DMASUN Model 106b, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No display on LCD monitor | Batteries are dead or incorrectly installed. Loose connection. | Check battery orientation and replace if necessary. Ensure the monitor cable is securely connected. |
| Resistance feels inconsistent or too low/high | Resistance knob not properly adjusted. Internal mechanism issue. | Adjust the resistance knob to your desired level. If the issue persists, contact customer support. |
| Squeaking or grinding noise during use | Loose bolts. Debris on the sliding rail. Worn parts. | Check and tighten all bolts. Clean the sliding rail. If noise continues, contact customer support. |
| Seat does not slide smoothly | Debris on the sliding rail. Rollers need lubrication. | Clean the sliding rail thoroughly. Apply a silicone-based lubricant to the seat rollers if needed. |
| App connectivity issues | Bluetooth not enabled on device. App not properly paired. | Ensure Bluetooth is active on your device. Follow the app's instructions for pairing. Restart both devices if necessary. |
For issues not listed here or if solutions do not resolve the problem, please contact DMASUN customer support.
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | DMASUN |
| Model Name | 106b |
| Resistance Mechanism | Magnetic |
| Resistance Levels | 16 levels |
| Maximum Weight Recommendation | 158.8 kg (350 lbs) |
| Display Type | LCD Screen |
| Special Features | App Connectivity (Kinomap compatible), Adjustable Magnetic Resistance, Ergonomic Seat, Foldable Design for Vertical Storage |
| Frame Material | Alloy Steel, Aluminum |
| Product Dimensions (L x W x H) | Approximately 162cm x 52cm x 63cm (unfolded) |
| UPC | 737970306008 |
9. Warranty and Customer Support
DMASUN is committed to providing high-quality fitness equipment and excellent customer service.
- Warranty: The product includes a 3-year parts protection warranty.
- Support: For any questions, assistance with assembly, operation, or troubleshooting, please contact DMASUN customer support. You can find contact information in the packaging or by scanning the QR code provided with your product. DMASUN offers 24/7 online support.
We appreciate your trust in DMASUN and are dedicated to helping you achieve your fitness goals.
