Introduction
This manual provides essential information for the safe operation, maintenance, and troubleshooting of your EUYBIKE Foldable Electric Bike. Please read this manual thoroughly before your first ride to ensure proper use and to maximize the lifespan of your e-bike.
Image: The EUYBIKE Foldable Electric Bike in its upright, ready-to-ride configuration, with a smaller inset image showing the bike folded.
Safety Guidelines
Always prioritize safety when operating your electric bike. Adhere to local traffic laws and wear appropriate safety gear, including a helmet. Regular inspections are crucial for safe operation.
- Helmet Use: Always wear a certified helmet.
- Pre-Ride Check: Before each ride, inspect brakes, tires, battery level, and all quick-release mechanisms.
- Weather Conditions: Exercise caution in wet or slippery conditions.
- Weight Limit: Do not exceed the maximum load capacity of 300 lbs.
- Age Range: Suitable for adult riders.
Setup and Assembly
Your EUYBIKE comes 95% pre-assembled. Follow these steps to complete the assembly and prepare for your first ride.
Unboxing and Initial Setup
- Carefully open the package and remove the electric bike.
- Remove all protective packaging materials from the bike frame, wheels, and handlebars.
Video: EUYBIKE D13 Electric Bike Installation Video. This video demonstrates the unboxing process, removal of protective film, and initial assembly steps including handlebar and frame setup.
Handlebar and Frame Assembly
- Insert the handlebar into the slot of the riser and secure it.
- Straighten the riser and fasten it to lock it in place.
- Straighten the main body of the bike and fix the locking bolt to secure the frame.
Image: Diagram illustrating key components of the electric bike, including the saddle, battery, folding frame quick-release, LED rear light, display, brake lever, front light, front shock absorber, disc brake, and foldable pedal with reflective.
Saddle and Battery Installation
- Loosen the latch and install the saddle into the seat post. Adjust to a comfortable height and secure the latch.
- Ensure the battery is properly seated and locked into its compartment. The battery can be removed for charging or security.
- Remove the key from the handlebar cable and insert it into the battery lock to activate the bike's electrical system.

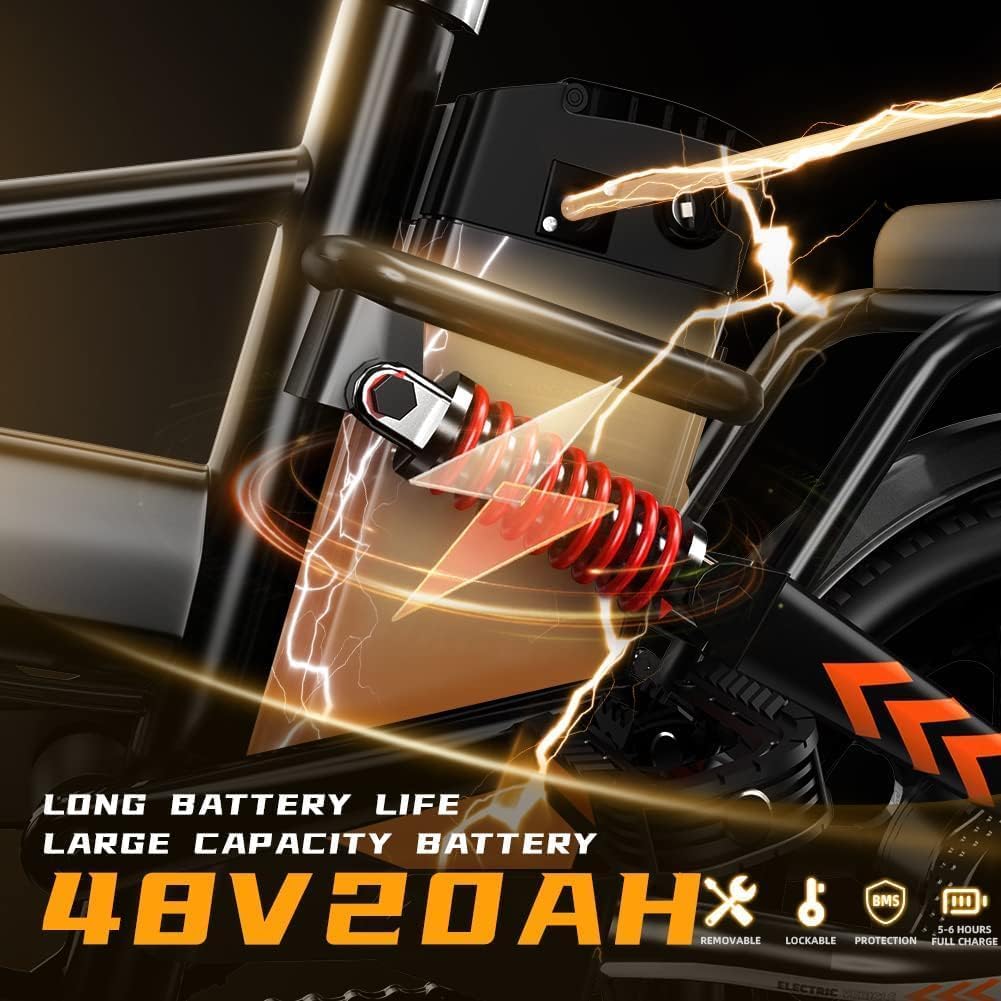

Image: Close-up of the 48V 20AH lithium battery, highlighting its long battery life and large capacity. The image also shows the battery's lockable and removable features.
Operating Instructions
Your EUYBIKE offers three distinct cycling modes for versatile riding.
Cycling Modes
- Electric Bike Mode: Utilizes the motor for full electric propulsion.
- Pedal-Assist Mode: The motor provides assistance as you pedal, extending range and reducing effort.
- Normal Bike Mode: Ride like a traditional bicycle without motor assistance.
Image: Visual representation of the three cycling modes: Regular Pedaling, Pedal-Assist, and Electric Throttle. The image also labels handlebar controls such as non-slip grip, brake lever, horn button, headlight switch, electric throttle, speed display, mileage display, and battery display.
Controls and Display
Familiarize yourself with the handlebar controls and the display for optimal riding experience.
- Electric Throttle: Located on the right handlebar for electric bike mode.
- Brake Levers: Front and rear brake levers for stopping.
- Headlight Switch: Activates the front headlight for visibility.
- Horn Button: For alerting others.
- Display: Shows speed, mileage, and battery level.
Image: Detailed view of the 48V 400W high-speed brushless motor, emphasizing its stable, safe, and efficient operation. Key performance metrics like 30° gradeability, 20 MPH max speed, and 42 N.M max torque are highlighted.
Folding Instructions
The EUYBIKE is designed for portability and easy storage. Follow these steps to fold your bike.
- Lower the seat post to its lowest position.
- Fold the handlebars down by releasing the quick-release lever on the stem.
- Release the main frame hinge lock and fold the bike in half.
- Fold the pedals inward if they are foldable.
Video: EUYBIKE D13 Electric Bike Foldable Video. This video demonstrates the step-by-step process of folding the electric bike for compact storage and transport.
Image: Visual guide showing the folded and unfolded dimensions of the EUYBIKE electric bike, illustrating its compact size when folded for storage in various spaces like a car trunk or elevator.
Maintenance
Regular maintenance ensures the longevity and safe operation of your EUYBIKE.
- Tires: Check tire pressure regularly. The 14"x2.1" puncture-resistant fat tires are designed for durability.
- Brakes: Inspect dual mechanical disc brakes for wear and proper function. Adjust as needed.
- Battery: Keep the battery charged. Store in a cool, dry place if not in use for extended periods.
- Cleaning: Clean the bike with a damp cloth. Avoid high-pressure washing directly on electrical components.
- Lubrication: Lubricate the chain and moving parts periodically.
Image: Illustration of the electric bike's dual mechanical disc brakes, showing both the front wheel disc brake and the rear wheel disc brake for effective stopping power.
Image: Close-up view highlighting the front suspension fork, indicating the presence of dual shock absorbers for a smoother ride over varied terrain.
Troubleshooting
This section addresses common issues you might encounter with your electric bike.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not turning on | Battery not inserted correctly or not charged; key not fully inserted. | Ensure battery is fully seated and locked. Check battery charge. Insert key fully and turn to ON position. |
| Motor not assisting | Low battery; incorrect mode selected; loose connection. | Charge battery. Switch to electric or pedal-assist mode. Check all electrical connections. |
| Brakes feel weak | Worn brake pads; loose brake cable; air in hydraulic system (if applicable). | Inspect and replace brake pads if worn. Adjust brake cable tension. Consult a professional for hydraulic brake issues. |
Specifications
Detailed technical specifications for the EUYBIKE Foldable Electric Bike.
| Feature | Detail |
|---|---|
| Bike Type | Electric Bike, Commute Bike |
| Motor | 400W (Peak 500W) Brushless Gear Motor |
| Battery | 48V 20AH Removable Lithium Battery (approx. 10.6 lbs) |
| Max Speed | Up to 22 MPH |
| Range (Pure Electric) | Up to 32+ Miles |
| Range (Pedal-Assist) | Up to 45 Miles |
| Wheel Size | 14 Inches (14"x2.1" Puncture Resistant Fat Tires) |
| Frame Material | Alloy Steel |
| Suspension Type | Dual Shock Absorbers (Front & Rear) |
| Brake Style | Dual Mechanical Disc Brakes |
| Folded Dimensions | 25"x14"x27" (approx.) |
| Item Weight | 54.6 Pounds |
| Max Load Capacity | 300 lbs |
| Included Components | Tool Kit |
Warranty and Support
EUYBIKE is committed to customer satisfaction and product quality.
- Warranty: A 1-year manufacturer's limited warranty is provided for the motor, battery, charger, and controller.
- Customer Support: For any questions or assistance, please contact EUYBIKE customer service. Refer to your purchase documentation for contact details.
