1. Introduction
Thank you for choosing the LEBENLANG LBL0380W WiFi Electric Convector Heater. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new heater. Please read these instructions thoroughly before use and retain them for future reference.
Image 1: LEBENLANG LBL0380W Electric Convector Heater with remote control and smartphone application interface.
2. Safety Instructions
To prevent injury or damage, always observe the following safety precautions:
- Ensure the heater is placed on a stable, level surface or securely mounted to a wall.
- Do not cover the heater, as this can lead to overheating. Maintain adequate clearance around the unit for proper ventilation.
- Keep children and pets away from the heater, especially when it is in operation.
- Do not operate the heater near water or in excessively damp environments, unless specifically designed and certified for such use (IP24 rating allows for bathroom use, but avoid direct water spray).
- Unplug the heater from the power outlet before cleaning or performing any maintenance.
- If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- This appliance is equipped with overheating and tip-over protection for enhanced safety.
3. Package Contents
Verify that all items are present in the package:
- LEBENLANG LBL0380W Electric Convector Heater
- Remote Control
- Freestanding Feet (2 units)
- Wall Mounting Kit (brackets, screws, wall plugs)
- User Manual
4. Installation
The LEBENLANG LBL0380W heater offers flexible installation options: freestanding or wall-mounted.
4.1 Freestanding Installation
- Carefully unpack the heater and all accessories.
- Attach the two freestanding feet to the bottom of the heater using the provided screws. Ensure they are securely fastened.
- Place the heater on a stable, flat surface, ensuring it is not obstructed and has sufficient clearance from walls and furniture.
4.2 Wall-Mounted Installation
- Choose a suitable wall location, ensuring it is away from flammable materials and has a power outlet nearby.
- Using the wall mounting kit, mark the drilling points on the wall.
- Drill holes and insert the wall plugs.
- Secure the mounting brackets to the wall with the provided screws.
- Carefully hang the heater onto the mounted brackets, ensuring it is firmly seated and level.
Image 2: Illustration of the LEBENLANG LBL0380W heater's wall-mounted and freestanding installation options, highlighting safety features.
5. Operating Instructions
The heater can be controlled via its integrated touch panel, the included remote control, or the smartphone application.
5.1 Control Panel
The digital display and touch buttons on the side of the heater allow for direct control:
- Power Button: Turns the heater ON/OFF.
- Mode/Timer Button (M): Cycles through power modes (800W, 1200W ECO, 2000W Power) and activates the timer function.
- Temperature Adjustment (+/-): Increases or decreases the desired temperature setting.
- WiFi Function Button: Activates or deactivates the WiFi connection for app control.
Image 3: Close-up view of the LEBENLANG LBL0380W heater's digital control panel, showing power, mode, temperature, and WiFi buttons.
5.2 Remote Control
The remote control provides convenient access to the heater's functions from a distance. The buttons generally mirror those on the control panel.
5.3 Smartphone Application (Tuya Smart)
For advanced control and scheduling, download the "Tuya Smart" app from your device's app store.
- Download & Install: Search for "Tuya Smart" in the App Store (iOS) or Google Play Store (Android) and install it.
- Register/Log In: Create an account or log in if you already have one.
- Pairing: Follow the in-app instructions to add your LEBENLANG LBL0380W heater. This typically involves putting the heater into pairing mode (refer to the app for specific steps, usually by pressing and holding the WiFi button on the heater).
- Control: Once paired, you can remotely adjust temperature, change modes, set timers, and create weekly schedules from your smartphone.
Image 4: A smartphone screen showing the Tuya Smart application, used for controlling the LEBENLANG LBL0380W heater remotely.
6. Features
- Adjustable Power Modes: Select between 800W, 1200W (ECO mode for energy saving), and 2000W (Power mode for rapid heating) to suit your needs and room size.
- WiFi & App Control: Manage your heater from anywhere using the Tuya Smart app, allowing for convenient temperature adjustments and scheduling.
- Rapid and Uniform Heat: Convection heating technology ensures quick and even distribution of warmth throughout the room.
- Programmable Timer: Set daily or weekly heating schedules to optimize comfort and energy consumption.
- Safety Certifications: GS certified and IP24 rated, making it suitable for use in bathrooms (avoid direct water spray). Includes overheating and tip-over protection.
7. Maintenance
Regular maintenance ensures optimal performance and longevity of your heater.
- Cleaning: Before cleaning, always unplug the heater and allow it to cool completely. Wipe the exterior with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Storage: If storing the heater for an extended period, ensure it is clean and dry. Store it in a cool, dry place, preferably in its original packaging.
- No Internal Maintenance: The heater does not require any internal user maintenance. Do not attempt to open or repair the unit yourself. Contact qualified service personnel if needed.
8. Troubleshooting
If you encounter issues with your heater, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Heater does not turn on | No power supply; Power button not pressed; Tip-over switch activated | Check power outlet and plug; Press power button; Ensure heater is upright on a stable surface. |
| No heat output | Temperature setting too low; Overheating protection activated | Increase desired temperature; Unplug, let cool for 30 minutes, then restart. Ensure proper ventilation. |
| WiFi connection fails | Incorrect pairing procedure; Router issues; Heater too far from router | Repeat pairing steps in the app; Restart router; Move heater closer to router. |
| Unusual noises | Normal expansion/contraction of materials; Loose components | Minor clicking sounds are normal during heating/cooling. If loud or persistent, discontinue use and contact support. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | LEBENLANG |
| Model Number | LBL0380W |
| Power Settings | 800W, 1200W (ECO), 2000W (Power) |
| Voltage | 220 Volts |
| Dimensions (W x H x D) | 88 cm x 44 cm x 5 cm |
| Weight | Approx. 10.3 kg |
| Recommended Room Size | Up to 50 m² |
| Special Features | WiFi, App Control, Remote Control, Digital Display, Timer, Overheating Protection, Tip-over Protection |
| Safety Rating | GS Certified, IP24 (suitable for bathrooms) |

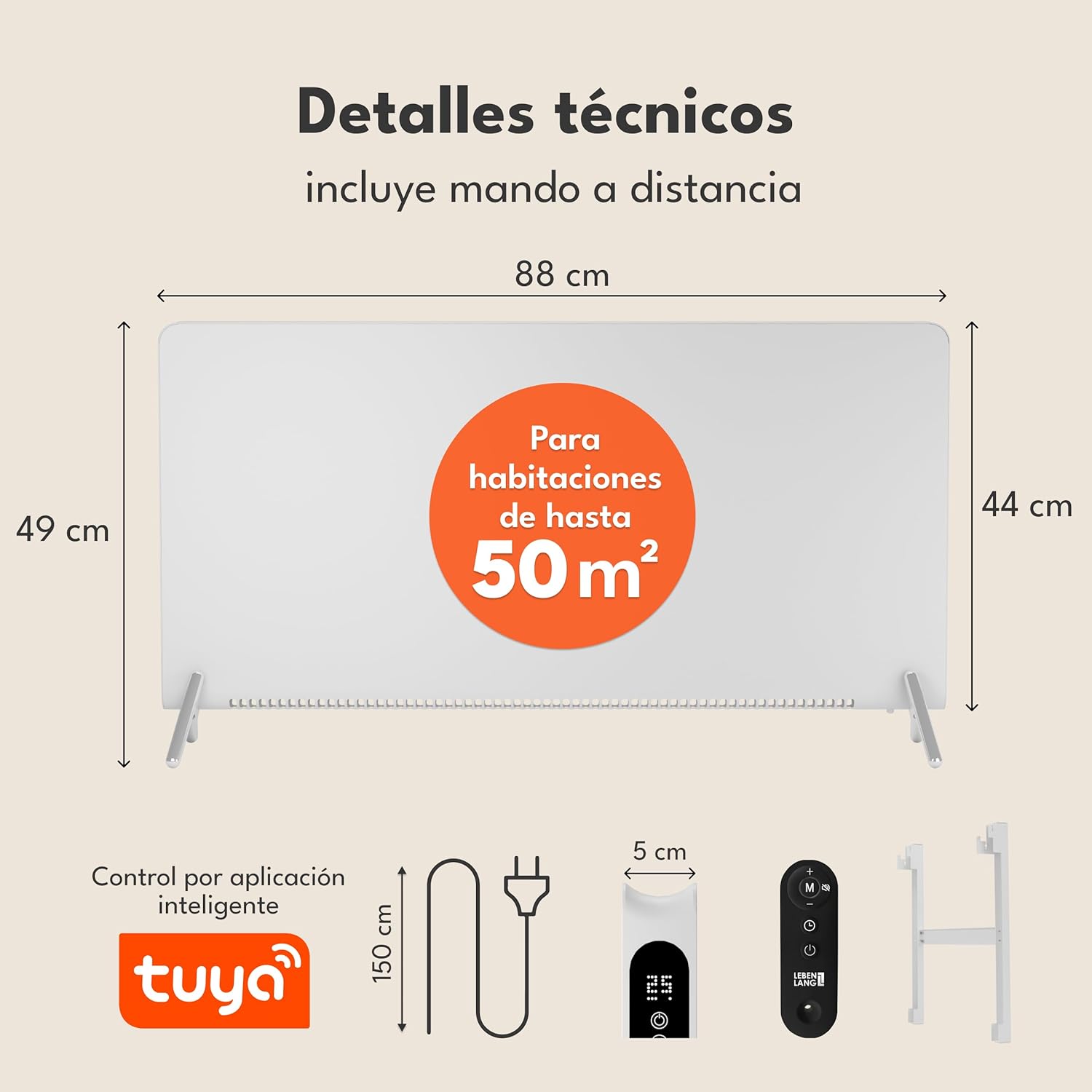

Image 5: Technical details and dimensions of the LEBENLANG LBL0380W Electric Convector Heater, including power cord length and remote control.
10. Warranty and Support
For warranty information, product support, or service inquiries, please refer to the warranty card included with your product or contact LEBENLANG customer service directly. Contact details can typically be found on the manufacturer's official website or on your purchase receipt.
