1. Introduction
Thank you for choosing the DDPAI MINI2X Dash Cam. This manual provides detailed instructions on how to set up, operate, and maintain your dash cam to ensure optimal performance and safety. The MINI2X features 2K QHD recording, a 3600 rotatable lens, advanced Night Vision 2.0, intelligent parking monitoring, 5G WiFi connectivity, and ADAS safety features, designed to provide clear and reliable footage of your journeys.
2. What's in the Box
- DDPAI MINI2X Dash Cam
- Car Charger
- Charging Cable
- Installation Tool

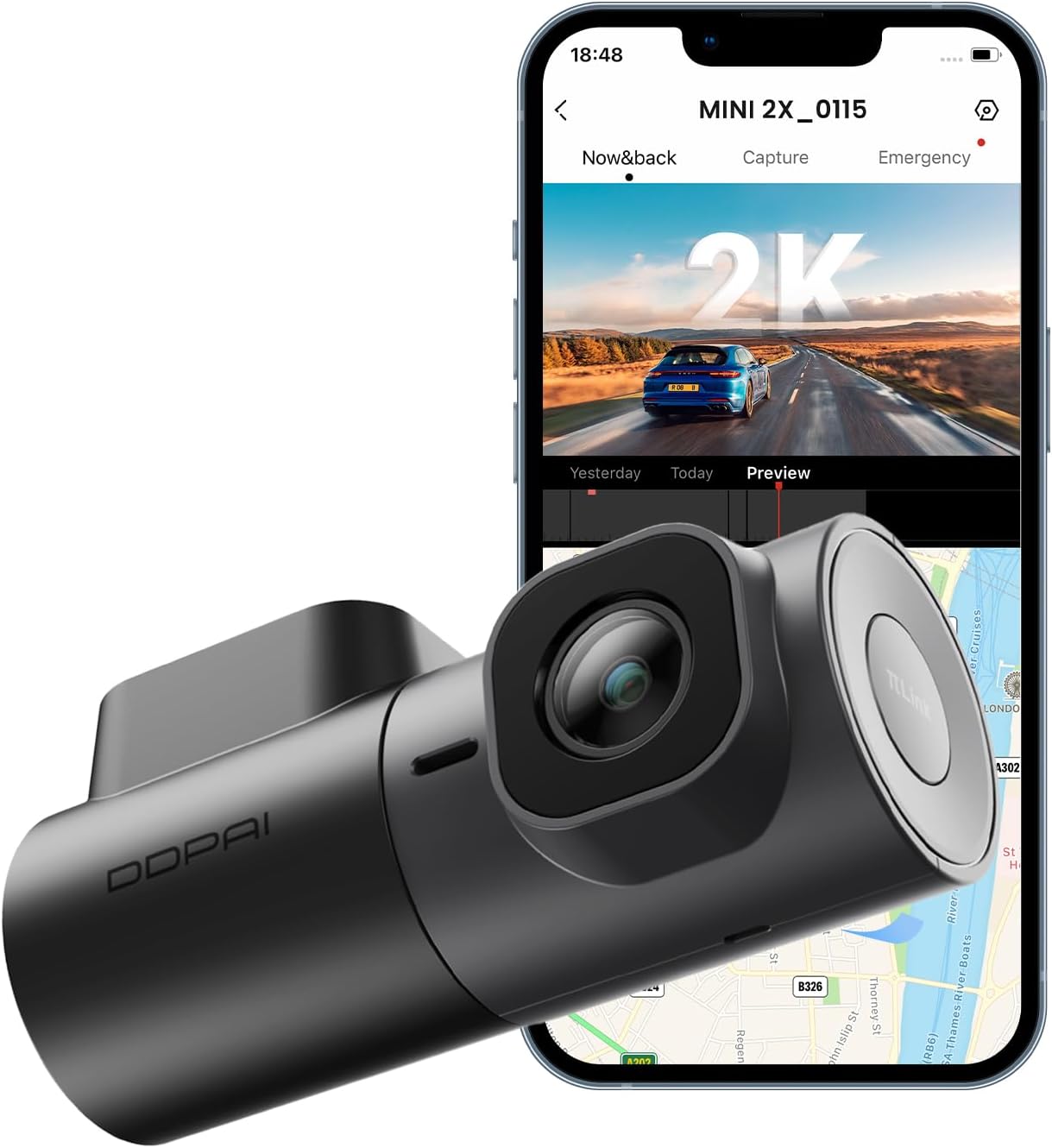

Image: The DDPAI MINI2X Dash Cam shown alongside a smartphone displaying its companion application, illustrating the device and its digital interface.
3. Setup Guide
3.1. Mounting the Dash Cam
Select a suitable location on your windshield, preferably behind the rearview mirror, to ensure an unobstructed view of the road and minimal distraction. Clean the area thoroughly before attaching the dash cam mount.

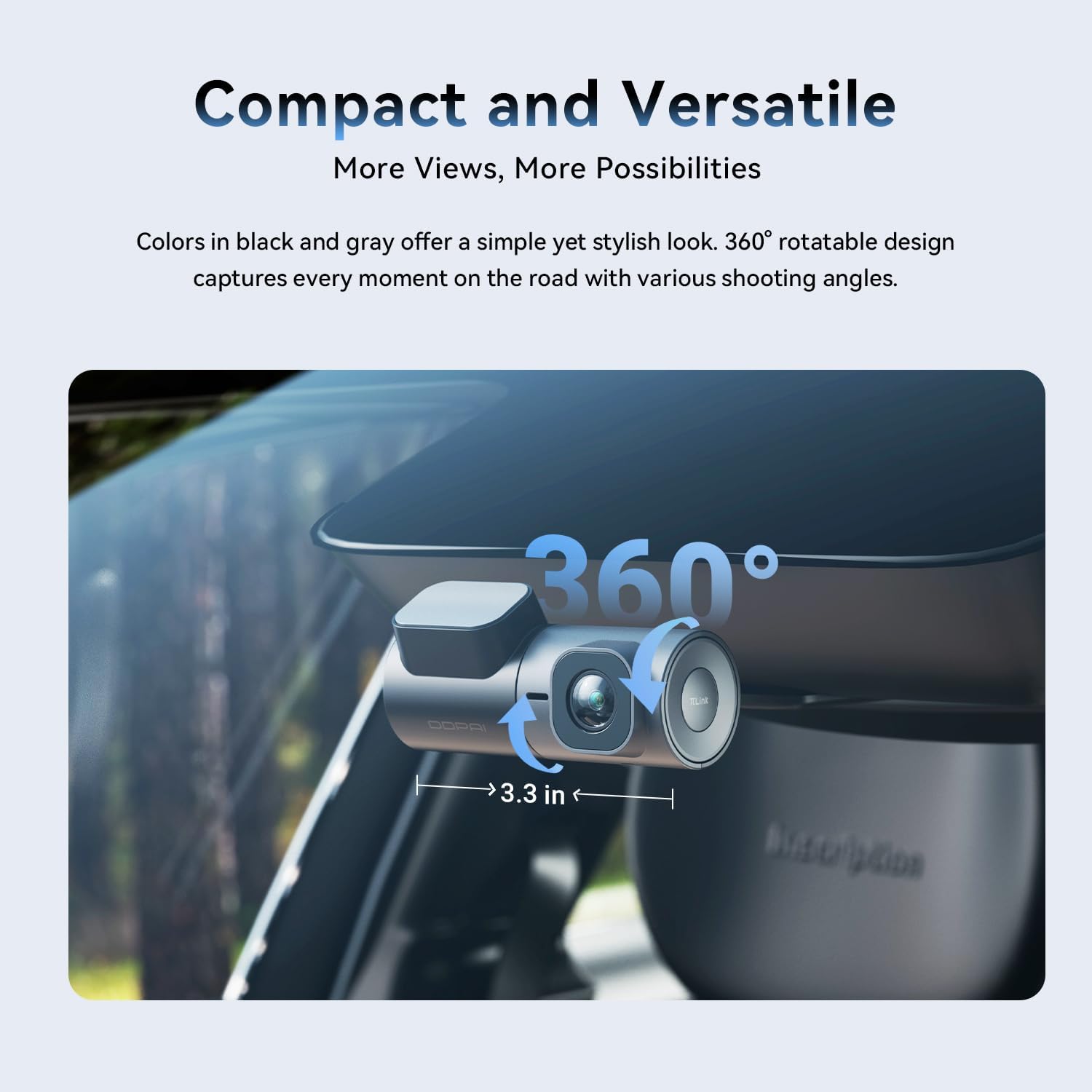

Image: The DDPAI MINI2X Dash Cam is shown mounted on a car's windshield, highlighting its compact design and the flexibility of its 360-degree rotatable lens for various recording angles.
3.2. Power Connection
Connect the provided car charger to your vehicle's cigarette lighter socket and the charging cable to the dash cam's Type-C port. Route the cable neatly along the windshield edge and dashboard using the installation tool to avoid interference with driving.
Image: A detailed view of the DDPAI MINI2X dash cam, highlighting its Type-C power input and indicating support for a maximum 256GB SD card (SD card not included).
3.3. SD Card Insertion
Insert a Class 10 or higher microSD card (up to 256GB, not included) into the designated slot on the dash cam. Ensure it is inserted correctly until it clicks into place.
3.4. App Connection (5G WiFi & Bluetooth)
Download the DDPAI App from your device's app store. Enable Bluetooth and 5GHz WiFi on your smartphone. Open the app and follow the on-screen instructions to connect to your MINI2X dash cam. This allows for live view, video playback, settings adjustment, and firmware updates.
Image: Inside a car, a smartphone displays the DDPAI app interface, demonstrating its connection to the dash cam via 5G WiFi and Bluetooth for fast data transmission and seamless control.
4. Operating Instructions
4.1. Automatic Recording (Loop Recording)
Once powered on, the dash cam automatically begins recording. It uses loop recording, overwriting the oldest files when the SD card is full. Important footage can be protected from being overwritten by the G-sensor or manual lock.
Image: A visual representation of the loop recording feature, showing how older video files are automatically overwritten when the SD card reaches its capacity. It also indicates approximate recording durations for 32GB, 64GB, 128GB, and 256GB SD cards.
4.2. G-Sensor & Collision Lock
The built-in G-sensor detects sudden movements or impacts. In such events, the dash cam automatically locks the current recording, preventing it from being overwritten. This ensures critical evidence is preserved.
Image: This graphic demonstrates the collision lock function, which automatically saves and protects important video footage during sudden impacts, ensuring crucial evidence is retained for accident reports or claims.
4.3. Parking Monitoring (Requires Hardwire Kit)
With an optional hardwire kit (ASIN: B08LL4L87C), the dash cam can monitor your vehicle while parked. It supports AOV low-energy time-lapse recording for up to 8 days and can extend monitoring up to 20 days in sleep mode, waking instantly to capture anomalies.
Image: The DDPAI MINI2X dash cam is depicted with visual cues highlighting its AOV (Always On Vision) parking monitoring capabilities, offering up to 8 days in time-lapse mode and up to 20 days in sleep mode for extended surveillance.
4.4. ADAS (Advanced Driver-Assistance Systems)
The integrated ADAS provides voice alerts for enhanced driving safety. Features include a front vehicle start-moving reminder (alerts when the car ahead moves) and a fatigue driving reminder (suggests taking a rest after continuous driving).
Image: This graphic illustrates the Advanced Driver-Assistance Systems (ADAS) of the DDPAI dash cam, showing alerts for 'Front Vehicle Start' and 'Driver Fatigue' to enhance road safety.
5. Key Features
5.1. True 2K QHD 1440P Resolution
The MINI2X records in 2560*1440P at 30fps, capturing clear and detailed footage, allowing you to easily read license plates and road signs. This high resolution ensures critical details are visible for better security.

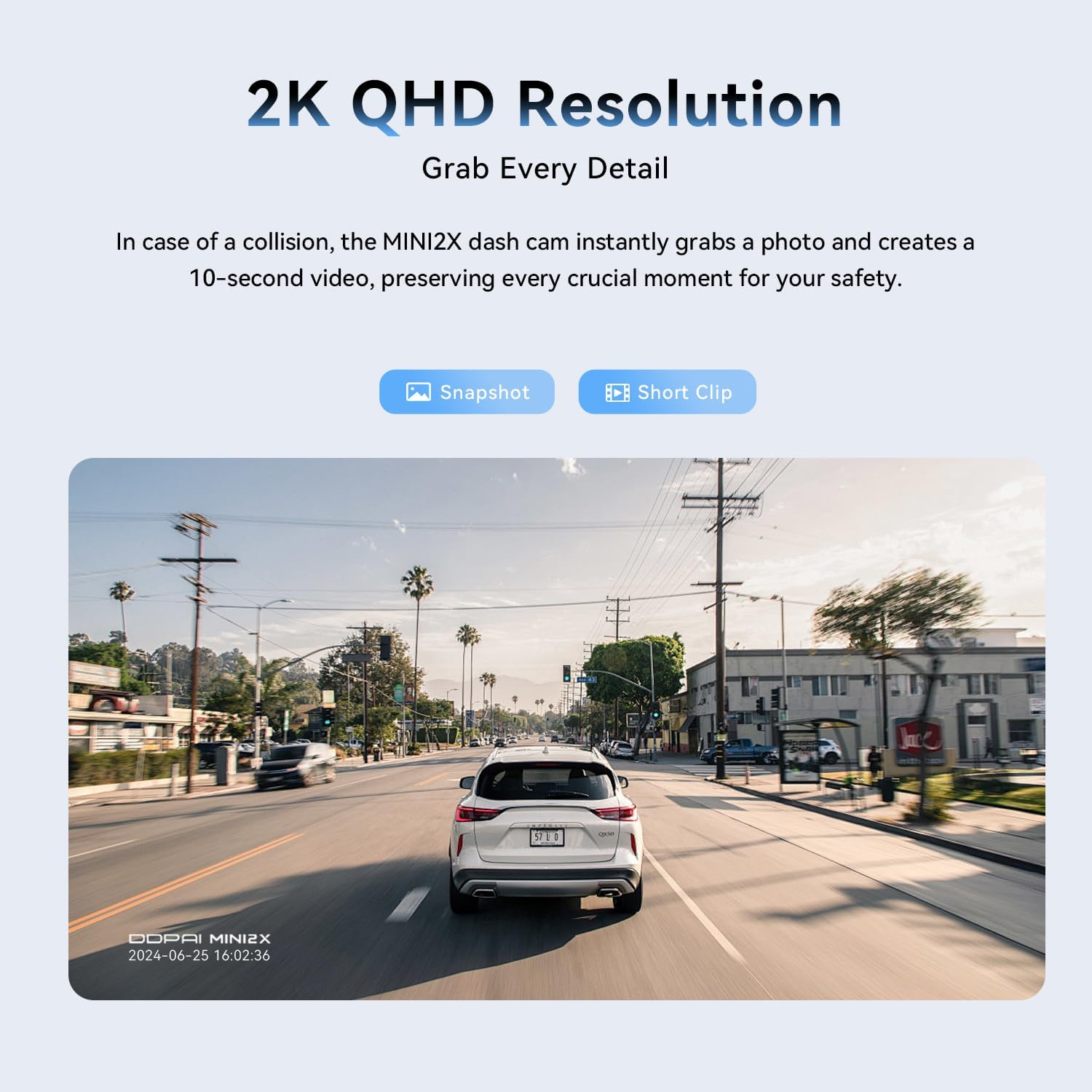

Image: A still image captured by the DDPAI MINI2X dash cam, demonstrating its 2K QHD resolution and the clarity of details, such as a car on the road, which is crucial for capturing important moments.
5.2. 3600 Rotatable Lens
Designed with a 3600 rotatable lens, the dash cam offers flexible shooting angles, allowing you to record the road ahead, the vehicle's interior, or even the sides of your car as needed.

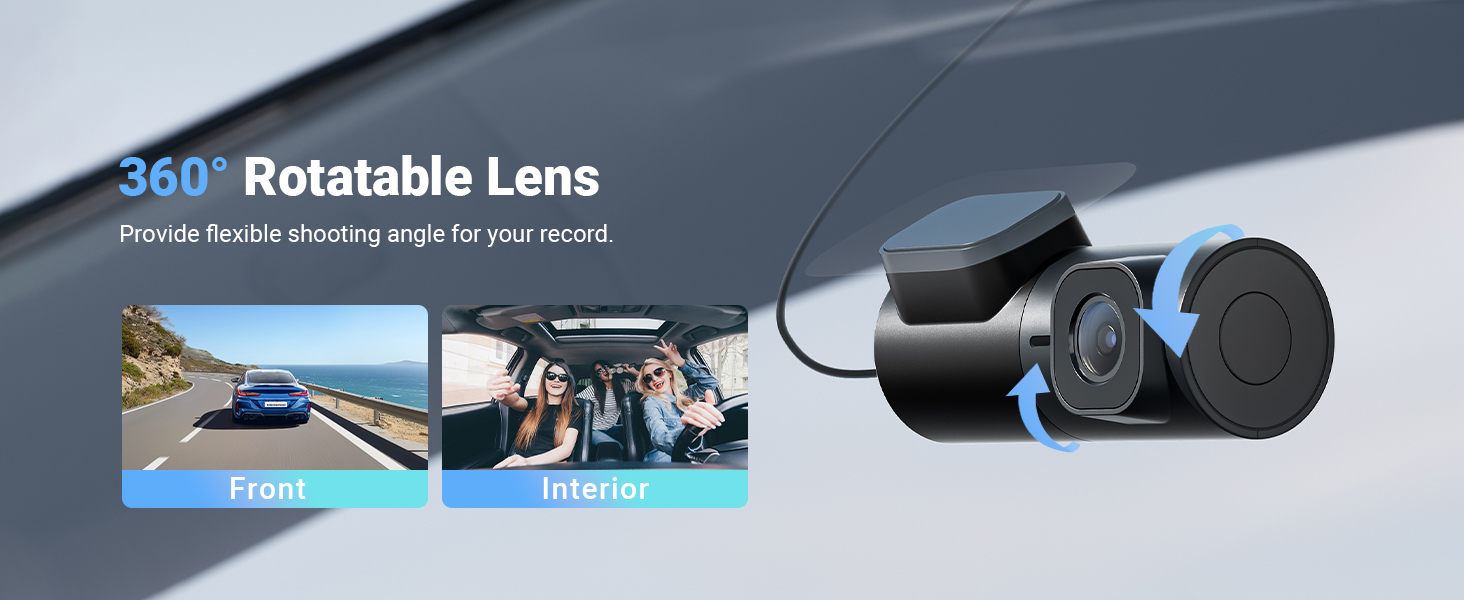

Image: This diagram illustrates the 360-degree rotatable lens feature of the DDPAI dash cam, highlighting its ability to capture both front-facing road views and interior cabin views, providing versatile recording options.
5.3. Super Night Vision 2.0 with AI-ISP
Equipped with the advanced NightVIS Vision2.0 and a large F1.55 aperture, combined with WDR image algorithm technology, the MINI2X significantly improves clarity in low-light conditions, ensuring clear recordings day or night.
Image: A comparison image demonstrating the superior night vision capabilities of the DDPAI MINI2X dash cam, showcasing significantly improved clarity and detail in low-light environments compared to standard night vision.
5.4. Super Capacitor
The dash cam utilizes a super capacitor instead of a traditional battery, providing enhanced durability and reliable performance in extreme temperatures, ranging from -40C to 1580C.

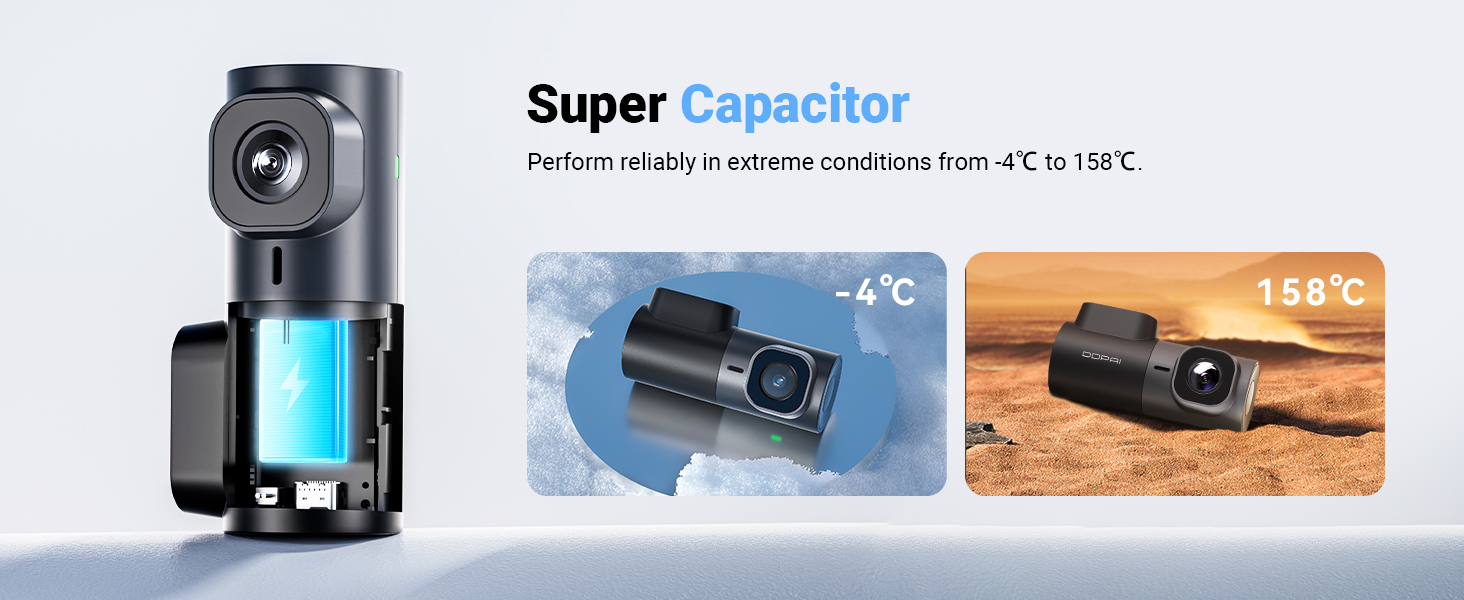

Image: An internal view of the DDPAI dash cam highlighting its super capacitor, along with illustrations demonstrating its reliable operation across a wide temperature range, from -40C to 1580C.
6. Maintenance
6.1. SD Card Formatting
It is recommended to format the microSD card regularly (e.g., once a month) through the DDPAI App to ensure optimal performance and prevent data corruption. This will erase all recorded data, so back up any important files first.
6.2. Cleaning the Lens
Gently wipe the dash cam lens with a soft, lint-free cloth to remove dust or smudges. Avoid using abrasive cleaners or solvents that could damage the lens coating.
6.3. Firmware Updates
Periodically check for firmware updates via the DDPAI App. Keeping your dash cam's firmware up-to-date ensures you have the latest features and performance improvements.
7. Troubleshooting
7.1. Dash Cam Not Powering On
- Ensure the car charger is securely plugged into the cigarette lighter socket and the vehicle's ignition is on.
- Check the charging cable connection to the dash cam.
- Verify the vehicle's cigarette lighter fuse is not blown.
7.2. Poor Video Quality / Blurry Images
- Clean the dash cam lens and the windshield area where the camera is mounted.
- Ensure the protective film has been removed from the lens.
- Check if the resolution settings in the DDPAI App are set to 2K QHD (1440P).
7.3. Wi-Fi Connection Issues
- Ensure your smartphone's Wi-Fi and Bluetooth are enabled.
- Restart both the dash cam (by unplugging and replugging the power) and your smartphone.
- Make sure you are within close proximity to the dash cam.
- If the issue persists, try resetting the dash cam to factory settings via the app (if accessible) or by contacting support.
7.4. Audio Quality Issues
- Check the microphone settings in the DDPAI App to ensure audio recording is enabled.
- Ensure the microphone opening on the dash cam is not obstructed.
- If audio sounds distorted, try updating the firmware.
8. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 4.7 x 5.8 x 2.5 inches |
| Item Weight | 11.6 ounces |
| Model Name | MINI2X |
| Video Capture Resolution | 1440p (2K QHD) |
| Connectivity Technology | Wi-Fi (5GHz) |
| Special Features | App Control, Voice Alert, Parking Monitor, Night Vision, Voice Control, ADAS |
| Mounting Type | Windshield Mount |
| Color | Black |
| Manufacturer | ddpai |
| Country of Origin | China |
| First Available Date | November 18, 2024 |
9. Warranty and Support
9.1. Product Warranty
The DDPAI MINI2X Dash Cam comes with a 12-month warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.
9.2. Customer Support
For any inquiries, technical assistance, or support, please contact DDPAI Customer Support. They respond to inquiries within 24 hours, with live responses often available within an hour during Mon-Fri 5 PM - 11:59 PM PST.
Email: servicecenter@ddpai.com
Image: Information regarding DDPAI's after-sale service, including 18 months warranty, 7 days return policy, return on defects, and quick 24/7 live email customer support at servicecenter@ddpai.com.
