1. Introduction
This manual provides detailed instructions for the safe and efficient use of your WinZo Smart Toilet Model SM8006-2. Please read this manual thoroughly before installation and operation, and retain it for future reference. This smart toilet integrates advanced features such as a built-in bidet, auto flush, heated seat, adjustable temperature, foot sensor, LED night light, and remote control for enhanced comfort and hygiene.
2. Safety Information
- Ensure the power supply is 110V and the outlet is properly grounded.
- Do not immerse the product in water or spray water directly onto electrical components.
- Keep children and individuals with reduced physical, sensory, or mental capabilities under supervision when operating the toilet.
- Disconnect power before cleaning or performing any maintenance.
- Avoid using abrasive cleaners or harsh chemicals that may damage surfaces.
- Ensure all connections are secure to prevent water leakage.
3. Package Contents
Verify that all components are present before beginning installation:
- WinZo Smart Toilet Unit
- Installation Manual
- Remote Control
- Fixing Bolts
- Wax Ring
- Angle Valve
- Water Inlet Pipe
- Constant Flow Valve
4. Installation Guide
Proper installation is crucial for the optimal performance of your smart toilet. Refer to the video below for a visual guide.
Video: WinZo Smart Toilets Installation Guide. This video demonstrates the step-by-step process for installing the smart toilet, including preparing the area, connecting water lines, and securing the unit.
4.1 Preparation
- Clean and Dry Ground: Ensure the installation area is clean and completely dry.
- Check Horizontal Level: Use a level to confirm the ground is horizontal. Verify the sewer pipe is unobstructed.
- Measure Rough-in: Confirm your rough-in measurement is at least 12 inches.
4.2 Angle Valve Installation
- Wrap the raw material belt (Teflon tape) around the threads of the angle valve interface.
- Install the angle valve securely to the water supply line.
- Drain any residual water from the angle valve before proceeding.
- Reinstall the constant flow valve into the angle valve.
- Measure water pressure to ensure it is over 0.14MPa and flow rate over 18L/min.
4.3 Toilet Unit Installation
- Lift the upper half of the toilet unit to access the base.
- Install expansion screws into the floor flange.
- Mount the flange at the drain opening, ensuring it is centered.
- Place the wax ring onto the drain hole of the toilet base.
- Carefully align the toilet unit with the floor flange and screws, ensuring the drain hole is centered.
- Install the flat washer and nut to secure the toilet to the floor.
- Settle the upper part of the toilet onto the base.
- Connect the water inlet pipe to the angle valve. Ensure the braided tube is not bent and check for leaks after opening the angle valve.
- Plug the power cord into a 110V outlet to power on the toilet.
5. Operating Instructions
Your WinZo Smart Toilet offers various intelligent features for a comfortable experience.
5.1 Automatic Functions
- Auto Open: The toilet lid automatically opens when you approach.
- Foot Sensor: A sensor at the base allows for hands-free lid opening or flushing.
- Auto Flush: The toilet flushes automatically after use.
Image: The toilet lid automatically opening, demonstrating the 'Auto Open' feature.
Image: Close-up of the foot sensor located at the base of the toilet.
5.2 Bidet Functions
The built-in bidet offers a luxurious and hygienic cleaning experience with adjustable water temperature and pressure.
- Female Wash: Gentle wash for feminine hygiene.
- Hips Wash: Standard posterior wash.
- Mobile Wash: Oscillating nozzle for wider cleaning.
- Nozzle Self-Cleaning: Automatic cleaning of the bidet nozzle before and after use.
Image: Diagram illustrating the different bidet wash modes and adjustable temperature settings.
5.3 Comfort Features
- Heated Seat: Enjoy a comfortable seat with adjustable temperature settings (93°F, 100°F, 104°F).
- Warm Air Drying: After washing, a warm air dryer activates with adjustable temperature settings (95°F, 113°F, 131°F).
- LED Night Light: A soft LED light illuminates the bowl for nighttime use.
- Soft Close Mechanism: The lid and seat close gently and quietly.
Image: Visual representation of the heated seat and warm air drying functions.
Image: The toilet bowl illuminated by the LED night light.
5.4 Control Methods
- Remote Control: Use the wireless remote to access all functions.
- Side Touch Buttons: Convenient buttons located on the side of the toilet for essential functions.
Image: Close-up of the LED display and side controls on the smart toilet.
6. Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your WinZo Smart Toilet.
- Exterior Cleaning: Wipe the exterior surfaces with a soft, damp cloth and mild, non-abrasive cleaner.
- Bowl Cleaning: Use a standard toilet bowl cleaner and brush for the interior of the bowl.
- Nozzle Cleaning: The bidet nozzle has a self-cleaning function. For manual cleaning, gently pull out the nozzle and wipe with a soft cloth. Do not use harsh chemicals.
- Filter Maintenance: Periodically check and clean the water inlet filter to prevent blockages.
- Power Disconnection: Always unplug the toilet from the power outlet before performing any deep cleaning or maintenance.
7. Troubleshooting
If you encounter issues with your WinZo Smart Toilet, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/functions unresponsive | Power cord unplugged, circuit breaker tripped, remote control batteries low. | Check power connection, reset breaker, replace remote batteries. |
| Water leakage | Loose connections, damaged seals. | Tighten water inlet pipe connections, inspect wax ring and seals. Contact support if issue persists. |
| Bidet not spraying or weak spray | Water supply valve closed, nozzle blocked, water pressure too low. | Ensure angle valve is fully open, clean bidet nozzle, check household water pressure. |
| Heated seat not working | Feature not activated, temperature setting too low. | Activate heated seat function via remote/side panel, adjust temperature setting. |
| Auto flush not working | Sensor obstruction, manual flush activated. | Ensure sensors are clean and unobstructed. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact WinZo customer support.
8. Specifications
Key technical specifications for the WinZo Smart Toilet Model SM8006-2:
- Model Number: SM8006-2
- Color: White
- Product Dimensions: 26.75"D x 16"W x 20"H
- Material: Porcelain (toilet), Acrylonitrile Butadiene Styrene (ABS) (seat)
- Item Weight: 90 Pounds
- Installation Type: Floor Mounted
- Shape: Oval
- Rough-in: Standard 12"
- Power Requirement: 110V

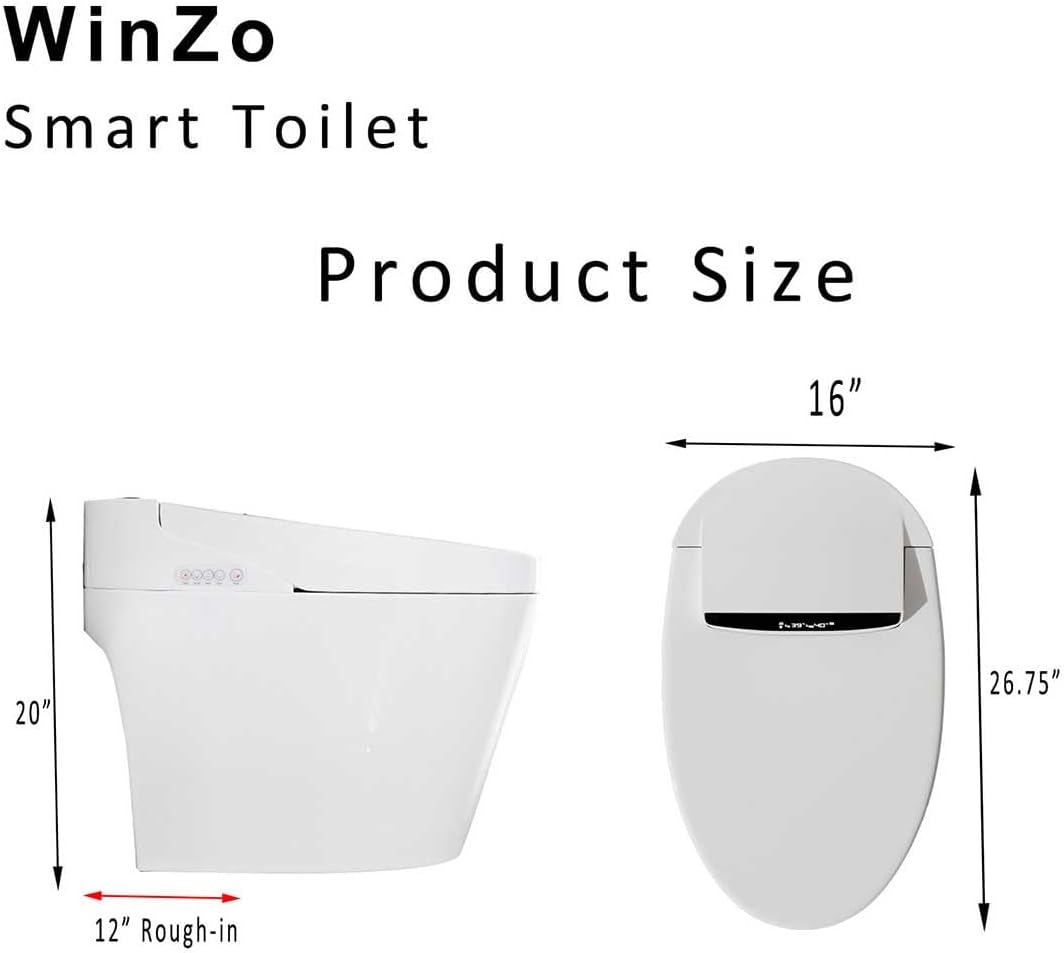

Image: Diagram showing the dimensions of the WinZo Smart Toilet, including depth, width, height, and rough-in measurement.
9. Warranty and Support
For warranty information, product support, or to purchase replacement parts, please contact WinZo customer service. Details can typically be found on the WinZo official website or through your purchase documentation.
Customer Support: Refer to your purchase platform or the WinZo brand store for contact information.
