Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your KINYING Outdoor Vertical Storage Shed (Model KY-TA01L). Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information
Always follow basic safety precautions when assembling and using this product to reduce the risk of injury or damage.
- Ensure all parts are present and undamaged before assembly.
- Assemble on a flat, level surface.
- Wear appropriate safety gear, such as gloves, during assembly.
- Do not overload the shed. Distribute weight evenly.
- Keep children and pets away from the assembly area.
- Secure the shed to the ground to prevent tipping in high winds (anchoring hardware not included).
Setup and Assembly
The KINYING Outdoor Vertical Storage Shed is designed for straightforward assembly. It is recommended that 1-2 people complete the assembly within approximately 1 hour. Refer to the detailed installation manual included with your product for step-by-step instructions and diagrams.
Package Contents
Your shed will arrive in 3 separate packages (Carton A, Carton B, and Carton C). Ensure all packages have been received before starting assembly. Verify all components against the parts list in your installation manual.
Assembly Steps Overview
- Prepare the Site: Choose a flat, level, and stable surface for the shed. Clear any debris or obstacles.
- Unpack Components: Carefully unpack all parts and lay them out according to the installation manual's diagrams.
- Assemble Base: Construct the base frame and floor panels as per instructions.
- Install Wall Panels: Attach the multi-wall side and back panels to the base. Ensure panels are securely interlocked.
- Attach Roof: Secure the roof panels to the top of the wall structure.
- Install Doors: Mount the hinged doors. Pay close attention to the alignment for proper closing and locking.
- Final Checks: Ensure all screws and fasteners are tightened, and the shed is stable.
Image: The KINYING Outdoor Vertical Storage Shed (Gray, 57 Cu.ft) fully assembled and placed outdoors.

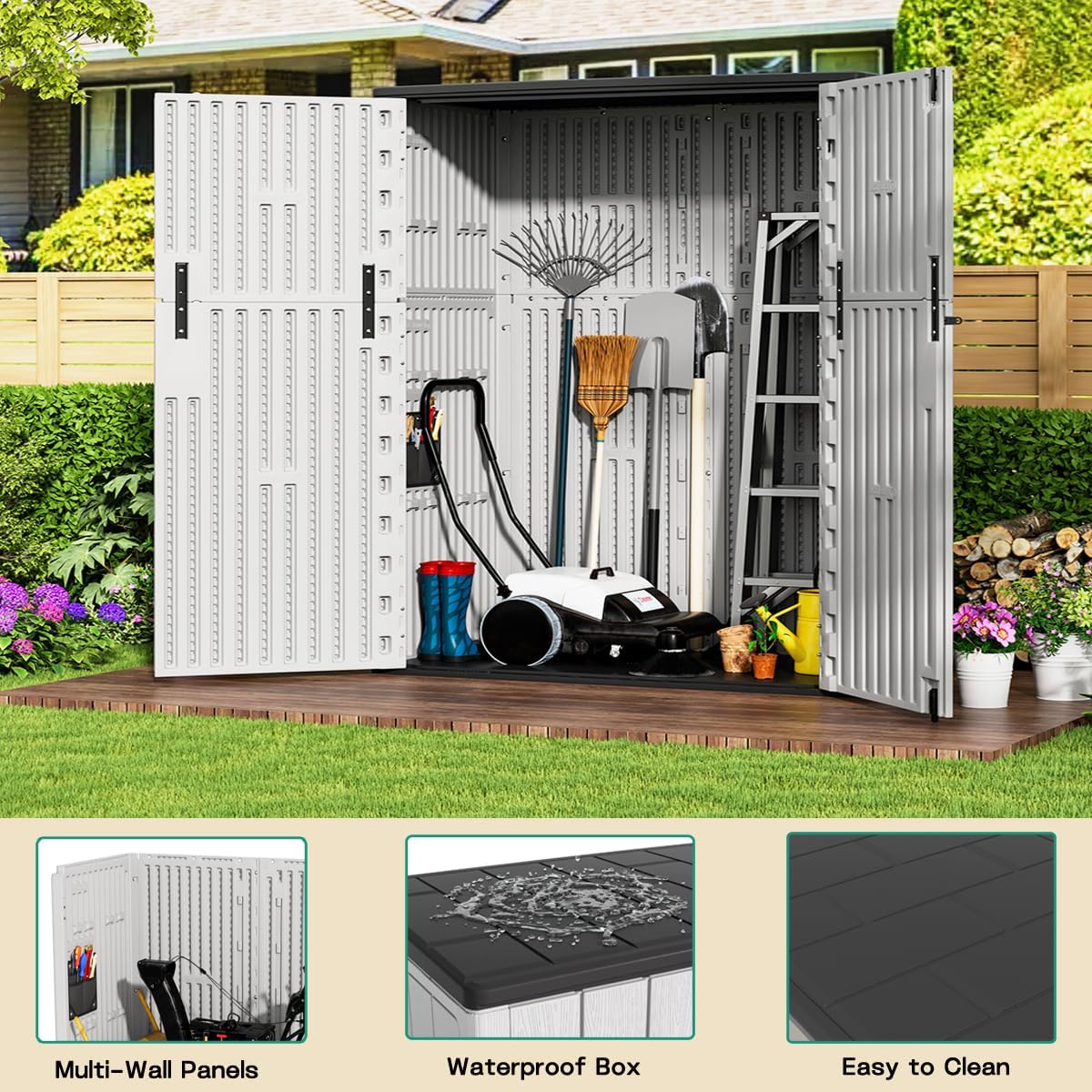

Image: Interior view of the KINYING shed showing various garden tools and equipment stored neatly.
Operation
Opening and Closing Doors
The shed features double hinged doors for easy access. To open, disengage the padlock latch (if locked) and the step-on lock at the bottom. Pull the handles to open the doors. To close, push the doors firmly until they meet, engage the step-on lock, and secure with a padlock (not included) through the padlock latch.
Image: Detail of the padlock latch mechanism on the shed door, designed for secure storage.
Image: Detail of the step-on lock located at the bottom of the shed door, ensuring doors remain closed.
Storage Capacity and Organization
The shed offers 57 cubic feet of storage space, suitable for various outdoor items such as lawn mowers, garden tools, patio furniture cushions, and pool accessories. For enhanced organization, customized shelves can be added (sold separately). The shed is designed to accommodate up to 6 shelves.
Image: Interior of the shed demonstrating how optional shelves can be installed to organize smaller items.
Image: The shed storing a paddleboard, inflatable unicorn, and other pool accessories, showcasing its vertical storage capability.
Maintenance
The KINYING storage shed is constructed from High-Density HDPE Resin, making it weather-resistant, UV protected, and easy to clean. Regular maintenance will ensure its longevity and appearance.
- Cleaning: Wipe down the exterior and interior surfaces with a damp cloth and mild soap as needed. Rinse thoroughly with water. Avoid abrasive cleaners or harsh chemicals.
- Weather Resistance: The HDPE resin material is designed to resist fading, peeling, and rotting. Periodically inspect the shed for any signs of wear or damage, especially after severe weather.
- Door Mechanisms: Ensure the door hinges, padlock latch, and step-on lock operate smoothly. Lubricate with a silicone-based spray if necessary.
- Stability: Regularly check that the shed remains stable and securely anchored to the ground, especially in areas prone to high winds.
Video: Demonstrates the waterproof design and easy cleaning process of the KINYING Vertical Shed.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not close or align properly. | Uneven assembly surface; hinges not aligned; panels not fully engaged. | Ensure the shed is on a level surface. Check hinge alignment and adjust if necessary. Verify all wall panels are securely connected. |
| Water leakage inside the shed. | Improper roof installation; damaged seals; gaps in panel connections. | Inspect roof panels for proper seating and sealing. Check all panel connections for gaps and ensure they are fully engaged. Apply silicone sealant to any persistent gaps if needed. |
| Shed feels unstable or flimsy. | Not properly anchored; loose connections; uneven ground. | Ensure the shed is anchored to the ground using appropriate hardware (not included). Tighten all screws and fasteners. Verify the shed is on a firm, level surface. |
| Difficulty with padlock latch or step-on lock. | Misalignment; debris in mechanism; lack of lubrication. | Check for any obstructions. Ensure doors are properly aligned. Apply a small amount of silicone lubricant to the moving parts. |
Specifications
| Feature | Detail |
|---|---|
| Brand | KINYING |
| Model Number | KY-TA01L |
| Color | Gray |
| External Dimensions (D x W x H) | 27.6"D x 51.6"W x 69"H |
| Internal Dimensions (W x D x H) | 49.2"W x 25"D x 67"H |
| Storage Capacity | 57 Cu.ft |
| Item Weight | 110 Pounds |
| Material | High Density Polyethylene (HDPE) Resin, Metal Frame |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Door Style | Single Hinged, Lockable |
| Assembly Required | Yes |
Image: Dimensional diagram illustrating the external and internal measurements of the 57 Cu.ft shed.
Warranty and Support
Warranty Information
Specific warranty details for the KINYING Outdoor Vertical Storage Shed are not provided in this manual. Please refer to the product packaging or contact KINYING customer support for information regarding warranty coverage and terms.
Customer Support
For any questions, missing parts, or assistance with assembly or operation, please contact KINYING customer support. Contact information can typically be found on the product packaging, the manufacturer's website, or through your retailer.
