User Manual: Meat Grinder Screw Auger Sleeve Replacement Parts

Introduction

This manual provides essential information for the installation, maintenance, and proper use of your new Generic Meat Grinder Screw Auger Sleeve Replacement Parts. These parts are specifically designed to be compatible with Cabela's Heavy Duty Meat Grinder model 33-0101-C. Please read this manual thoroughly before attempting any installation or use to ensure optimal performance and longevity of the replacement parts.

Important Notice

Attention!

Before placing an order or attempting installation, please carefully identify and record the BRAND name and MODEL number of your meat grinder machine.

You will typically find this information displayed separately or together on the outer exterior surface of your machine. This can be an adhesive decal, an ink stamp, or an embedded impression located on the sides, on the bottom, or on the push-button control panel.

Tip: For detailed visual instructions on how to properly replace similar components, we recommend searching for relevant videos on platforms like YouTube or Google. Search terms like "Cabela's 33-0101-C auger sleeve replacement" may be helpful.

Image: Important notice regarding model identification.

Product Overview

The Generic Meat Grinder Screw Auger Sleeve is a crucial component designed to ensure the smooth operation of your meat grinder's auger. This package includes two (2) replacement sleeves, providing a spare or allowing for replacement of multiple worn parts.

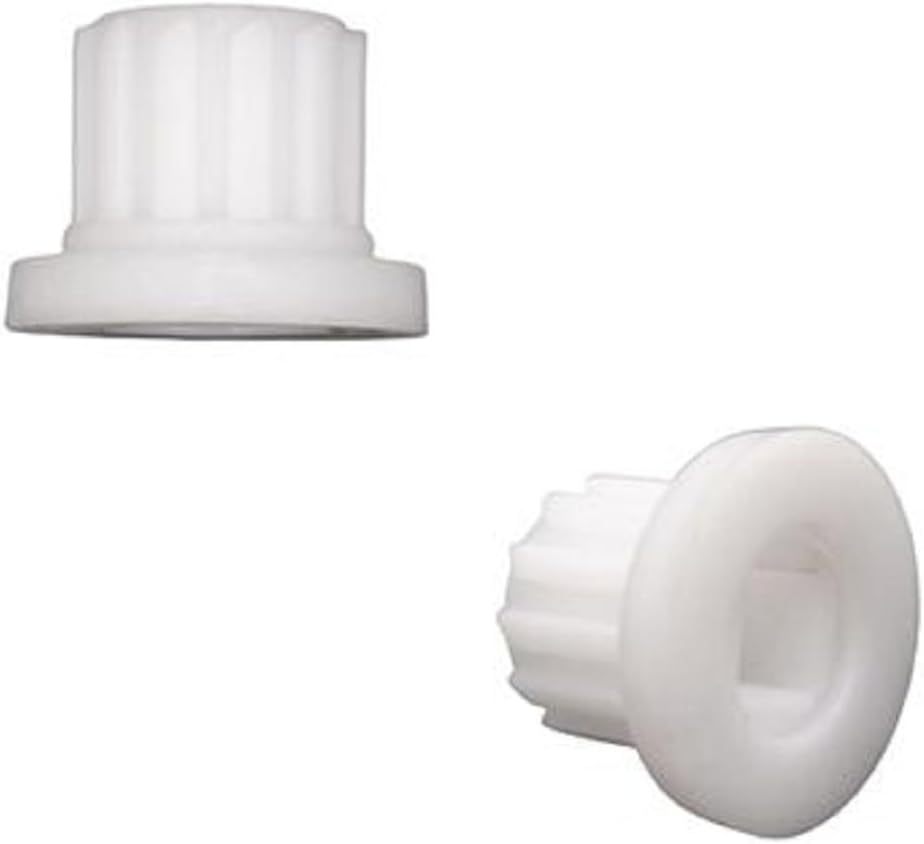

Image: Two Generic Meat Grinder Screw Auger Sleeves. These white plastic components are designed to fit the auger shaft of compatible meat grinders.

Image: Detailed dimensions of the screw auger sleeve. Key measurements include 25mm, 33mm, and 23.5mm, indicating the part's size for compatibility verification.

Setup and Installation

Replacing the screw auger sleeve requires careful attention to your meat grinder's specific design. While the exact steps may vary slightly by model, the general procedure involves accessing the auger assembly.

1. Safety First: Always ensure your meat grinder is unplugged from the power source before beginning any maintenance or replacement procedures.
2. Disassembly: Refer to your meat grinder's original instruction manual for specific disassembly steps. Typically, this involves removing the grinding head, auger, and any retaining components that secure the auger sleeve.
3. Remove Old Sleeve: Carefully remove the old or damaged screw auger sleeve. Note its orientation and how it was seated.
4. Install New Sleeve: Place the new Generic screw auger sleeve onto the auger shaft, ensuring it seats correctly and securely. The sleeve should fit snugly without excessive force.
5. Reassembly: Reassemble your meat grinder by reversing the disassembly steps. Ensure all parts are securely fastened and correctly aligned.
6. Test: Once reassembled, perform a brief test run without meat to ensure the auger rotates smoothly and there are no unusual noises or vibrations.

If you encounter difficulty, consult your meat grinder's original manual or search for instructional videos specific to your Cabela's 33-0101-C model.

Operating with New Sleeve

Once the new screw auger sleeve is installed, the operation of your meat grinder should return to its intended performance. The sleeve ensures proper alignment and smooth rotation of the auger within the grinder housing.

• Ensure the sleeve is fully seated before operating the grinder.
• Listen for any unusual sounds during operation, which might indicate improper installation or a misaligned component.
• Always follow the safety guidelines provided in your meat grinder's original manual.

Maintenance

Proper maintenance of the screw auger sleeve will extend its lifespan and ensure consistent performance of your meat grinder.

• Cleaning: After each use, disassemble the grinding head and remove the auger and sleeve. Wash the sleeve with warm, soapy water. Use a soft brush if necessary to remove any food residue.
• Rinsing: Rinse thoroughly to remove all soap residue.
• Drying: Dry the sleeve completely before reassembly or storage. Air drying is recommended, or use a soft cloth. Ensure no moisture remains to prevent potential issues.
• Inspection: Periodically inspect the sleeve for signs of wear, cracks, or damage. Replace the sleeve if any damage is observed to prevent damage to other grinder components or compromised performance.
• Storage: Store the sleeve in a clean, dry place when not in use.

Troubleshooting

If you encounter issues after installing the new screw auger sleeve, consider the following:

• Sleeve Does Not Fit:
  • Double-check that your meat grinder is indeed the Cabela's 33-0101-C model. Refer to the "Important Notice" section for guidance on locating your model number.
  • Ensure the sleeve is oriented correctly.
• Grinder Not Operating Smoothly / Unusual Noise:
  • Verify that the sleeve is fully seated and not obstructed.
  • Ensure all other components of the grinding head (auger, blade, plate, locking ring) are correctly assembled and tightened according to your grinder's manual.
  • Check for any foreign objects or food blockages within the grinding head.
• Sleeve Appears Damaged After Installation:
  • This could indicate improper installation or a pre-existing issue with another part of the grinder causing undue stress on the sleeve. Re-examine the entire assembly.

If problems persist, it is advisable to consult a qualified technician or the manufacturer of your meat grinder.

Specifications

Warranty and Support

As these are replacement parts, specific warranty information may vary. Please refer to the original purchase documentation or contact the seller directly for details regarding warranty coverage for these replacement screw auger sleeves.

For technical support related to the installation or compatibility of these parts, it is recommended to consult the manufacturer of your Cabela's meat grinder or a qualified appliance repair technician.
