CXRCY 8" x 12" Mini Benchtop Wood Lathe Instruction Manual

1. Introduction

Thank you for choosing the CXRCY 8" x 12" Mini Benchtop Wood Lathe. This machine is designed for precision woodworking and woodturning tasks, offering variable speed control for a wide range of applications. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting to ensure optimal performance and longevity of your tool.

2. Safety Instructions

Operating any power tool requires adherence to strict safety guidelines to prevent injury. Please read and understand all safety instructions before operating the wood lathe.

• Personal Protective Equipment: Always wear safety goggles or a face shield to protect your eyes from flying wood chips and debris. Hearing protection is recommended.
• Work Area: Ensure your work area is clean, well-lit, and free from clutter. Keep children and bystanders at a safe distance.
• Machine Stability: Securely mount the lathe to a sturdy workbench to prevent movement during operation.
• Workpiece Security: Always ensure the workpiece is properly secured between centers or to the faceplate before starting the lathe.
• Tool Rests: Position tool rests as close as possible to the workpiece without touching it. Adjust the tool rest height to be slightly above the center line of the workpiece.
• Speed Control: Start with a lower speed and gradually increase it as needed. Always adjust speed before the workpiece contacts the cutting tool.
• Power Disconnection: Disconnect the power supply before performing any adjustments, maintenance, or when changing accessories.
• Emergency Stop: Familiarize yourself with the location and operation of the emergency stop switch.

3. Package Contents

Verify that all items listed below are included in your package. If any parts are missing or damaged, contact customer support.

Image: The CXRCY Mini Benchtop Wood Lathe shown with all included accessories, such as tool rests, chisel, goggles, and wrenches.

• 1x CXRCY Benchtop Wood Lathe
• 1x Safety Goggle
• 1x 16.7-inch HSS Lathe Chisel
• 1x Knockout Rod
• 1x Open End Wrench
• 1x Allen Key
• 2x Solid Tool Rests (4.3-inch and 7-inch)
• 1x 6-inch Faceplate
• 1x 1"-8TPI Spur Center
• 1x MT1 Live Center
• 1x Instruction Manual (this document)

4. Product Overview and Components

Familiarize yourself with the main components of your CXRCY wood lathe.

Image: A diagram highlighting key features such as the safety switch, motor, tool rests, and quick-adjust tailstock.

• Headstock: Contains the motor and spindle, providing power to rotate the workpiece.
• Tailstock: Supports the opposite end of the workpiece, adjustable for length and precision. Features a quick-adjust mechanism.
• Bed: The main frame connecting the headstock and tailstock, providing stability.
• Tool Rests: Adjustable supports for guiding your cutting tools. Two sizes (4.3" and 7") are included for versatility.
• Spindle: The rotating shaft in the headstock where the spur center or faceplate is attached.
• Spur Center: Used in the headstock to drive the workpiece.
• Live Center: Used in the tailstock to support the workpiece while allowing it to rotate freely.
• Faceplate: A circular plate used for turning bowls or other workpieces that cannot be mounted between centers.
• Safety Switch: Power switch with a removable key for added safety, preventing unintentional operation.
• Variable Speed Control: Allows adjustment of spindle speed from 750 to 3200 RPM.

5. Setup

Proper setup is crucial for safe and effective operation.

5.1. Unpacking and Inspection

1. Carefully remove all components from the packaging.
2. Inspect all parts for any shipping damage. Report any damage to your supplier immediately.
3. Clean any protective oils or grease from the machine surfaces.

5.2. Bench Mounting

The lathe must be securely fastened to a stable workbench to prevent tipping or movement during operation. Use appropriate bolts and washers (not included) to secure the lathe through the mounting holes in its base.

5.3. Installing the Faceplate

The 6-inch faceplate is used for turning workpieces that cannot be held between centers, such as bowls. Ensure the lathe is unplugged before installation.

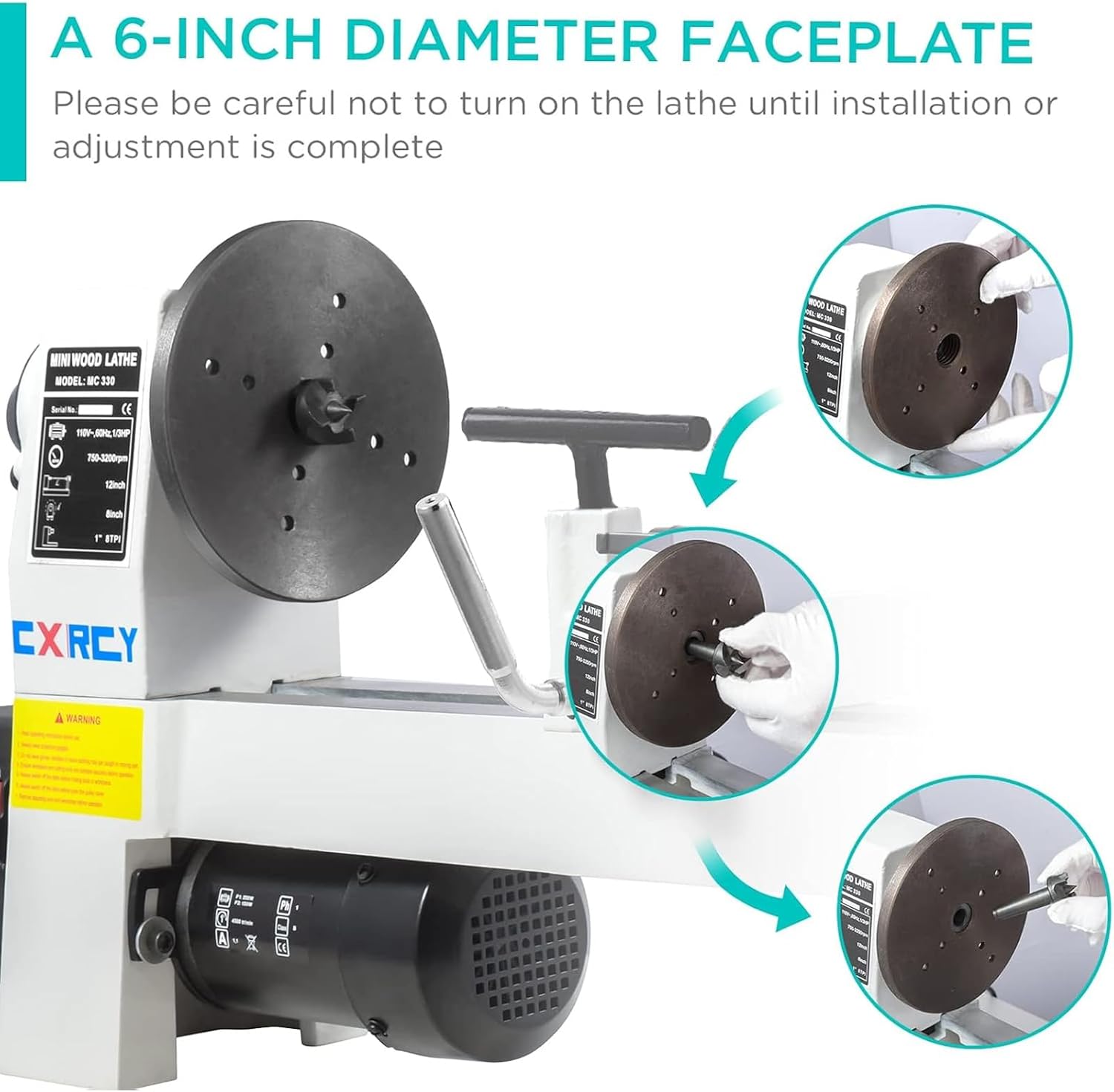

Image: A visual guide demonstrating the process of attaching the 6-inch faceplate to the headstock spindle.

1. Ensure the spindle is clean and free of debris.
2. Thread the faceplate onto the headstock spindle until it is hand-tight.
3. Use the provided wrench to fully tighten the faceplate, ensuring it is secure.

5.4. Installing Tool Rests

The tool rests provide support for your turning tools. Two sizes are included for different turning needs.

Image: Detail of the tool rest assembly, showing how it can be adjusted and secured.

1. Insert the post of the desired tool rest into the tool rest base.
2. Position the tool rest base on the lathe bed and secure it using the locking handle.
3. Adjust the height and angle of the tool rest to suit your workpiece and turning operation. Ensure it is locked firmly before use.

5.5. Power Connection

Connect the lathe to a standard 110V AC power outlet. Ensure the power switch is in the "OFF" position before plugging in the machine.

6. Operating Instructions

This section outlines the basic steps for operating your wood lathe.

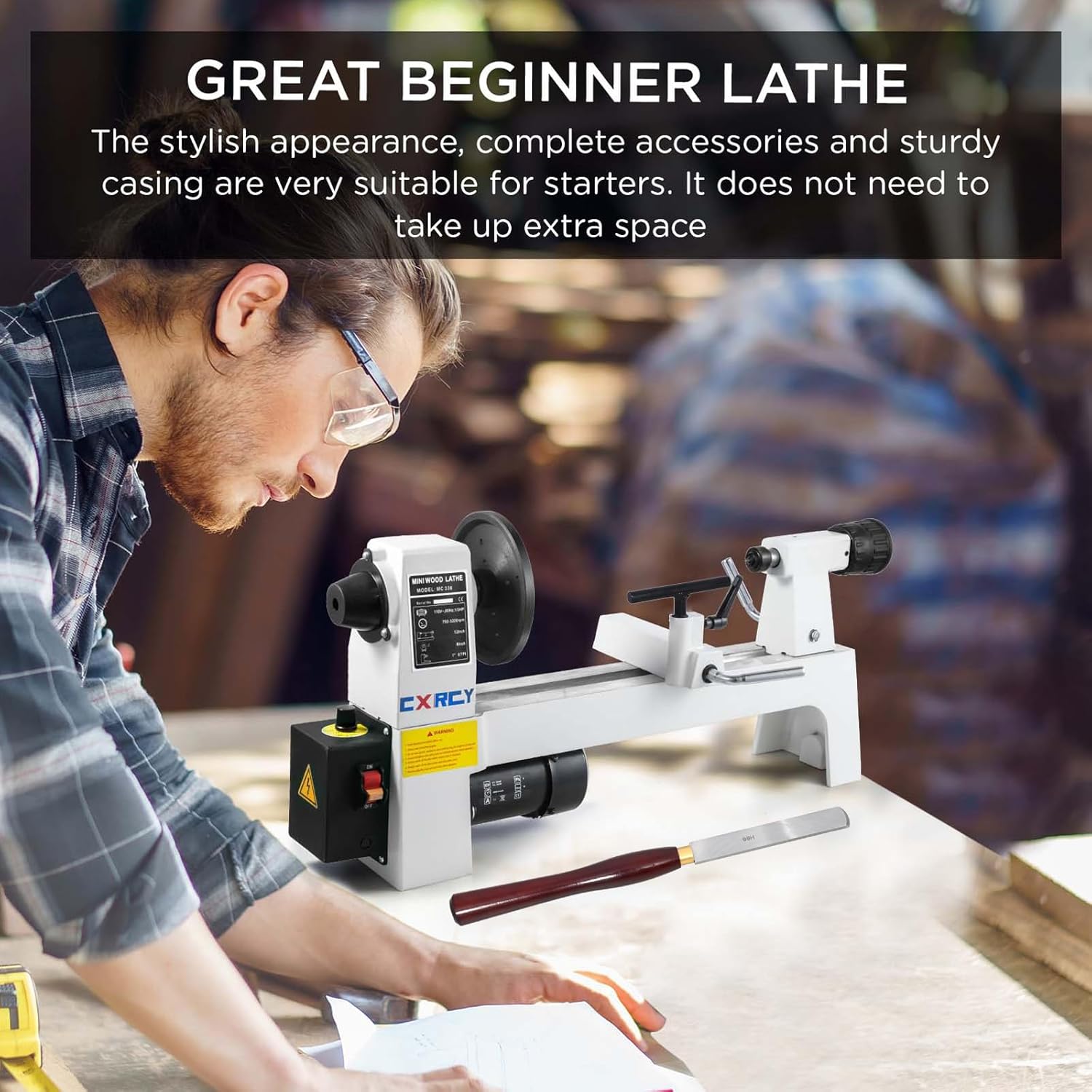

Image: A user wearing safety glasses, demonstrating the use of the wood lathe for a turning project.

6.1. Mounting a Workpiece Between Centers

1. Prepare your workpiece by marking its center points on both ends.
2. Insert the spur center into the headstock spindle.
3. Insert the live center into the tailstock spindle.
4. Position the workpiece between the spur center and the live center.
5. Advance the tailstock spindle until the live center firmly engages the workpiece. Lock the tailstock in place.
6. Ensure the workpiece rotates freely by hand before powering on the lathe.

Image: Detailed view of the spur center and live center, essential components for securing a workpiece for turning.

6.2. Mounting a Workpiece on the Faceplate

1. Securely attach the workpiece to the faceplate using screws (not included) that are appropriate for the wood type and size. Ensure screws do not protrude through the workpiece.
2. Mount the faceplate with the workpiece onto the headstock spindle as described in Section 5.3.
3. Ensure the workpiece is balanced and securely fastened before operation.

6.3. Adjusting Speed

The CXRCY wood lathe features infinitely variable speed control from 750 to 3200 RPM. Use the speed control knob to adjust the rotational speed. Always adjust the speed while the lathe is running, and start at a lower speed for roughing cuts or unbalanced workpieces.

6.4. Turning Operation

1. Ensure all safety precautions are followed, including wearing safety goggles.
2. Position the tool rest approximately 1/8 inch (3mm) from the workpiece and slightly above its center line.
3. Turn on the lathe using the safety switch.
4. Using the HSS lathe chisel, gently bring the cutting edge into contact with the rotating workpiece. Apply steady, controlled pressure.
5. Move the tool smoothly along the tool rest to shape the wood.
6. Periodically stop the lathe to check your progress and adjust the tool rest as needed.
7. When finished, turn off the lathe and allow the workpiece to stop completely before removing it.

7. Maintenance

Regular maintenance ensures the longevity and safe operation of your wood lathe.

• Cleaning: After each use, disconnect the power and clean wood chips and dust from the lathe bed, headstock, and tailstock using a brush or vacuum. Avoid using compressed air as it can force dust into bearings.
• Lubrication: Periodically apply a light machine oil to the tailstock spindle and other moving parts to ensure smooth operation.
• Inspection: Regularly inspect all fasteners for tightness. Check the power cord for any signs of damage.
• Tool Sharpening: Keep your lathe chisels sharp for efficient and safe cutting. Dull tools can cause kickback and poor results.

8. Troubleshooting

This section addresses common issues you might encounter.

9. Specifications

Technical specifications for the CXRCY 8" x 12" Mini Benchtop Wood Lathe.

Image: A diagram illustrating key product parameters such as motor power, voltage, speed range, and dimensions.

10. Warranty and Support

Information regarding product warranty and customer support was not provided in the available data. Please refer to the product packaging or the manufacturer's official website for details on warranty coverage and how to contact customer service for assistance.
